◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#41558) — 114 parça

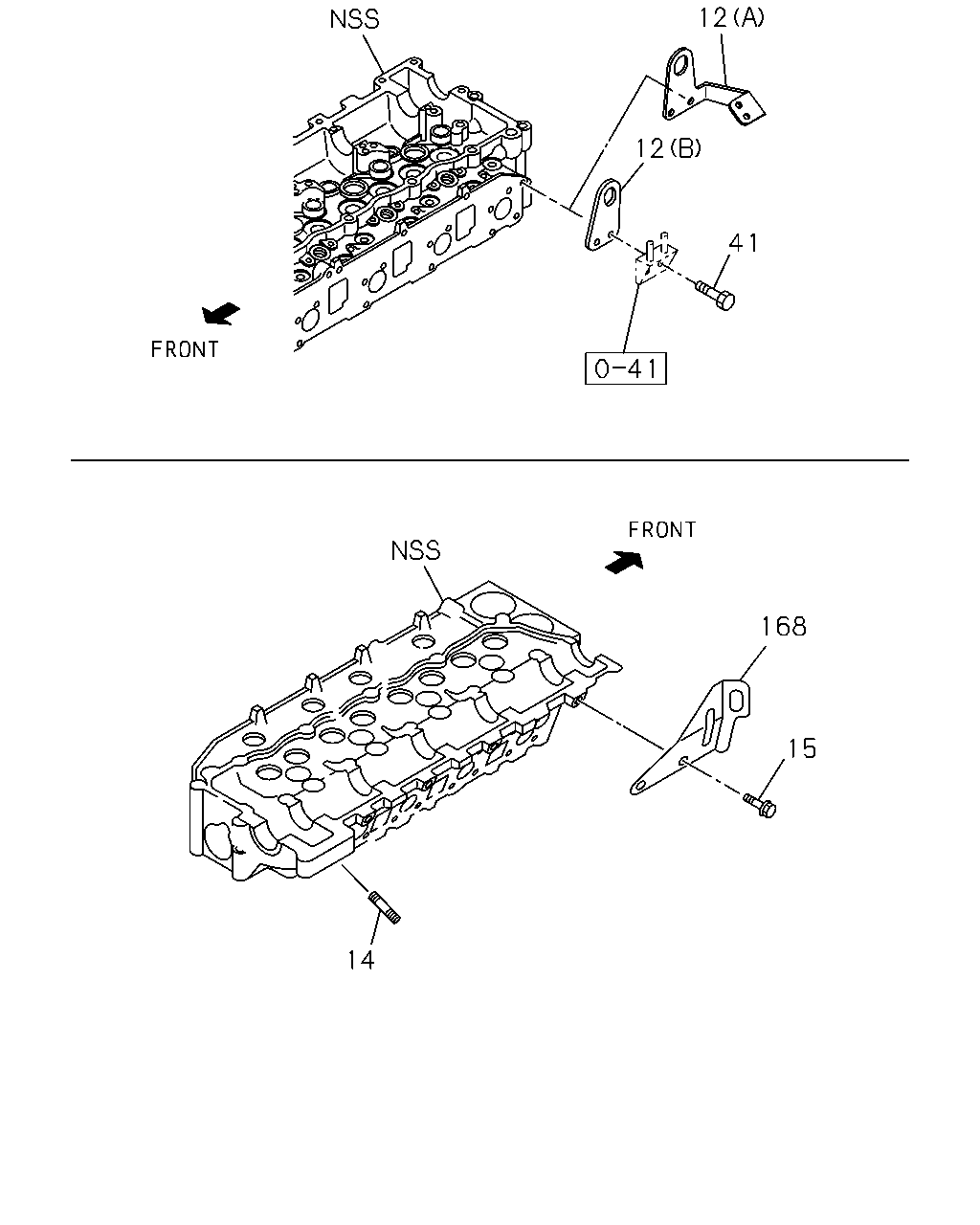

çizim 9490
12 12 41 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
12 00.004 HANGER; ENG,RR
TURBOCHARGER(K51) (A) 		8-97210-326-0 01 1 9811- ●
12 00.004 HANGER; ENG,RR
EXC. TURBOCHARGER(K51) (B) 		8-97071-960-0 01 1 9811-0105 ●
12 00.004 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 9811-0105 ●
12 00.004 HANGER; ENG,RR
EXC. TURBOCHARGER(K51) (B) 		8-97071-960-0 01 1 0106-0207 ●
12 00.004 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 0106-0207 ●
12 00.004 HANGER; ENG,RR
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (B) 		8-97071-960-0 01 1 0106-0207 ●
12 00.004 HANGER; ENG,RR
EXC. TURBOCHARGER(K51) (B) 		8-97071-960-0 01 1 0208- ●
12 00.004 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 0208- ●
12 00.004 HANGER; ENG,RR
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B) 		8-97071-960-0 01 1 0208- ●
12 00.004 HANGER; ENG,RR
EXC. CHARGE AIR COOLER<6PL> (B) 		8-97171-404-0 01 1 9811- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9811- ● ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811- ● ● ●
41 09.181 BOLT; ENG HANGER
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811-0002 ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811-0002 ●
41 09.181 BOLT; ENG HANGER
EXC. CHARGE AIR COOLER<6PL> 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9811-0002 ●
41 09.181 BOLT; ENG HANGER
TURBOCHARGER(K51) 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0003- ●
41 09.181 BOLT; ENG HANGER
EXC. CHARGE AIR COOLER<6PL> 04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0003- ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0003-0105 ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0106-0207 ●
41 09.181 BOLT; ENG HANGER
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0106-0207 ●
41 09.181 BOLT; ENG HANGER
ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0208- ●
41 09.181 BOLT; ENG HANGER
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0208- ●
168 00.004 HANGER; ENG,FRT
TURBOCHARGER(K51) 		8-97200-618-1 01 1 9811- ●
168 00.004 HANGER; ENG,FRT
EXC. TURBOCHARGER(K51) 		8-97104-515-1 01 1 9811-0001 ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9811-0001 ● ●
168 00.004 HANGER; ENG,FRT
EXC. TURBOCHARGER(K51) 		8-97127-373-0 01 1 0002- ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0002- ● ●

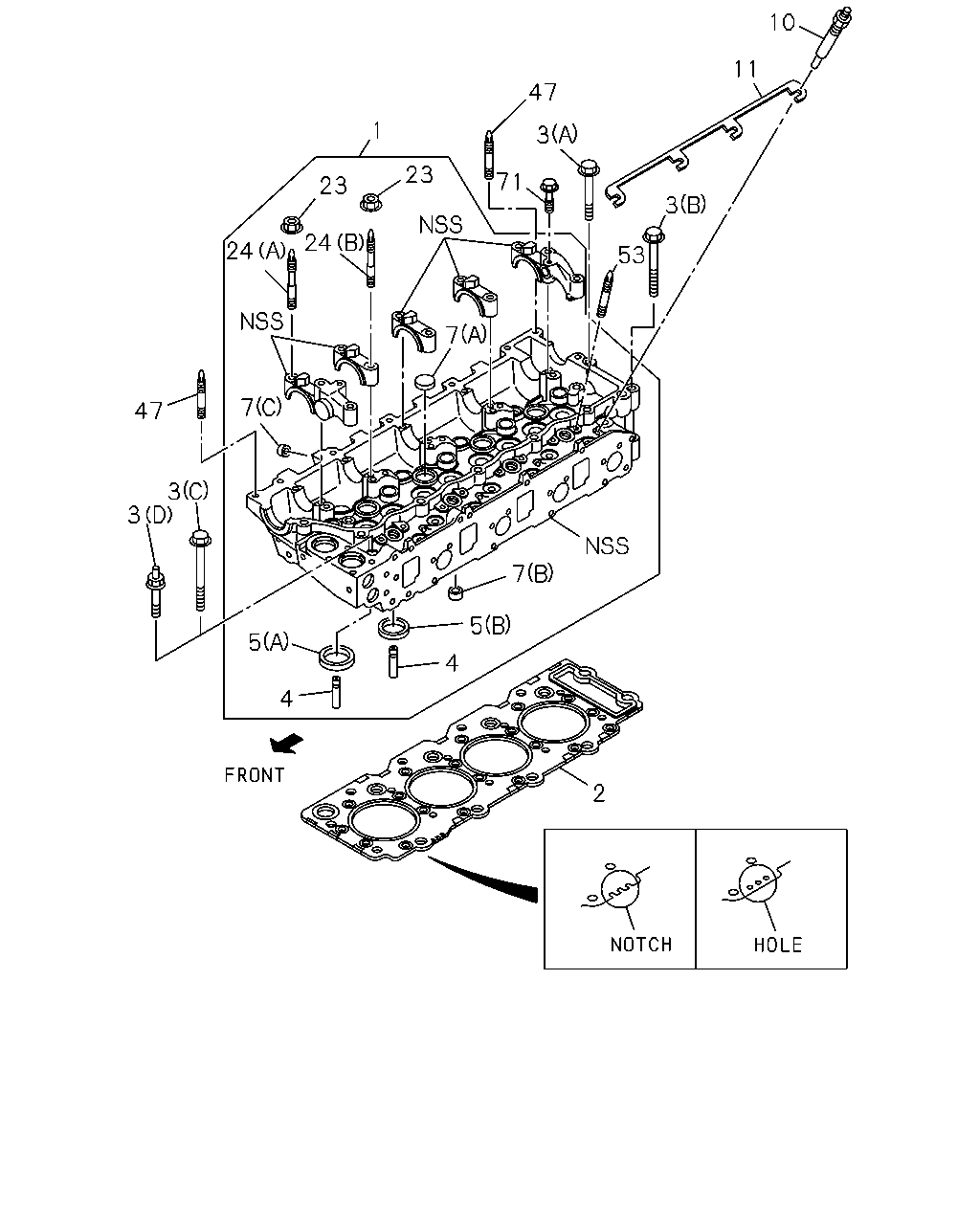

çizim 47772
10 11 47 1 3 23 71 23 3 24 24 53 7 7 47 3 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL
TURBOCHARGER(K51) 		8-97207-133-1 01 1 9811-0212 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER(K51) 		8-97358-368-0 01 1 0301- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER(K51) 		8-97146-520-2 01 1 9811-0006 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9811-0006 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER(K51) 		8-97186-589-5 01 1 0007- ●
1 00.269 HEAD ASM; CYL 8-97186-589-5 01 1 0007- ●
1 00.269 HEAD ASM; CYL
CHARGE AIR COOLER<6PL> 		8-97148-208-3 01 1 9811-0212 ●
1 00.269 HEAD ASM; CYL
CHARGE AIR COOLER<6PL> 		8-97358-366-0 01 1 0301- ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-97088-148-3 01 1 9811-0212 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-97358-363-0 01 1 0301- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97144-984-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97222-964-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97233-759-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97144-985-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97222-965-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97233-760-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-944-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97144-986-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97222-966-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97233-761-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-945-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97223-762-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97233-756-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97262-940-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-97349-483-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97223-763-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97233-757-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97262-941-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-97349-484-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9811-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97223-764-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97233-758-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97262-942-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-97349-485-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97138-066-1 01 1 9811-0207 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0208- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97138-067-1 01 1 9811-0207 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0208- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97138-068-1 01 1 9811-0207 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0208- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (C) M14X115 W/FLANGE 		8-97077-638-0 17 1 0106-0207 ●
3 00.293 BOLT; CYL HD TO BLOCK
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (C) M14X115 W/FLANGE 		8-97077-638-0 17 1 0208- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9811- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9811- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9811-0105 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0106-0112 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHARGE AIR COOLER<6PL> (C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0106-0112 ●
3 00.293 BOLT; CYL HD TO BLOCK
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0106-0112 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0201-0205 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHARGE AIR COOLER<6PL> (C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0201-0205 ●
3 00.293 BOLT; CYL HD TO BLOCK
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0201-0205 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0206- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. EURO3 SPECIFICATION<NT3> (C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0206- ●
3 00.293 BOLT; CYL HD TO BLOCK
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 0106-0207 ●
3 00.293 BOLT; CYL HD TO BLOCK
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (D) M8X25 M14X115 L=155 		8-97087-660-0 01 1 0208- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9811- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9811- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9811- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 9811- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811- ● ● ●
10 02.270 PLUG; GLOW
JKC/BOSCH 		1-82513-044-1 04 1 9811- ● ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 9811- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9811- ● ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9811- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9811- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9811- ● ● ●
47 00.413 STUD; CYL HD
EXC. TURBOCHARGER(K51) 03.163 M8X40 L=57 		0-49740-840-0 02 1 0206- ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0206- ●
47 00.413 STUD; CYL HD
CHARGE AIR COOLER<6PL> M8X30 L=41 		8-97016-313-0 02 1 0206- ●
47 00.413 STUD; CYL HD
TURBOCHARGER(K51) M8X30 L=41 		8-97016-313-0 03 1 9811- ●
47 00.413 STUD; CYL HD
EXC. TURBOCHARGER(K51) M8X30 L=41 		8-97016-313-0 02 1 9811-0003 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9811-0003 ● ●
47 00.413 STUD; CYL HD
EXC. TURBOCHARGER(K51) M8X30 L=41 		8-97016-313-0 02 1 0004-0205 ● ●
47 00.413 STUD; CYL HD
EXC. CHARGE AIR COOLER<6PL> M8X30 L=41 		8-97016-313-0 02 1 0004-0205 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0004-0205 ●
47 00.413 STUD; CYL HD
EXC. CHARGE AIR COOLER<6PL> M8X30 L=41 		8-97016-313-0 04 1 0206- ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9811- ● ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9811- ● ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9811- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
