0-10 — CYLINDER HEAD COVER (#41557) — 27 parça

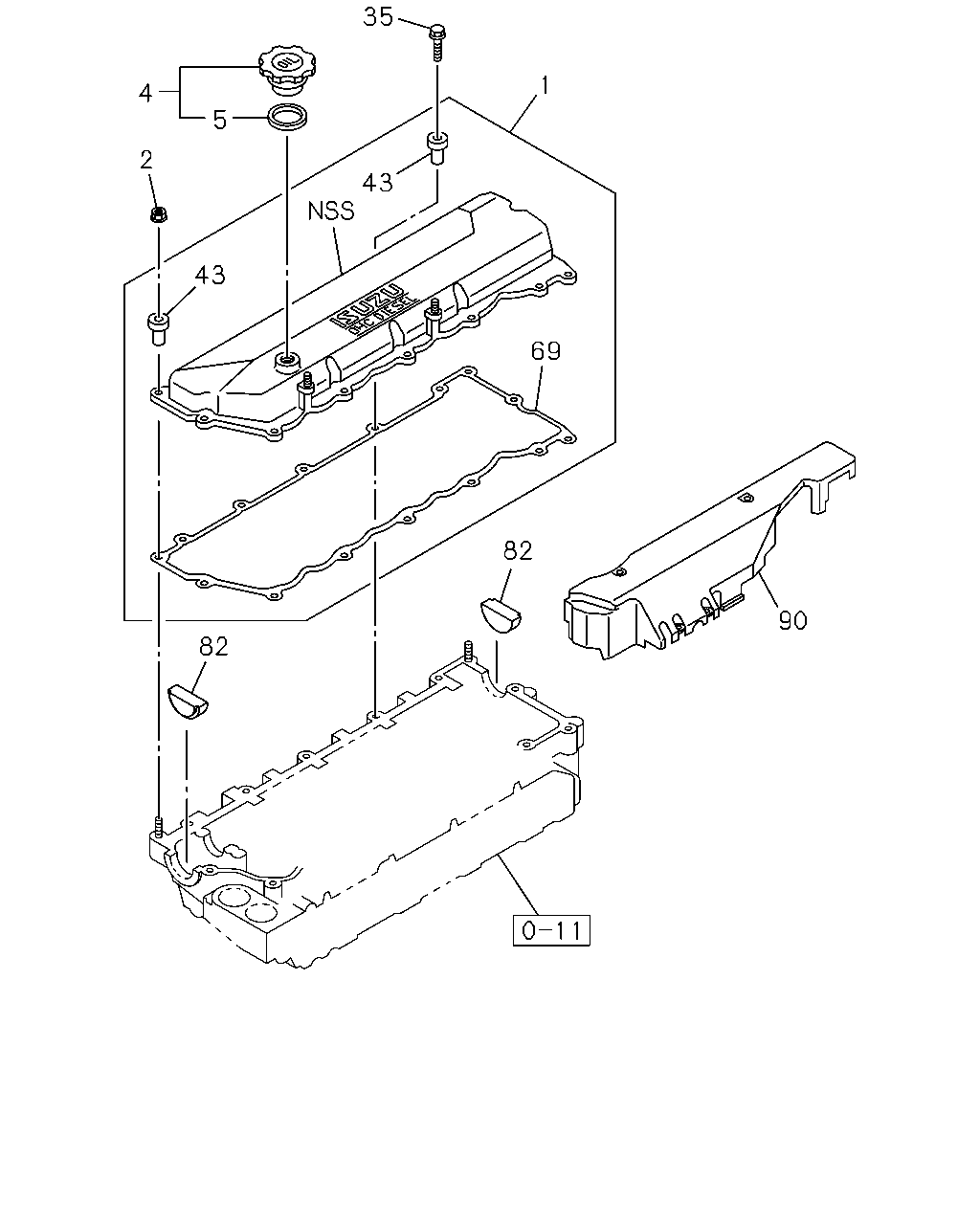

çizim 49262
35 1 4 5 2 43 43 69 82 90 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD
EXC. TURBOCHARGER(K51) 		8-97226-760-1 01 1 0204- ●
1 00.386 COVER; CYL HD 8-97226-760-1 01 1 0204- ●
1 00.386 COVER; CYL HD 8-97113-025-2 01 1 9811-0203 ● ● ●
1 00.386 COVER; CYL HD
TURBOCHARGER(K51) 		8-97113-025-3 01 1 0204- ●
1 00.386 COVER; CYL HD 8-97113-025-3 01 1 0204- ●
2 00.413 NUT; COVER,HD
TURBOCHARGER(K51) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
2 00.413 NUT; COVER,HD
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9811- ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9811- ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
EXC. TURBOCHARGER(K51) 03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0204- ●
35 00.293 BOLT; NOISE SHIELD COVER
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 0204- ●
35 00.293 BOLT; NOISE SHIELD COVER
TURBOCHARGER(K51) 04.686 M8X30 FLANGE 		0-28680-830-0 12 1 9811- ●
35 00.293 BOLT; NOISE SHIELD COVER
EXC. TURBOCHARGER(K51) 04.686 M8X30 FLANGE 		0-28680-830-0 13 1 9811-0203 ●
35 00.293 BOLT; NOISE SHIELD COVER
04.686 M8X30 FLANGE 		0-28680-830-0 13 1 9811-0203 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
04.686 M8X30 FLANGE 		0-28680-830-0 13 1 0204- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
EXC. TURBOCHARGER(K51) OD=23 		8-97190-120-2 08 1 0204- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
OD=23 		8-97190-120-2 08 1 0204- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 9811-0203 ● ● ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
TURBOCHARGER(K51) 03.265 OD=23 		8-97105-689-6 15 1 0204- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23 		8-97105-689-6 15 1 0204- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97189-871-1 01 1 0204- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97189-871-1 01 1 0204- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 9811-0203 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 0204- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97105-690-2 01 1 0204- ●
82 00.386 PLUG; CYL HD COVER 8-94399-605-0 02 1 9811- ● ● ●
90 00.386 COVER; NOZZLE,INJ
CHARGE AIR COOLER<6PL> 		8-97175-141-0 01 1 9811- ●
