◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#41555) — 11 parça

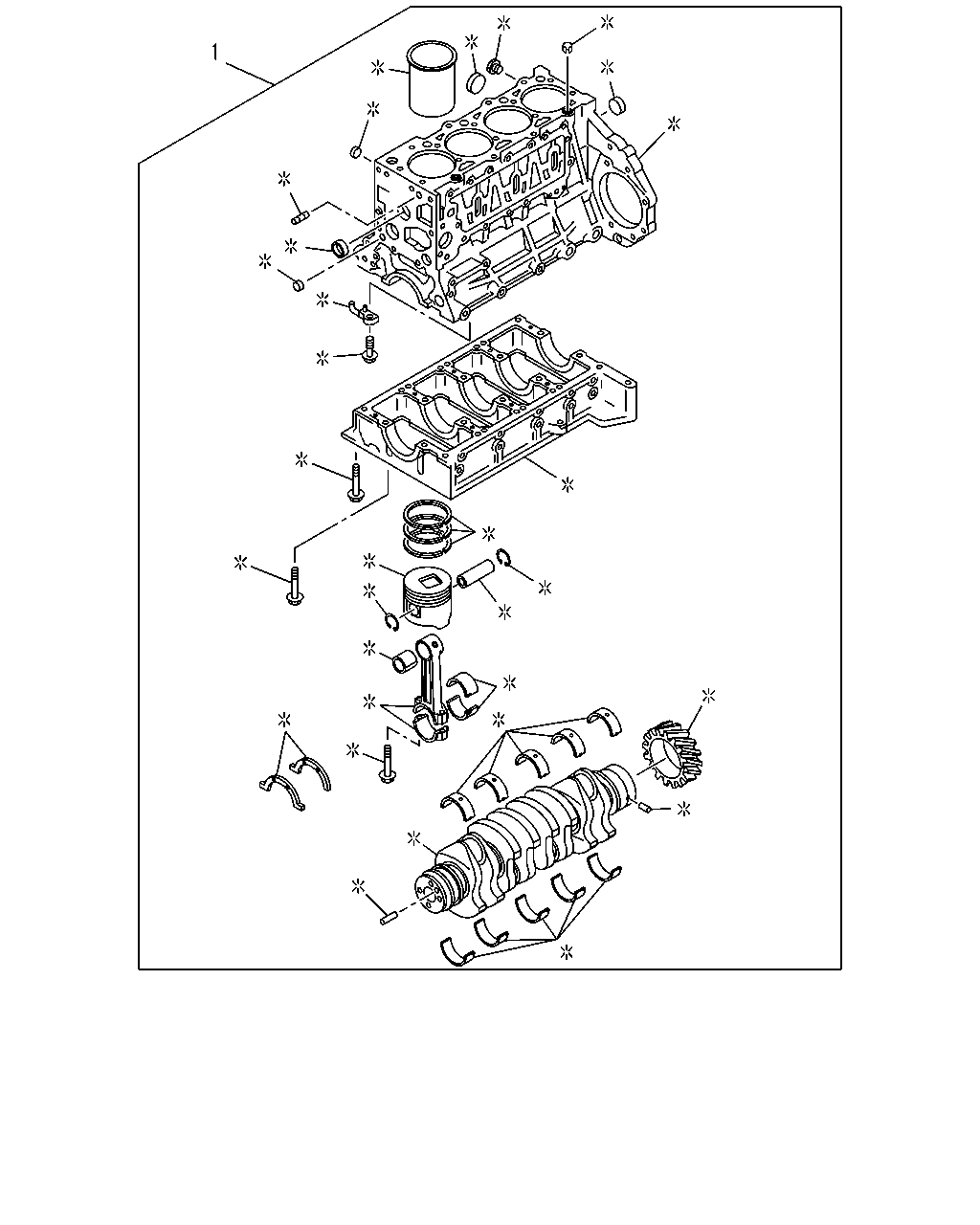

çizim 5817
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL
TURBOCHARGER(K51) 		5-87310-516-0 01 1 9811-9902 ●
1 00.033 ENGINE ASM; PARTIAL
TURBOCHARGER(K51) 		5-87310-541-4 01 1 9903- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TURBOCHARGER(K51) 		5-87310-494-1 01 1 9811-9902 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. TURBOCHARGER(K51) 		5-87310-540-4 01 1 9903- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-493-1 01 1 9811-9902 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-539-4 01 1 9903- ●
1 00.033 ENGINE ASM; PARTIAL
CHARGE AIR COOLER<6PL> 		5-87310-483-0 01 1 9811-9902 ●
1 00.033 ENGINE ASM; PARTIAL
CHARGE AIR COOLER<6PL> 		5-87310-542-1 01 1 9903-9907 ●
1 00.033 ENGINE ASM; PARTIAL
CHARGE AIR COOLER<6PL> 		5-87310-556-2 01 1 9908- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. CHARGE AIR COOLER<6PL> 		5-87310-450-2 01 1 9811-9902 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. CHARGE AIR COOLER<6PL> 		5-87310-538-3 01 1 9903- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
