◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#41554) — 96 parça

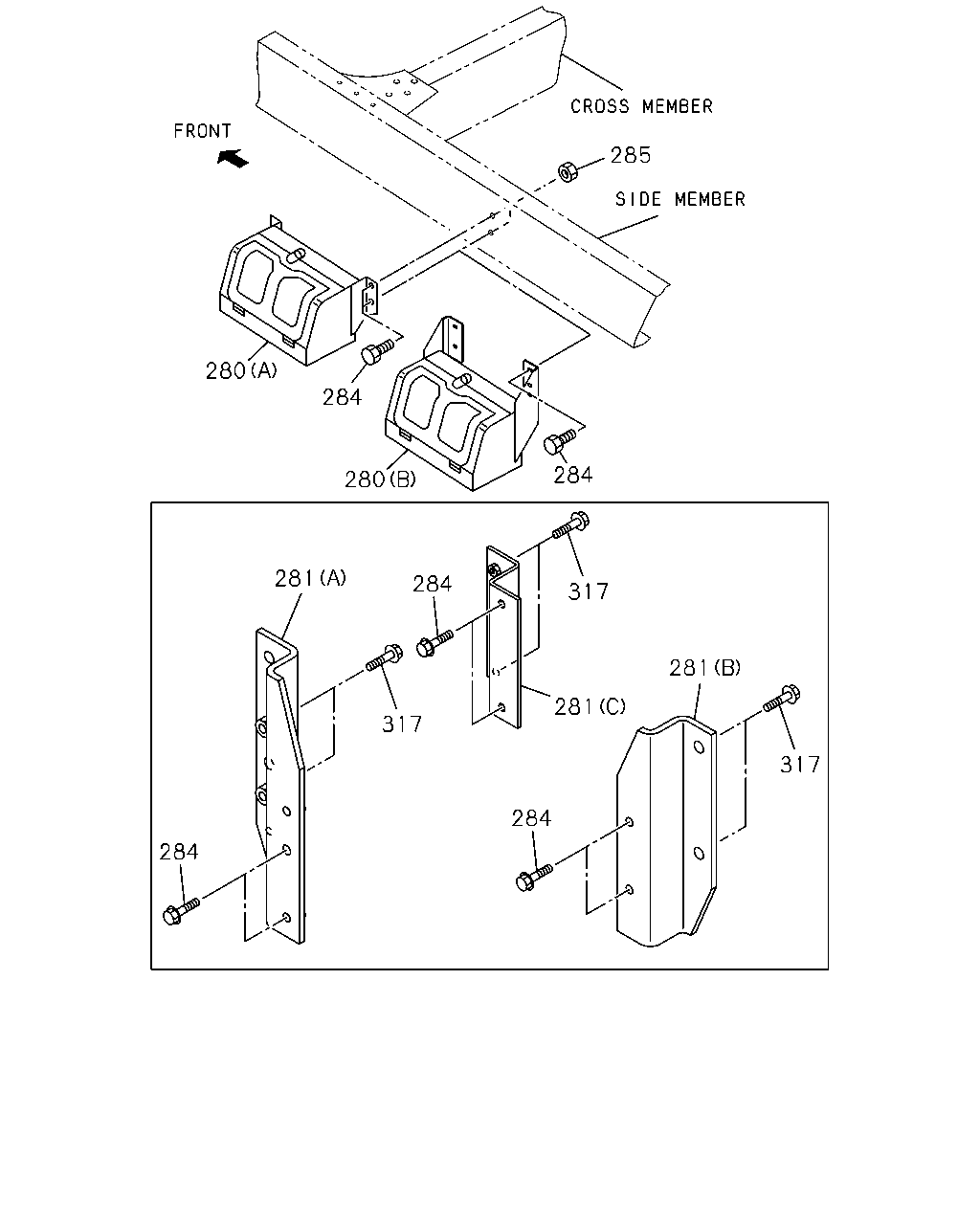

çizim 49062
285 280 284 284 280 281 284 317 281 281 317 317 284 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-94123-034-1 01 1 9812- ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97161-497-0 01 1 9812-9904 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97161-497-0 01 1 9812-9904 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97222-496-0 01 1 9905-0105 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 9905-0105 ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97222-496-0 01 1 0106- ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> (A) 		8-97222-496-0 01 1 0106- ● ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97095-539-0 01 1 9904-9912 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97095-539-0 01 1 0001-0105 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97095-539-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (A) 		8-97095-539-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97209-719-0 01 1 9904-0105 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97209-719-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (B) 		8-97209-719-0 01 1 0106- ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97248-971-0 01 1 0001- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0001- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0001- ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9812-9912 ● ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0001- ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9812-9903 ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9812-9903 ● ● ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9904-9905 ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9904-9905 ● ● ● ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9906-9908 ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9906-9908 ● ● ● ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9909-0007 ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9909-0007 ● ● ● ●
285 08.821 NUT; TOOL BOX
4JG2 ENG(RJC),4JB1 ENG(RLF) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
4JH1 ENG(RJX) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ● ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
285 08.821 NUT; TOOL BOX
07.633 M8 FLANGE 		0-91150-108-0 03 1 0106- ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9904-9912 ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0001-0007 ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0001-0007 ●
285 08.821 NUT; TOOL BOX
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0008- ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0008-0105 ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0106- ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9904-9912 ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0001- ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0001-0007 ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0008- ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0106- ●

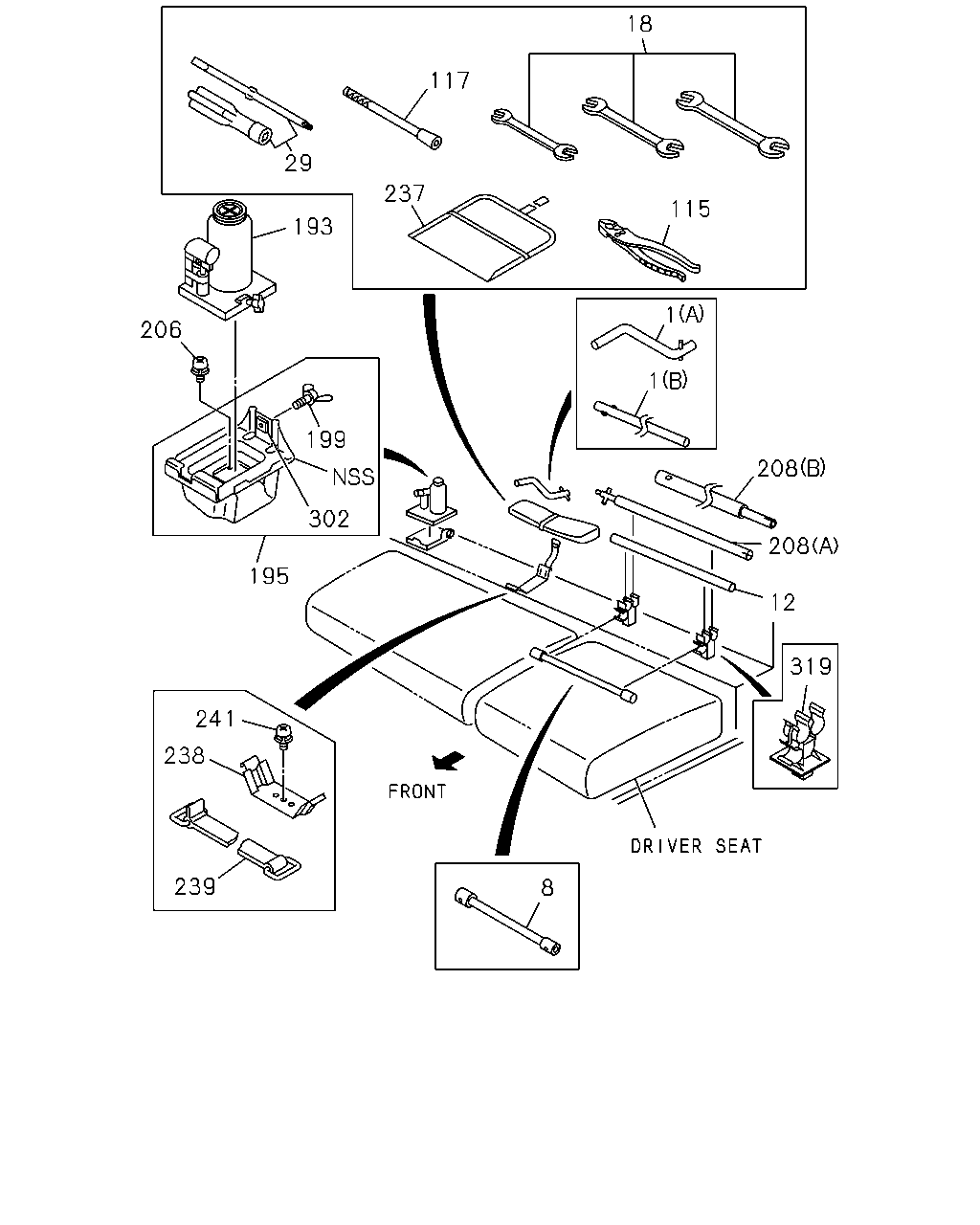

çizim 49099
18 117 29 237 115 193 1 206 1 199 208 302 208 195 12 319 241 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A) 		9-85512-608-0 01 1 9812-9902 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 (A) 		9-85512-608-0 01 1 9812-9902 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 9903-0105 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 9903-0105 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 0106- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0106- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 9812-9903 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 9904-0105 ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 0106- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0106- ●
8 08.821 WRENCH; WHEEL
(ARN),(9HY) B=41X19 L=330 		8-94386-490-1 01 1 9812-9812 ● ●
8 08.821 WRENCH; WHEEL
(ARN),(BQU),(BQV),(9HY) B=41X19 L=330 		8-94386-490-1 01 1 9812-0105 ● ●
8 08.821 WRENCH; WHEEL
(ARN),(BQU),(BQV),(9HY) B=41X19 L=330 		8-94386-490-1 01 1 0106- ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (00C),(01C),(02C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V) B=41X21 L=440 		1-85113-015-1 01 1 9812-9903 ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) B=41X21 L=440 		1-85113-015-1 01 1 9904-0105 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V) B=41X21 L=440 		1-85113-015-1 01 1 0106- ● ● ● ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 9812-0105 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9812-0105 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 0106-0204 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 0106-0204 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-97332-988-0 01 1 0205- ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0205- ● ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9812- ● ● ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9812- ● ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9812- ● ● ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9812- ● ● ● ● ● ● ●
193 08.820 JACK ASM
(00C),(01C),(02C),(55C),(83V) 5TON 		8-97131-076-2 01 1 9812-0105 ● ●
193 08.820 JACK ASM
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-2 01 1 0106- ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-2 01 1 0106- ●
193 08.820 JACK ASM
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(BQU),(BQV),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(9HY) 4TON 		8-97131-075-1 01 1 9812-9903 ● ● ● ● ●
193 08.820 JACK ASM
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(BQU),(BQV),(BRT),(BRU),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(9HY) 4TON 		8-97131-075-2 01 1 9904-0105 ● ● ● ● ● ●
193 08.820 JACK ASM
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(BQU),(BQV),(BRT),(BRU),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(9HY) 4TON 		8-97131-075-2 01 1 0106- ● ● ● ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-2 01 1 0106- ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9812- ● ● ● ● ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 9904- ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9812- ● ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9812- ● ● ● ● ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		9-85512-607-0 01 1 9812-9909 ● ●
208 08.820 HANDLE; JACK
(A) 		9-85512-607-0 01 1 9812-9909 ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 9910- ● ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 9910- ● ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 9812-0105 ● ● ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 0106- ● ● ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0106- ●
237 08.821 BAG; TOOL
(ARN),(9HY) 		8-97130-902-0 01 1 9812-9812 ● ●
237 08.821 BAG; TOOL
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (00C),(01C),(02C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V) 		8-97130-903-0 01 1 9812-9812 ● ● ● ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 9901- ● ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9812-0101 ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0102- ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9812- ● ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9812- ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9812- ● ● ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
