◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#41553) — 29 parça
çizim 47517
222 116 222 171 222 5 48 117 221 221 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 09.647 HARNESS; EXT 8-97131-327-0 02 1 9812- ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
VOLTAGE 24V<7AE> 		8-97207-695-0 02 1 9812-9902 ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
VOLTAGE 24V<7AE> 		8-97223-098-0 02 1 9903-0204 ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
VOLTAGE 24V<7AE> 		8-97317-001-0 02 1 0205- ● ● ● ● ● ● ●
48 09.650 SPEAKER; AUDIO
EXC. VOLTAGE 24V<7AE> 		8-97207-696-0 02 1 9812-9901 ● ● ●
48 09.650 SPEAKER; AUDIO
EXC. VOLTAGE 24V<7AE> 		8-97223-099-0 02 1 9902-0204 ● ● ●
48 09.650 SPEAKER; AUDIO
EXC. VOLTAGE 24V<7AE> 		8-97317-000-0 02 1 0205- ● ● ●
49 09.655 SCREW; SPEAKER
16.067 M5X14 		8-94279-325-0 06 1 9812- ● ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 9812- ● ● ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 9812- ● ● ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.067 M5X14 		8-94279-325-0 06 1 9812- ● ● ● ● ● ● ●
171 09.650 COVER; SPEAKER 8-97852-331-4 02 1 9812- ● ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(A) 		8-97852-327-4 02 1 9812- ● ● ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(B) 		8-97852-601-1 02 1 9812- ● ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A) 		1-09987-144-0 02 1 9812- ● ● ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9812- ● ● ● ● ● ● ●

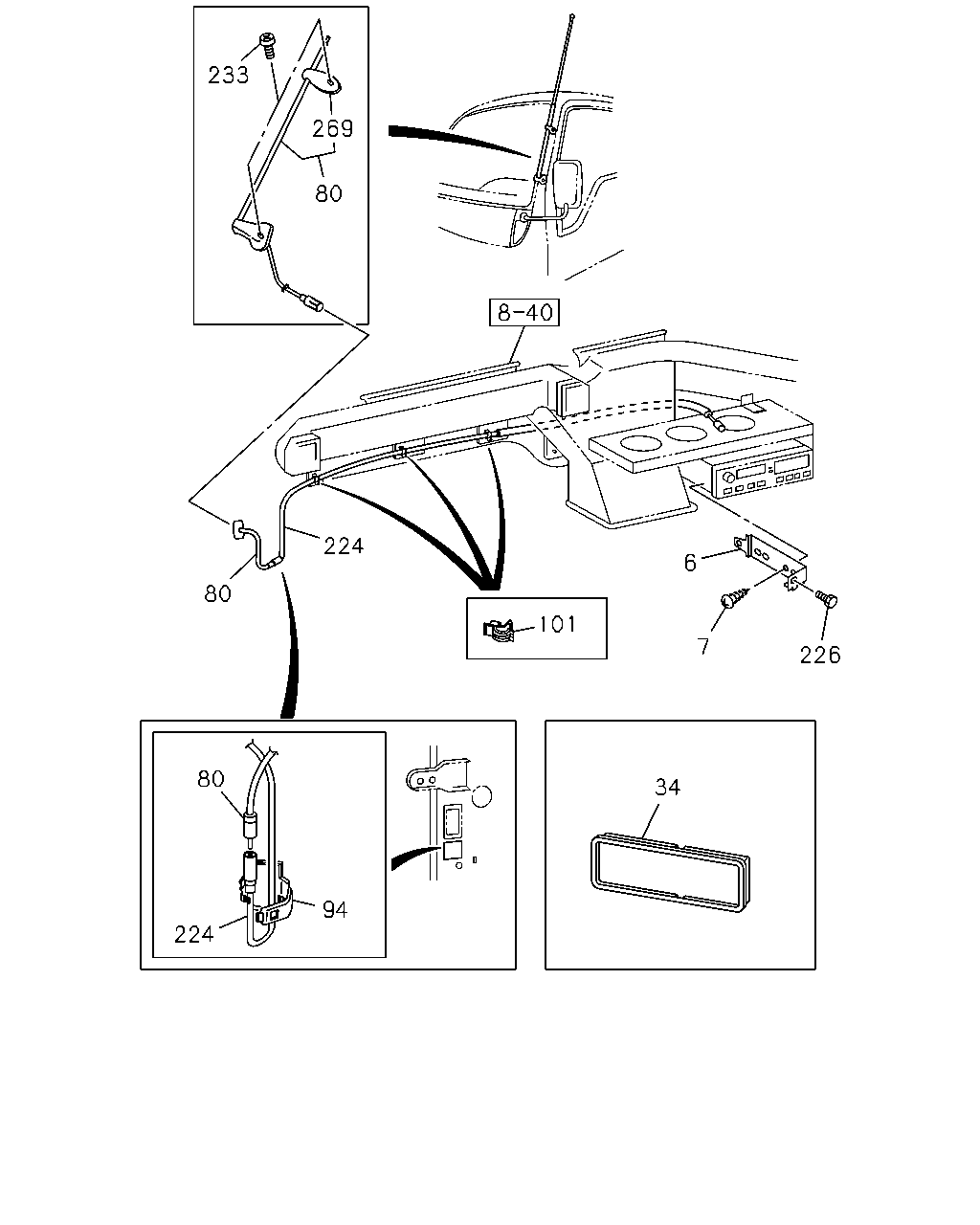

çizim 49063
233 269 80 224 6 80 101 7 226 80 34 94 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
6 09.645 BRACKET; RADIO TO PANEL 8-97853-615-2 01 1 9909-9909 ● ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97853-614-2 01 1 9909-9909 ● ● ● ● ● ●
7 09.650 SCREW; RADIO
04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9909-9909 ● ● ● ● ● ●
34 09.650 COVER; RADIO HOLE 8-97856-203-3 01 1 9812- ● ● ● ● ● ● ●
80 09.645 ANTENNA 8-97210-547-0 01 1 9812- ● ● ● ● ● ● ●
94 09.656 CLIP; ANTENNA FEEDER 1-09987-155-1 01 1 9812- ● ● ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=7 		5-09707-053-0 03 1 9812- ● ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-97118-847-0 01 1 9812-9812 ● ● ● ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-97213-766-0 01 1 9812- ● ● ● ● ● ● ●
226 09.647 BOLT; BRKT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 9909-9909 ● ● ● ● ● ●
233 09.647 SCREW
M6X20 		8-97120-686-0 01 1 9812- ● ● ● ● ● ● ●
233 09.647 SCREW
M6X16 		8-97123-696-0 01 1 9812- ● ● ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA 8-97108-184-0 01 1 9812- ● ● ● ● ● ● ●
