Sayfa 8-74 - Isuzu EPC

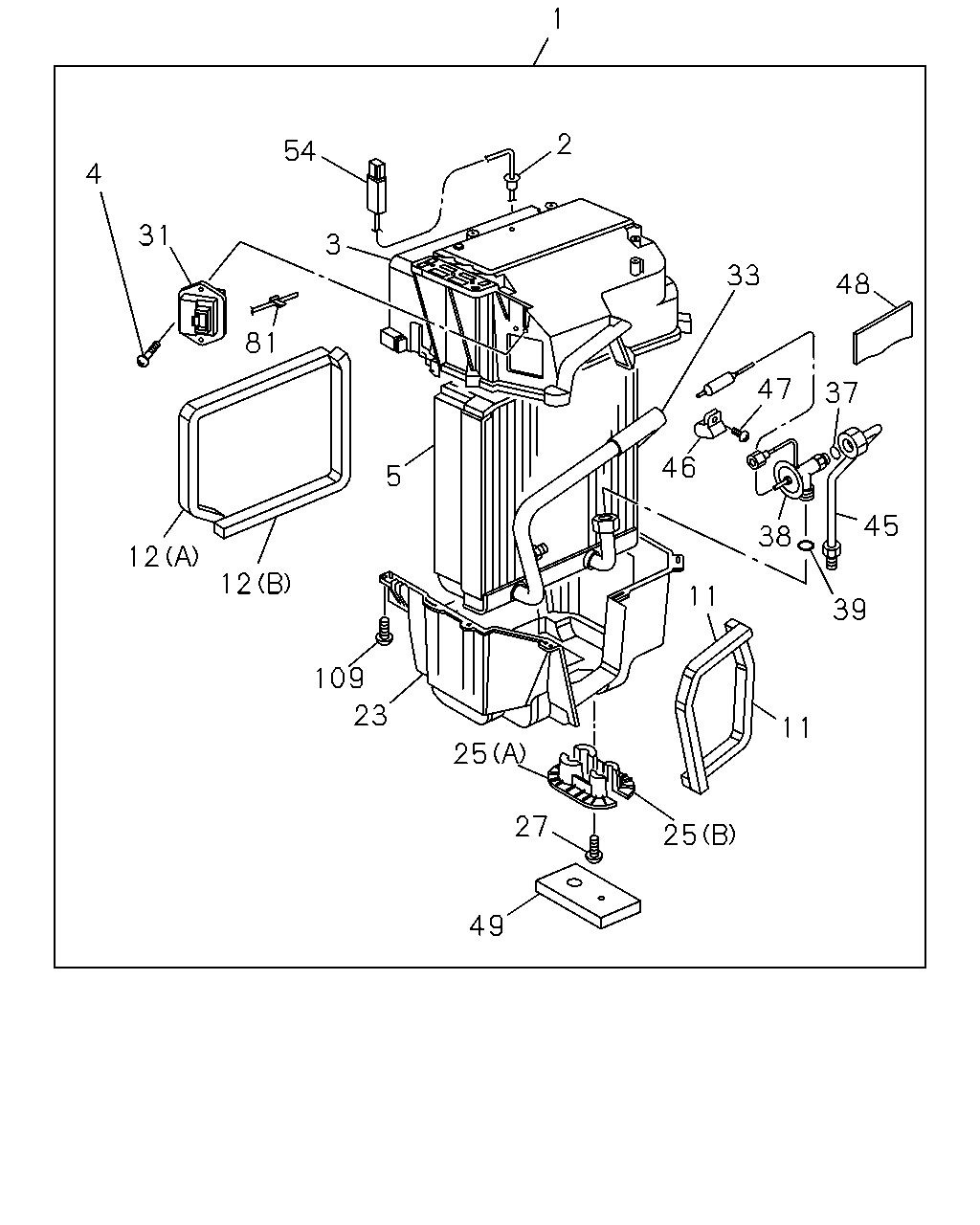

8-74 — EVAPORATOR (#41551) — 136 parça

44 33 48 47 37 46 45 38 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	09.210 EVAPORATOR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	9812-0105	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-594-1	01	1	0106-	●	●	●	●	●	●	●
33	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	9812-0105	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0106-	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9812-9912	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0001-0105	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> "R-134A"	8-97085-275-0	01	1	9812-9912	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0001-0105	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> "R-134A"	8-97112-753-0	01	1	0106-	●	●	●	●	●	●	●
39	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9812-0105	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94481-717-0	01	1	0106-	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-593-0	01	1	9812-9912	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97114-546-0	01	1	0001-0105	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97114-546-0	01	1	0106-	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9812-0105	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-595-0	01	1	0106-	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9812-9912	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0001-0105	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	1-83574-214-0	01	1	0106-	●	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9812-9912	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0001-0105	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97130-601-0	01	1	0106-	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	5-83579-024-0	01	1	9812-9912	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0001-0105	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	1-83579-784-0	01	1	0106-	●	●	●	●	●	●	●

1 2 54 31 3 33 48 4 81 47 37 46 5 45 38 12 39 109 23 11 25 27 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97073-611-1	01	1	9812-	●	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9812-0105	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94380-565-0	01	1	0106-	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	9812-0105	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-597-0	01	1	0106-	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 M4X16	8-94324-850-0	02	1	9812-	●	●	●	●	●	●	●
5	09.210 EVAPORATOR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	9812-0105	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-594-1	01	1	0106-	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-599-0	02	1	9812-9912	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0001-0105	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97114-549-0	01	1	0106-	●	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9812-9912	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97188-565-0	01	1	0001-0105	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> (C)	8-97188-565-0	01	1	0106-	●	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9812-9912	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	9812-0105	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-598-1	01	1	0106-	●	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9812-0105	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> (A)	8-97085-281-0	01	1	0106-	●	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9812-0105	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> (B)	8-97085-282-0	01	1	0106-	●	●	●	●	●	●	●
27	09.211 SCREW; COVER 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9812-0105	●	●	●	●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 M4X16	8-94324-850-0	01	1	0106-	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.855	8-97083-135-0	01	1	9812-9912	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97234-546-0	01	1	0001-	●	●	●	●	●	●	●
33	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	9812-0105	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0106-	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9812-9912	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0001-0105	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> "R-134A"	8-97085-275-0	01	1	9812-9912	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0001-0105	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> "R-134A"	8-97112-753-0	01	1	0106-	●	●	●	●	●	●	●
39	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9812-0105	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94481-717-0	01	1	0106-	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9812-0105	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-595-0	01	1	0106-	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9812-9912	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0001-0105	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	1-83574-214-0	01	1	0106-	●	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9812-9912	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0001-0105	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97130-601-0	01	1	0106-	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	5-83579-024-0	01	1	9812-9912	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0001-0105	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	1-83579-784-0	01	1	0106-	●	●	●	●	●	●	●
49	09.211 GROMMET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9812-9912	●	●	●	●	●	●
49	09.211 GROMMET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0001-0105	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97069-404-1	01	1	0106-	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97302-052-0	01	1	0106-	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 09.275	8-97085-283-0	01	1	9812-0105	●	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9812-0105	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94481-724-0	01	1	0106-	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9812-0105	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 M4X16	8-94324-850-0	05	1	0106-	●	●	●	●	●	●	●

1 2 54 4 31 3 33 48 81 47 37 46 5 45 38 12 12 11 39 109 23 11 25 27 25 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97073-611-1	01	1	9812-	●	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9812-0105	●	●	●	●	●	●
2	09.211 GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94380-565-0	01	1	0106-	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	9812-0105	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-597-0	01	1	0106-	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 M4X16	8-94324-850-0	02	1	9812-	●	●	●	●	●	●	●
5	09.210 EVAPORATOR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	9812-0105	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-594-1	01	1	0106-	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-599-0	02	1	9812-9912	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0001-0105	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97114-549-0	01	1	0106-	●	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-284-0	01	1	9812-9912	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97188-565-0	01	1	0001-0105	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> (C)	8-97188-565-0	01	1	0106-	●	●	●	●	●	●	●
12	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-287-0	01	1	9812-9912	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	9812-0105	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-598-1	01	1	0106-	●	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	9812-0105	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> (A)	8-97085-281-0	01	1	0106-	●	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	9812-0105	●	●	●	●	●	●
25	09.211 COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> (B)	8-97085-282-0	01	1	0106-	●	●	●	●	●	●	●
27	09.211 SCREW; COVER 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	01	1	9812-0105	●	●	●	●	●	●
27	09.211 SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 M4X16	8-94324-850-0	01	1	0106-	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.855	8-97083-135-0	01	1	9812-9912	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97234-546-0	01	1	0001-	●	●	●	●	●	●	●
33	09.211 LINING; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	9812-0105	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97085-278-2	01	1	0106-	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) ID=6	8-94481-700-0	01	1	9812-9912	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.195 ID=6.07	8-94461-902-0	01	1	0001-0105	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 09.195 ID=6.07	8-94461-902-0	01	1	0106-	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> "R-134A"	8-97085-275-0	01	1	9812-9912	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0001-0105	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> "R-134A"	8-97112-753-0	01	1	0106-	●	●	●	●	●	●	●
39	09.214 GASKET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9812-0105	●	●	●	●	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94481-717-0	01	1	0106-	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	9812-0105	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97102-595-0	01	1	0106-	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94334-784-0	01	1	9812-9912	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0001-0105	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	1-83574-214-0	01	1	0106-	●	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9812-9912	●	●	●	●	●	●
47	09.214 SCREW; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0001-0105	●	●	●	●	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97130-601-0	01	1	0106-	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	5-83579-024-0	01	1	9812-9912	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0001-0105	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	1-83579-784-0	01	1	0106-	●	●	●	●	●	●	●
49	09.211 GROMMET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97085-286-1	01	1	9812-9912	●	●	●	●	●	●
49	09.211 GROMMET; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0001-0105	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97069-404-1	01	1	0106-	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-97302-052-0	01	1	0106-	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 09.275	8-97085-283-0	01	1	9812-0105	●	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9812-0105	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE>	8-94481-724-0	01	1	0106-	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP 4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	05	1	9812-0105	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 08.852 M4X16	8-94324-850-0	05	1	0106-	●	●	●	●	●	●	●
