8-71 — COMPRESSOR; AIR CONDITIONING (#41549) — 60 parça

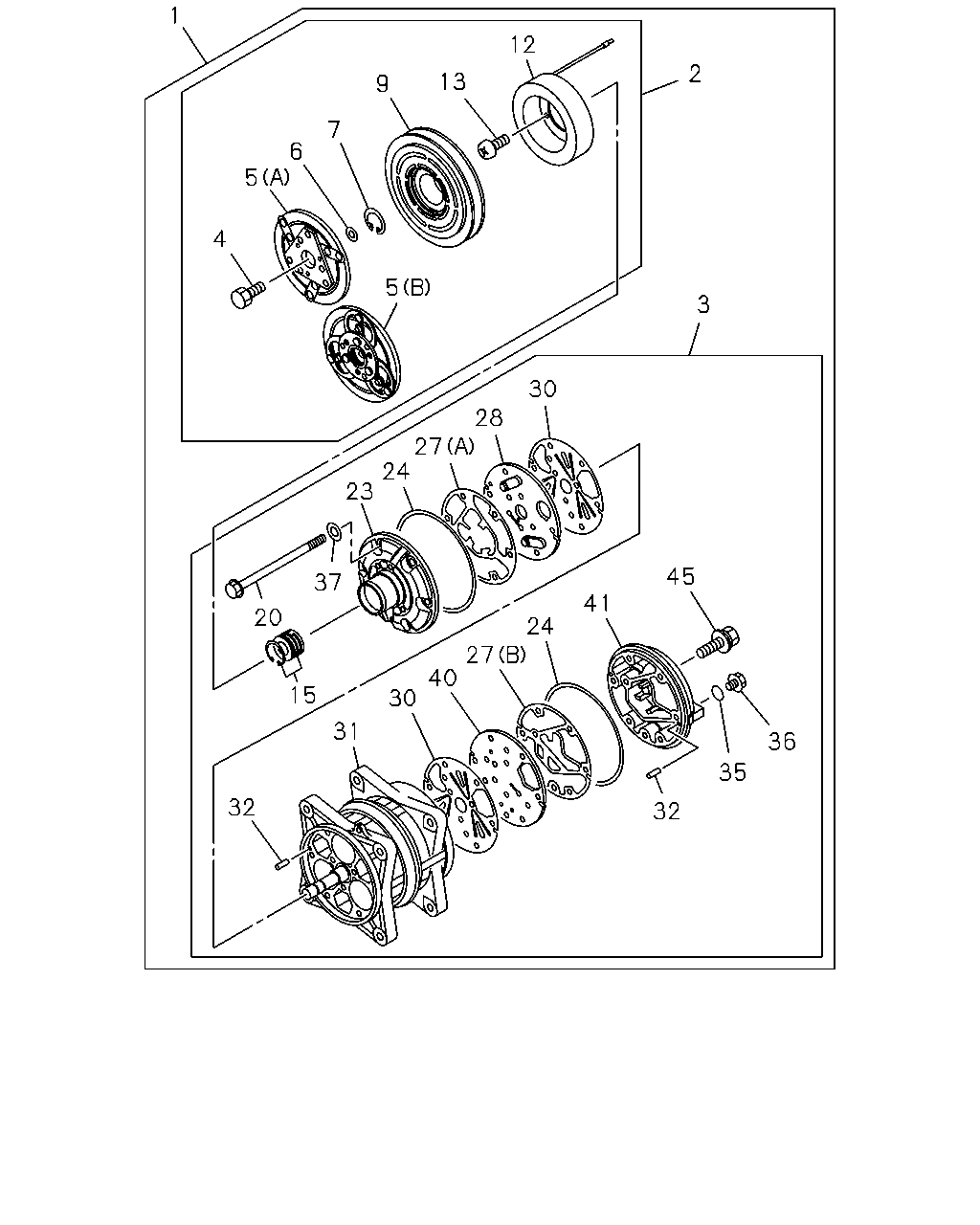

çizim 49260
1 12 2 13 9 7 6 5 4 5 3 30 28 27 24 23 45 37 41 20 24 27 40 15 30 31 36 35 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.170 COMPRESSOR ASM; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) BOSCH 		8-97048-337-4 01 1 9812- ● ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97114-211-0 01 1 9812-0105 ● ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97114-211-0 01 1 0106-0212 ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97114-211-0 01 1 0106-0212 ●
2 09.188 CLUTCH; MAGNET,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97360-616-1 01 1 0301- ● ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97138-166-0 01 1 9812- ● ● ● ● ● ● ●
4 09.181 BOLT; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.186 		8-94164-439-0 01 1 9812- ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97034-788-0 01 1 9812-0105 ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97034-788-0 01 1 0106-0212 ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97034-788-0 01 1 0106-0212 ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97357-157-0 01 1 0301- ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) T=0.1 		8-94120-721-0 AR 1 9812-0105 ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) T=0.1 		8-94120-721-0 AR 1 0106- ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) T=0.3 		8-94120-722-0 AR 1 9812-0105 ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) T=0.3 		8-94120-722-0 AR 1 0106- ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) T=0.5 		8-94120-723-0 AR 1 9812-0105 ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) T=0.5 		8-94120-723-0 AR 1 0106- ● ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94120-724-0 01 1 9812-0105 ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94120-724-0 01 1 0106- ● ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97034-790-0 01 1 9812-0105 ● ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97034-790-0 01 1 0106-0212 ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97034-790-0 01 1 0106-0212 ●
9 09.181 PULLEY; MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97360-617-0 01 1 0301- ● ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-401-0 01 1 9812-0105 ● ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-401-0 01 1 0106-0212 ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60) 		8-97081-401-0 01 1 0106-0212 ●
12 09.186 COIL; FIELD,MAGNET CLU
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97360-619-0 01 1 0301- ● ● ● ● ● ● ●
13 09.186 SCREW; COIL FIELD
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.188 		8-94120-727-0 03 1 9812-0105 ● ● ● ● ● ●
13 09.186 SCREW; COIL FIELD
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.188 		8-94120-727-0 03 1 0106- ● ● ● ● ● ● ●
15 09.175 SEAL; SHAFT
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97114-217-1 01 1 9812-0105 ● ● ● ● ● ●
15 09.175 SEAL; SHAFT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97114-217-1 01 1 0106- ● ● ● ● ● ● ●
20 09.174 BOLT; CMPR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-394-0 06 1 9812-0105 ● ● ● ● ● ●
20 09.174 BOLT; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-394-0 06 1 0106- ● ● ● ● ● ● ●
23 09.174 HEAD; CYL,FRT
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97114-215-0 01 1 9812-0105 ● ● ● ● ● ●
23 09.174 HEAD; CYL,FRT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97114-215-0 01 1 0106- ● ● ● ● ● ● ●
24 09.172 GASKET; CMPR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97081-396-0 02 1 9812-0105 ● ● ● ● ● ●
24 09.172 GASKET; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97081-396-0 02 1 0106- ● ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A" 		8-97085-777-0 01 1 9812-0105 ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) "R-134A" 		8-97085-777-0 01 1 0106- ● ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A" 		8-97085-779-0 01 1 9812-0105 ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) "R-134A" 		8-97085-779-0 01 1 0106- ● ● ● ● ● ● ●
28 09.172 PLATE; VLV,CMPR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97135-796-0 01 1 9812-0105 ● ● ● ● ● ●
28 09.172 PLATE; VLV,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97135-796-0 01 1 0106- ● ● ● ● ● ● ●
30 09.172 VALVE; SUCTION
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97134-755-0 02 1 9812-0105 ● ● ● ● ● ●
30 09.172 VALVE; SUCTION
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97134-755-0 02 1 0106- ● ● ● ● ● ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97138-174-0 01 1 9812- ● ● ● ● ● ● ●
32 09.174 PIN; CMPR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94154-711-0 04 1 9812-0105 ● ● ● ● ● ●
32 09.174 PIN; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94154-711-0 04 1 0106- ● ● ● ● ● ● ●
35 09.175 GASKET; PLUG,CYL
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97081-395-0 01 1 9812-0105 ● ● ● ● ● ●
35 09.175 GASKET; PLUG,CYL
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97081-395-0 01 1 0106- ● ● ● ● ● ● ●
36 09.173 PLUG; CYL
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94164-473-0 01 1 9812-0105 ● ● ● ● ● ●
36 09.173 PLUG; CYL
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94164-473-0 01 1 0106- ● ● ● ● ● ● ●
37 09.172 GASKET; CMPR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.174 		8-94466-678-0 06 1 9812-0105 ● ● ● ● ● ●
37 09.172 GASKET; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 09.174 		8-94466-678-0 06 1 0106- ● ● ● ● ● ● ●
40 09.172 PLATE; VLV,RR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97135-797-0 01 1 9812-0105 ● ● ● ● ● ●
40 09.172 PLATE; VLV,RR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97135-797-0 01 1 0106- ● ● ● ● ● ● ●
41 09.174 HEAD; CYL,RR
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97034-784-0 01 1 9812-0105 ● ● ● ● ● ●
41 09.174 HEAD; CYL,RR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97034-784-0 01 1 0106- ● ● ● ● ● ● ●
45 09.173 BOLT; PLATE TO CYL HD
4JG2 ENG(RJC),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9812-0105 ● ● ● ● ● ●
45 09.173 BOLT; PLATE TO CYL HD
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0106- ● ● ● ● ● ● ●
