8-50 — AIR CONDITIONING SYSTEM; FRONT (#41545) — 42 parça

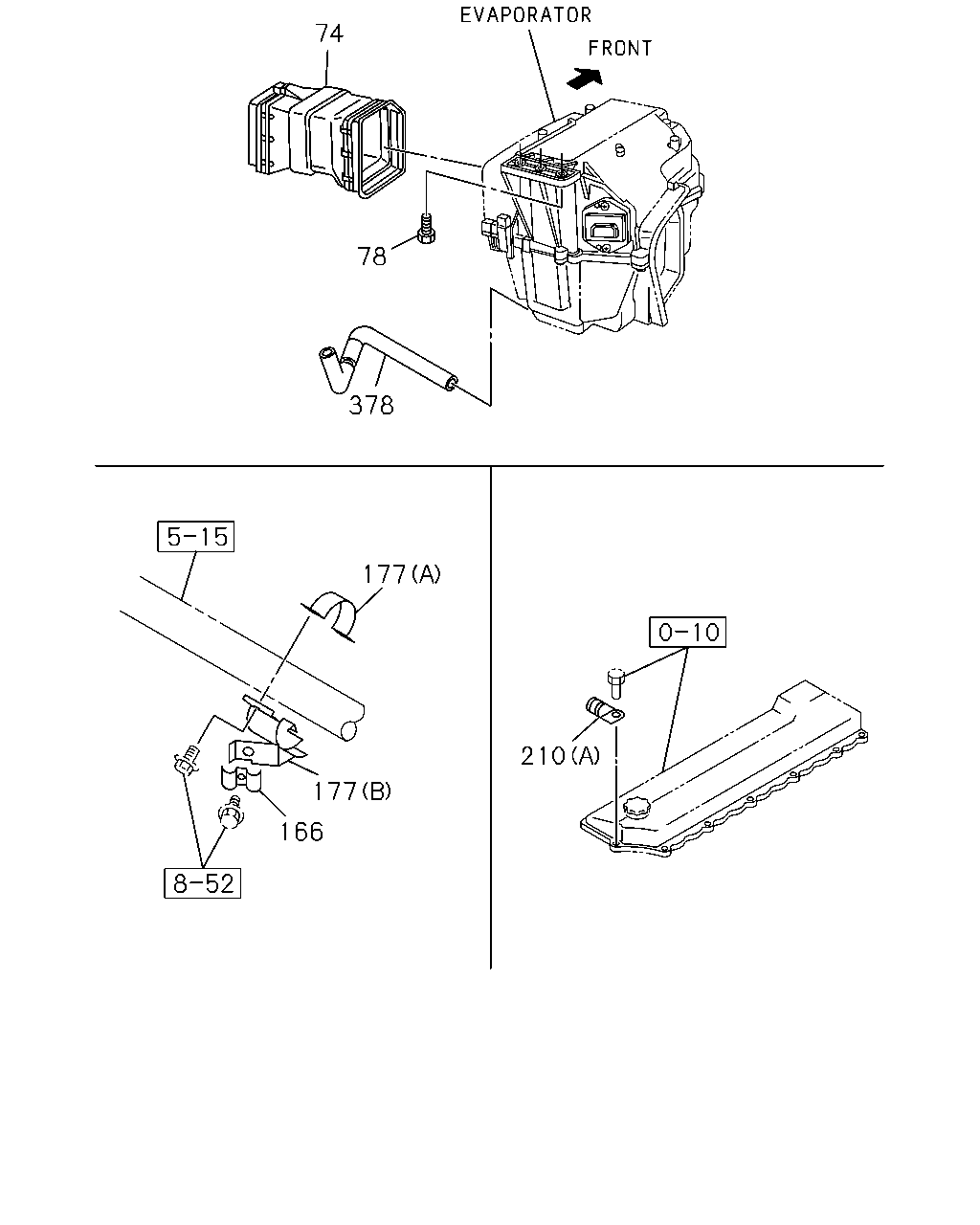

çizim 48143
74 78 378 177 210 177 166
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-0 01 1 9812- ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 9812- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 9812- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 9812- ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 9812- ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9812- ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9812- ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 9812- ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97069-830-1 01 1 9812-0007 ● ● ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-806-0 01 1 0008- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9812- ● ● ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9812- ● ● ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97090-310-1 01 1 9812- ● ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-192-0 01 1 9812- ● ● ● ● ● ● ●
177 09.242 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-771-0 01 1 9812- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9812-9903 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9904-0105 ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0106- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9812- ● ● ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 9812- ● ● ● ● ● ● ●
çizim 51690
14 206 4 66 210 14 49 1 66 25 316 316
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.242 BRACKET; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 9812- ● ● ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE 		8-94397-359-1 02 1 9812- ● ● ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 9812- ● ● ● ● ● ● ●
14 09.171 BOLT; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 9812- ● ● ● ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-0 01 1 9812- ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-0 01 1 9812- ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 9812- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 9812- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 9812- ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 9812- ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 9812- ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 9812- ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 9812- ● ● ● ● ●
49 09.171 COLLAR; BRKT,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 9812- ● ● ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 9812- ● ● ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE 		0-28280-612-0 01 1 9812- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9812-9903 ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9904-0105 ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0106- ● ● ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9812- ● ● ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 9812- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 9812- ● ● ● ● ●
