Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#41542) — 183 parça

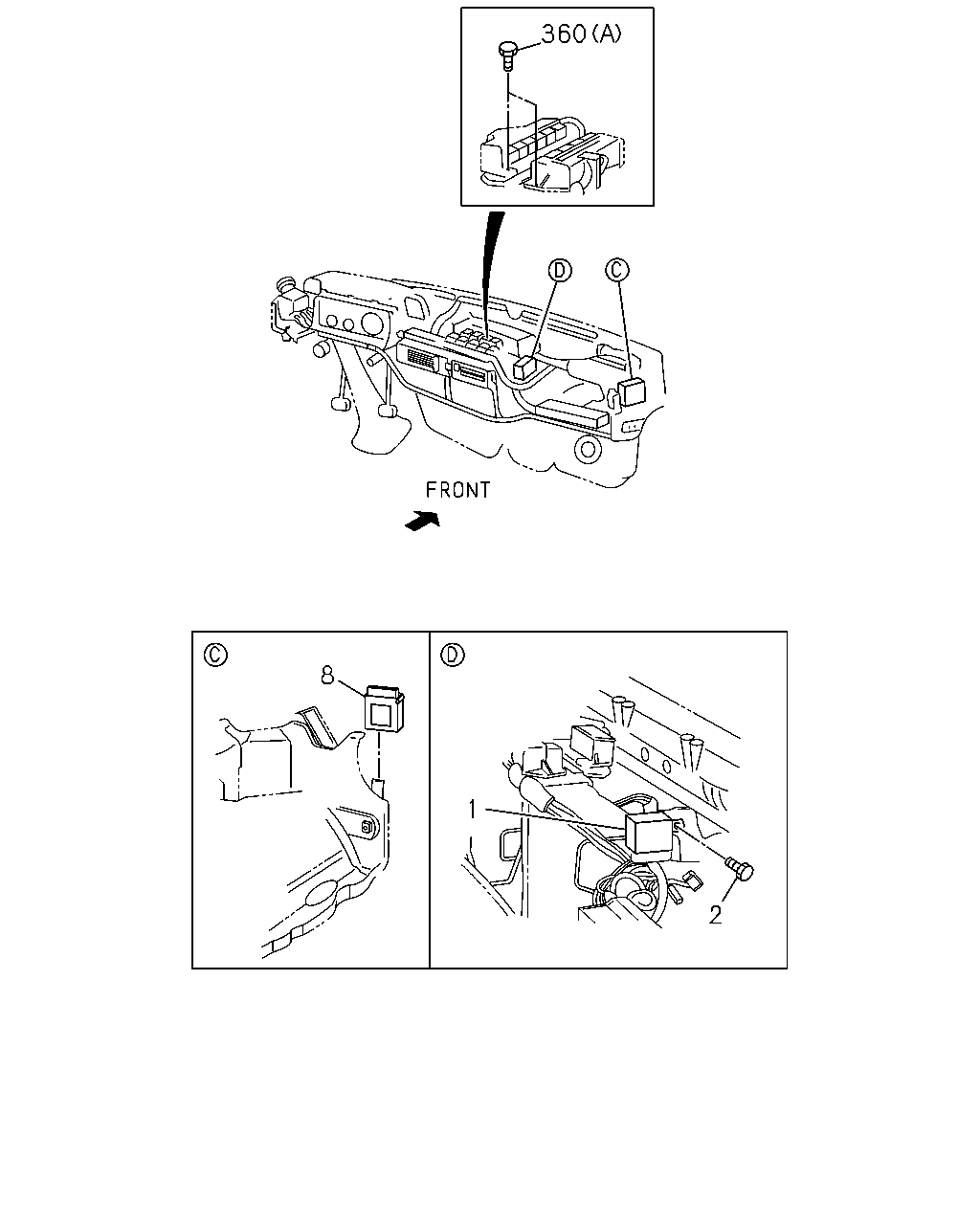

360 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9812-0212	●	●
1	02.575 UNIT; FLASHER	8-97086-508-1	01	1	9812-0212			●	●	●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97360-084-0	01	1	0301-	●	●
1	02.575 UNIT; FLASHER	8-97360-084-0	01	1	0301-			●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9812-0003	●	●				●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97228-398-0	01	1	0004-	●	●				●
1	02.575 UNIT; FLASHER	8-97227-871-0	01	1	9904-0105						●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97227-871-0	01	1	0106-0212						●
1	02.575 UNIT; FLASHER	8-97227-871-0	01	1	0106-0212							●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97360-085-0	01	1	0301-						●
1	02.575 UNIT; FLASHER	8-97360-085-0	01	1	0301-							●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97304-037-0	01	1	0106-						●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9812-	●	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97184-233-0	01	1	9812-9903	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	9812-9903			●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97184-233-0	01	1	9904-0105	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	9904-0105			●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97184-233-0	01	1	0106-0301	●	●				●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97184-233-0	01	1	0106-0301			●	●	●		●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97363-983-0	01	1	0302-	●	●				●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97363-983-0	01	1	0302-			●	●	●		●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-186-0	01	1	9812-0301	●	●				●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97363-984-0	01	1	0302-	●	●				●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●					●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-		●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9812-0105	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-	●					●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-		●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9812-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9812-9903	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9812-9903	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9904-9905	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9904-9905	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9906-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9906-0105	●	●
360	02.483 BOLT; RELAY BOX CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●	●	●	●	●	●

22 11 29 574 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903			●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104			●	●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105	●	●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●	●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-	●	●				●
11	02.485 RELAY; DIMMER 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-			●	●	●		●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9812-	●	●				●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903			●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104			●	●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105	●	●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●	●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-	●	●				●
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-			●	●	●		●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9812-	●	●				●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903			●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104			●	●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105	●	●
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●	●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-	●	●				●
29	02.815 RELAY; HORN 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-			●	●	●		●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9812-	●	●				●
123	02.270 RELAY; HTR 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 08.852 12V 20A	8-97060-926-1	01	1	0106-	●	●				●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9812-		●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-0104		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-0104			●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-0104				●	●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105				●	●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-			●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-				●	●		●

377 376 624 376 624 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
376	03.342 BOLT; RELAY FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9901-	●
376	03.342 BOLT; RELAY 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9901-		●	●	●	●
377	02.892 NUT; RELAY FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9901-	●
377	02.892 NUT; RELAY 07.633 M8 FLANGE	0-91150-108-0	01	1	9901-		●	●	●	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97222-699-0	01	1	9901-9912	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE>	8-97222-699-0	01	1	9901-9912		●
624	02.892 RELAY; SIDE TURN	8-97222-699-0	01	1	9901-9912			●	●	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-699-0	01	1	0001-0102	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-699-0	01	1	0001-0102		●
624	02.892 RELAY; SIDE TURN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97222-699-0	01	1	0001-0102			●	●	●
624	02.892 RELAY; SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97251-620-0	01	1	0001-0102	●
624	02.892 RELAY; SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE>	8-97251-620-0	01	1	0001-0102		●
624	02.892 RELAY; SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97251-620-0	01	1	0001-0102			●	●	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97251-620-0	01	1	0103-0301	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE>	8-97251-620-0	01	1	0103-0301		●
624	02.892 RELAY; SIDE TURN	8-97251-620-0	01	1	0103-0301			●	●	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ>	8-97363-873-0	01	1	0302-	●
624	02.892 RELAY; SIDE TURN VOLTAGE 24V<7AE>	8-97363-873-0	01	1	0302-		●
624	02.892 RELAY; SIDE TURN	8-97363-873-0	01	1	0302-			●	●	●
624	02.892 RELAY; SIDE TURN EXC. VOLTAGE 24V<7AE>	8-97222-700-0	01	1	9901-9912		●
624	02.892 RELAY; SIDE TURN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, VOLTAGE 24V<7AE>	8-97222-700-0	01	1	0001-0102		●
624	02.892 RELAY; SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE>	8-97251-621-0	01	1	0001-0102		●
624	02.892 RELAY; SIDE TURN EXC. VOLTAGE 24V<7AE>	8-97251-621-0	01	1	0103-0301		●
624	02.892 RELAY; SIDE TURN EXC. VOLTAGE 24V<7AE>	8-97363-874-0	01	1	0302-		●

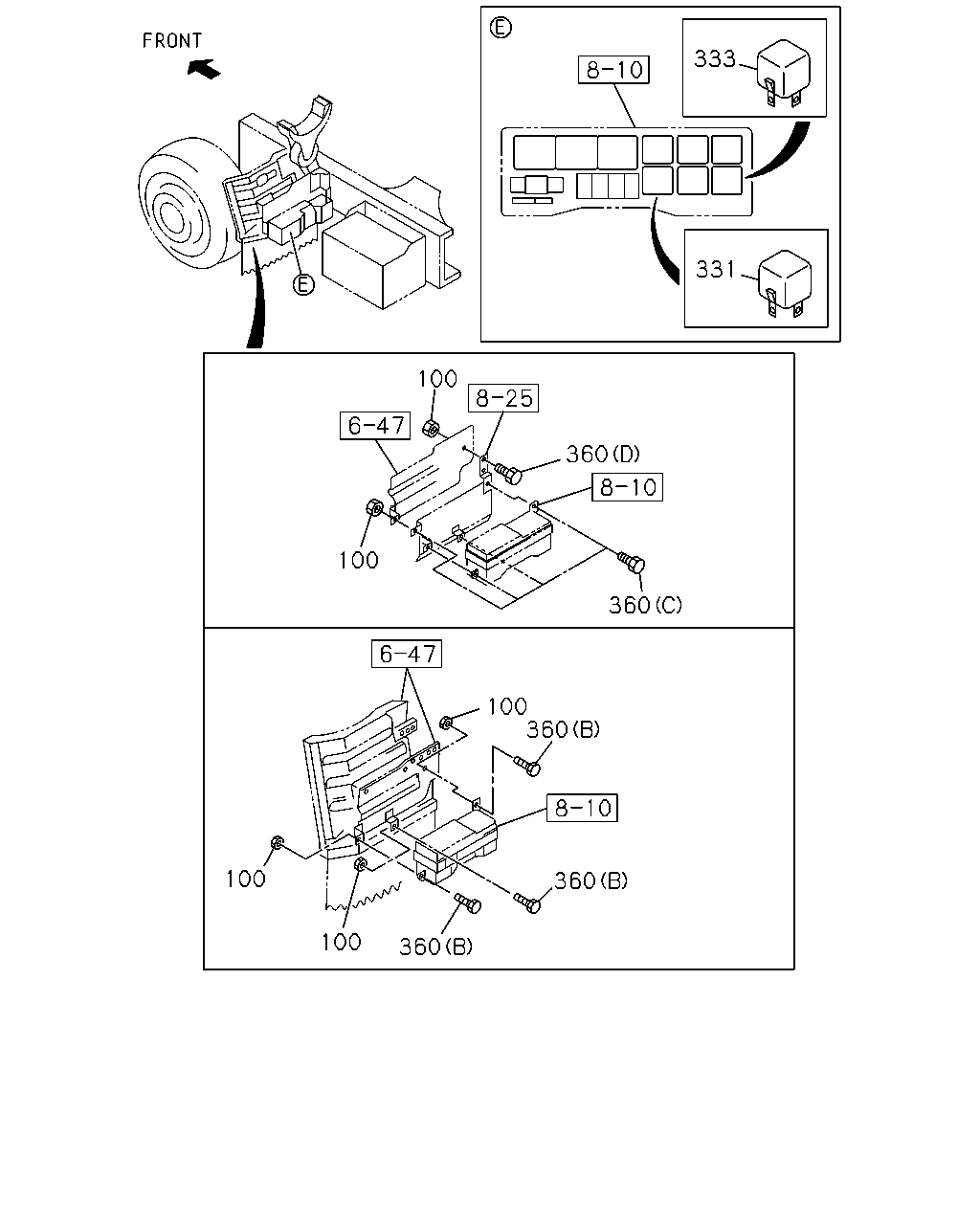

333 331 100 360 100 360 100 360 100 360 100 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-0105	●	●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●					●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-		●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9812-9903	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	03	1	9812-9903	●	●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9904-9905	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	03	1	9904-9905	●	●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9906-0105	●	●	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	03	1	9906-0105	●	●
100	09.277 NUT; RELAY BOX COVER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-	●	●	●	●	●	●	●
331	02.510 RELAY; A/C 4JH1 ENG(RJX) AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A	8-97060-926-1	01	1	0106-	●	●				●
333	09.277 RELAY; MARKER LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903	●	●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9812-9903			●	●	●
333	09.277 RELAY; MARKER LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104	●	●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A MITUBA	8-97062-815-1	01	1	9904-0104			●	●	●	●
333	09.277 RELAY; MARKER LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105	●	●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0105-0105			●	●	●	●
333	09.277 RELAY; MARKER LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-	●	●				●
333	09.277 RELAY; MARKER LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0106-			●	●	●		●
333	09.277 RELAY; MARKER LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9812-0105	●	●
333	09.277 RELAY; MARKER LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	0106-	●	●				●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●					●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	0106-		●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9812-0105	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-	●					●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-		●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9812-	●	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9812-9903	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9812-9903	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9904-9905	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9904-9905	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9906-0105	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9906-0105	●	●
360	02.483 BOLT; RELAY BOX CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●	●	●	●	●	●

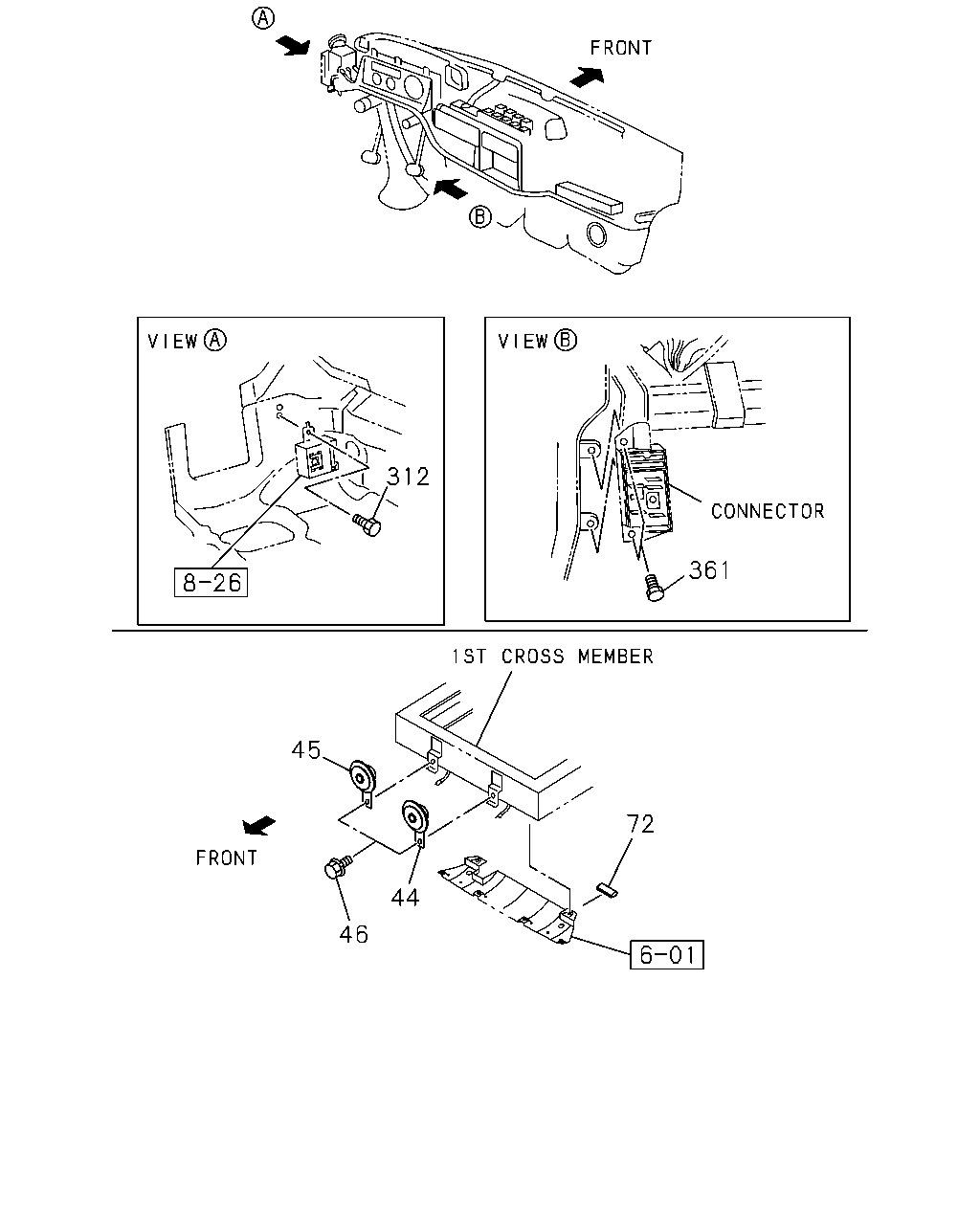

312 361 45 72 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9905-0105	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9905-0105			●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	0106-	●	●				●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	0106-			●	●	●		●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9905-0105	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	0106-	●	●				●
44	02.810 HORN; HIGH NOTE VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9812-9812	●	●
44	02.810 HORN; HIGH NOTE	8-97109-363-0	01	1	9812-9812			●	●	●
44	02.810 HORN; HIGH NOTE VOLTAGE 24V<7AE>	8-97211-741-0	01	1	9812-9903	●	●
44	02.810 HORN; HIGH NOTE	8-97211-741-0	01	1	9812-9903			●	●	●
44	02.810 HORN; HIGH NOTE VOLTAGE 24V<7AE>	8-97211-741-0	01	1	9904-9904	●	●
44	02.810 HORN; HIGH NOTE	8-97211-741-0	01	1	9904-9904			●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05> VOLTAGE 24V<7AE>	8-97211-741-0	01	1	9905-0105	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-0	01	1	9905-0105			●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05> VOLTAGE 24V<7AE>	8-97211-741-1	01	1	0106-	●	●				●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05>	8-97211-741-1	01	1	0106-			●	●	●		●
44	02.810 HORN; HIGH NOTE EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9812-9812	●	●
44	02.810 HORN; HIGH NOTE DUAL TONE HORN<U05> EXC. VOLTAGE 24V<7AE>	8-97211-743-1	01	1	9812-	●	●				●
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9905-0105	●	●
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9905-0105			●	●	●	●
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	0106-	●	●				●
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	0106-			●	●	●		●
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9905-0105	●	●
45	02.810 HORN; LOW NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	0106-	●	●				●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9812-9812	●	●
45	02.810 HORN; LOW NOTE	8-97109-364-1	01	1	9812-9812			●	●	●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE>	8-97211-740-0	01	1	9812-9903	●	●
45	02.810 HORN; LOW NOTE	8-97211-740-0	01	1	9812-9903			●	●	●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE>	8-97211-740-0	01	1	9904-9904	●	●
45	02.810 HORN; LOW NOTE	8-97211-740-0	01	1	9904-9904			●	●	●	●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE> EXC. DUAL HEAVY DUTY HORN<6KK>	8-97211-740-0	01	1	9905-0105	●	●
45	02.810 HORN; LOW NOTE EXC. DUAL HEAVY DUTY HORN<6KK>	8-97211-740-0	01	1	9905-0105			●	●	●	●
45	02.810 HORN; LOW NOTE VOLTAGE 24V<7AE> EXC. DUAL HEAVY DUTY HORN<6KK>	8-97211-740-1	01	1	0106-	●	●				●
45	02.810 HORN; LOW NOTE EXC. DUAL HEAVY DUTY HORN<6KK>	8-97211-740-1	01	1	0106-			●	●	●		●
45	02.810 HORN; LOW NOTE EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9812-9812	●	●
45	02.810 HORN; LOW NOTE EXC. VOLTAGE 24V<7AE>	8-97211-744-0	01	1	9812-9904	●	●
45	02.810 HORN; LOW NOTE EXC. DUAL HEAVY DUTY HORN<6KK>, VOLTAGE 24V<7AE>	8-97211-744-0	01	1	9905-0105	●	●
45	02.810 HORN; LOW NOTE EXC. DUAL HEAVY DUTY HORN<6KK>, VOLTAGE 24V<7AE>	8-97211-744-1	01	1	0106-	●	●				●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-9812	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-9812	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9812-9904	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9905-	●	●	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL TONE HORN<U05>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9905-	●	●	●	●	●	●	●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	9902-9903	●	●	●	●	●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	9904-0105	●	●	●	●	●	●
72	02.760 PROTECTOR; RELAY FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.008 L=80	5-22439-006-0	01	1	0106-	●	●	●	●	●	●
312	09.765 BOLT; BUZZER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9812-0105	●	●	●	●	●	●
312	09.765 BOLT; BUZZER 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	0106-	●	●	●	●	●	●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9812-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
