◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#4154) — 35 parça

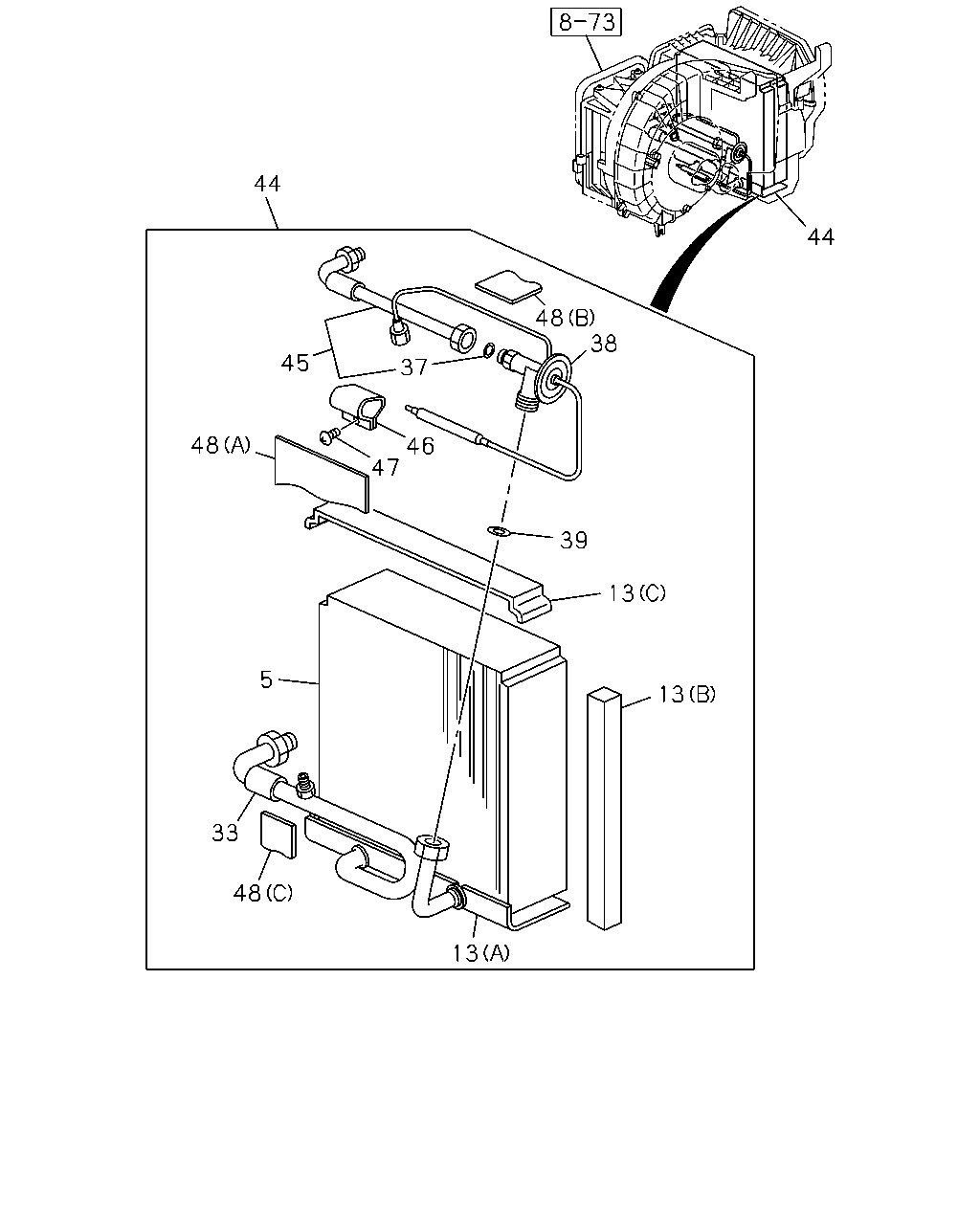

çizim 39845
44 44 48 38 45 37 48 46 47 39 13 5 13 33 48 13
BalonParca AdiParca NoAdetTipApplied Date A B
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-085-0 01 1 9610-9710 ●
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-085-0 01 1 9711-9904 ● ●
5 EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-095-0 01 1 9905- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-669-0 01 1 9610-9702 ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-937-0 01 1 9703-9710 ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-937-0 01 1 9711-9901 ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-669-1 01 1 9902- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-770-2 01 1 9610-9702 ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-938-0 01 1 9703-9710 ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-938-0 01 1 9711- ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-939-0 01 1 9703-9710 ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-939-0 01 1 9711- ● ●
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-653-0 01 1 9610-9710 ●
33 LINING; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-653-0 01 1 9711- ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9610-9702 ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 9703-9710 ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 9711- ● ●
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 9610-9710 ●
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83569-158-0 01 1 9711- ● ●
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 9610-9710 ●
39 GASKET; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94481-717-0 01 1 9711- ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-080-6 01 1 9610-9710 ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-080-6 01 1 9711-9904 ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83562-094-1 01 1 9905- ● ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-567-0 01 1 9610-9710 ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-567-0 01 1 9711-9904 ● ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-681-1 01 1 9905- ● ●
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-214-0 01 1 9610-9710 ●
46 CLIP; EXPANSION VLV
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-214-0 01 1 9711- ● ●
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9610-9710 ●
47 SCREW; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97130-601-0 01 1 9711- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83579-969-0 01 1 9902- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83579-970-0 01 1 9902- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-784-0 01 1 9610-9710 ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83579-784-0 01 1 9711- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
