Sayfa 8-15 - Isuzu EPC

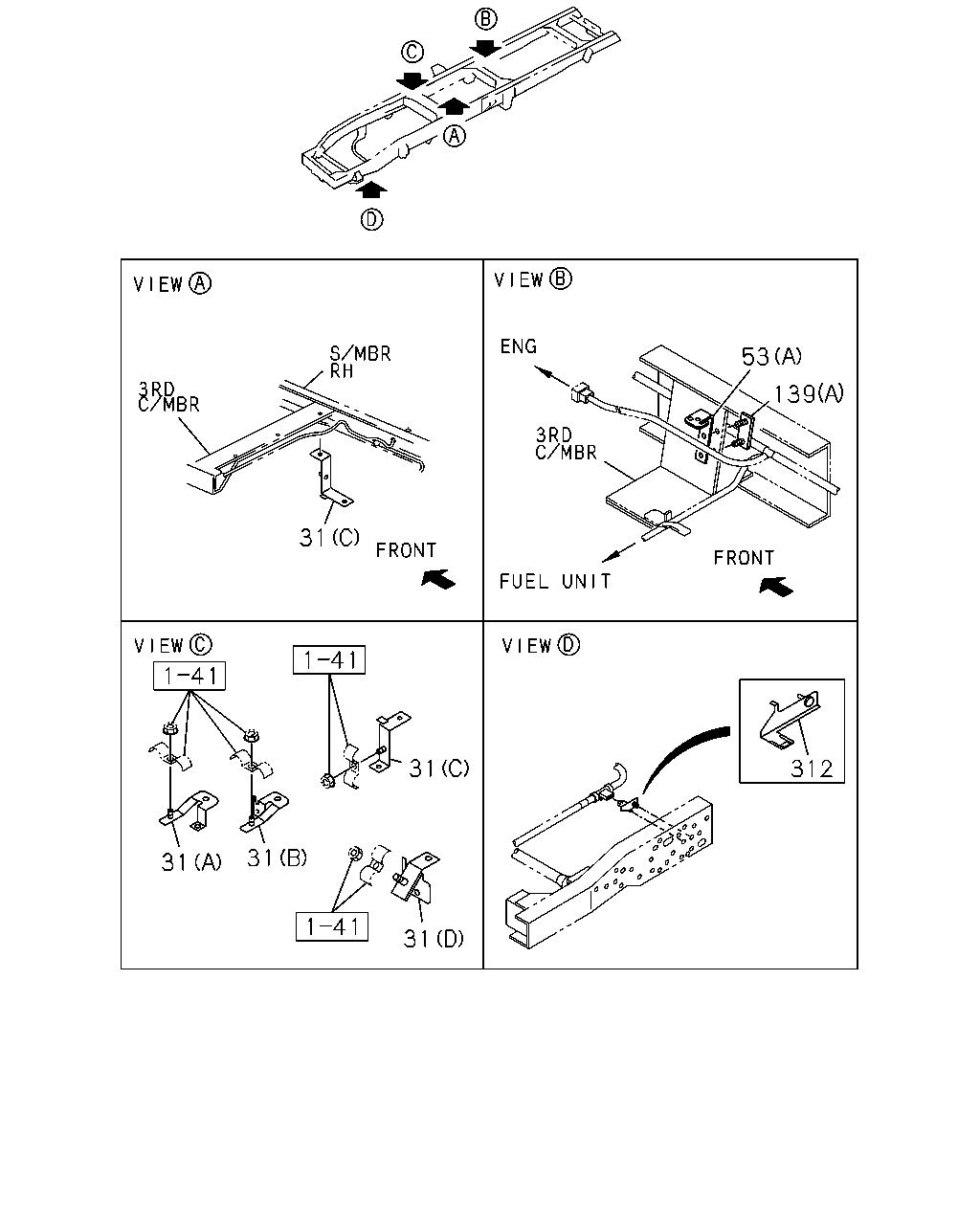

8-15 — FIXING PARTS; WIRING HARNESS (#41538) — 634 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0001-0105	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0106-0203	●	●	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	9812-0105	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0106-	●	●	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-							●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97313-793-0	01	1	0106-0209	●	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (E)	8-97359-614-0	01	1	0210-	●	●	●

139 377 481 516 8 239 386 38 150 150 139 8 38 239 38 19 38 219 64 219 294 515 524 219 294 515 219 294 469 519 525 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	01	1	9812-	●	●	●	●	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9812-	●	●	●	●	●	●	●
19	02.559 BOLT; PROTECTOR 4HE1 ENG(RLY) M/T MXA5R(RMT) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-9903	●	●					●
19	02.559 BOLT; PROTECTOR 4JG2 ENG(RJC) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9812-9903	●	●
19	02.559 BOLT; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9904-0105	●	●
19	02.559 BOLT; PROTECTOR 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	9904-0105			●	●	●		●
19	02.559 BOLT; PROTECTOR 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0106-	●	●	●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0106-							●
19	02.559 BOLT; PROTECTOR 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0106-				●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9812-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10X35 FLANGE	0-28681-035-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●	●		●	●		●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●	●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9812-9812				●	●		●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9903	●	●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9903	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9903	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9903	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9901-9903				●	●		●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9904-9905			●	●	●		●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
38	02.559 BOLT; CLIP,HARNESS FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105			●	●	●		●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-				●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-						●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9901-9903	●	●		●	●		●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9904-0105	●	●	●	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0106-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0106-							●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	0106-				●	●	●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	9904-			●			●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0001-0105	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0106-0203	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0204-	●	●	●
139	02.559 BOLT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	9812-0105	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0106-	●	●	●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	9812-	●	●	●	●	●	●	●
150	02.343 BOLT; CLIP 4JG2 ENG(RJC) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9812-9905	●	●
150	02.343 BOLT; CLIP 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●	●
150	02.343 BOLT; CLIP 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9906-0105	●	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●	●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97108-658-0	01	1	9812-0105	●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97108-658-0	01	1	0106-	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9812-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9812-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0106-	●	●	●	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0106-							●
219	02.559 NUT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 07.829 (B) M6 FLANGE	5-09440-004-0	01	1	9812-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 07.829 (B) M6 FLANGE	5-09440-004-0	01	1	0106-	●	●	●
219	02.559 NUT 4JG2 ENG(RJC) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-9905	●	●
219	02.559 NUT 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-9905	●	●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9906-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9906-0105	●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9812-9903	●	●		●	●		●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9812-9903	●	●		●	●		●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9812-9903	●	●		●	●		●
219	02.559 NUT 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9812-9903	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9812-9903	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9812-9903	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●	●	●	●		●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●	●	●	●		●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●	●	●	●		●
219	02.559 NUT 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9904-9905	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●	●	●	●		●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●	●	●	●		●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●	●	●	●		●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	9906-0105	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-				●	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-						●	●
219	02.559 NUT 4HE1 ENG(RLY) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0106-				●	●	●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9812-9903	●	●		●	●		●
219	02.559 NUT 4JG2 ENG(RJC) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9812-9903	●	●
219	02.559 NUT 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9812-9903	●	●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9904-9905	●	●	●	●	●		●
219	02.559 NUT 4JG2 ENG(RJC) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9904-9905	●	●
219	02.559 NUT 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9904-9905	●	●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9906-0004	●	●	●	●	●		●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9906-0004	●	●
219	02.559 NUT 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	9906-0004	●	●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 (B) M6 FLANGE	0-91150-106-0	03	1	0005-0105	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	03	1	0106-	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0005-0105	●	●	●	●	●		●
219	02.559 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0005-0105	●	●
219	02.559 NUT 4HE1 ENG(RLY) M/T MXA5R(RMT) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0005-0105	●	●
219	02.559 NUT EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-	●	●	●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9812-	●	●	●	●	●	●	●
239	02.559 BOLT; GRAND CERAMIC HEATER<6YX> 02.343 (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9812-	●	●	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9812-	●	●	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) M/T MZZ6F(RSR) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0208-	●	●	●	●	●	●
294	02.559 NUT M/T MZZ6F(RSR) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0208-							●
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6Q(RNM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9812-0105		●					●
294	02.559 NUT 4HE1 ENG(RLY) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	9812-0105				●	●
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6R(RNW) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0106-0207	●	●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0106-0207							●
294	02.559 NUT 4HE1 ENG(RLY) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0106-0207				●	●	●
294	02.559 NUT 4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0208-	●	●	●	●	●	●
294	02.559 NUT M/T MBP6R(RNW),M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0208-							●
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9812-	●	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	9812-	●	●	●	●	●	●	●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) M/T MXA5R(RMT) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9903	●	●					●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-9903	●	●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9904-9905	●	●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9904-9905			●	●	●		●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9906-9908	●	●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9906-9908			●	●	●		●
469	02.559 NUT; PROTECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9909-0105	●	●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	9909-0105			●	●	●		●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX),4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-							●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-				●	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0101-0105	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0203	●	●	●
515	02.559 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9812-0105	●	●
515	02.559 NUT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0106-	●	●	●
515	02.559 NUT; BRKT 4HE1 ENG(RLY) M/T MZZ6F(RSR) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0208-	●	●	●	●	●	●
515	02.559 NUT; BRKT M/T MZZ6F(RSR) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0208-							●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0001-0105	●	●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0203	●	●	●
516	02.559 BOLT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0204-	●	●	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) VOLTAGE 24V<7AE> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-9903	●	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-9903				●	●		●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) VOLTAGE 24V<7AE> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9904-9905	●	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9904-9905			●	●	●		●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9906-	●	●	●	●	●	●	●
519	02.559 NUT; EARTH CABLE 4JG2 ENG(RJC) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9812-9905	●	●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9812-9905	●	●
519	02.559 NUT; EARTH CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9906-0105	●	●
519	02.559 NUT; EARTH CABLE 4JH1 ENG(RJX) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	0106-	●	●	●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0106-	●	●	●
525	02.559 NUT; CLIP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	9812-	●	●	●	●	●	●	●

16 48 208 464 16 48 16 48 48 16 48 16 48 551 48 48 48 48 48 48 220 16 16 48 49 16 208 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=100	8-94442-388-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=60	8-94457-053-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=36.5	8-97019-892-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (Q) T=4.5 & 9	5-09709-023-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0005-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (S) ID=12	5-09700-331-0	AR	1	0106-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (T) T=6.0	5-09709-024-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=28 L=32	1-09701-064-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (I) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (O) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (P) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (W) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=32 L=35	1-09701-244-0	AR	1	0202-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Y) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	9812-9905	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	9906-0105	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JH1 ENG(RJX) 01.240 (A) ID=14 L=47	5-09700-319-0	02	1	0106-	●	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC) 01.240 (B) T=5.5	5-09709-047-0	01	1	9812-9905	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.240 (B) T=5.5	5-09709-047-0	01	1	9906-0105	●	●
208	02.559 CLIP; HARNESS,MAG VLV 4JH1 ENG(RJX) 01.240 (B) T=5.5	5-09709-047-0	01	1	0106-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9901-0105	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0106-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9812-9812	●	●		●	●		●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812	●	●
220	02.559 CLIP; HARNESS TO CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812				●	●		●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9901-9903	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9901-9903				●	●		●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9904-0105	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9904-0105			●	●	●		●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112				●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207							●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207				●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0208-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE M/T MBP6R(RNW) 03.162 (B) L=140	5-09707-031-1	01	1	0208-							●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MBP6R(RNW) 03.162 (B) L=140	5-09707-031-1	01	1	0208-				●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 (B) L=140	5-09707-031-1	02	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	9812-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	9812-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903				●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905			●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907			●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	04	1	9901-9903	●
551	02.559 CLIP; HARNESS,SIDE TURN (A) T=6.0	5-09709-024-0	04	1	9901-9903		●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	04	1	9904-9904	●
551	02.559 CLIP; HARNESS,SIDE TURN (A) T=6.0	5-09709-024-0	04	1	9904-9904		●	●	●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	04	1	9905-9912	●
551	02.559 CLIP; HARNESS,SIDE TURN (A) T=6.0	5-09709-024-0	04	1	9905-9912		●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) T=6.0	5-09709-024-0	04	1	0001-0105	●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) T=6.0	5-09709-024-0	04	1	0001-0105		●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0106-	●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0106-		●	●
551	02.559 CLIP; HARNESS,SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0001-0011	●	●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0012-0105	●	●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0106-	●	●
551	02.559 CLIP; HARNESS,SIDE TURN (C) L=250	5-09707-030-1	01	1	0106-				●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0001-0105		●

511 180 510 510 178 512 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY) M/T MBP6Q(RNM)	8-97061-052-1	01	1	9812-0105		●					●
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY)	8-97061-052-1	01	1	9812-0105				●	●
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY) M/T MBP6R(RNW)	8-97061-052-1	01	1	0106-0207	●	●	●
21	02.483 BRACKET; ENG HARNESS	8-97061-052-1	01	1	0106-0207							●
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY)	8-97061-052-1	01	1	0106-0207				●	●	●
21	02.483 BRACKET; ENG HARNESS 4HE1 ENG(RLY) M/T MBP6R(RNW)	8-97061-052-1	01	1	0208-	●	●	●	●	●	●
21	02.483 BRACKET; ENG HARNESS M/T MBP6R(RNW)	8-97061-052-1	01	1	0208-							●
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	9812-	●	●	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	9812-	●	●	●	●	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	9812-	●	●	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	9812-	●	●	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	9812-	●	●	●	●	●	●	●

48 483 48 48 48 53 53 7 183 53 317 412 317 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	02.559 BRACKET; CONNECTOR	8-97094-992-1	01	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=28 L=32	1-09701-064-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (I) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (O) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (P) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (W) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=32 L=35	1-09701-244-0	AR	1	0202-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Y) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0001-0105	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0106-0203	●	●	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	9812-0105	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0106-	●	●	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-							●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97313-793-0	01	1	0106-0209	●	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (E)	8-97359-614-0	01	1	0210-	●	●	●
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	9904-			●			●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B)	8-94366-903-0	01	1	9812-0105	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B)	8-94366-903-0	01	1	0106-	●	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9812-9905	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9812-9905	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9812-9905	●	●
317	02.559 CLAMP; CONNECTOR 4JG2 ENG(RJC),4JB1 ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	9906-0105	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9906-0105	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	9906-0105	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0106-	●	●	●
317	02.559 CLAMP; CONNECTOR 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94466-377-0	01	1	0106-	●	●	●
317	02.559 CLAMP; CONNECTOR 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94466-377-0	01	1	0106-	●	●
412	02.559 BRACKET; HARNESS,TRANS 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97324-451-1	01	1	0208-	●	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS M/T MZZ6F(RSR)	8-97324-451-1	01	1	0208-							●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) 04.342 (A) L=197	1-83574-032-0	01	1	9812-9905	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) (C) ID=11 L=20	9-09525-035-0	01	1	9812-9905	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20	9-09525-535-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	02	1	9812-9903	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	02	1	9904-0004	●	●	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0005-0105	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	02	1	0005-0105	●	●	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	02	1	0106-0207	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) EURO3 SPECIFICATION<NT3> 03.162 (B) L=140	5-09707-031-1	02	1	0208-	●	●	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 16.225 L=200 SERVICED BY L=3060	9-65731-223-1	01	1	9812-0105	●	●	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0106-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	01	1	9812-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	9812-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	9812-	●	●	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.550 L=250 SERVICED BY L=2040	1-71997-513-1	01	1	9812-9903	●	●		●	●		●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 16.550 L=250 SERVICED BY L=2040	1-71997-513-1	01	1	9904-0003	●	●	●	●	●		●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0004-0105	●	●	●	●	●		●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-	●	●	●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-							●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0106-				●	●	●

16 397 16 48 464 142 16 48 16 16 16 264 16 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=100	8-94442-388-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=60	8-94457-053-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=36.5	8-97019-892-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (Q) T=4.5 & 9	5-09709-023-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0005-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (S) ID=12	5-09700-331-0	AR	1	0106-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (T) T=6.0	5-09709-024-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=28 L=32	1-09701-064-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (I) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (O) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (P) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (W) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=32 L=35	1-09701-244-0	AR	1	0202-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Y) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	9812-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9812-9903	●	●		●	●		●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●		●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112							●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112				●	●	●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207	●	●	●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207							●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207				●	●	●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-	●	●	●
142	02.559 CLIP; HARNESS,ENG M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-							●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-				●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	9812-0101	●	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0102-	●	●	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0102-	●	●	●	●	●	●	●
397	02.559 CLIP; RR DOOR HARNESS AUTO DOOR LOCK<AU4> 10.154 ID=7	8-97014-713-0	02	1	9904-			●			●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	9812-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	9812-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903				●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905			●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907			●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●

53 139 31 31 312 31 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) (B) L=47	8-97042-635-0	01	1	9812-0105	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) (B) L=47	8-97042-635-0	01	1	9812-0105			●	●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) (B) L=47	8-97042-635-0	01	1	0106-	●	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B) L=47	8-97042-635-0	01	1	0106-							●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97017-071-2	01	1	9812-0105	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97017-071-2	01	1	0106-	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20	8-94165-263-1	01	1	9812-0105	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=20	8-94165-263-1	01	1	0106-	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	9812-0105	●	●	●	●	●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) L=73	8-97077-845-0	02	1	0106-	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B) L=73	8-97077-845-0	02	1	0106-							●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY) (B) L=73	8-97077-845-0	02	1	0106-				●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (D)	8-97312-260-0	03	1	0106-	●	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0001-0105	●	●
53	02.483 BRACKET; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97040-410-2	01	1	0106-0203	●	●	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	9812-0105	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97062-178-3	01	1	0106-	●	●	●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS M/T MZZ6F(RSR) (D)	8-97352-527-0	01	1	0208-							●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97313-793-0	01	1	0106-0209	●	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (E)	8-97359-614-0	01	1	0210-	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0001-0105	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0106-0203	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (C) M8X10 W/LK WASHER	8-97025-916-0	02	1	0204-	●	●	●
139	02.559 BOLT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	9812-0105	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-451-3	01	1	0106-	●	●	●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	9812-	●	●	●	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS 4HE1 ENG(RLY)	8-97017-072-2	01	1	9812-	●	●	●	●	●	●	●

16 488 551 48 14 16 48 142 220 483 551 593 205 48 488 16 16 483 464 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	02.559 CLIP; BAND,HARNESS 03.162 L=140	5-09707-031-1	01	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (K) L=250	5-09707-030-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (E) L=100	8-94327-067-1	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (H) ID=6 & 10-13	8-97069-515-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=175	8-97110-167-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (I) L=155	8-97173-307-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) ID=15-32	8-97174-404-0	AR	1	9812-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 04.342 (L) ID=14-12	8-94379-592-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=100	8-94442-388-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (N) L=60	8-94457-053-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (O) L=36.5	8-97019-892-0	AR	1	9904-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (Q) T=4.5 & 9	5-09709-023-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (P) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (R) ID=27	5-09700-323-0	AR	1	0005-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (S) ID=12	5-09700-331-0	AR	1	0106-	●	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (T) T=6.0	5-09709-024-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (H) ID=32 L=75	1-09700-702-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=33 L=63	1-09700-807-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=31 L=30	1-09700-969-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=28 L=32	1-09701-064-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) L=170.3	1-09987-182-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (Q) ID=27	5-09700-323-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 00.446 (I) ID=12 B=14 ID=8.5	5-09700-350-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (K) L=140	5-09707-031-1	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (O) T=4.5 & 9	5-09709-023-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (L) T=8.7	5-09709-048-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (D) ID=9.6	8-94147-870-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) L=110	8-94149-419-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94169-650-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.115 (P) T=9 & 10.5	8-97041-091-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=30 W/STUD	8-97078-642-2	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=19 L=60	9-09525-893-0	AR	1	9812-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) T=6.0	5-09709-012-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (U) T=6.0	5-09709-024-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=25 L=55	9-09917-573-0	AR	1	0001-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (V) L=330	5-09709-118-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.785 (W) ID=11 L=28	9-09525-055-0	AR	1	0106-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS (X) ID=32 L=35	1-09701-244-0	AR	1	0202-	●	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (Y) T=9.2 & 9	5-09709-025-0	AR	1	0208-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.483 (B)	8-97101-436-0	01	1	9812-	●	●	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9812-9903	●	●		●	●		●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	9904-0105	●	●	●	●	●		●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112	●	●	●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112							●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0106-0112				●	●	●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207	●	●	●
142	02.559 CLIP; HARNESS,ENG 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207							●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0201-0207				●	●	●
142	02.559 CLIP; HARNESS,ENG 4JH1 ENG(RJX),4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-	●	●	●
142	02.559 CLIP; HARNESS,ENG M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-							●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) M/T MBP6R(RNW) 03.162 (A) L=140	5-09707-031-1	01	1	0208-				●	●	●
205	02.559 CLIP; BACK LAMP HARNESS 4HE1 ENG(RLY) M/T MZZ6F(RSR) L=135	1-09987-143-1	01	1	0208-	●	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS M/T MZZ6F(RSR) L=135	1-09987-143-1	01	1	0208-							●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9901-0105	●	●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	0106-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.680 (A) ID=25.5 & 8.0	8-94363-538-0	01	1	9812-9812	●	●		●	●		●
220	02.559 CLIP; HARNESS TO CABLE VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812	●	●
220	02.559 CLIP; HARNESS TO CABLE FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-0	01	1	9812-9812				●	●		●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9901-9903	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9901-9903				●	●		●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9904-0105	●	●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	9904-0105			●	●	●		●
220	02.559 CLIP; HARNESS TO CABLE CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0106-0112				●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207							●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	01	1	0201-0207				●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MXA5R(RMT),M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 03.162 (B) L=140	5-09707-031-1	01	1	0208-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE M/T MBP6R(RNW) 03.162 (B) L=140	5-09707-031-1	01	1	0208-							●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MBP6R(RNW) 03.162 (B) L=140	5-09707-031-1	01	1	0208-				●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 (B) L=140	5-09707-031-1	02	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	9812-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 01.240 (C) ID=14 L=47	5-09700-319-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	9812-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> 02.587 (A) L=112	8-94232-618-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9812-9903				●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9904-9905			●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9906-9907			●	●	●		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL FILTER DUAL<S6B>,FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR C OOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	9908-0105	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>,CHARGE AIR COOLER<6PL> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> 02.559 (B) ID=6.5	8-94257-639-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) 04.342 (A) L=197	1-83574-032-0	01	1	9812-9905	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> 04.342 (A) L=197	1-83574-032-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) (C) ID=11 L=20	9-09525-035-0	01	1	9812-9905	●	●
483	02.559 CLIP; ENG HARNESS 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) POWER STEERING<N40> EURO2 SPECIFICATION<7AF> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (C) ID=11 L=20	9-09525-035-0	01	1	9906-0105	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (C) ID=16 L=20	9-09525-535-0	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	02	1	9812-9903	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 (B) L=140	5-09707-031-1	02	1	9904-0004	●	●	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0005-0105	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	02	1	0005-0105	●	●	●	●	●		●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	02	1	0106-0207	●	●	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) EURO3 SPECIFICATION<NT3> 03.162 (B) L=140	5-09707-031-1	02	1	0208-	●	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (B) L=170.3	1-09987-182-0	02	1	9812-	●	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9812-	●	●	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	9812-	●	●	●	●	●	●	●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	04	1	9901-9903	●
551	02.559 CLIP; HARNESS,SIDE TURN (A) T=6.0	5-09709-024-0	04	1	9901-9903		●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	04	1	9904-9904	●
551	02.559 CLIP; HARNESS,SIDE TURN (A) T=6.0	5-09709-024-0	04	1	9904-9904		●	●	●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	04	1	9905-9912	●
551	02.559 CLIP; HARNESS,SIDE TURN (A) T=6.0	5-09709-024-0	04	1	9905-9912		●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) T=6.0	5-09709-024-0	04	1	0001-0105	●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) T=6.0	5-09709-024-0	04	1	0001-0105		●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0106-	●
551	02.559 CLIP; HARNESS,SIDE TURN EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0106-		●	●
551	02.559 CLIP; HARNESS,SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) L=140	5-09707-031-1	01	1	0001-0011	●	●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0012-0105	●	●		●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN FRAME STRAIGHT TYPE<7KJ> (C) L=250	5-09707-030-1	01	1	0106-	●	●
551	02.559 CLIP; HARNESS,SIDE TURN (C) L=250	5-09707-030-1	01	1	0106-				●	●		●
551	02.559 CLIP; HARNESS,SIDE TURN 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) T=6.0	5-09709-024-0	02	1	0001-0105		●
593	02.559 CLIP 4HE1 ENG(RLY) M/T MZZ6F(RSR) 03.162 L=140	5-09707-031-1	01	1	0208-	●	●	●	●	●	●
593	02.559 CLIP M/T MZZ6F(RSR) 03.162 L=140	5-09707-031-1	01	1	0208-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
