◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#41536) — 21 parça

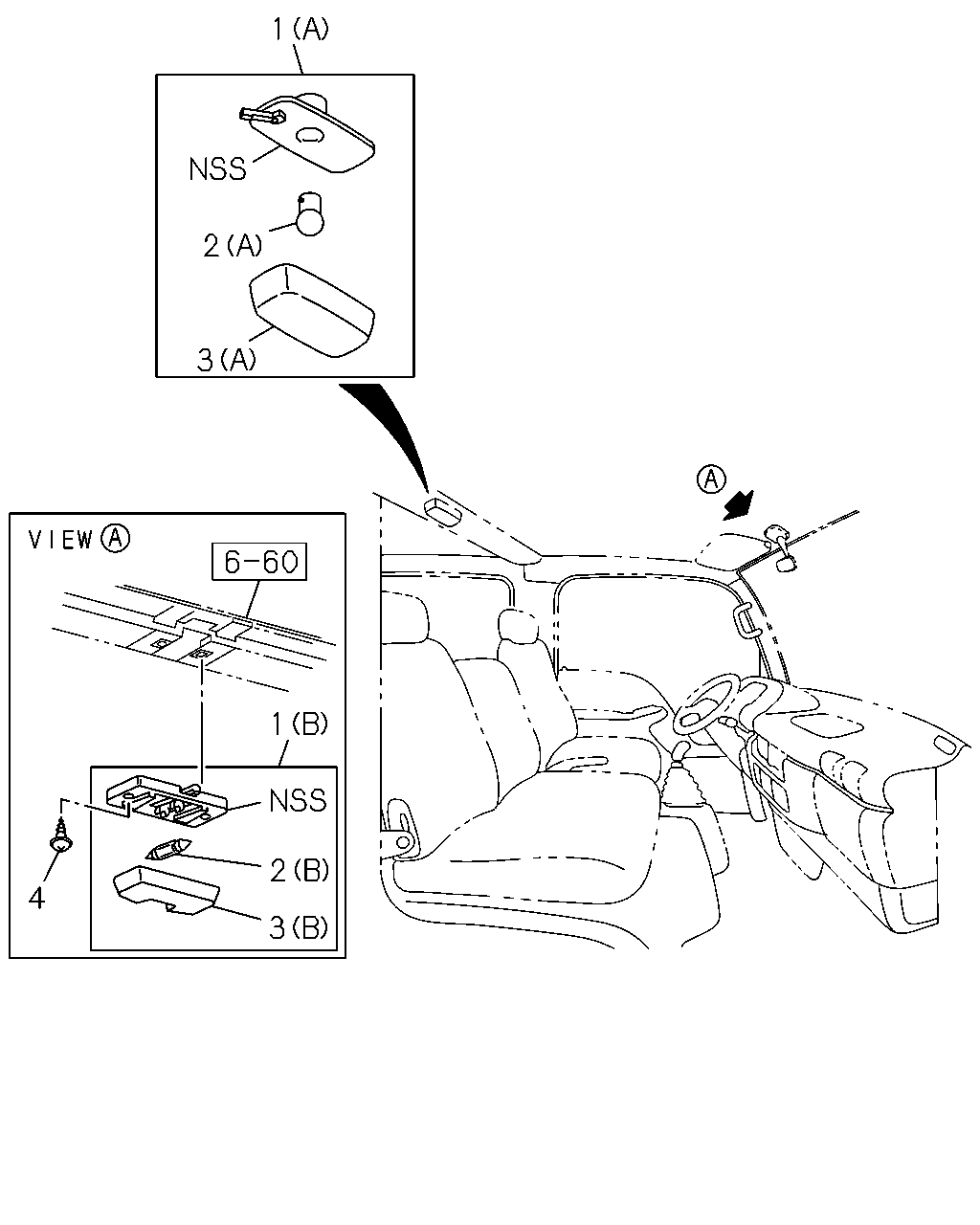

çizim 49145
1 2 3 1 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.494 LAMP ASM; ROOM
(A) 24V 12W 		8-97080-775-0 01 1 9904-0105 ●
1 16.494 LAMP ASM; ROOM
VOLTAGE 24V<7AE> (A) 24V 12W 		8-97080-775-0 01 1 0106-0109 ●
1 16.494 LAMP ASM; ROOM
(A) 24V 12W 		8-97080-775-0 01 1 0106-0109 ●
1 16.494 LAMP ASM; ROOM
VOLTAGE 24V<7AE> EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> (A) 24V 12W 		8-97080-775-0 01 1 0110- ●
1 16.494 LAMP ASM; ROOM
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> (A) 24V 12W 		8-97080-775-0 01 1 0110- ●
1 16.494 LAMP ASM; ROOM
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-97080-774-0 01 1 0106-0109 ●
1 16.494 LAMP ASM; ROOM
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF>, VOLTAGE 24V<7AE> (A) 12V 10W 		8-97080-774-1 01 1 0110- ●
1 16.494 LAMP ASM; ROOM
LAMP-ROOM,W/ALL DOORS SW<SDF> (B) 24V 10W LIGHT GRAY 		8-97898-451-0 01 1 0110- ● ●
2 08.991 BULB; ROOM LAMP
(A) 24V 12W 		9-82691-302-0 01 1 9904-0105 ●
2 08.991 BULB; ROOM LAMP
VOLTAGE 24V<7AE> (A) 24V 12W 		9-82691-302-0 01 1 0106-0109 ●
2 08.991 BULB; ROOM LAMP
(A) 24V 12W 		9-82691-302-0 01 1 0106-0109 ●
2 08.991 BULB; ROOM LAMP
VOLTAGE 24V<7AE> EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> (A) 24V 12W 		9-82691-302-0 01 1 0110- ●
2 08.991 BULB; ROOM LAMP
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> (A) 24V 12W 		9-82691-302-0 01 1 0110- ●
2 08.991 BULB; ROOM LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		9-82691-303-0 01 1 0106-0109 ●
2 08.991 BULB; ROOM LAMP
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF>, VOLTAGE 24V<7AE> (A) 12V 10W 		9-82691-303-0 01 1 0110- ●
2 08.991 BULB; ROOM LAMP
LAMP-ROOM,W/ALL DOORS SW<SDF> (B) 24V 10W 		5-82194-030-0 01 1 0110- ● ●
3 16.495 LENS; ROOM LAMP
(A) 		5-82145-002-0 01 1 9904-0105 ●
3 16.495 LENS; ROOM LAMP
(A) 		5-82145-002-0 01 1 0106-0109 ● ●
3 16.495 LENS; ROOM LAMP
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> (A) 		5-82145-002-0 01 1 0110- ● ●
3 16.495 LENS; ROOM LAMP
LAMP-ROOM,W/ALL DOORS SW<SDF> 16.068 (B) 		5-73117-108-0 01 1 0110- ● ●
4 16.495 SCREW; ROOM LAMP
LAMP-ROOM,W/ALL DOORS SW<SDF> 03.671 M5X20 		5-09981-059-0 02 1 0110- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
