◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#41534) — 200 parça

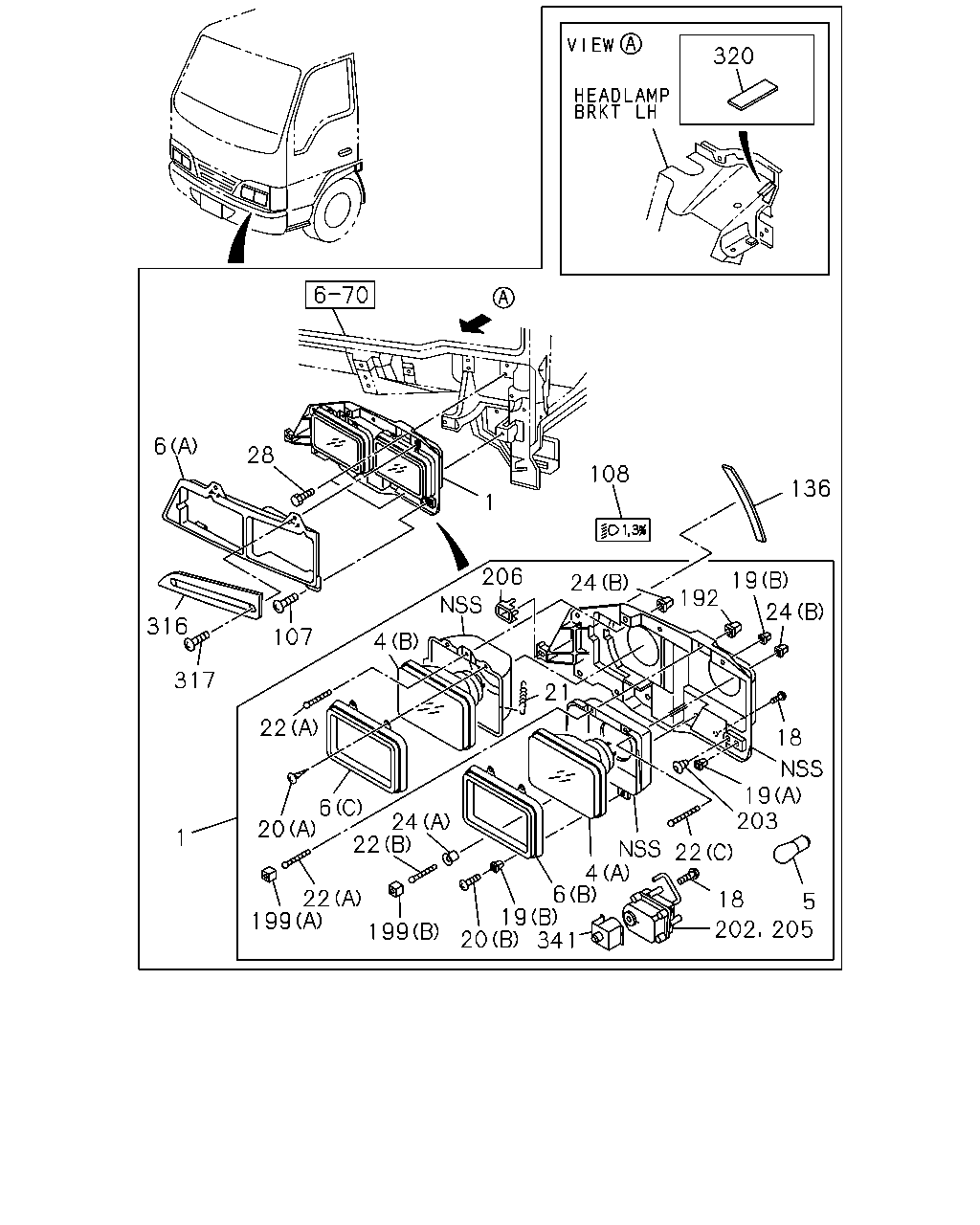

çizim 9887
320 6 28 108 136 1 206 19 24 192 24 316 107 4 21 317 22 18 19 203 6 24 22 20 1 4 6 19 22 22 199 18 5 199 20 341 202 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97160-107-0 01 1 9812-0105 ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97160-107-0 01 1 9812-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-570-0 01 1 0106- ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-570-0 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97160-106-0 01 1 9812-0105 ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97160-106-0 01 1 9812-0105 ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97261-569-0 01 1 0106- ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97261-569-0 01 1 0106- ● ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-085-4 01 1 9812-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97260-770-0 01 1 0106- ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-084-4 01 1 9812-0105 ● ● ●
1 02.725 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97260-769-0 01 1 0106- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97855-046-4 01 1 9812- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> 		8-97855-045-4 01 1 9812- ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-103-0 01 1 9812- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97160-103-0 01 1 9812- ● ● ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 24V<7AE> EXC. ADJUST HEADLAMP<6RC> 		8-97160-102-0 01 1 9812- ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. ADJUST HEADLAMP<6RC> 		8-97160-102-0 01 1 9812- ● ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 40/60W 		8-97855-197-0 02 1 9812-0105 ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (A) 12V 55/60W 		8-97855-198-0 02 1 0106- ● ● ●
4 02.727 HEADLAMP UNIT
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-201-0 02 1 9812- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (A) 12V 65/60W 		8-97855-199-0 02 1 9812- ● ● ●
4 02.727 HEADLAMP UNIT
EXC. ADJUST HEADLAMP<6RC>,VOLTAGE 24V<7AE> (B) 12V 55W 		8-97855-203-0 02 1 9812- ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (B) TYPE 1 24V 70W 		1-82191-032-0 02 1 9812- ● ● ●
4 02.727 HEADLAMP UNIT
(B) TYPE 1 24V 70W 		1-82191-032-0 02 1 9812- ● ● ● ●
4 02.727 HEADLAMP UNIT
VOLTAGE 24V<7AE> (A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 9812- ● ● ●
4 02.727 HEADLAMP UNIT
(A) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 9812- ● ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 75/70W 		8-94405-657-0 02 1 9812- ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 9812- ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 60/55W 		8-94217-817-0 02 1 9812- ● ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 24V<7AE> 24V 70W 		8-94405-658-0 02 1 9812- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 24V<7AE> 12V 55W 		5-82195-001-0 02 1 9812- ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97890-801-0 01 1 9812-0211 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-089-0 01 1 0212- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97890-800-0 01 1 9812-0211 ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(A) 		8-97581-088-0 01 1 0212- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(C) 		1-82114-016-0 02 1 9812- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
(B) 		8-97855-211-0 02 1 9812- ● ● ● ● ● ● ●
18 02.726 SCREW; GEAR CASE
ADJUST HEADLAMP<6RC> 		1-82119-086-0 06 1 9812- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(A) 		8-97044-618-0 08 1 9812- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
(B) 		8-97044-623-0 08 1 9812- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(A) M4X8 		8-94165-886-0 08 1 9812- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
(B) 		8-97228-675-0 08 1 9812- ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 1-82119-021-0 02 1 9812- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(A) 		8-97855-205-0 04 1 9812- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
(C) 		8-97855-207-0 02 1 9812- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97855-206-0 02 1 9812- ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
(B) 		8-94387-097-0 06 1 9812- ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. ADJUST HEADLAMP<6RC> (A) 		8-97855-208-0 02 1 9812- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 9812- ● ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-94279-391-0 04 1 9812-0202 ● ● ● ● ● ● ●
107 02.729 SCREW; RIM,HEADLAMP
M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ● ●
108 02.729 SEAL; HEADLAMP RIM
ADJUST HEADLAMP<6RC> 		8-97049-114-0 01 1 9812- ● ● ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
AIR INTAKE SYSTEM FRONT<6PC> 170X15 		8-97853-541-0 01 1 9812-0105 ● ●
192 02.765 PIVOT; HEADLAMP
02.737 		8-94381-595-0 02 1 9812- ● ● ● ● ● ● ●
199 02.737 BUSHING
(A) 		8-94381-605-0 04 1 9812- ● ● ● ● ● ● ●
199 02.737 BUSHING
(B) 		8-97855-212-0 02 1 9812- ● ● ● ● ● ● ●
202 02.726 GEAR UNIT; HEADLAMP
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97183-597-0 02 1 9812-0105 ● ●
202 02.726 GEAR UNIT; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97183-597-0 02 1 9812-0105 ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 9812- ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97855-209-0 02 1 9812-0105 ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> EXC. VOLTAGE 24V<7AE> 		8-97309-102-0 02 1 0106- ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> VOLTAGE 24V<7AE> 		8-97309-103-0 02 1 0106- ● ● ●
205 02.727 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97309-103-0 02 1 0106- ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 9812- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97863-623-0 01 1 9812- ● ● ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97855-009-4 01 1 9812- ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-94279-391-0 04 1 9812-0202 ● ● ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0203- ● ● ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 9812- ● ● ● ● ● ● ●
341 02.726 BRACKET; ACTUATOR
ADJUST HEADLAMP<6RC> 		8-97855-210-0 02 1 9812- ● ● ● ● ● ● ●

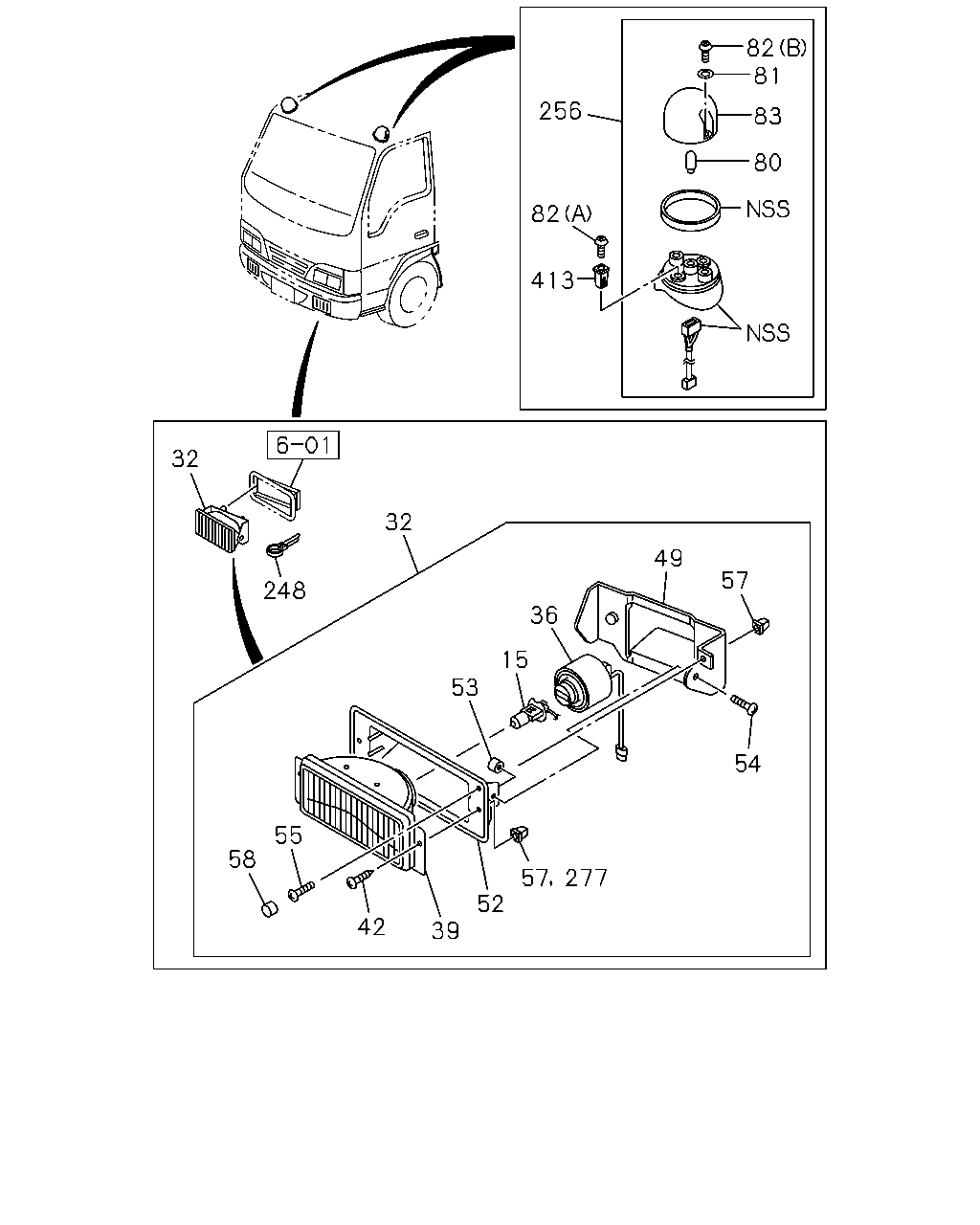

çizim 49144
82 81 256 83 80 82 413 32 32 49 57 248 36 15 53 54 55 58 57 277 52 42 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 12V 55W 		8-97093-859-0 02 1 9812- ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 24V 70W 		8-97203-926-0 02 1 9812- ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 9812- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97080-779-1 01 1 9812-0003 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-544-0 01 1 0004- ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-942-0 01 1 9812- ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97181-942-0 01 1 9812- ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97080-778-1 01 1 9812-0003 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97248-543-0 01 1 0004- ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97181-940-0 01 1 9812- ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97181-940-0 01 1 9812- ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97095-518-0 02 1 9812- ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-929-0 02 1 0106- ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97357-929-0 02 1 0106- ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97119-300-0 01 1 9812- ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-060-0 01 1 9812- ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-931-0 04 1 0106- ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-931-0 04 1 0106- ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-089-0 04 1 9812- ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-095-0 01 1 9812- ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-094-0 01 1 9812- ● ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-062-0 02 1 9812- ● ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-94379-802-0 04 1 9812- ● ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> M5X12 		8-94379-803-0 04 1 9812- ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-087-0 02 1 9812- ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-94379-806-0 06 1 9812- ● ● ●
58 02.726 HOLDER; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97104-088-0 02 1 9812- ● ● ●
80 08.991 BULB; MARKER LAMP
VOLTAGE 24V<7AE> 24V 5W 		8-94135-397-0 02 1 0106- ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0106- ● ● ● ●
80 08.991 BULB; MARKER LAMP
EXC. VOLTAGE 24V<7AE> 12V 5W 		1-82194-053-0 02 1 0106- ● ● ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0106- ● ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0106- ● ● ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0106- ● ● ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0106- ● ● ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 9812- ● ● ● ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-626-0 01 1 0106- ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0106- ● ● ● ●
256 02.589 LAMP; MARKER
VOLTAGE 24V<7AE> 		8-97307-625-0 01 1 0106- ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0106- ● ● ● ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-628-0 01 1 0106- ● ● ●
256 02.589 LAMP; MARKER
EXC. VOLTAGE 24V<7AE> 		8-97307-627-0 01 1 0106- ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97357-930-0 02 1 0106- ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-930-0 02 1 0106- ● ● ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0106- ● ● ● ● ● ● ●

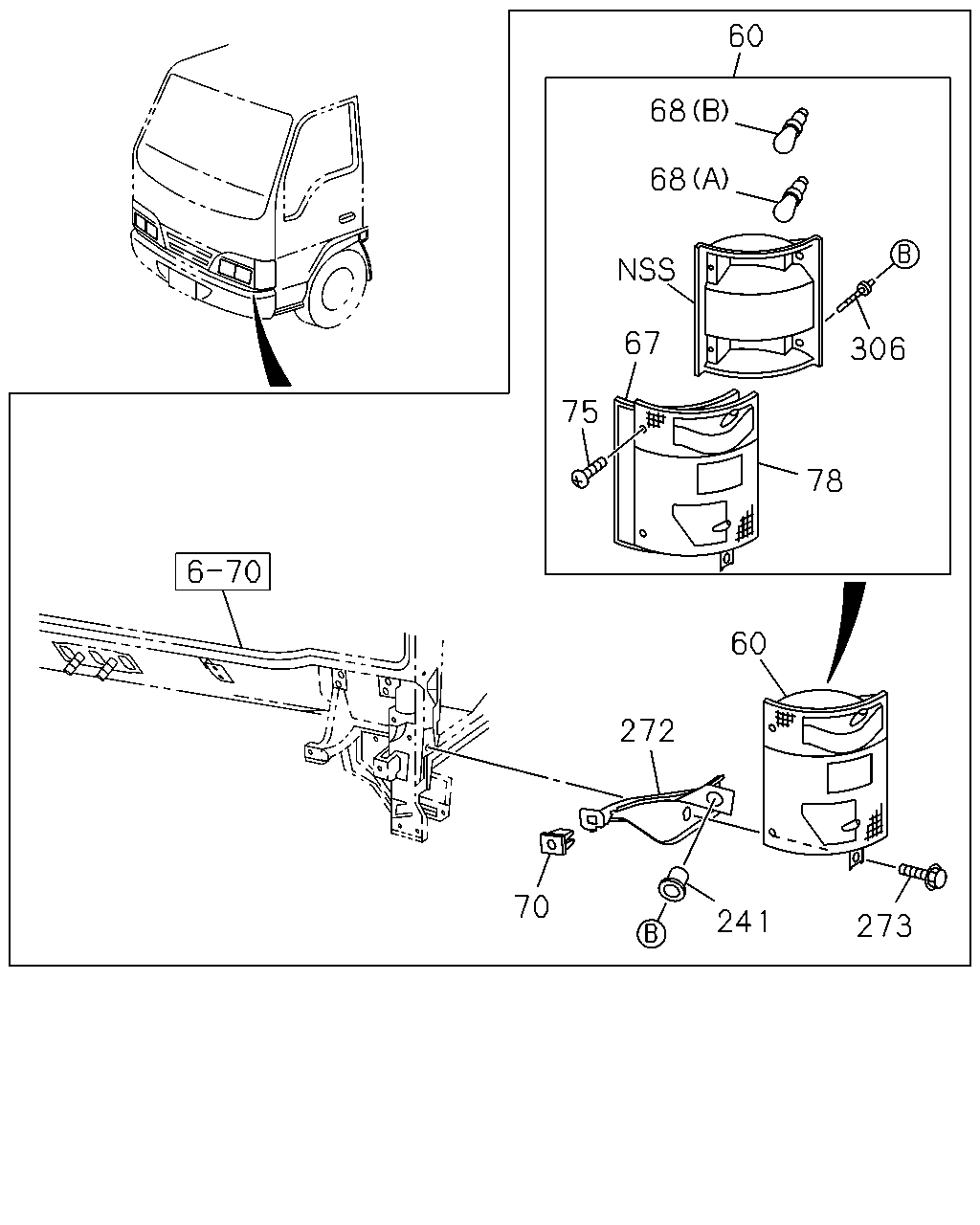

çizim 51651
60 68 68 67 306 75 78 60 272 70 241 273
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-113-2 01 1 9812- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 9812- ● ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97855-112-2 01 1 9812- ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 9812- ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-111-2 01 1 9812- ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97855-110-2 01 1 9812- ● ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-925-0 01 1 9812- ●
60 02.585 LAMP ASM; FRT COMB 8-97225-925-0 01 1 9812- ●
60 02.585 LAMP ASM; FRT COMB
VOLTAGE 24V<7AE> 		8-97225-924-0 01 1 9812- ●
60 02.585 LAMP ASM; FRT COMB 8-97225-924-0 01 1 9812- ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-923-0 01 1 0106- ●
60 02.585 LAMP ASM; FRT COMB
EXC. VOLTAGE 24V<7AE> 		8-97225-922-0 01 1 0106- ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 9812- ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (B) 24V 21W 		8-94125-956-0 02 1 9812- ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 9812- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
VOLTAGE 24V<7AE> (A) 24V 10W 		8-97094-888-0 02 1 9812- ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 9812- ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (B) 12V 21W 		8-94124-074-0 02 1 9812- ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. VOLTAGE 24V<7AE> (A) 12V 10W 		8-94126-494-0 02 1 9812- ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 9812- ● ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 9812- ● ● ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-133-0 01 1 9812- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-130-0 01 1 9812- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97227-813-0 01 1 9904- ● ●
78 02.589 LENS ASM; FRT COMB 8-97227-809-0 01 1 9904- ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 9812- ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 9812- ● ● ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 9812- ● ● ● ● ● ● ●
273 02.726 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE 		0-28691-030-0 01 1 9901- ●
273 02.726 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE 		0-28691-030-0 01 1 9901- ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812- ● ● ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 9812- ● ● ● ● ● ● ●

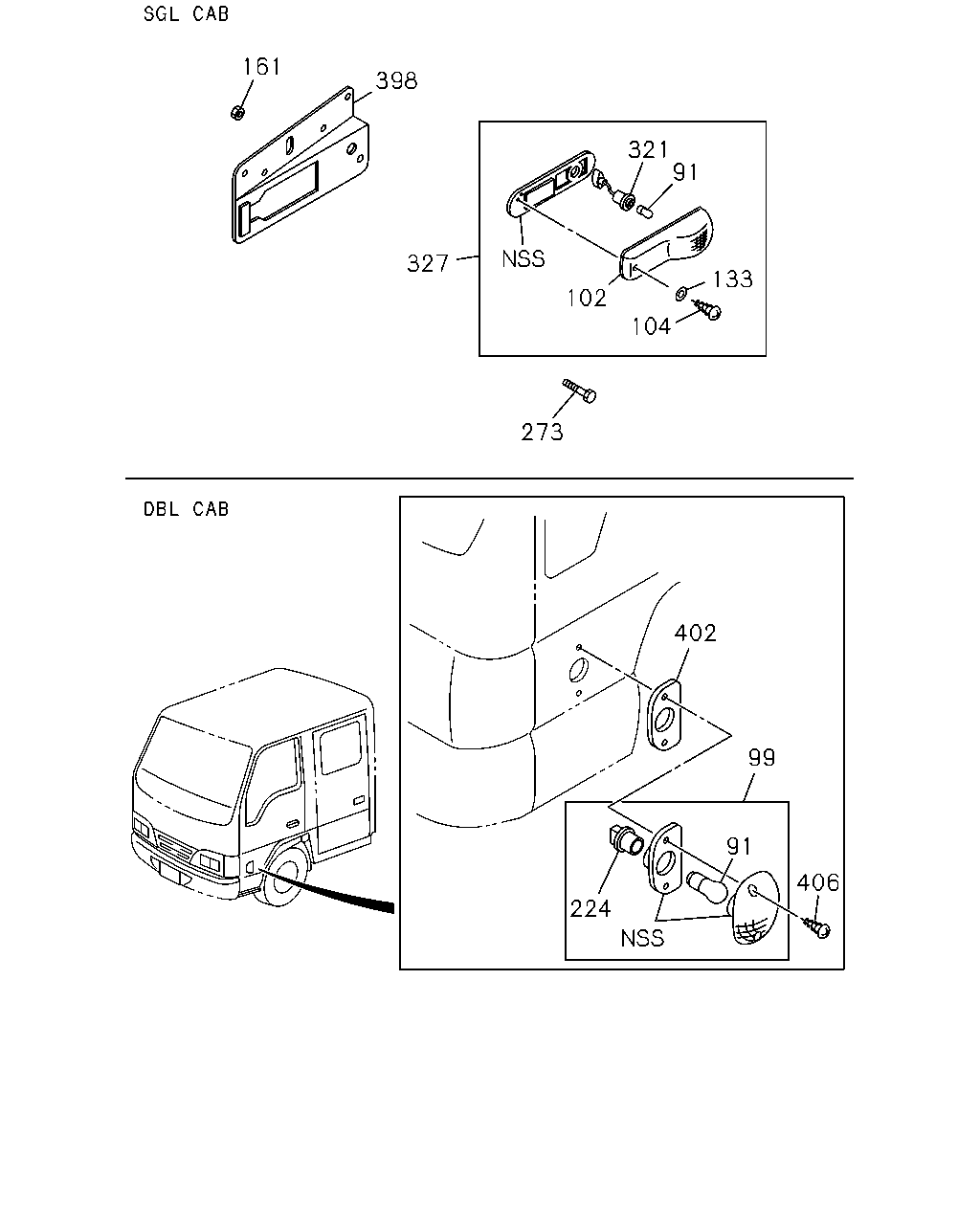

çizim 51652
161 398 321 91 327 102 133 104 273 402 99 91 406 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
91 08.991 BULB; SIDE TURN SIGNAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 9812-9812 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
4HE1 ENG(RLY) 24V 21W 		1-82194-036-0 02 1 9812-9812 ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 24V 21W 		1-82194-036-0 02 1 9901- ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 24V 21W 		1-82194-036-0 02 1 9901- ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 9901- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 12V 21W 		8-94124-074-0 02 1 9901- ● ●
99 02.585 LAMP; SIDE FLASHER
VOLTAGE 24V<7AE> 		8-97227-173-0 02 1 9904- ●
99 02.585 LAMP; SIDE FLASHER 8-97227-173-0 02 1 9904- ●
99 02.585 LAMP; SIDE FLASHER
EXC. VOLTAGE 24V<7AE> 		8-97262-228-0 02 1 0106- ●
102 02.589 LENS; SIDE TURN SIGNAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.682 		1-82213-021-0 01 1 9812-9812 ● ●
102 02.589 LENS; SIDE TURN SIGNAL
4HE1 ENG(RLY) 02.682 		1-82213-021-0 01 1 9812-9812 ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.682 		1-82213-021-0 01 1 9901- ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-021-0 01 1 9901- ● ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.682 		1-82213-020-0 01 1 9812-9812 ● ●
102 02.589 LENS; SIDE TURN SIGNAL
4HE1 ENG(RLY) 02.682 		1-82213-020-0 01 1 9812-9812 ● ● ●
102 02.589 LENS; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.682 		1-82213-020-0 01 1 9901- ●
102 02.589 LENS; SIDE TURN SIGNAL
02.682 		1-82213-020-0 01 1 9901- ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.688 		8-97224-571-0 02 1 9812-9812 ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
4HE1 ENG(RLY) 02.688 		8-97224-571-0 02 1 9812-9812 ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.688 		8-97224-571-0 02 1 9901- ●
104 02.587 SCREW; SIDE TURN SIGNAL
02.688 		8-97224-571-0 02 1 9901- ● ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 		1-86830-150-0 02 1 9812-9812 ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
4HE1 ENG(RLY) 		1-86830-150-0 02 1 9812-9812 ● ● ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		1-86830-150-0 02 1 9901- ●
133 02.587 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 9901- ● ● ● ●
161 02.726 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9901- ●
161 02.726 NUT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9901- ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97239-224-0 02 1 9904- ● ●
273 02.726 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE 		0-28691-030-0 01 1 9901- ●
273 02.726 BOLT; BRKT
EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.023 M10X30 FLANGE 		0-28691-030-0 01 1 9901- ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812- ● ● ● ● ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.664 		8-97224-569-0 02 1 9812-9812 ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
4HE1 ENG(RLY) 02.664 		8-97224-569-0 02 1 9812-9812 ● ● ●
321 02.596 HARNESS; SIDE FLASHER LAMP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.664 		8-97224-569-0 02 1 9901- ●
321 02.596 HARNESS; SIDE FLASHER LAMP
02.664 		8-97224-569-0 02 1 9901- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.679 		8-97221-814-0 01 1 9812-9812 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
4HE1 ENG(RLY) 02.679 		8-97221-814-0 01 1 9812-9812 ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.679 		8-97221-814-0 01 1 9901- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-814-0 01 1 9901- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-814-0 01 1 9901- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
4HE1 ENG(RLY) VOLTAGE 24V<7AE> 02.679 		8-97221-813-0 01 1 9812-9812 ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
4HE1 ENG(RLY) 02.679 		8-97221-813-0 01 1 9812-9812 ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 02.679 		8-97221-813-0 01 1 9901- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 24V<7AE> 02.679 		8-97221-813-0 01 1 9901- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
02.679 		8-97221-813-0 01 1 9901- ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 02.679 		8-97221-277-0 01 1 9901- ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 24V<7AE> 02.679 		8-97221-276-0 01 1 9901- ●
398 02.726 BRACKET; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ> 		8-97222-071-0 01 1 9901- ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-071-0 01 1 9901- ● ● ● ●
398 02.726 BRACKET; TURN SIGNAL
FRAME STRAIGHT TYPE<7KJ> 		8-97222-070-0 01 1 9901- ●
398 02.726 BRACKET; TURN SIGNAL 8-97222-070-0 01 1 9901- ● ● ● ●
402 02.585 SPACER; LAMP,SIDE FLASHER 8-97227-174-1 02 1 9904- ● ●
406 02.594 SCREW; SIDE FLASHER LAMP 8-97230-653-0 04 1 9907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
