◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#41533) — 52 parça

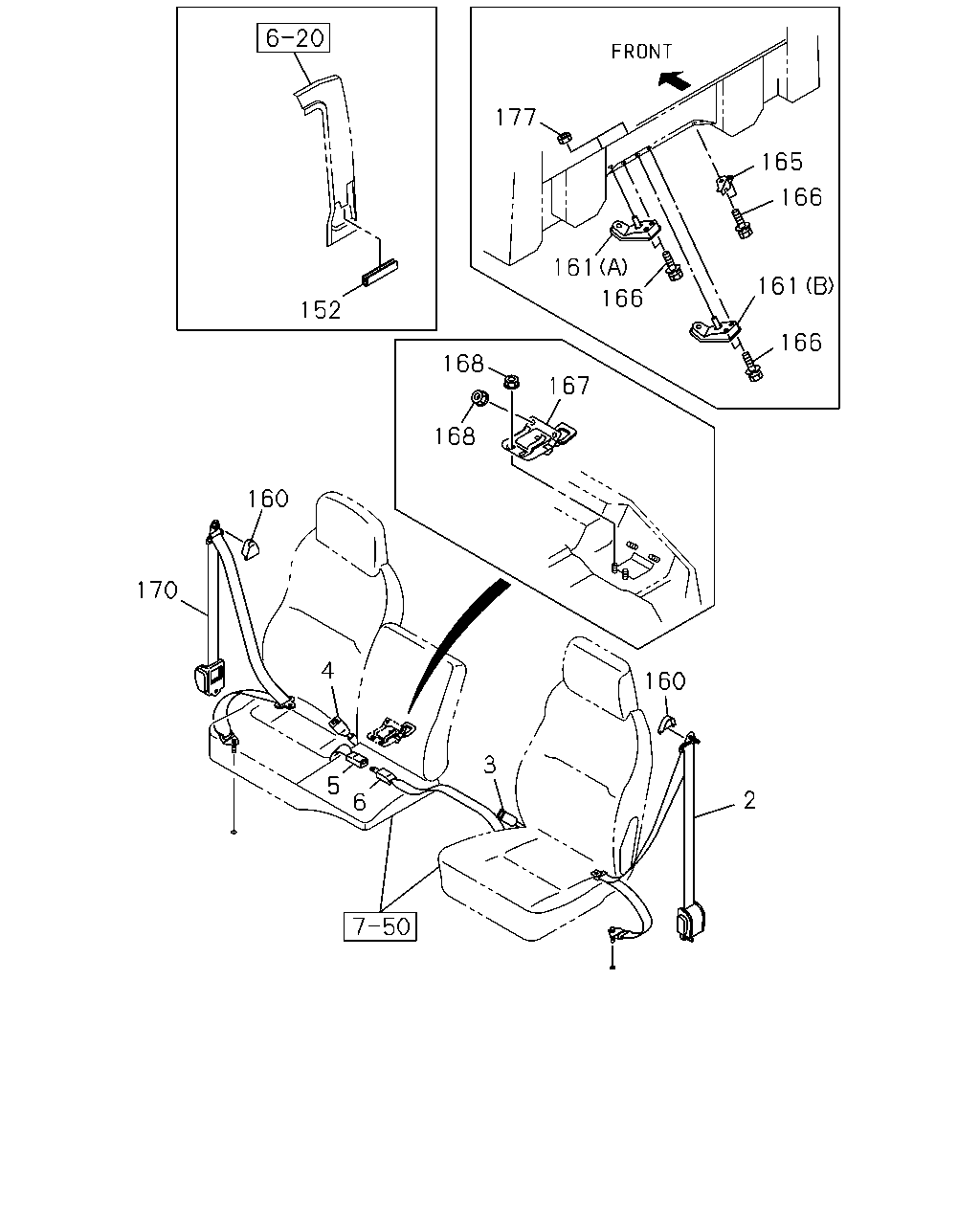

çizim 51384
177 165 166 161 161 166 152 166 168 167 168 160 170 4 160 3 5 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97868-459-0 01 1 9812-0105 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97296-747-0 01 1 0106- ● ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97854-891-1 01 1 9812- ● ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97868-525-0 01 1 9812-0105 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97297-894-0 01 1 0106- ● ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97890-431-1 01 1 9812-0105 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97198-782-0 01 1 0106- ● ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97868-488-0 01 1 9812-0105 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97296-650-0 01 1 0106- ● ● ● ● ● ● ●
152 16.714 PROTECTOR
16.570 L=30 SERVICED BY L=190 		1-71998-300-0 02 1 9812-0011 ● ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0012-0012 ● ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0101- ● ● ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0101- ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 01 1 9812-0003 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004- ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004- ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) CENTER 		8-97850-427-1 01 1 9812- ● ● ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-376-2 01 1 9812- ● ● ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 9812- ● ● ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9812- ● ● ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-1 01 1 9812- ● ● ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 9812- ● ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97868-451-0 01 1 9812-0105 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97296-648-0 01 1 0106- ● ● ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9812- ● ● ● ● ● ● ●

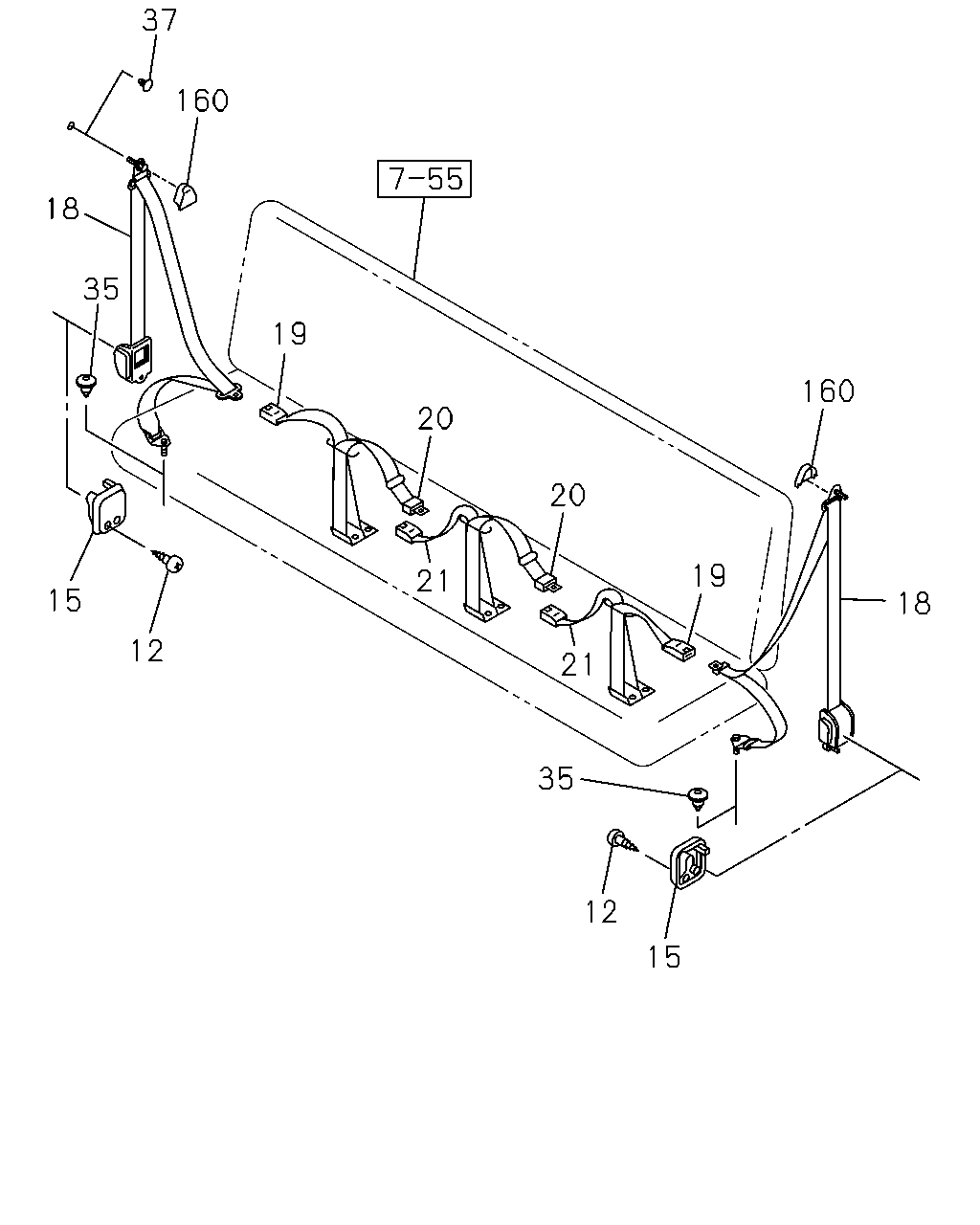

çizim 51656
37 160 18 35 19 160 20 20 19 21 15 18 12 21 35 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
16.584 M6X13 		5-09981-074-0 04 1 9904- ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
DARK GRAY 		8-94351-619-3 02 1 9904- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97868-451-0 02 1 9904-0105 ●
18 16.714 BELT; SEAT,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) DARK GRAY 		8-97297-895-0 02 1 0106- ●
18 16.714 BELT; SEAT,RR
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97297-895-0 02 1 0106- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97292-506-0 02 1 9904-0105 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
G.V.W. 6.0-6.5TON(RPV) DARK GRAY 		8-97292-506-0 02 1 0106- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97292-506-0 02 1 0106- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
G.V.W. 3.5-4.0TON(RPQ) DARK GRAY 		8-97298-331-0 02 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97292-508-0 01 1 9904-0105 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 6.0-6.5TON(RPV) DARK GRAY 		8-97292-508-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97292-508-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97292-507-0 01 1 9904-0105 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 6.0-6.5TON(RPV) DARK GRAY 		8-97292-507-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97292-507-0 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 3.5-4.0TON(RPQ) DARK GRAY 		8-97298-333-1 01 1 0106- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
G.V.W. 3.5-4.0TON(RPQ) DARK GRAY 		8-97298-332-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97199-107-0 01 1 9904-0105 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
G.V.W. 6.0-6.5TON(RPV) DARK GRAY 		8-97199-107-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
G.V.W. 7.5-8.0TON(RPY) DARK GRAY 		8-97199-107-0 01 1 0106- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97199-108-0 01 1 9904- ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
G.V.W. 3.5-4.0TON(RPQ) DARK GRAY 		8-97298-397-0 01 1 0106- ●
35 16.714 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 06 1 9904-0003 ●
37 16.714 PLUG; SEAT BELT ANCHOR
L=18.5 		8-94279-726-0 02 1 9904- ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 01 1 9812-0003 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004- ● ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0004- ● ●
