7-50 — FRONT SEAT (#41531) — 99 parça

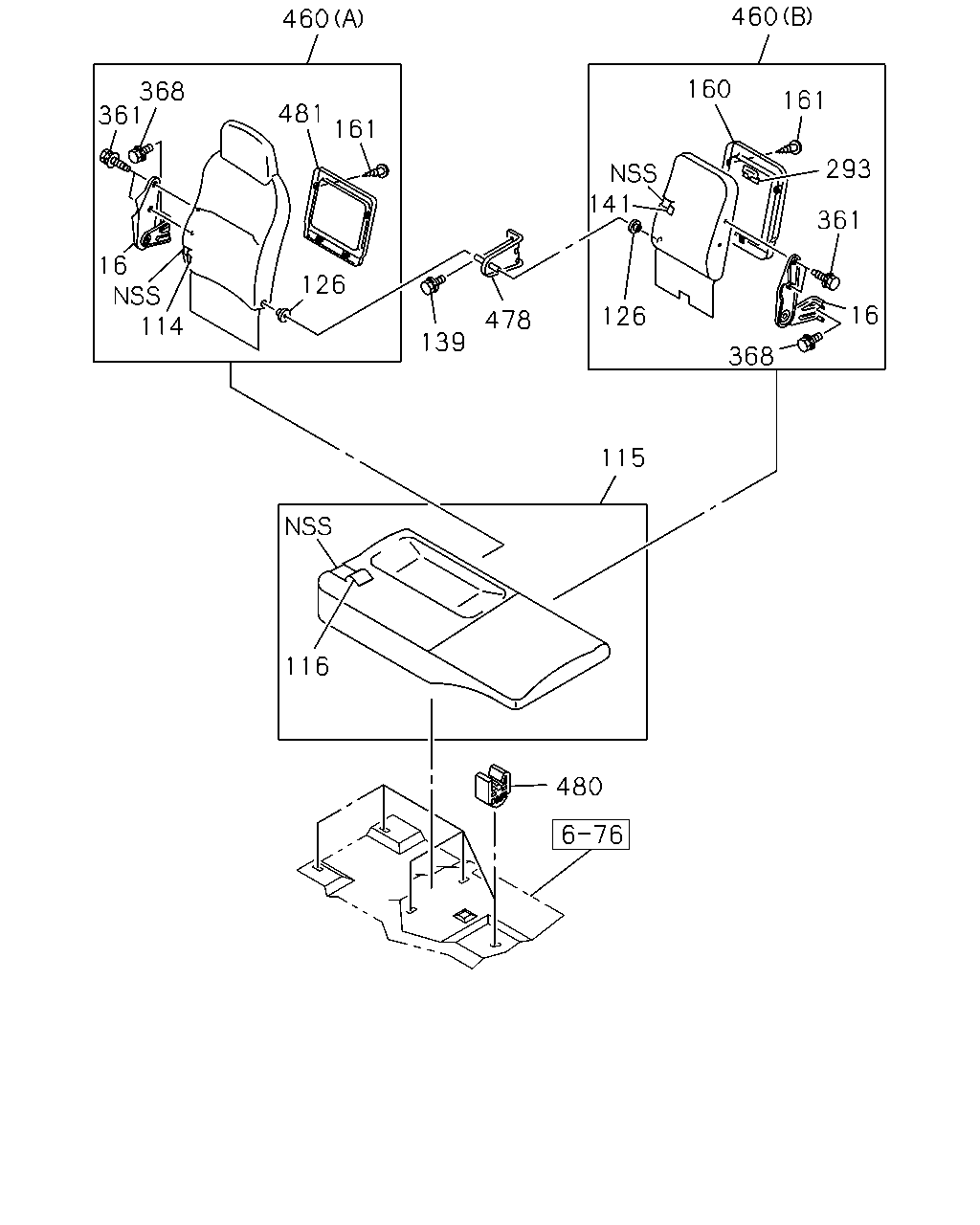

çizim 48432
460 460 160 368 361 161 481 161 293 141 361 16 114 126 16 126 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9812- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 9812- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97869-356-1 01 1 9812-9909 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97293-671-0 01 1 9910-9910 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97293-671-2 01 1 9911-0105 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97293-671-4 01 1 0106- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97869-356-3 01 1 9911-0105 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97868-481-4 01 1 9812- ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97869-365-3 01 1 9812- ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9812- ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9812- ● ● ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9812- ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97869-362-5 01 1 9812- ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9812-0202 ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-0 01 1 0203- ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9812- ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9812- ● ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9812-0202 ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9812- ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9812- ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9812- ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9812- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97868-466-1 01 1 9812-9909 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97293-647-0 01 1 9910-9910 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97293-647-2 01 1 9911-0105 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97293-647-4 01 1 0106- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97868-476-6 01 1 9812- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97868-466-3 01 1 9911-0105 ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 9812- ● ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9812- ● ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 9812- ● ● ● ● ● ● ●
çizim 48691
1 17 99 2 18 19 12 24 228 13 15 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97196-217-0 01 1 9812-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97293-665-1 01 1 9910-0105 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97293-665-1 01 1 0106-0106 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-665-4 01 1 0107-0203 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-665-4 01 1 0204- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-2 01 1 0106-0106 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-346-5 01 1 0107-0203 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97293-587-1 01 1 9908-0105 ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97298-781-0 01 1 0106-0106 ● ●
1 16.720 BACK ASM; SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97298-781-3 01 1 0107- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97196-218-0 01 1 9812-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97293-666-1 01 1 9910-0105 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97293-666-1 01 1 0106-0106 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-666-3 01 1 0107-0203 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-666-3 01 1 0204- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-2 01 1 0106-0106 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-347-4 01 1 0107-0203 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97293-588-1 01 1 9908-0105 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97298-782-0 01 1 0106-0106 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97298-782-2 01 1 0107- ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97196-219-2 01 1 9812-0105 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97196-219-2 01 1 0106-0106 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-219-4 01 1 0107-0203 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-219-4 01 1 0204- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-2 01 1 0106-0106 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-348-4 01 1 0107-0203 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97293-589-1 01 1 9908-0106 ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-589-3 01 1 0107- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97196-220-2 01 1 9812-0105 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97196-220-2 01 1 0106-0106 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-220-4 01 1 0107-0203 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97196-220-4 01 1 0204- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-1 01 1 0106-0106 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-349-3 01 1 0107-0203 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97293-590-1 01 1 9908-0106 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97293-590-3 01 1 0107- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-665-1 01 1 9908-0105 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0106-0106 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97262-070-1 01 1 0106-0106 ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0107-0203 ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97262-070-1 01 1 0107-0203 ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97262-070-1 01 1 0204- ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9812-0006 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007-0106 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> M8X20 		8-97255-906-0 02 1 0107- ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 9812-0106 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97859-018-0 01 1 0107- ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812-0106 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0107- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 9812-0106 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> DARK GRAY 		8-97859-019-0 01 1 0107- ● ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-947-2 01 1 9812-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> 		8-97854-947-2 01 1 0106-0106 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-947-2 01 1 0106-0106 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97854-947-3 01 1 0107-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97854-947-3 01 1 0107-0203 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97854-947-3 01 1 0204- ● ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. MANUAL TILT CAB<RWZ> 		8-97854-670-2 01 1 0106-0106 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8>,MANUAL TILT CAB<RWZ> 		8-97854-670-3 01 1 0107-0203 ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 9812- ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9812-0006 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0007-0106 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> M8X20 		8-97255-906-0 02 1 0107- ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9812-0106 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 		8-97854-087-0 01 1 0107- ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9812-0106 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
EXC. TEMPORARY SEAT, FOR SHIPPING, FLOOR MOUNTED<AQ8> 11.377 M4X6 		8-97042-273-0 01 1 0107- ● ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 9812- ● ● ● ● ● ● ●
