Isuzu WW
▶
TRUCKS
▶
NPR
▶
50816 - NPR/NQR(EUROPE)-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-42 - ASH TRAY
▶

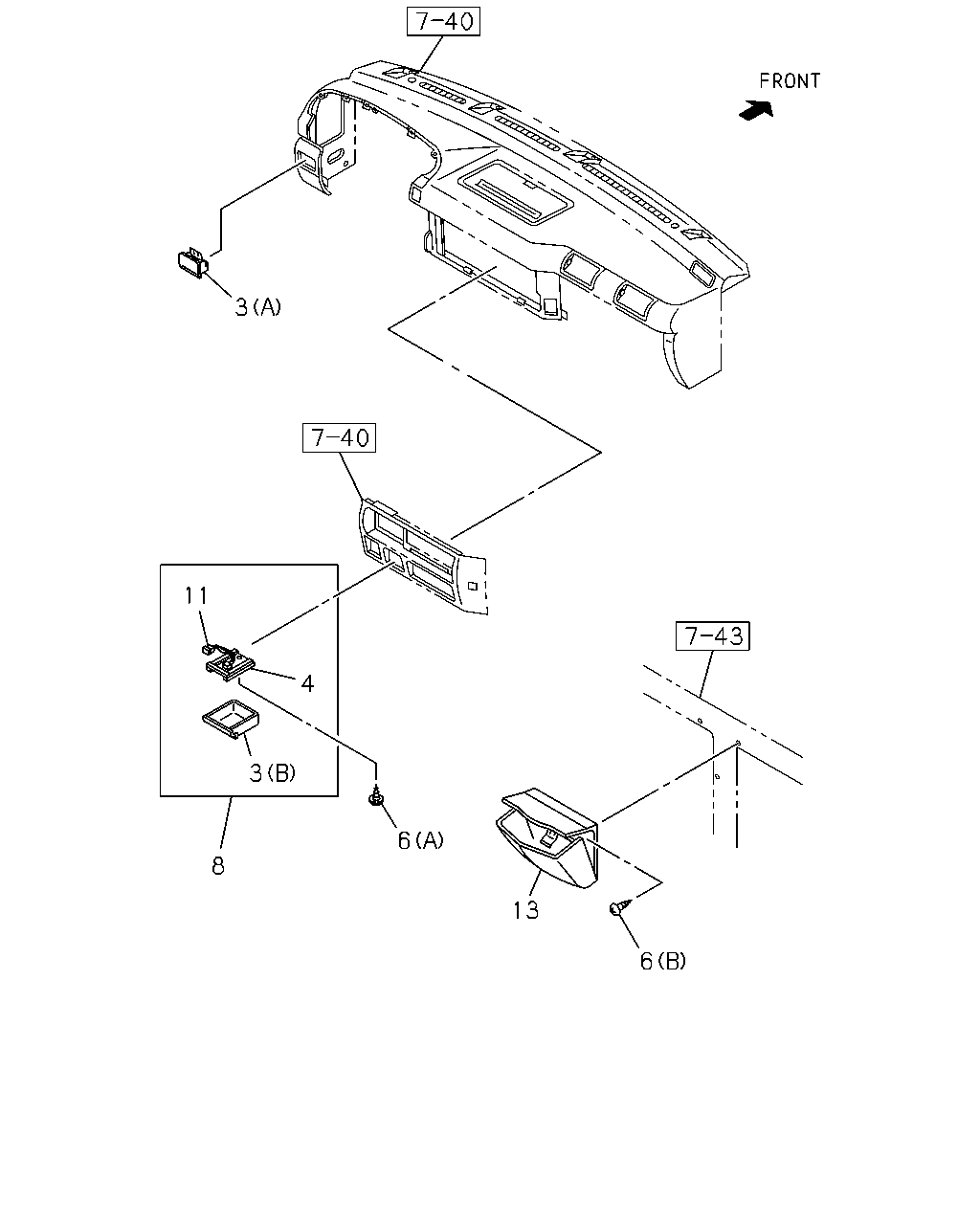

7-42 — ASH TRAY
(#41528) — 31 parça
Tümü
A - NPC6SC
B - NPC6SF
C - NPC6WF
D - NPC6SK
E - NPC6SN
F - NPC6SS
G - NPC6WS
3
11
4
3
6
8
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
3
16.120 CASE ASM; ASH TRAY INNER
EXC. VOLTAGE 24V<7AE> (B) DARK GRAY
8-97993-294-0
01
1
0010-0105
●
●
3
16.120 CASE ASM; ASH TRAY INNER
EXC. VOLTAGE 24V<7AE> (B) DARK GRAY
8-97993-294-0
01
1
0106-
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY
8-97207-244-0
01
1
9812-0009
●
●
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
VOLTAGE 24V<7AE> (B) DARK GRAY
8-97898-280-0
01
1
0010-0105
●
●
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY
8-97898-280-0
01
1
0010-0105
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
VOLTAGE 24V<7AE> (B) DARK GRAY
8-97898-280-0
01
1
0106-
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
(B) DARK GRAY
8-97898-280-0
01
1
0106-
●
●
●
●
3
16.120 CASE ASM; ASH TRAY INNER
ASH TRAY DRIVER SIDE<7KU> (A) DARK GRAY
8-97198-913-0
01
1
9812-
●
●
●
●
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
8-97857-995-1
01
1
9812-0009
●
●
●
●
●
●
4
16.120 CASE ASM; ASH TRAY OUTER
8-97898-279-0
01
1
0010-
●
●
●
●
●
●
●
6
16.120 SCREW; ASH TRAY
07.874 (A) M6X16 TRUSS-HEAD
8-94318-980-0
01
1
9812-
●
●
●
●
●
●
●
6
16.120 SCREW; ASH TRAY
16.345 (B) M4X10 TAPPING OVAL-HEAD
0-70680-410-0
03
1
9904-
●
●
8
16.120 TRAY ASM; ASH
VOLTAGE 24V<7AE>
8-97206-393-0
01
1
9812-0009
●
●
8
16.120 TRAY ASM; ASH
8-97206-393-0
01
1
9812-0009
●
●
●
●
8
16.120 TRAY ASM; ASH
VOLTAGE 24V<7AE>
8-97898-278-0
01
1
0010-0105
●
●
8
16.120 TRAY ASM; ASH
8-97898-278-0
01
1
0010-0105
●
●
●
●
8
16.120 TRAY ASM; ASH
VOLTAGE 24V<7AE>
8-97898-278-0
01
1
0106-
●
●
●
8
16.120 TRAY ASM; ASH
8-97898-278-0
01
1
0106-
●
●
●
●
8
16.120 TRAY ASM; ASH
EXC. VOLTAGE 24V<7AE> DARK GRAY
8-97206-390-0
01
1
9812-0009
●
●
8
16.120 TRAY ASM; ASH
EXC. VOLTAGE 24V<7AE>
8-97898-282-0
01
1
0010-0105
●
●
8
16.120 TRAY ASM; ASH
EXC. VOLTAGE 24V<7AE>
8-97898-282-0
01
1
0106-
●
●
●
11
08.991 BULB; ASH TRAY
VOLTAGE 24V<7AE>
8-97857-999-0
01
1
9812-0009
●
●
11
08.991 BULB; ASH TRAY
8-97857-999-0
01
1
9812-0009
●
●
●
●
11
08.991 BULB; ASH TRAY
VOLTAGE 24V<7AE> 16.120
8-97898-281-0
01
1
0010-0105
●
●
11
08.991 BULB; ASH TRAY
16.120
8-97898-281-0
01
1
0010-0105
●
●
●
●
11
08.991 BULB; ASH TRAY
VOLTAGE 24V<7AE> 16.120
8-97898-281-0
01
1
0106-
●
●
●
11
08.991 BULB; ASH TRAY
16.120
8-97898-281-0
01
1
0106-
●
●
●
●
11
08.991 BULB; ASH TRAY
EXC. VOLTAGE 24V<7AE>
8-97858-977-0
01
1
9812-0009
●
●
11
08.991 BULB; ASH TRAY
EXC. VOLTAGE 24V<7AE>
8-97898-283-0
01
1
0010-0105
●
●
11
08.991 BULB; ASH TRAY
EXC. VOLTAGE 24V<7AE>
8-97898-283-0
01
1
0106-
●
●
●
13
16.120 TRAY ASM; ASH,RR
5-76457-001-0
01
1
9904-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
