Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

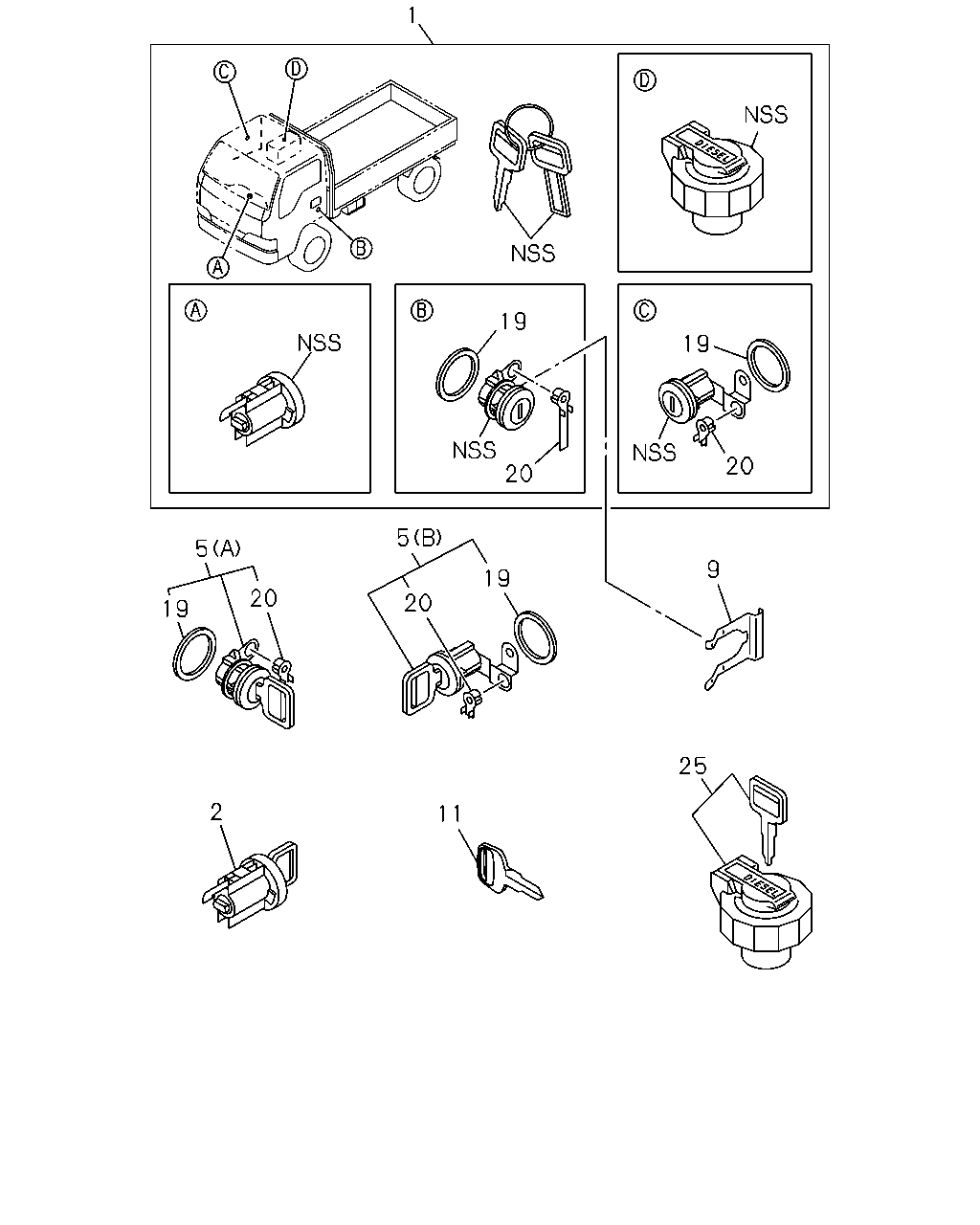

7-30 — LOCK CYLINDER SET (#41525) — 27 parça

1 19 19 20 20 5 5 9 19 20 20 19 25 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> W/PROTECTOR	8-97868-171-0	01	1	9812-0105	●	●	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-97259-697-1	01	1	0106-	●	●	●	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05>	8-97092-406-1	01	1	9812-	●	●	●	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK MARK VEHICLE NAME<EK7> EXC. FUEL TANK CAP W/LOCK<N05>	8-97092-405-1	01	1	9812-	●	●	●	●	●	●	●
1	02.188 CYLINDER SET; CAR LOCK EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05>	8-97868-170-0	01	1	9812-	●	●	●	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK MARK VEHICLE NAME<EK7>	8-97095-869-0	01	1	9812-	●	●	●	●	●	●	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK EXC. MARK VEHICLE NAME<EK7>	8-97868-240-0	01	1	9812-	●	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (A)	8-97095-871-0	01	1	9812-	●	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK MARK VEHICLE NAME<EK7> (B)	8-97095-870-0	01	1	9812-	●	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (A)	8-97868-242-0	01	1	9812-	●	●	●	●	●	●	●
5	16.328 CYLINDER ASM; DOOR LOCK EXC. MARK VEHICLE NAME<EK7> (B)	8-97868-241-0	01	1	9812-	●	●	●	●	●	●	●
9	16.328 CLIP; DOOR LOCK	8-94278-105-0	02	1	9812-9910	●	●	●	●	●	●
9	16.328 CLIP; DOOR LOCK	8-97898-277-0	02	1	9911-	●	●	●	●	●	●	●
11	02.187 KEY; BLANK MARK VEHICLE NAME<EK7> WO/NOTCH	8-97108-649-0	AR	1	9812-	●	●	●	●	●	●	●
11	02.187 KEY; BLANK EXC. MARK VEHICLE NAME<EK7>	8-97868-245-0	01	1	9812-	●	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL MARK VEHICLE NAME<EK7>	8-94128-739-0	02	1	9812-9908	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL MARK VEHICLE NAME<EK7> EXC. FUEL TANK CAP W/LOCK<N05>	8-94128-739-0	02	1	9909-0105	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL FUEL TANK CAP W/LOCK<N05>	8-94128-739-0	02	1	9909-0105	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-94128-739-0	02	1	0106-	●	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL MARK VEHICLE NAME<EK7>	8-94128-739-0	02	1	0106-	●	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7>	8-94128-739-0	01	1	9812-9908	●	●	●	●	●	●
19	16.328 GASKET; DOOR LOCK CYL EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05>	8-94128-739-0	03	1	9909-	●	●	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL 10.474 BROWN	8-97040-453-0	01	1	9812-	●	●	●	●	●	●	●
20	16.328 SNAP; DOOR LOCK CYL 10.474 YELLOW	8-97040-452-0	01	1	9812-	●	●	●	●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-97868-243-0	01	1	9812-0105	●	●	●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7>	8-97994-821-1	01	1	0106-	●	●	●	●	●	●	●
25	03.028 CAP; FUEL TANK,W/KEY MARK VEHICLE NAME<EK7> FUEL TANK CAP W/LOCK<N05>	8-97095-872-0	01	1	9812-	●	●	●	●	●	●	●
