6-90 — REAR BUMPER (#41521) — 58 parça

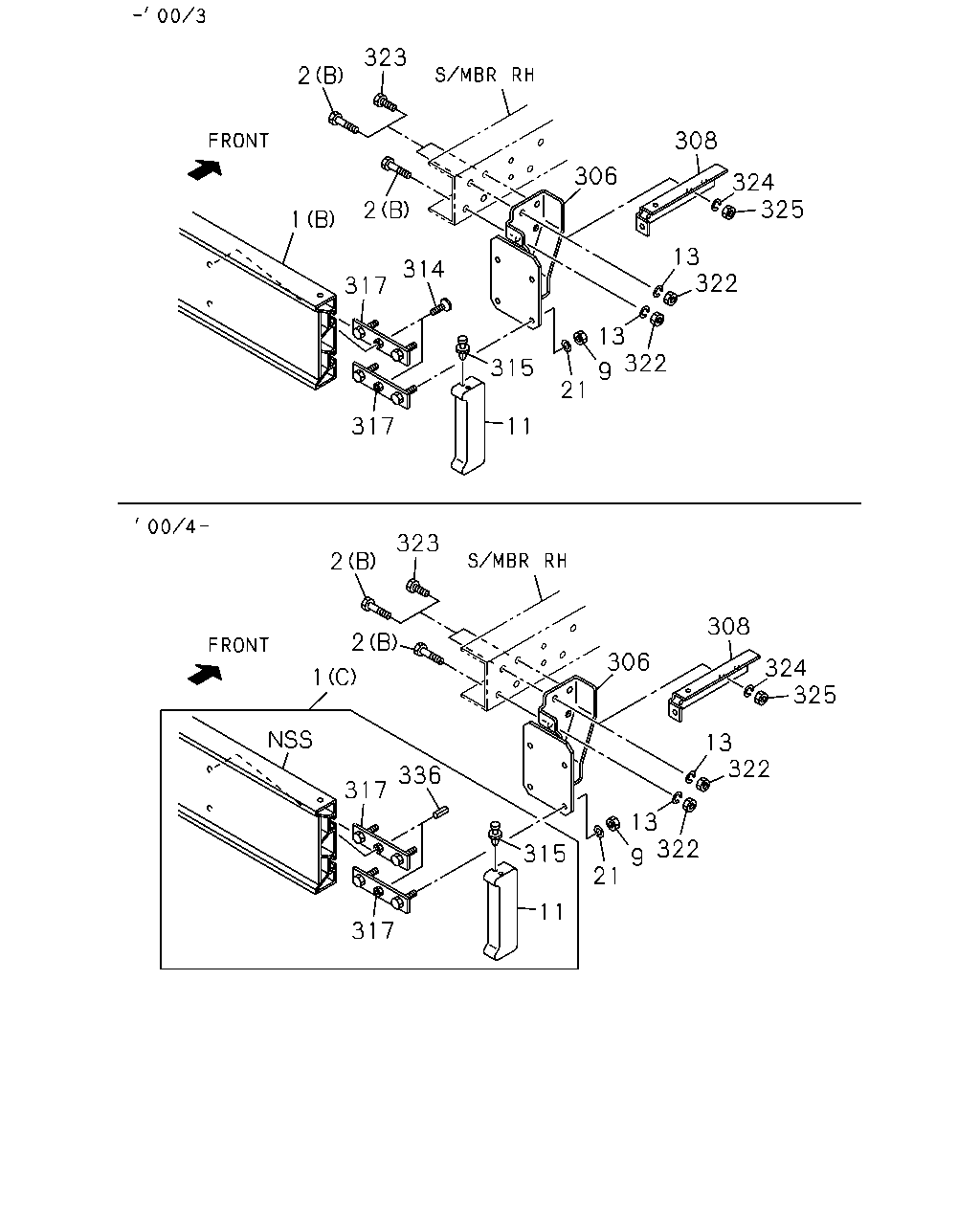

çizim 10249
323 2 308 306 324 325 2 1 13 322 314 317 13 322 315 9 21 317 11 323 2 308 2 306 324 325 1 13 322 336 317 13 322 315 9 21 11 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.070 BUMPER; RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97174-006-1 01 1 9812- ● ● ●
1 07.070 BUMPER; RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-670-0 01 1 9812- ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97170-777-0 01 1 9812-0003 ● ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0004-0105 ● ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0106- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.271 (A) M10X30 		8-94324-205-0 04 1 9812- ● ● ● ●
2 07.874 BOLT; BACK BAR
07.347 (B) M14X30 		0-20801-430-0 08 1 9812- ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9812- ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 9812-0105 ● ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 0106- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		1-71290-055-0 02 1 9812- ● ● ● ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
05.422 ID=14.2 		9-09150-814-0 08 1 9812- ● ● ● ● ● ● ●
21 07.070 WASHER; LK,BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2 		9-09150-512-0 08 1 9812-0105 ● ● ● ● ●
21 07.070 WASHER; LK,BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2 		9-09150-512-0 08 1 0106- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 9812-0105 ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 0106- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 9812-0105 ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 0106- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BL 		8-97128-333-0 01 1 9812- ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BR 		8-97128-334-0 01 1 9812- ● ● ● ●
308 07.068 BRACKET; RAIL 8-97094-278-1 01 1 9812- ● ● ● ● ● ● ●
308 07.068 BRACKET; RAIL 8-97094-277-1 01 1 9812- ● ● ● ● ● ● ●
314 07.831 SCREW; PLATE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 07.832 		9-03090-620-0 04 1 9812-0003 ● ● ● ● ●
315 07.829 RIVET; CAP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK 		1-71290-041-0 04 1 9812-0003 ● ● ● ● ●
315 07.829 RIVET; CAP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK 		1-71290-041-0 04 1 0004- ● ● ● ● ● ●
317 07.800 PLATE; BUMPER SIDE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		1-71290-043-1 04 1 9812-0003 ● ● ● ● ●
317 07.800 PLATE; BUMPER SIDE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		1-71290-053-0 04 1 0004- ● ● ● ● ● ●
322 07.833 NUT; BACK BAR TO FRAME
07.529 M14 		9-99110-514-0 08 1 9812- ● ● ●
323 07.833 BOLT; RAIL TO FRAME
FRAME STRAIGHT TYPE<7KJ> 07.347 M14X30 		0-20801-430-0 04 1 9812-0105 ● ● ● ● ● ●
323 07.833 BOLT; RAIL TO FRAME
FRAME STRAIGHT TYPE<7KJ> 07.347 M14X30 		0-20801-430-0 04 1 0106- ● ● ●
323 07.833 BOLT; RAIL TO FRAME
07.347 M14X30 		0-20801-430-0 04 1 0106- ● ● ● ●
324 07.833 WASHER; LK,RAIL TO FRAME
FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2 		9-09150-814-0 04 1 9812-0105 ● ● ● ● ● ●
324 07.833 WASHER; LK,RAIL TO FRAME
FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2 		9-09150-814-0 04 1 0106- ● ● ●
324 07.833 WASHER; LK,RAIL TO FRAME
05.422 ID=14.2 		9-09150-814-0 04 1 0106- ● ● ● ●
325 07.833 NUT; RAIL TO FRAME
FRAME STRAIGHT TYPE<7KJ> 07.529 M14 		9-99110-514-0 04 1 9812-0105 ● ● ● ● ● ●
325 07.833 NUT; RAIL TO FRAME
FRAME STRAIGHT TYPE<7KJ> 07.529 M14 		9-99110-514-0 04 1 0106- ● ● ●
325 07.833 NUT; RAIL TO FRAME
07.529 M14 		9-99110-514-0 04 1 0106- ● ● ● ●
336 07.070 PIN; SPRING
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		1-71290-054-0 04 1 0004- ● ● ● ● ● ●

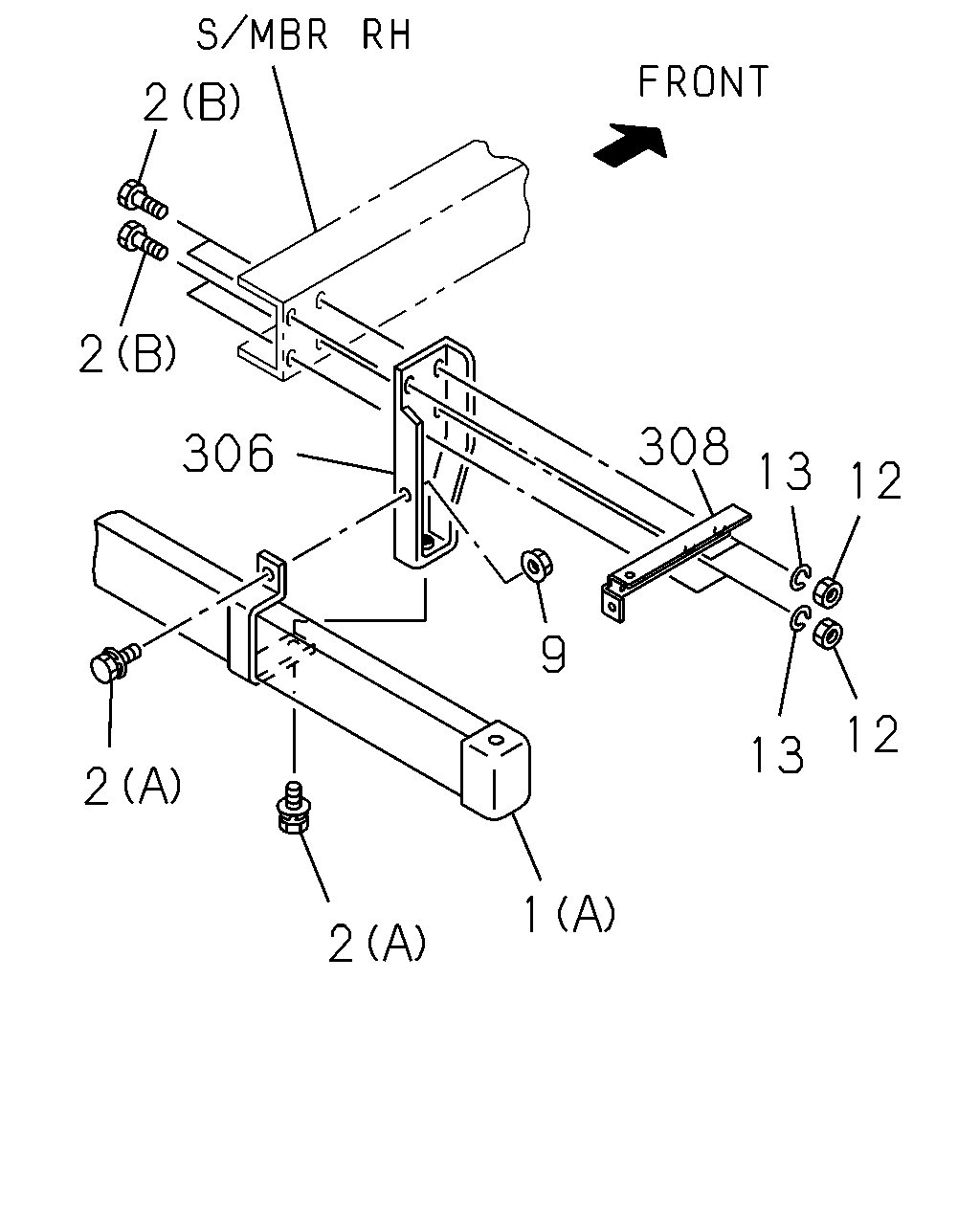

çizim 48808
2 2 308 306 13 12 9 12 13 2 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.070 BUMPER; RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97174-006-1 01 1 9812- ● ● ●
1 07.070 BUMPER; RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-670-0 01 1 9812- ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97170-777-0 01 1 9812-0003 ● ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0004-0105 ● ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0106- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 01.271 (A) M10X30 		8-94324-205-0 04 1 9812- ● ● ● ●
2 07.874 BOLT; BACK BAR
07.347 (B) M14X30 		0-20801-430-0 08 1 9812- ● ● ● ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9812- ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 9812-0105 ● ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 0106- ● ● ● ● ● ●
12 07.833 NUT; BRKT
07.529 M14 		9-99110-514-0 08 1 9812- ● ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
05.422 ID=14.2 		9-09150-814-0 08 1 9812- ● ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 9812-0105 ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 0106- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 9812-0105 ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 0106- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BL 		8-97128-333-0 01 1 9812- ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) STAMP BR 		8-97128-334-0 01 1 9812- ● ● ● ●
308 07.068 BRACKET; RAIL 8-97094-278-1 01 1 9812- ● ● ● ● ● ● ●
308 07.068 BRACKET; RAIL 8-97094-277-1 01 1 9812- ● ● ● ● ● ● ●
