◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#41518) — 126 parça

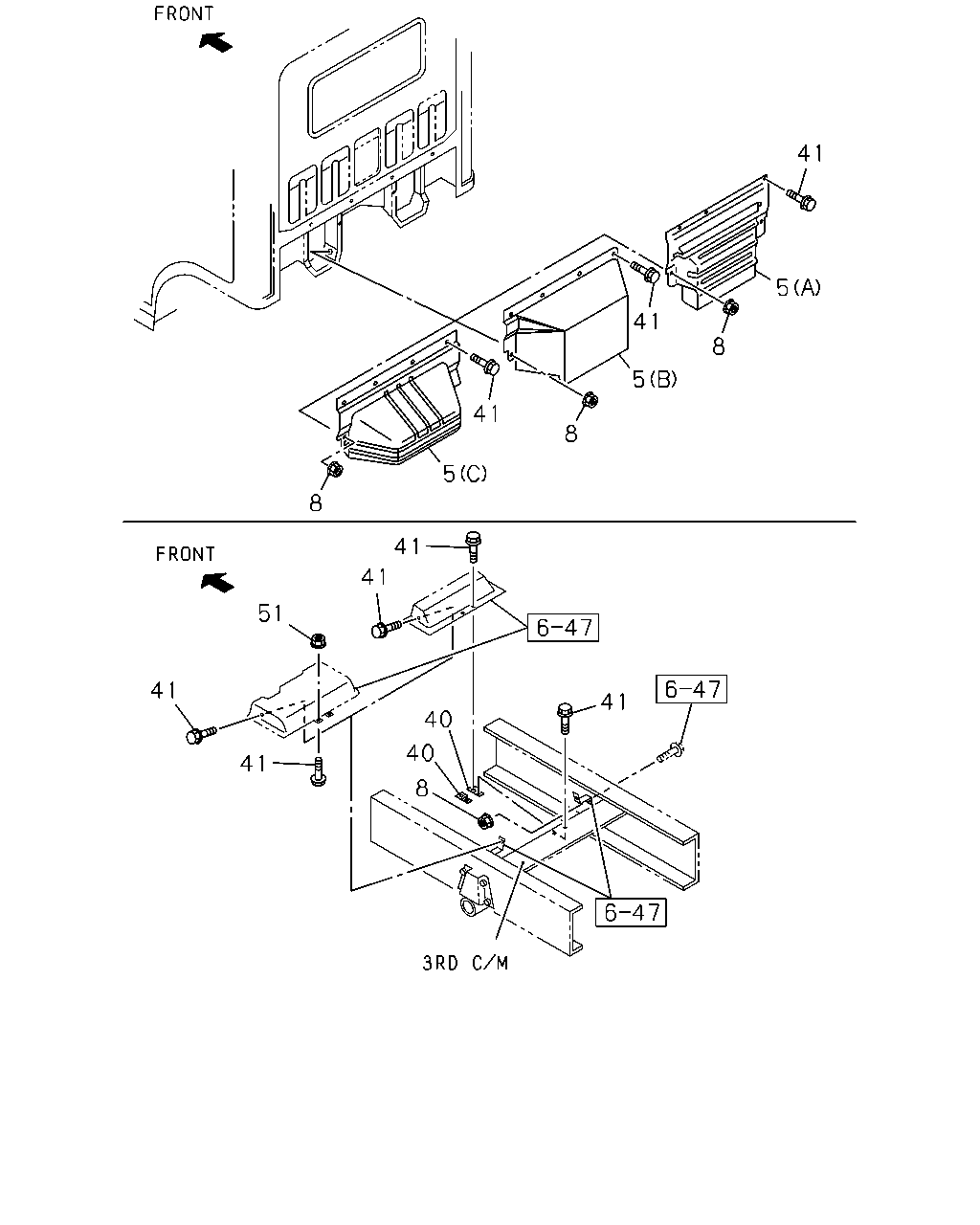

çizim 47746
41 5 41 8 5 41 8 5 8 41 41 51 41 41 40 40 41 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 16.587 PANEL; CAB BACK
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-590-4 01 1 9906-0105 ● ●
5 16.587 PANEL; CAB BACK
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97205-590-4 01 1 0106- ● ●
5 16.587 PANEL; CAB BACK
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97143-431-2 01 1 9812-0105 ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97180-930-4 01 1 9812-0006 ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97180-930-4 01 1 9812-0006 ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97180-930-4 01 1 0007-0105 ● ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97287-554-0 01 1 0106- ● ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ENGINE POWER N-SPEC(7QV) (B) 		8-97205-589-3 01 1 9812-0105 ● ● ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9906-0105 ● ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) M/T MBP6R(RNW) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0207 ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0208- ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0208- ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) M/T MBP6R(RNW),M/T MZZ6F(RSR) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0208- ●
8 16.587 NUT; BACK PANEL
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9906-0105 ● ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ● ● ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9905 ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ● ● ● ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ● ●
8 16.587 NUT; BACK PANEL
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9906-0105 ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ● ● ● ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
40 16.587 BRACKET; BACK PANEL
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 16.545 		8-97103-549-1 02 1 9812-0105 ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0105 ● ●
41 16.587 BOLT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0106- ● ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9812-9905 ● ●
41 16.587 BOLT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 04 1 9906-0105 ● ●
41 16.587 BOLT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0106- ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9812-9903 ● ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9904-0105 ● ● ● ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ●
41 16.587 BOLT
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ●
41 16.587 BOLT
4HE1 ENG(RLY) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-9905 ● ● ● ● ●
41 16.587 BOLT
4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9812-9905 ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9906-0105 ● ● ● ● ●
41 16.587 BOLT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 9906-0105 ● ●
41 16.587 BOLT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0106- ● ● ● ● ●
41 16.587 BOLT
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0106- ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-9903 ● ● ● ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9904-0105 ● ● ● ● ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
51 16.587 NUT; PANEL
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) M/T MXA5R(RMT) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106- ●

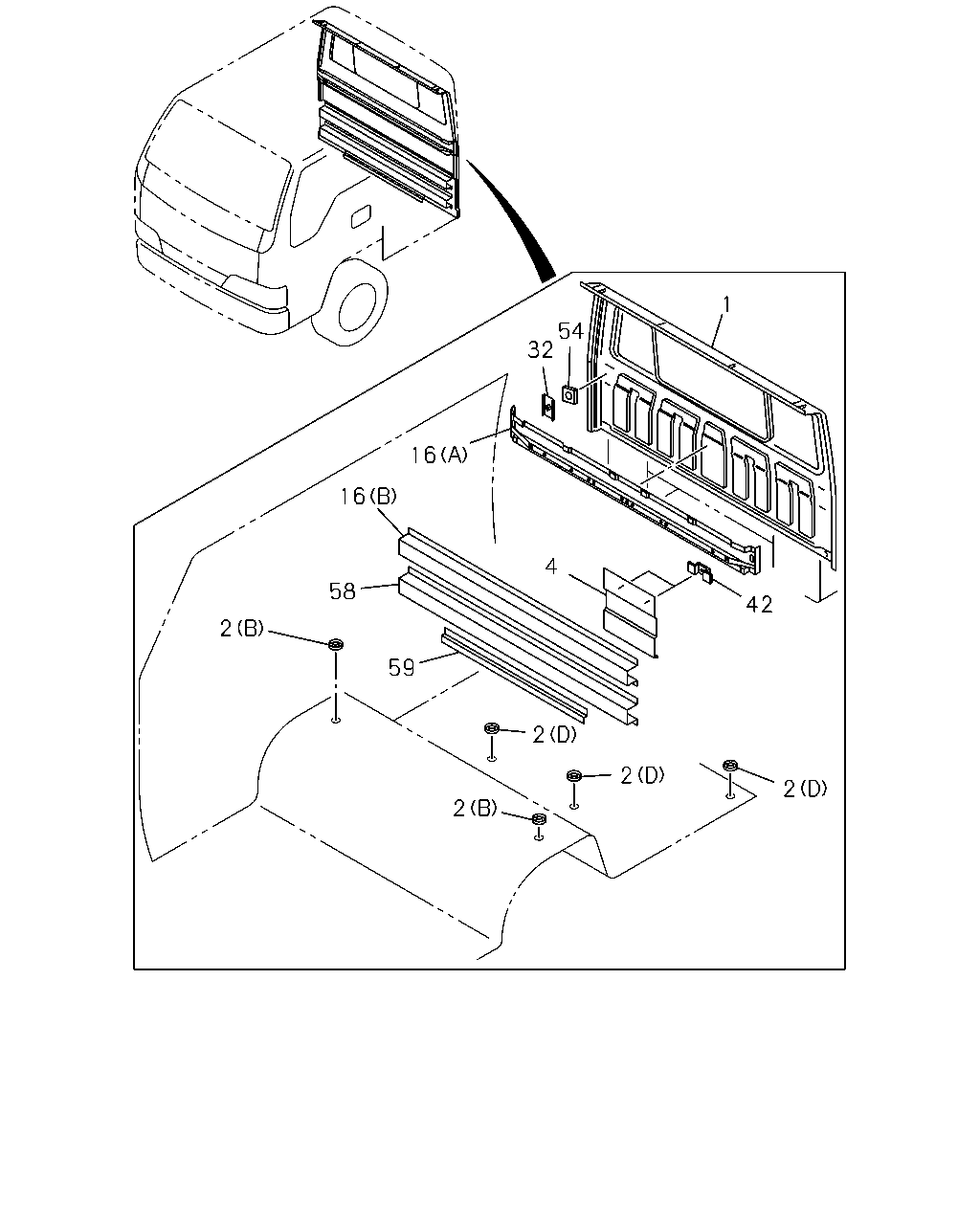

çizim 48693
1 54 32 16 16 4 58 42 2 59 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 9904-0105 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0106- ● ●
1 16.587 PANEL; BACK OUTER
4JH1 ENG(RJX) 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9812- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9812- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9812- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9812- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9904- ● ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> CENTER 		8-97851-268-3 01 1 9904-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> CENTER 		8-97851-268-3 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) CENTER 		8-97851-268-3 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> SIDE 		8-97851-293-5 01 1 9904-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> SIDE 		8-97851-293-5 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) SIDE 		8-97851-293-5 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> SIDE 		8-97892-520-1 01 1 9904-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> SIDE 		8-97892-520-1 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) SIDE 		8-97892-520-1 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) CENTER 		8-97898-584-0 01 1 0106-0206 ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) CENTER 		8-97997-979-0 01 1 0207- ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) SIDE 		8-97898-588-0 01 1 0106-0206 ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) SIDE 		8-97997-981-0 01 1 0207- ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) SIDE 		8-97898-586-0 01 1 0106-0206 ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) SIDE 		8-97997-980-0 01 1 0207- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9812-9903 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9904-9905 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9904-9905 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9906-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9906-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9906-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) (A) 		8-97851-106-9 01 1 0106- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9812-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97890-837-1 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) (A) 		8-97890-837-1 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 9904-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) (B) 		8-97851-415-1 01 1 0106- ●
32 16.587 PATCH; AIR INT DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-522-1 01 1 9904-0105 ●
32 16.587 PATCH; AIR INT DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-522-1 01 1 0106- ● ●
32 16.587 PATCH; AIR INT DUCT
4JH1 ENG(RJX) 		8-97892-522-1 01 1 0106- ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 9904-0105 ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 0106- ● ●
42 16.587 BRACKET; HEAT PROTECTOR
4JH1 ENG(RJX) 16.588 		8-94265-170-1 04 1 0106- ●
54 16.587 SEAL; STUD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9904-0105 ●
54 16.587 SEAL; STUD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0106- ● ●
54 16.587 SEAL; STUD
4JH1 ENG(RJX) 16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0106- ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR
4JH1 ENG(RJX) 		8-97898-590-1 01 1 0106- ●
59 16.587 PLATE; FLOOR TO BACK PANEL
4JH1 ENG(RJX) 		8-97898-593-0 01 1 0106- ●
çizim 48729
2 2 2 2 1 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 9904-0105 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0106- ● ●
1 16.587 PANEL; BACK OUTER
4JH1 ENG(RJX) 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9812- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9812- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9812- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9812- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9904- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9812-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9812-9903 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9904-9905 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9904-9905 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97851-106-9 01 1 9906-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JG2 ENG(RJC) AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97851-106-9 01 1 9906-0105 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9906-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) (A) 		8-97851-106-9 01 1 0106- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9812-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97890-837-1 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) (A) 		8-97890-837-1 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 9904-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0106- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) (B) 		8-97851-415-1 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
