◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#41517) — 15 parça

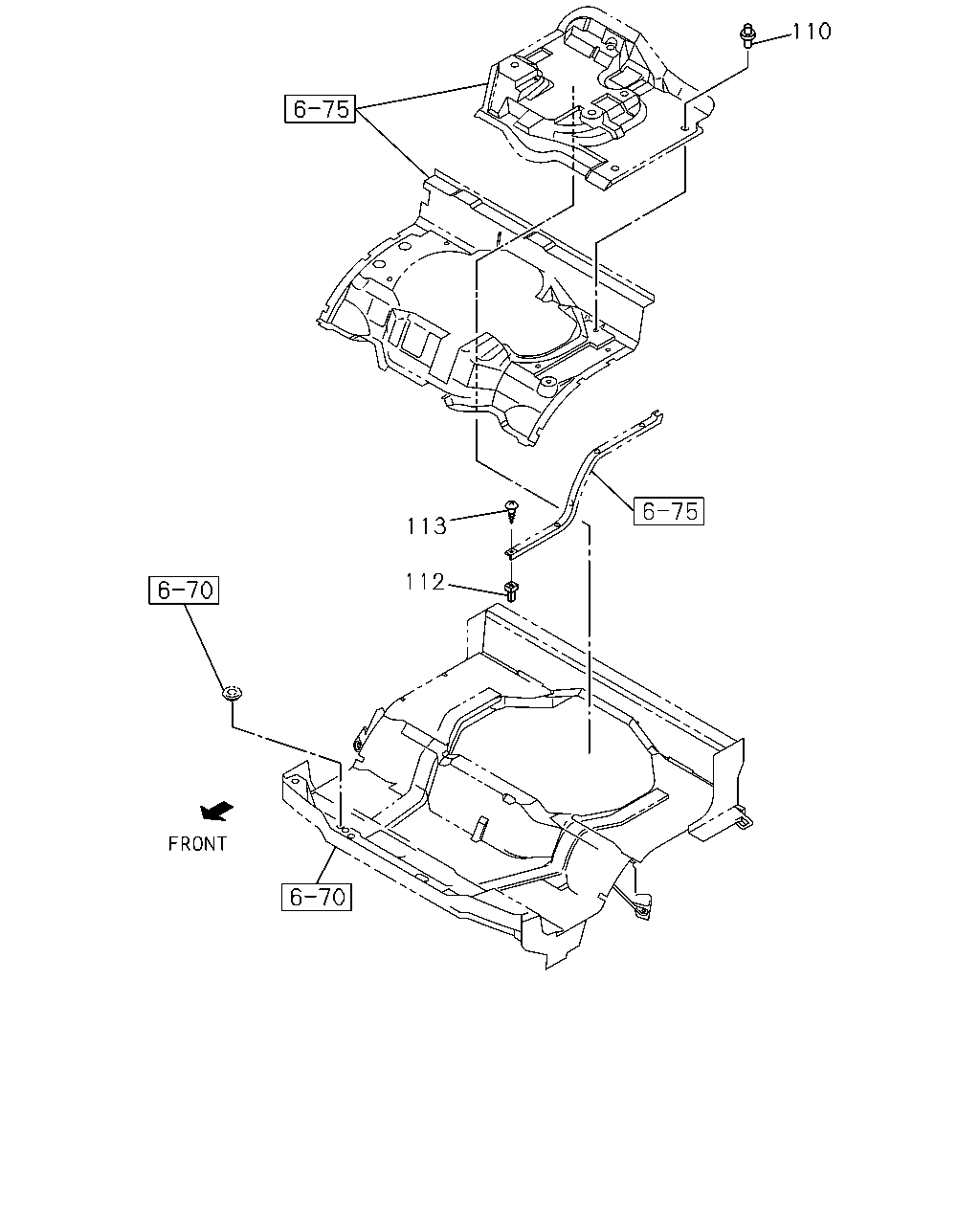

çizim 8947
110 113 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9812-0211 ● ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0212- ● ● ● ● ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9812- ● ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9812- ● ● ● ● ● ● ●

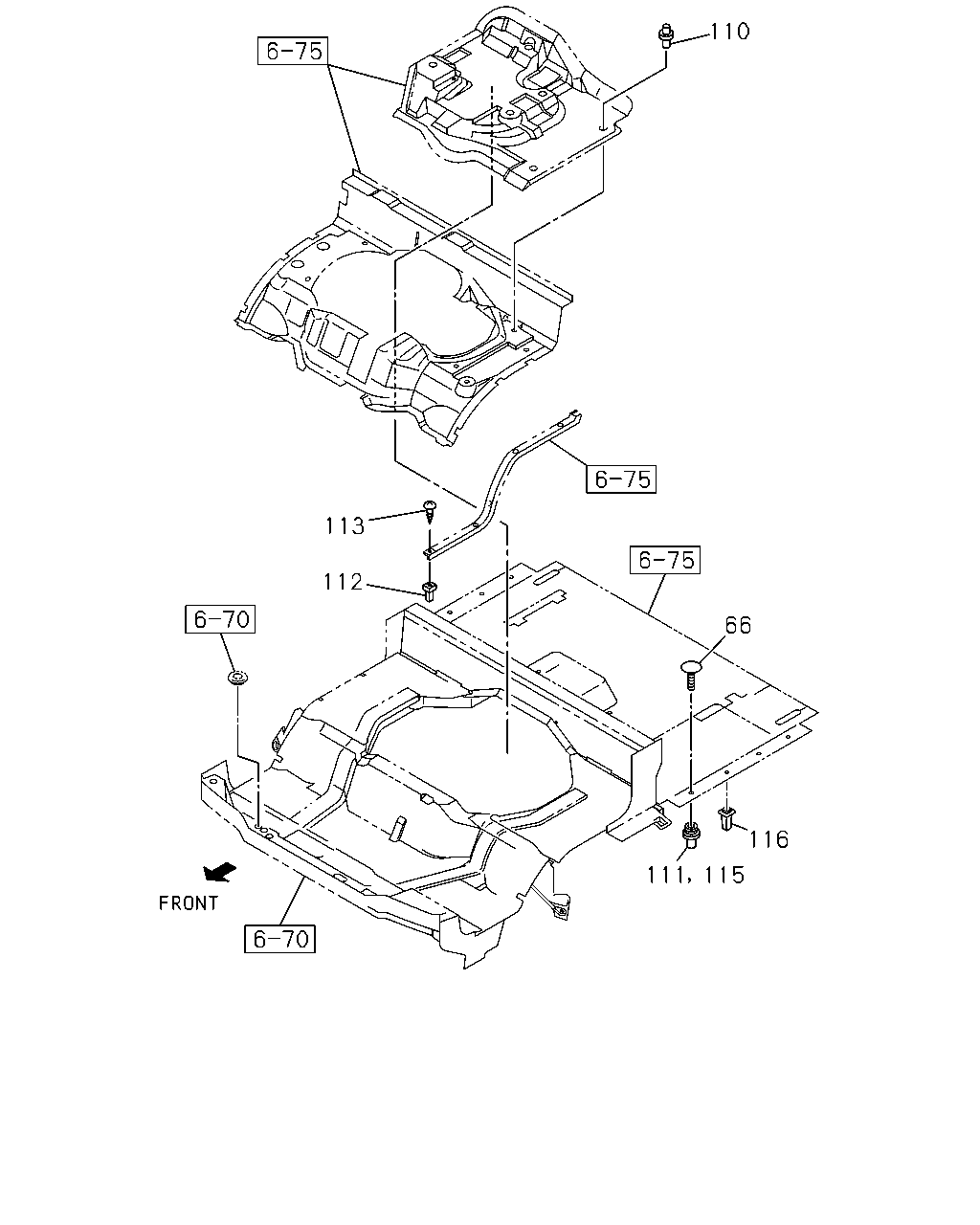

çizim 8948
110 113 112 66 116 115 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 9904- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9812-0211 ● ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0212- ● ● ● ● ● ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK 		8-94279-089-0 15 1 9904-0105 ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK 		8-94279-089-0 15 1 0106- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HE1 ENG(RLY) 16.802 BLACK 		8-94279-089-0 15 1 0106- ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
4JH1 ENG(RJX) 16.802 BLACK 		8-94279-089-0 14 1 0106- ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9812- ● ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9812- ● ● ● ● ● ● ●
115 16.800 FASTENER; FLOOR MAT
4JH1 ENG(RJX) 16.802 BLACK 		8-94279-089-0 01 1 0106- ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9904- ● ●
