6-76 — FLOOR EQUIPMENT AND SEALING (#41516) — 303 parça
çizim 8946
190 286 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97180-904-1 01 1 9812-9903 ● ● ● ● ●
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97180-904-1 01 1 9904-0105 ● ● ● ● ● ●
190 16.549 LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97180-904-1 01 1 0106- ● ● ●
190 16.549 LID 8-97180-904-1 01 1 0106- ●
190 16.549 LID
4HE1 ENG(RLY) 		8-97180-904-1 01 1 0106- ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9812-9903 ● ● ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9904-0105 ● ● ● ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0106- ● ● ●
286 16.545 BOLT; LID
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0106- ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0106- ● ● ●
360 16.549 COVER; LWR
4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97205-597-4 01 1 9906-0105 ● ●
360 16.549 COVER; LWR
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-025-1 01 1 0106- ● ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97183-607-2 01 1 9812-0105 ● ● ● ● ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97183-607-2 01 1 0106- ● ● ●
360 16.549 COVER; LWR 8-97183-607-2 01 1 0106- ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) 		8-97183-607-2 01 1 0106- ● ● ●

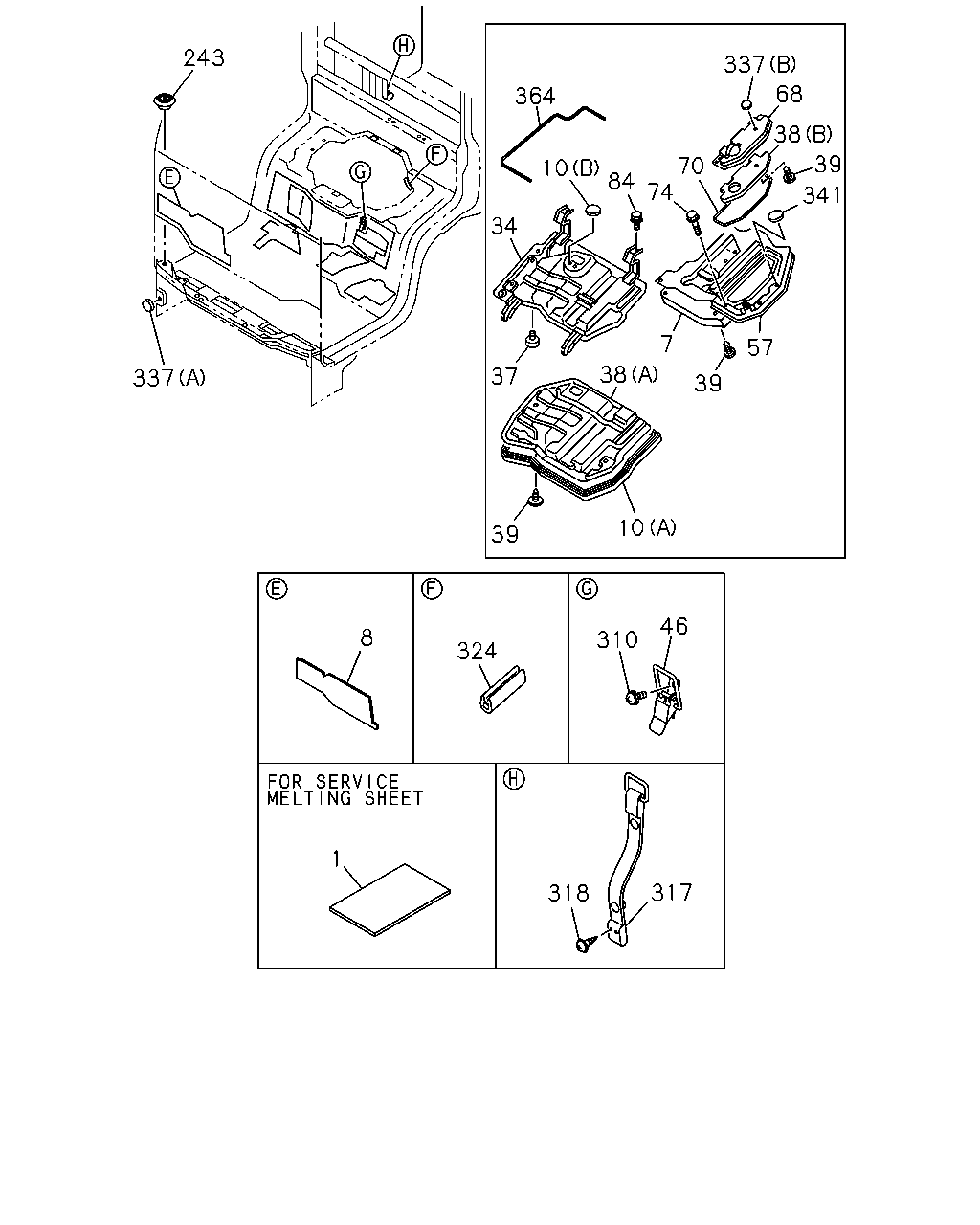

çizim 47898
243 337 68 364 38 39 70 74 10 84 341 34 7 57 38 37 337 39 10 39 46 8 310 324 1 317 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 AR 1 9812- ● ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9812- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 9904-0105 ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0106- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0106- ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9812- ● ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9812- ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 9812- ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812-0007 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRO NZE GREEN(909) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0008-0008 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890),BODY COLOR MIDDLE BRONZEGREEN(909) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0009- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=424 		8-97892-725-3 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-003-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=519 		8-97995-003-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=842 		8-97892-726-4 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=804 		8-97995-004-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (F) L=804 		8-97995-004-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=530 		8-97892-727-3 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=519 		8-97995-005-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=519 		8-97995-005-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=886 		8-97996-183-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (G) L=886 		8-97996-183-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=886 		8-97996-183-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=503 		8-97892-728-4 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=467 		8-97995-006-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=467 		8-97995-006-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=566 		8-97996-184-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> (I) L=519 		8-97995-005-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> (I) L=467 		8-97995-006-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (C) L=1196 		8-97898-985-2 01 1 0106- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (D) L=993 		8-97898-986-2 01 1 0106- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=512 		8-97996-185-0 01 1 0201- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-1 01 1 9812- ● ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9812- ● ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9812- ● ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 9904-0105 ●
38 16.549 INSULATOR; ENG COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0106- ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0106- ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-997-0 05 1 9812-9904 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-952-0 05 1 9905- ● ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> 		8-94279-997-0 09 1 9812-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> 		8-94279-952-0 09 1 9905- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-997-0 06 1 9904-9904 ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-952-0 06 1 9905-0105 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> 		8-94279-952-0 06 1 0106- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-952-0 06 1 0106- ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) 		8-94279-997-0 02 1 9904-9904 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) 		8-94279-952-0 02 1 9905-0105 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) 		8-94279-952-0 02 1 0106- ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) 		8-94279-952-0 02 1 0106- ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9812- ● ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9812- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 9904-0105 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0106- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0106- ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 9904-0105 ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0106- ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0106- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 9904-0105 ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0106- ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0106- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9812- ● ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812- ● ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9812-9905 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 03 1 9906-9906 ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9906- ● ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9812-0002 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9812- ● ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9812- ● ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4HE1 ENG(RLY) L=140 		8-97867-865-0 01 1 9812-9812 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97867-865-0 01 1 9812-9812 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9901-9903 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9901-9903 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9904-9905 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9904-9905 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9906-0105 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9906-0105 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JH1 ENG(RJX),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 0106-0109 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0106-0109 ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 0106-0109 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0110- ● ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9812-0010 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HE1 ENG(RLY) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9904-0105 ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX),4HE1 ENG(RLY) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0106-0203 ●
337 16.545 SEAL; CLIP HOLE
4HE1 ENG(RLY) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0106-0203 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 9904-0105 ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0106- ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-1 01 1 0106- ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9812-9812 ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 9901- ● ● ● ● ● ● ●

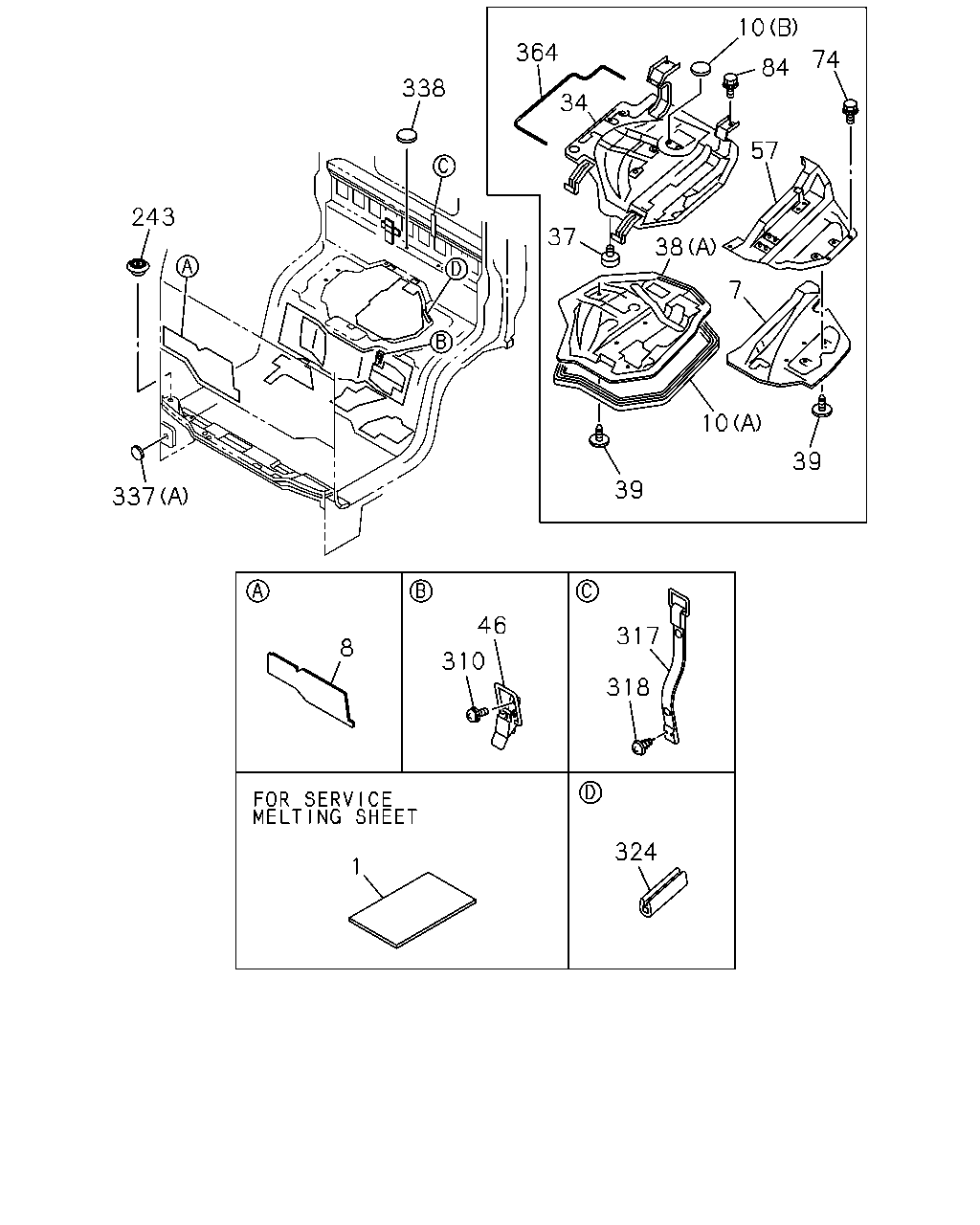

çizim 48769
10 364 74 84 338 34 57 243 37 38 7 10 39 39 337 46 317 8 310 318 324 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 AR 1 9812- ● ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 9812- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 9904-0105 ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0106- ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0106- ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-606-1 01 1 9812- ● ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-605-2 01 1 9812- ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 9812- ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812-0007 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRO NZE GREEN(909) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0008-0008 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890),BODY COLOR MIDDLE BRONZEGREEN(909) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0009- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=424 		8-97892-725-3 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-003-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=519 		8-97995-003-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=842 		8-97892-726-4 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=804 		8-97995-004-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (F) L=804 		8-97995-004-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=530 		8-97892-727-3 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=519 		8-97995-005-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=519 		8-97995-005-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=886 		8-97996-183-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (G) L=886 		8-97996-183-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=886 		8-97996-183-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=503 		8-97892-728-4 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=467 		8-97995-006-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=467 		8-97995-006-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=566 		8-97996-184-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> (I) L=519 		8-97995-005-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> (I) L=467 		8-97995-006-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (C) L=1196 		8-97898-985-2 01 1 0106- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (D) L=993 		8-97898-986-2 01 1 0106- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=512 		8-97996-185-0 01 1 0201- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-1 01 1 9812- ● ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9812- ● ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 9812- ● ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 9904-0105 ●
38 16.549 INSULATOR; ENG COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0106- ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0106- ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-997-0 05 1 9812-9904 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-952-0 05 1 9905- ● ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> 		8-94279-997-0 09 1 9812-9904 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> 		8-94279-952-0 09 1 9905- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-997-0 06 1 9904-9904 ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-952-0 06 1 9905-0105 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> 		8-94279-952-0 06 1 0106- ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER 8-94279-952-0 06 1 0106- ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) 		8-94279-997-0 02 1 9904-9904 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) 		8-94279-952-0 02 1 9905-0105 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) 		8-94279-952-0 02 1 0106- ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) 		8-94279-952-0 02 1 0106- ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9812- ● ● ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 9812- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 9904-0105 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0106- ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0106- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 9812- ● ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812- ● ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9812-9905 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 03 1 9906-9906 ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9906- ● ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9812-0002 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9812- ● ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9812- ● ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812- ● ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4HE1 ENG(RLY) L=140 		8-97867-865-0 01 1 9812-9812 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97867-865-0 01 1 9812-9812 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9901-9903 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9901-9903 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9904-9905 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9904-9905 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9906-0105 ● ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 9906-0105 ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
4JH1 ENG(RJX),4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 0106-0109 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0106-0109 ●
324 16.545 FINISHER; FLOOR PANEL
4HE1 ENG(RLY) L=140 		8-97892-742-0 01 1 0106-0109 ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0110- ● ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9812-0010 ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
4HE1 ENG(RLY) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9904-0105 ●
337 16.545 SEAL; CLIP HOLE
4JH1 ENG(RJX),4HE1 ENG(RLY) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0106-0203 ●
337 16.545 SEAL; CLIP HOLE
4HE1 ENG(RLY) 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0106-0203 ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0204- ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9812- ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97890-597-0 01 1 9812-9812 ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 9901- ● ● ● ● ● ● ●

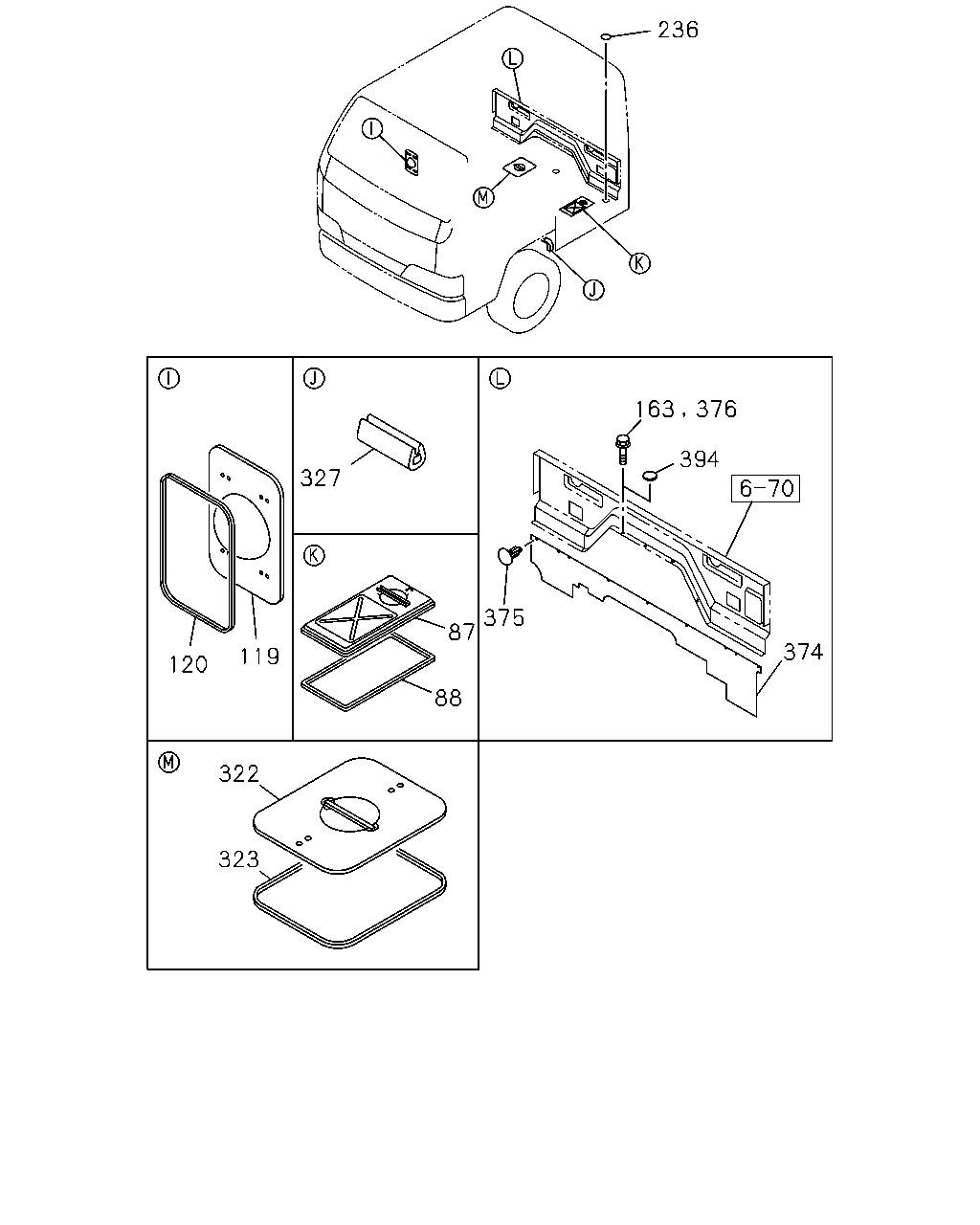

çizim 48804
236 394 327 375 87 374 119 120 88 322 323 163 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 9904- ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 9904- ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 9904- ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 9904- ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 13 1 9904-9905 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 06 1 9906-9906 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9906-0105 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JH1 ENG(RJX) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 10 1 0106- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-9906 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-9906 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-0103 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0104-0105 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0106-0112 ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0201- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9904- ● ●
322 16.549 COVER; A/T OIL
4JH1 ENG(RJX) 		8-97853-442-2 01 1 0106- ●
323 16.549 SEAL; COVER,A/T OIL
4JH1 ENG(RJX) 		8-97853-443-2 01 1 0106- ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 9904- ● ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97895-915-1 01 1 9904-0103 ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97994-848-0 01 1 0104-0105 ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97994-696-0 01 1 0106- ●
374 16.549 COVER; ENG,RR LWR
4JH1 ENG(RJX) 		8-97994-848-0 01 1 0106- ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) 		8-97898-984-2 01 1 0106- ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.269 OD=6.5 D=6.5 		8-97855-279-0 09 1 9904-9906 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.320 OD=8.3 		8-94279-989-0 09 1 9907-0105 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) 16.320 OD=8.3 		8-94279-989-0 13 1 0106- ●
375 16.549 CLIP; COVER,ENG
4JH1 ENG(RJX) 16.320 OD=8.3 		8-94279-989-0 09 1 0106- ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.320 OD=8.3 		8-94279-989-0 09 1 0106- ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-0010 ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 05 1 0011-0102 ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0103-0105 ●
376 16.549 BOLT; RR ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0201- ●
394 16.549 SEAL; FIXING HOLE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0106-0112 ● ●
394 16.549 SEAL; FIXING HOLE
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0201- ●
394 16.549 SEAL; FIXING HOLE
4HE1 ENG(RLY) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0201- ●

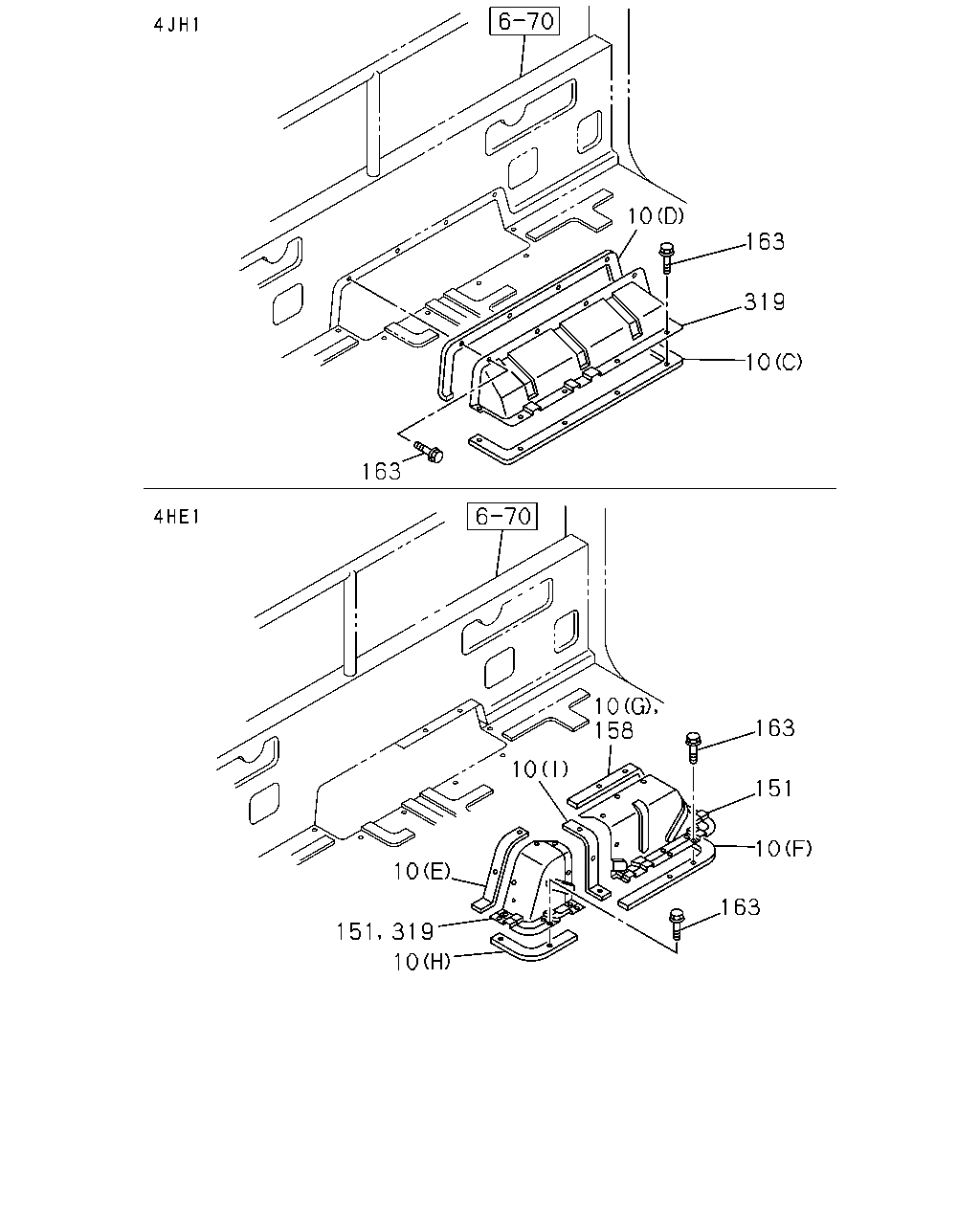

çizim 49258
10 163 319 10 163 10 158 163 10 151 10 10 163 10 151 319
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 9812- ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812-0007 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRO NZE GREEN(909) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0008-0008 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890),BODY COLOR MIDDLE BRONZEGREEN(909) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0009- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 9812- ● ● ● ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=424 		8-97892-725-3 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-003-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=519 		8-97995-003-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=842 		8-97892-726-4 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=804 		8-97995-004-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (F) L=804 		8-97995-004-0 01 1 0103- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=530 		8-97892-727-3 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=519 		8-97995-005-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=519 		8-97995-005-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=886 		8-97996-183-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (G) L=886 		8-97996-183-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=886 		8-97996-183-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=503 		8-97892-728-4 01 1 9904-0102 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=467 		8-97995-006-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=467 		8-97995-006-0 01 1 0103-0112 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=566 		8-97996-184-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> (I) L=519 		8-97995-005-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> (I) L=467 		8-97995-006-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (C) L=1196 		8-97898-985-2 01 1 0106- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (D) L=993 		8-97898-986-2 01 1 0106- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0201-0201 ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0201- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=512 		8-97996-185-0 01 1 0201- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-514-3 01 1 9904-0105 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97994-692-1 01 1 0106-0203 ● ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> 		8-97997-523-1 01 1 0204- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) 		8-97997-523-1 01 1 0204- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 		8-97892-514-3 01 1 0201-0203 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 		8-97996-192-0 01 1 0204- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97994-693-1 01 1 0106-0203 ● ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> 		8-97997-525-0 01 1 0204- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) 		8-97997-525-0 01 1 0204- ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-531-4 01 1 9904-0102 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97995-002-0 01 1 0103-0112 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) 		8-97995-002-0 01 1 0103-0112 ●
158 16.549 SEAL; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 		8-97995-002-0 01 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 13 1 9904-9905 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 06 1 9906-9906 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9906-0105 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JH1 ENG(RJX) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 10 1 0106- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-9906 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-9906 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 9906-0103 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0104-0105 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0106-0112 ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) EURO3 SPECIFICATION<NT3> FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 06 1 0201- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0201- ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-724-3 01 1 9904-0105 ●
319 16.549 COVER; ENG RR,FLOOR
4JH1 ENG(RJX) 		8-97898-994-1 01 1 0106- ●
319 16.549 COVER; ENG RR,FLOOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION<NT3> 		8-97997-526-0 01 1 0204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
