◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#41515) — 51 parça

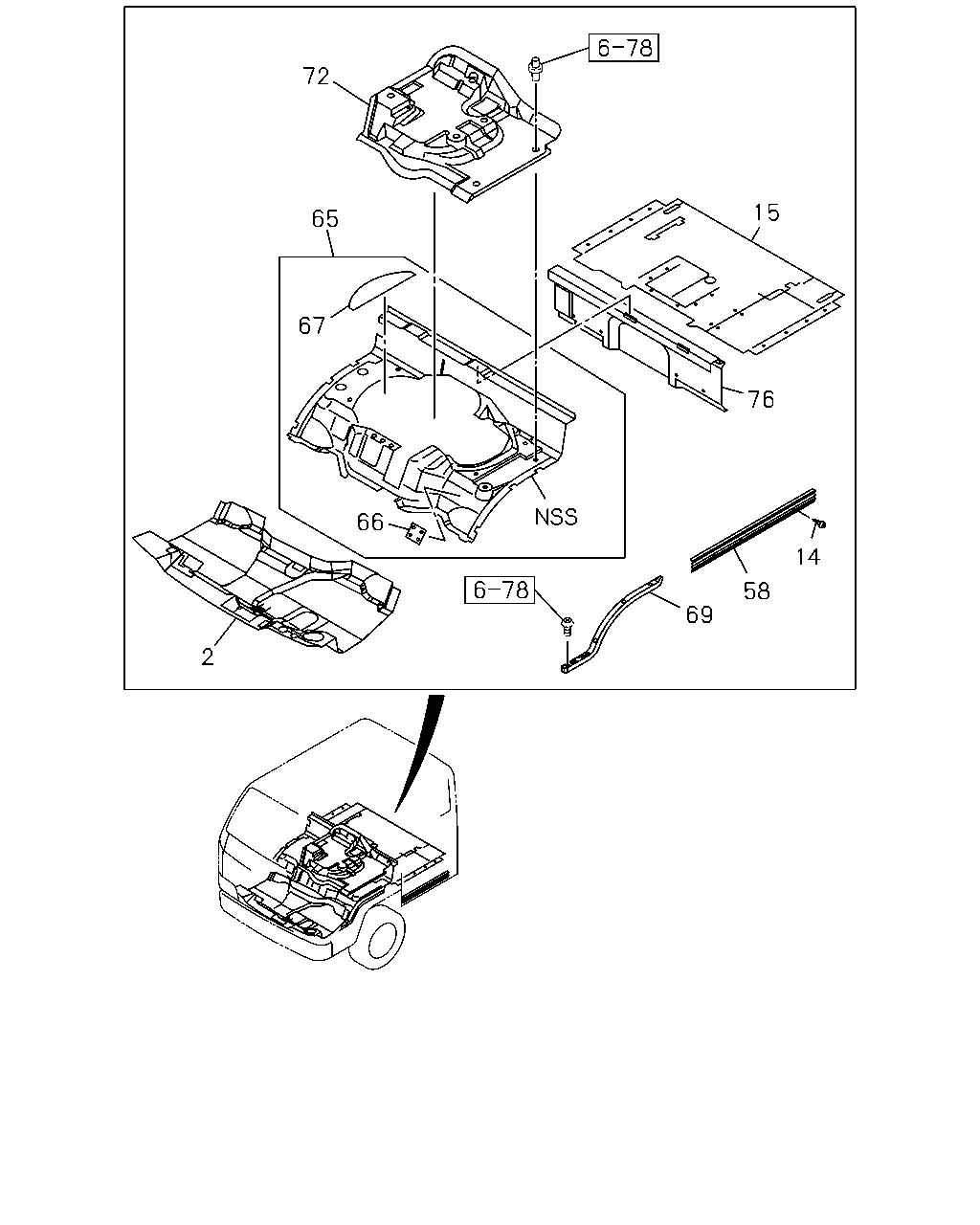

çizim 10127
72 15 65 67 76 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-519-4 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-638-1 01 1 0204- ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-520-4 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-640-1 01 1 0204- ● ● ● ● ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 9904- ● ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97892-678-1 01 1 9904-0105 ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97892-678-1 01 1 0106-0203 ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) DARK GRAY 		8-97892-678-1 01 1 0106-0203 ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97996-770-0 01 1 0204- ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) DARK GRAY 		8-97996-770-0 01 1 0204- ●
15 16.800 MAT; FLOOR REAR
4JH1 ENG(RJX) DARK GRAY 		8-97899-018-1 01 1 0106-0203 ●
15 16.800 MAT; FLOOR REAR
4JH1 ENG(RJX) DARK GRAY 		8-97996-786-0 01 1 0204- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 9904- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97868-397-5 01 1 9812-0203 ● ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-702-0 01 1 0204- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97868-356-6 01 1 9904-0203 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-707-0 01 1 0204- ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97859-705-0 02 1 9812-0203 ● ● ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0204- ● ● ● ● ● ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97868-518-0 01 1 9812-0203 ● ● ● ● ● ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-588-0 01 1 0204- ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9812- ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9812- ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97890-496-0 01 1 9812-0203 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-766-0 01 1 0204- ● ● ● ● ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97892-676-0 01 1 9904-0105 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97892-676-0 01 1 0106-0203 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97892-676-0 01 1 0106-0203 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97996-772-0 01 1 0204-0211 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97996-772-0 01 1 0204-0211 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97985-070-0 01 1 0212- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97985-070-0 01 1 0212- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JH1 ENG(RJX) DARK GRAY 		8-97899-019-0 01 1 0106-0203 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JH1 ENG(RJX) DARK GRAY 		8-97996-796-0 01 1 0204-0211 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JH1 ENG(RJX) DARK GRAY 		8-97985-068-0 01 1 0212- ●

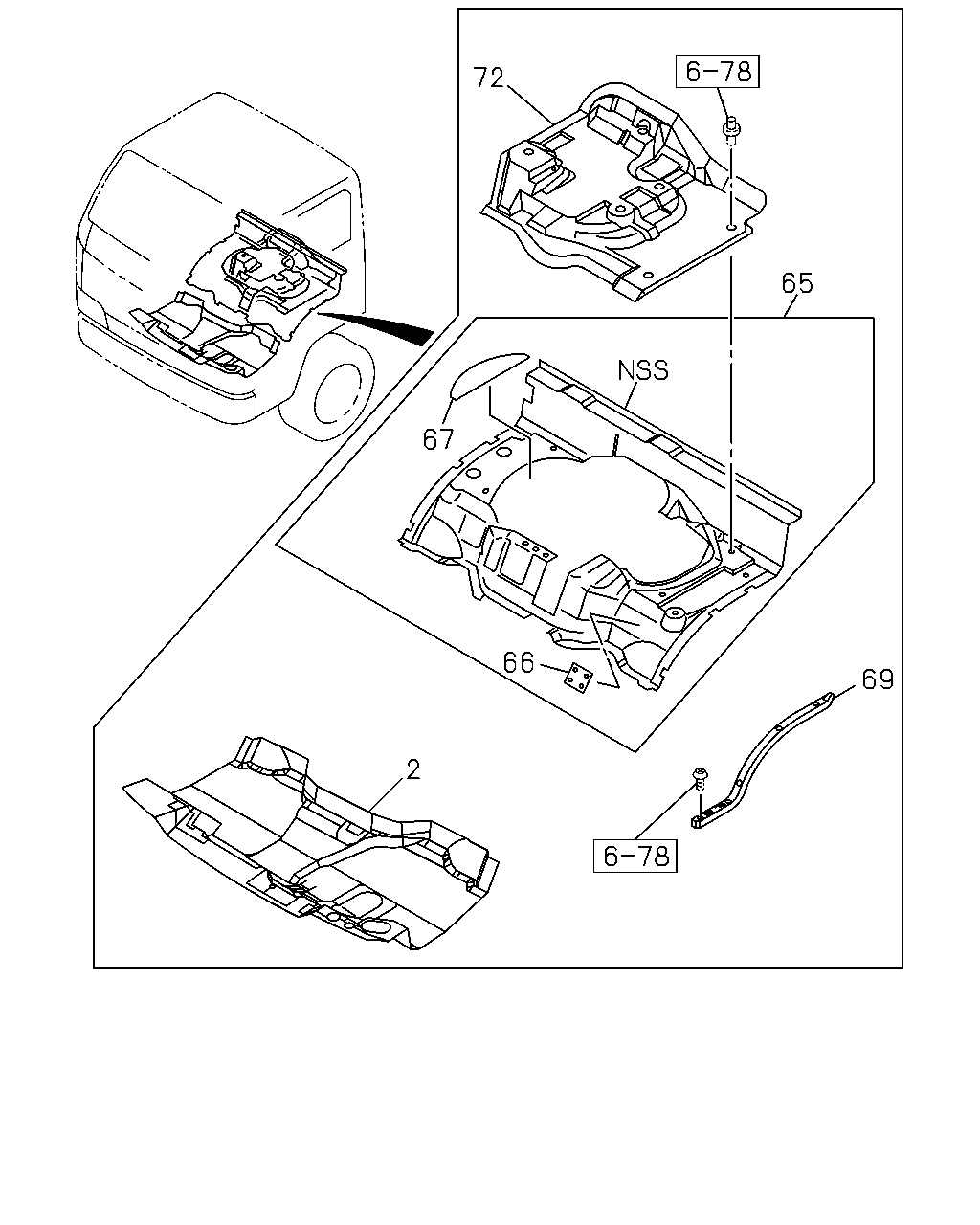

çizim 48770
72 65 67 66 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-519-4 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-638-1 01 1 0204- ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-520-4 01 1 9812-0203 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97996-640-1 01 1 0204- ● ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97868-397-5 01 1 9812-0203 ● ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-702-0 01 1 0204- ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97868-356-6 01 1 9904-0203 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-707-0 01 1 0204- ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97859-705-0 02 1 9812-0203 ● ● ● ● ● ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0204- ● ● ● ● ● ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97868-518-0 01 1 9812-0203 ● ● ● ● ● ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-588-0 01 1 0204- ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 9812- ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 9812- ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97890-496-0 01 1 9812-0203 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-766-0 01 1 0204- ● ● ● ● ● ● ●
