◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#41514) — 238 parça
çizim 7580
377 378 380 398 381 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9812-0105 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9812-0105 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0106- ● ● ● ● ● ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 9812-0105 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 9812-0105 ●
378 16.545 GASSET; LWR 8-97850-672-1 01 1 0106- ● ● ● ● ● ● ●
378 16.545 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 9812-0105 ● ● ● ● ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 9812-0105 ●
378 16.545 GASSET; LWR 8-97850-671-0 01 1 0106- ● ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-359-1 01 1 9812-0105 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 9812-0105 ●
380 16.545 BRACKET; HEAD LAMP 8-97850-359-1 01 1 0106- ● ● ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-704-0 01 1 9812-0105 ● ● ● ● ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 9812-0105 ●
380 16.545 BRACKET; HEAD LAMP 8-97850-704-0 01 1 0106- ● ● ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT
MANUAL TILT CAB<RWZ> 		8-97850-352-1 01 1 9812-0105 ● ● ● ● ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 9812-0105 ●
381 16.545 BRACKET; AIR INTAKE DUCT,FRT 8-97850-352-1 01 1 0106- ● ● ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 9812-0105 ● ● ● ● ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 9812-0105 ●
398 16.545 BRACKET; PIPE SUPPORT 8-97850-318-1 01 1 0106- ● ● ● ● ● ● ●

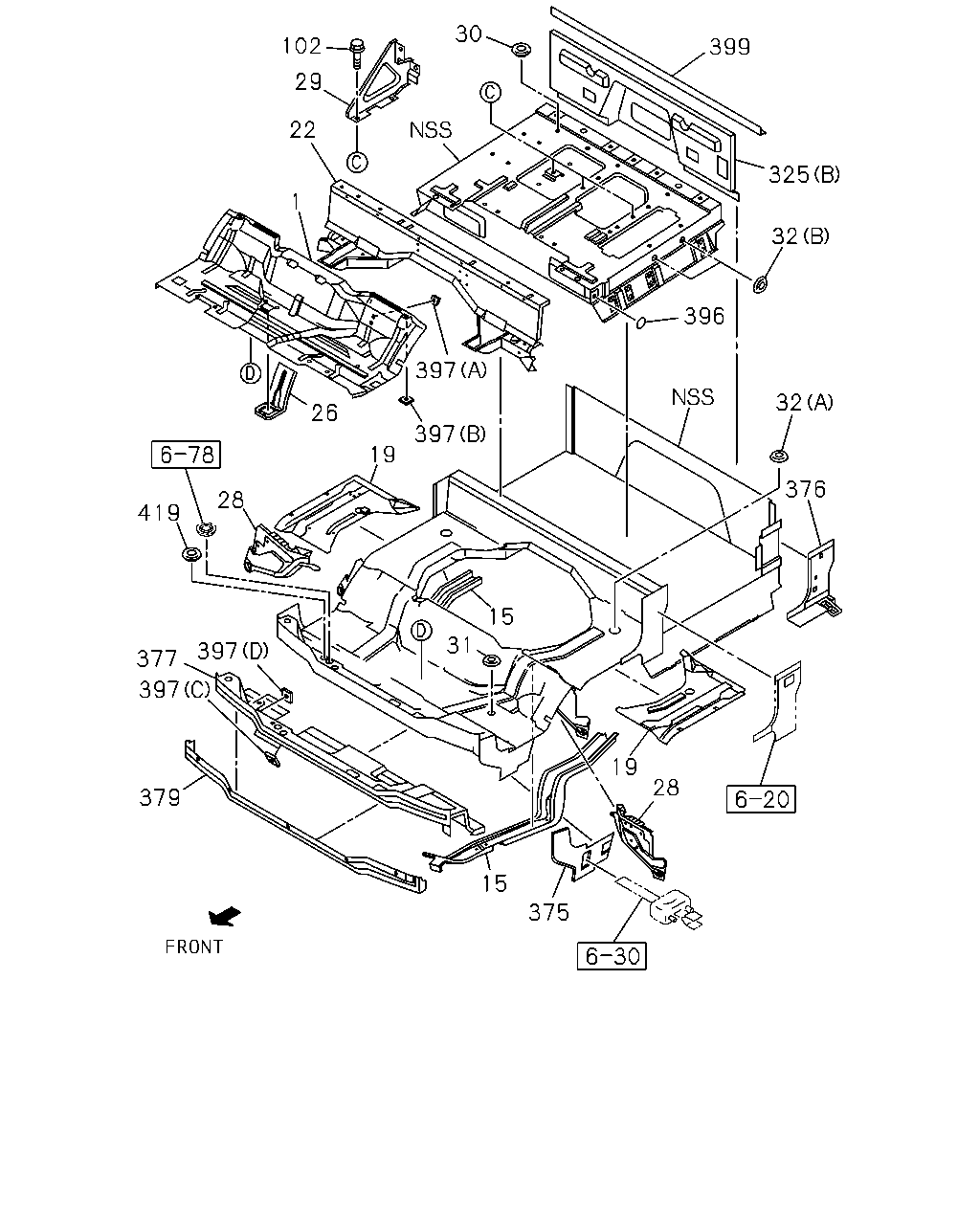

çizim 48019
30 102 399 29 22 325 1 32 396 397 32 26 397 19 376 28 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9812-0105 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9812-0105 ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0106- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0106- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0106- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-405-9 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0106- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0106- ● ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9812- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 0106- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9904- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-403-0 01 1 9812-0105 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9812-0105 ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0106- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0106- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0106- ● ● ● ● ● ● ●
29 16.545 GUSSET
4JH1 ENG(RJX) 		8-97898-577-0 03 1 0106- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9904- ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9904- ● ●
102 16.549 BOLT; FLOOR BOARD
4JH1 ENG(RJX) 01.062 M8X16 FLANGE 		0-28080-816-0 12 1 0106-0206 ●
102 16.549 BOLT; FLOOR BOARD
4JH1 ENG(RJX) 09.003 M8X20 W/LK&PL WASHER 		8-94279-216-0 12 1 0207- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97890-252-4 01 1 9904-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) (A) 		8-97890-252-4 01 1 9904-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-518-0 01 1 0204- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) (A) 		8-97997-518-0 01 1 0204- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4JH1 ENG(RJX) (B) 		8-97898-991-1 01 1 0106- ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0106- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0106- ● ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9812-9812 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9904-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR
4JH1 ENG(RJX) 		8-97898-993-1 01 1 0106- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9904-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR
4JH1 ENG(RJX) 		8-97898-992-1 01 1 0106- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 0106- ● ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 0106- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9812-0105 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9812-0105 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0106- ● ● ● ● ● ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 9812-0105 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9812-0105 ●
379 16.545 PANEL 8-97850-129-2 01 1 0106- ● ● ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9904- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9812-0105 ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0106- ● ● ● ● ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9904- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9812- ● ● ● ● ● ● ●

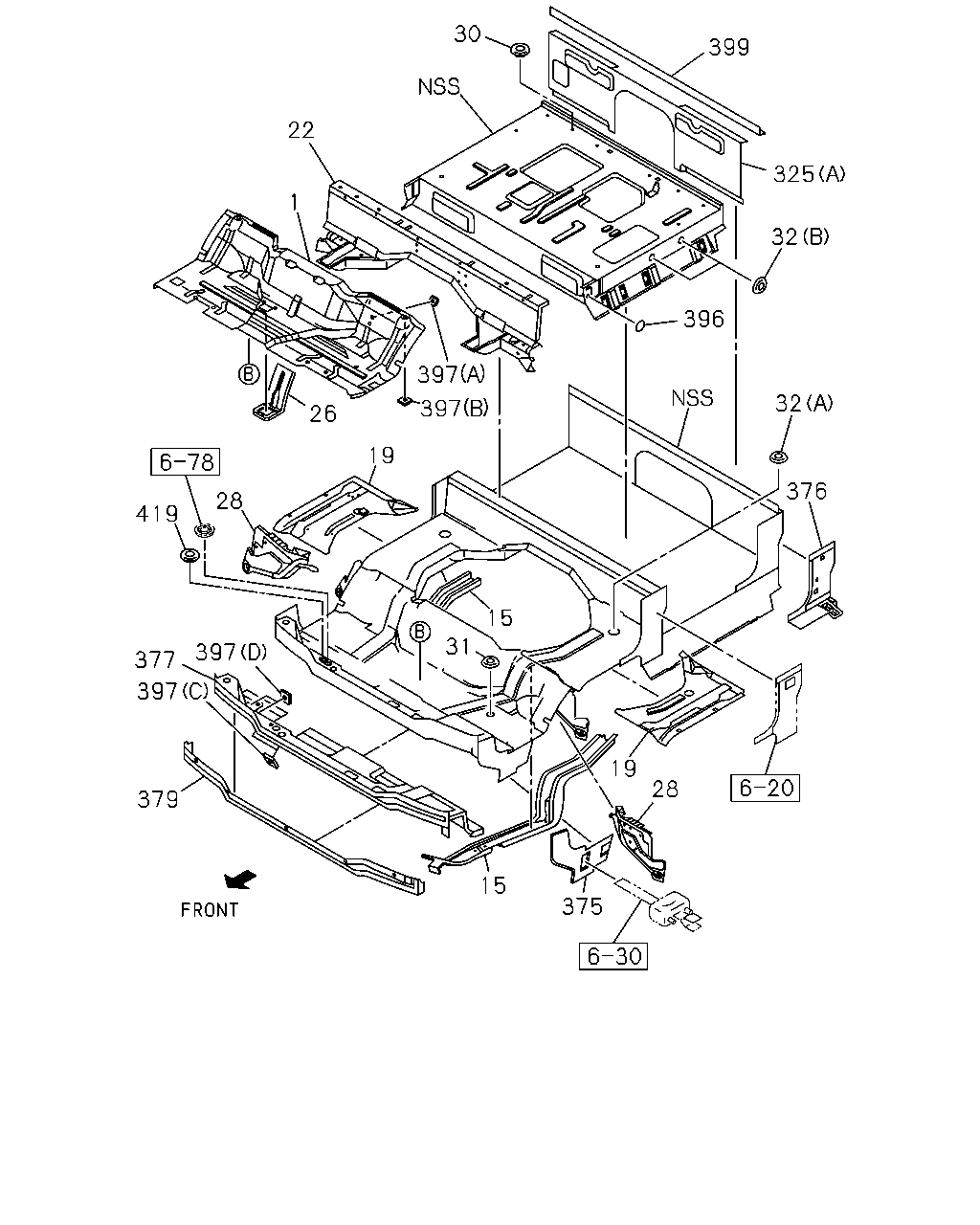

çizim 48767
30 399 22 325 1 32 396 397 32 397 26 19 376 28 419 15 31 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9812-0105 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9812-0105 ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0106- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0106- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0106- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-405-9 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0106- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0106- ● ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9812- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 0106- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9904- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-403-0 01 1 9812-0105 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9812-0105 ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0106- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0106- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0106- ● ● ● ● ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=74 		8-94279-731-0 02 1 9904- ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9904- ● ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97890-252-4 01 1 9904-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) (A) 		8-97890-252-4 01 1 9904-0203 ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97997-518-0 01 1 0204- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4HE1 ENG(RLY) (A) 		8-97997-518-0 01 1 0204- ●
325 16.545 REINFORCEMENT ASM; RR MTG
4JH1 ENG(RJX) (B) 		8-97898-991-1 01 1 0106- ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0106- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0106- ● ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9812-9812 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9904-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR
4JH1 ENG(RJX) 		8-97898-993-1 01 1 0106- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9904-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR
4JH1 ENG(RJX) 		8-97898-992-1 01 1 0106- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 0106- ● ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 0106- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9812-0105 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9812-0105 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0106- ● ● ● ● ● ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 9812-0105 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9812-0105 ●
379 16.545 PANEL 8-97850-129-2 01 1 0106- ● ● ● ● ● ● ●
396 16.547 GROMMET; LOCATION HOLE 1-09983-049-0 02 1 9904- ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9812-0105 ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0106- ● ● ● ● ● ● ●
399 16.545 PANEL; EXTENSION,RR MTG RAIL 8-97850-224-1 01 1 9904- ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9812- ● ● ● ● ● ● ●

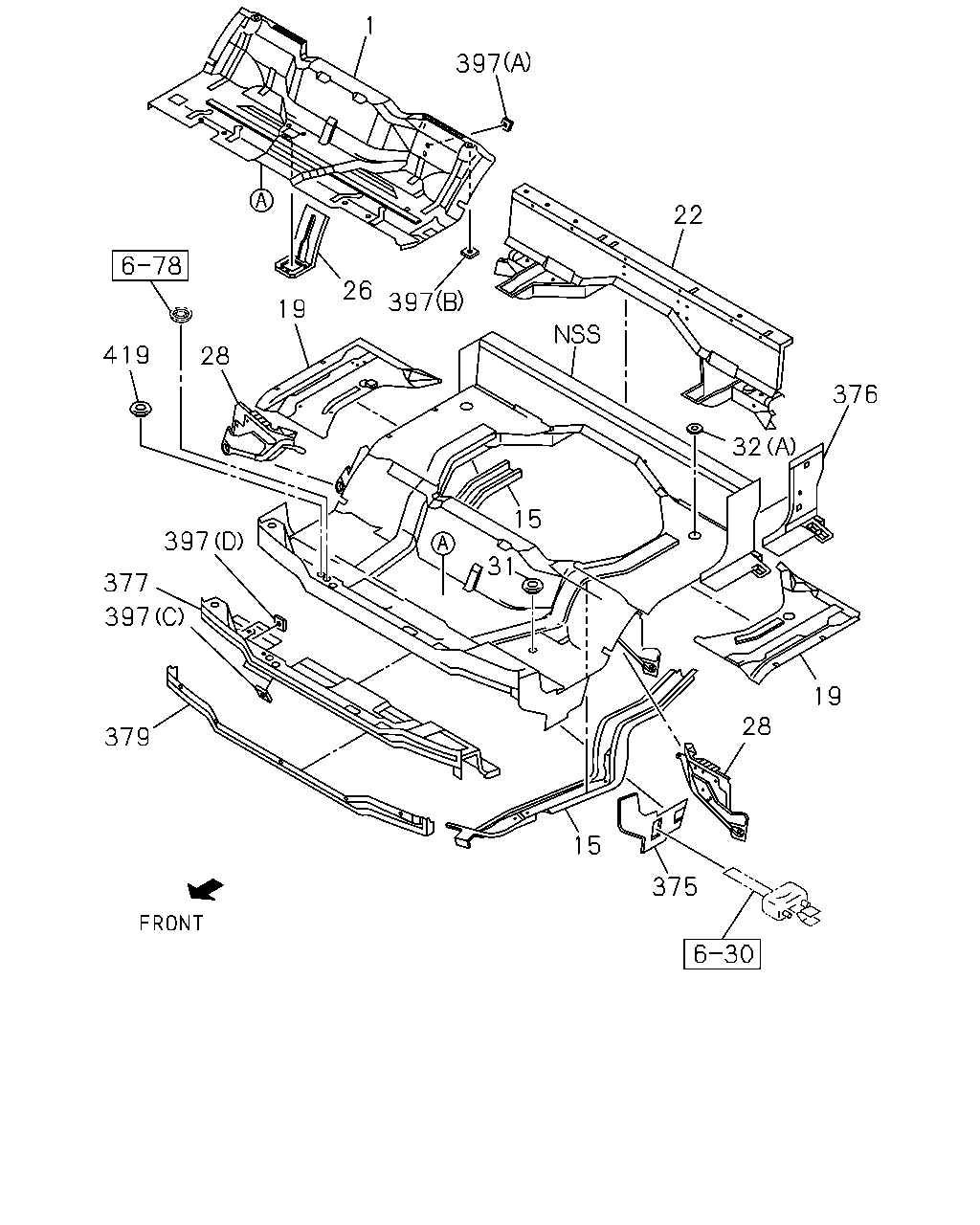

çizim 49514
1 397 22 26 397 19 419 28 376 32 15 397 31 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.545 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-402-5 01 1 9812-0105 ● ● ● ● ●
1 16.545 PANEL; FLOOR 8-97850-402-5 01 1 9812-0105 ●
1 16.545 PANEL; FLOOR 8-97850-402-6 01 1 0106- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-060-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER 8-97850-060-9 01 1 0106- ● ● ● ● ● ● ●
15 16.545 FRAME; UNDER
MANUAL TILT CAB<RWZ> 		8-97850-059-9 01 1 9812-0105 ● ● ● ● ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 9812-0105 ●
15 16.545 FRAME; UNDER 8-97850-059-9 01 1 0106- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-405-9 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-405-9 01 1 0106- ● ● ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-335-4 01 1 9812-0105 ● ● ● ● ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 9812-0105 ●
19 16.545 PANEL; FLOOR SIDE,REAR 8-97850-335-4 01 1 0106- ● ● ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-408-8 01 1 9812- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-535-6 01 1 0106- ● ● ● ● ●
22 16.545 FRAME; FLOOR REAR 8-97850-502-6 01 1 9904- ● ●
26 16.545 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-403-0 01 1 9812-0105 ● ● ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 9812-0105 ●
26 16.545 PANEL; GEAR CONT REINF 8-97850-403-0 01 1 0106- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-017-7 01 1 0106- ● ● ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 9812-0105 ● ● ● ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 9812-0105 ●
28 16.545 GUSSET; FLOOR PANEL SIDE 8-97850-338-5 01 1 0106- ● ● ● ● ● ● ●
31 16.547 GROMMET; LOCATION HOLE,CAB FLOOR
08.155 OD=28.5 		8-94279-711-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
08.131 (A) OD=53.5 		8-94356-253-0 02 1 9812- ● ● ● ● ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
15.222 (B) OD=35 		8-94122-971-0 04 1 9904- ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR 8-97850-087-3 01 1 0106- ● ● ● ● ● ● ●
375 16.545 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 9812-0105 ● ● ● ● ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 9812-0105 ●
375 16.545 CLOSING; PILLAR 8-97850-086-4 01 1 0106- ● ● ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-024-6 01 1 9812-9812 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-923-1 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 9812-0105 ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-320-6 01 1 0106- ● ● ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-187-3 01 1 9904-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR
4JH1 ENG(RJX) 		8-97898-993-1 01 1 0106- ●
376 16.545 CLOSING; PILLAR,LWR 8-97850-186-3 01 1 9904-0105 ● ●
376 16.545 CLOSING; PILLAR,LWR
4JH1 ENG(RJX) 		8-97898-992-1 01 1 0106- ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-187-3 01 1 0106- ● ●
376 16.545 CLOSING; PILLAR,LWR
4HE1 ENG(RLY) 		8-97850-186-3 01 1 0106- ● ●
377 16.545 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-776-0 01 1 9812-0105 ● ● ● ● ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-0 01 1 9812-0105 ●
377 16.545 RAIL ASM; MTG,FRT 8-97850-776-2 01 1 0106- ● ● ● ● ● ● ●
379 16.545 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 9812-0105 ● ● ● ● ●
379 16.545 PANEL 8-97850-129-2 01 1 9812-0105 ●
379 16.545 PANEL 8-97850-129-2 01 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (D) M10 		9-09114-030-0 03 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 9812-0105 ●
397 16.545 NUT; PIERCE
(D) M10 		9-09114-030-0 03 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
(A) M6 		9-09114-046-0 04 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 9812-0105 ●
397 16.545 NUT; PIERCE
16.588 (C) M8 		9-09114-048-0 04 1 0106- ● ● ● ● ● ● ●
397 16.545 NUT; PIERCE
MANUAL TILT CAB<RWZ> 16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ● ● ● ● ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 9812-0105 ●
397 16.545 NUT; PIERCE
16.588 (B) M8 		9-09114-048-0 03 1 0106- ● ● ● ● ● ● ●
419 04.012 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) 16.802 OD=36 		1-09983-092-0 01 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
