Sayfa 6-66 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

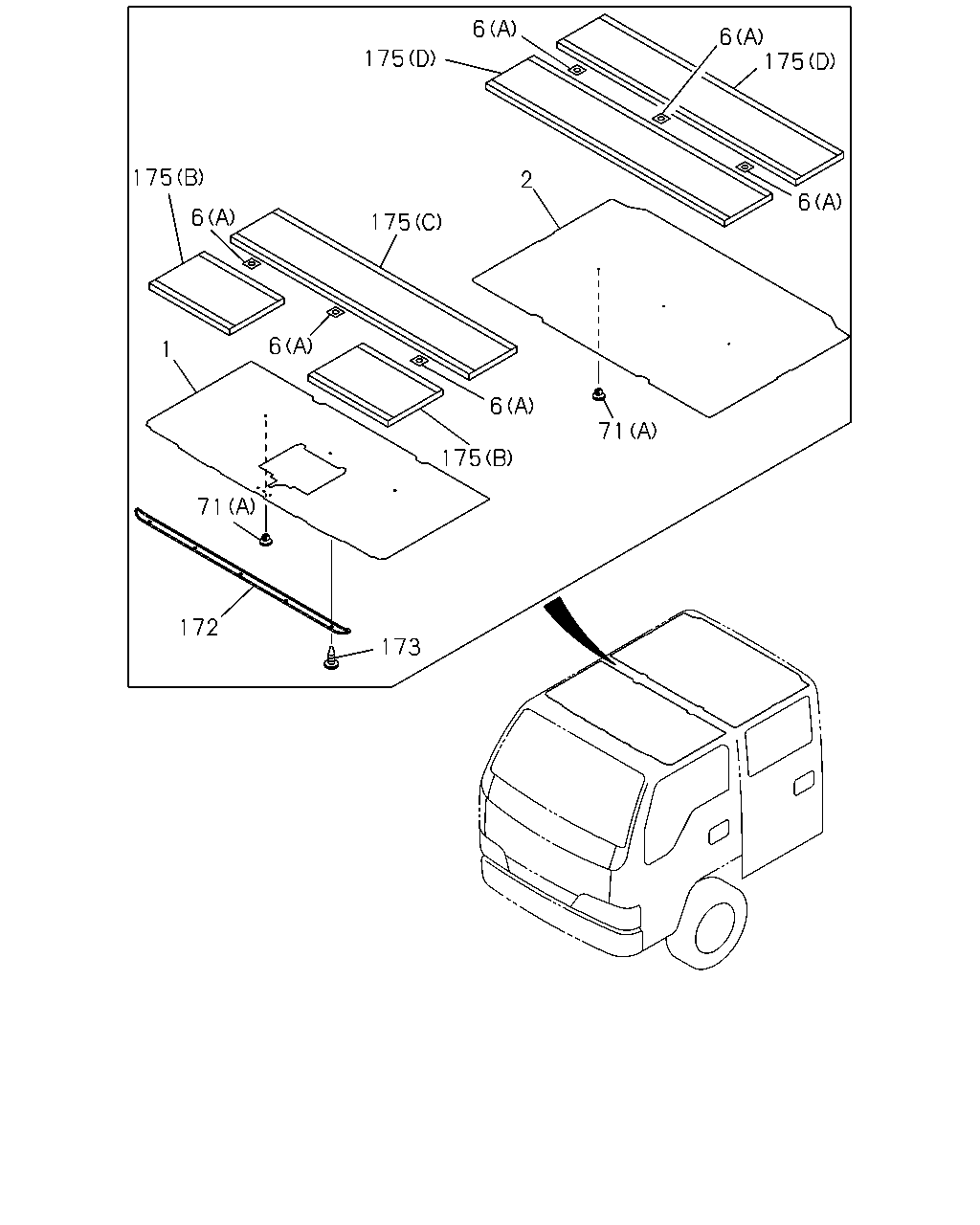

6-66 — HEAD LINING AND TRIM (#41512) — 67 parça

6 6 175 175 175 2 6 6 175 6 1 6 71 175 71 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.742 LINING; HD INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-428-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-224-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-426-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-427-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-608-2	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-3	01	1	9904-						●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-2	01	1	9904-						●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-431-2	01	1	9904-						●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-429-3	01	1	9904-						●	●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY	8-97867-610-3	01	1	9904-						●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB> (A)	8-94353-014-0	03	1	9812-	●	●	●	●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB> 16.588 (B) H=10 L=55	8-97857-444-0	02	1	9812-	●	●	●	●	●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	06	1	9904-						●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB> (B) D5.8X20	8-97857-353-0	05	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	06	1	9904-						●	●
172	16.742 RETAINER; HEAD LINING EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-611-4	01	1	9812-	●	●	●	●	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-611-4	01	1	9812-						●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. INTERIOR DELUXE<RBB> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	9812-	●	●	●	●	●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	9812-						●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB> (B)	8-97856-524-3	02	1	9812-	●	●	●	●	●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-524-3	02	1	9812-						●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB> (A)	8-97859-105-1	01	1	9812-	●	●	●	●	●
175	16.742 CUSHION; HEAD LINING (C)	8-97856-529-3	01	1	9904-						●	●
175	16.742 CUSHION; HEAD LINING (D)	8-97856-530-3	02	1	9904-						●	●

175 175 6 6 1 6 175 71 215 6 215 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.742 LINING; HD INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-428-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-224-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-426-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-427-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-608-2	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-3	01	1	9904-						●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-2	01	1	9904-						●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-431-2	01	1	9904-						●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-429-3	01	1	9904-						●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB> (A)	8-94353-014-0	03	1	9812-	●	●	●	●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB> 16.588 (B) H=10 L=55	8-97857-444-0	02	1	9812-	●	●	●	●	●
6	16.742 SPACER; HD LINING (A)	8-94353-014-0	06	1	9904-						●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB> (B) D5.8X20	8-97857-353-0	05	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	06	1	9904-						●	●
172	16.742 RETAINER; HEAD LINING EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-611-4	01	1	9812-	●	●	●	●	●
172	16.742 RETAINER; HEAD LINING LIGHT GRAY	8-97867-611-4	01	1	9812-						●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. INTERIOR DELUXE<RBB> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	9812-	●	●	●	●	●
173	16.742 CLIP; RETAINER,HEAD LINING LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	05	1	9812-						●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB> (B)	8-97856-524-3	02	1	9812-	●	●	●	●	●
175	16.742 CUSHION; HEAD LINING (B)	8-97856-524-3	02	1	9812-						●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB> (A)	8-97859-105-1	01	1	9812-	●	●	●	●	●
175	16.742 CUSHION; HEAD LINING (C)	8-97856-529-3	01	1	9904-						●	●
175	16.742 CUSHION; HEAD LINING (D)	8-97856-530-3	02	1	9904-						●	●
215	16.592 CUSHION; TRAY BACK PANEL ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB> 16.587 L=100	8-97866-625-0	02	1	0112-	●	●	●	●	●

27 27 170 27 1 171 71 71 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	16.742 LINING; HD INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-428-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-224-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-426-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-427-1	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-608-2	01	1	9812-	●	●	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-609-3	01	1	9904-						●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-430-2	01	1	9904-						●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-431-2	01	1	9904-						●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97868-429-3	01	1	9904-						●	●
27	16.165 INSULATION; ROOF INTERIOR DELUXE<RBB> (A)	8-97856-989-5	02	1	9812-	●	●	●	●	●
27	16.165 INSULATION; ROOF INTERIOR DELUXE<RBB> (B)	8-97859-504-1	01	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB> (B) D5.8X20	8-97857-353-0	05	1	9812-	●	●	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	06	1	9904-						●	●
170	16.742 FINISHER; HEAD LINING INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-524-2	01	1	9812-	●	●	●	●	●
171	16.742 CLIP; HEAD LINING INTERIOR DELUXE<RBB> (A) LIGHT GRAY	8-97859-865-0	02	1	9812-	●	●	●	●	●
171	16.742 CLIP; HEAD LINING INTERIOR DELUXE<RBB> (B) LIGHT GRAY	8-97859-866-0	07	1	9812-	●	●	●	●	●
