◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#41503) — 48 parça

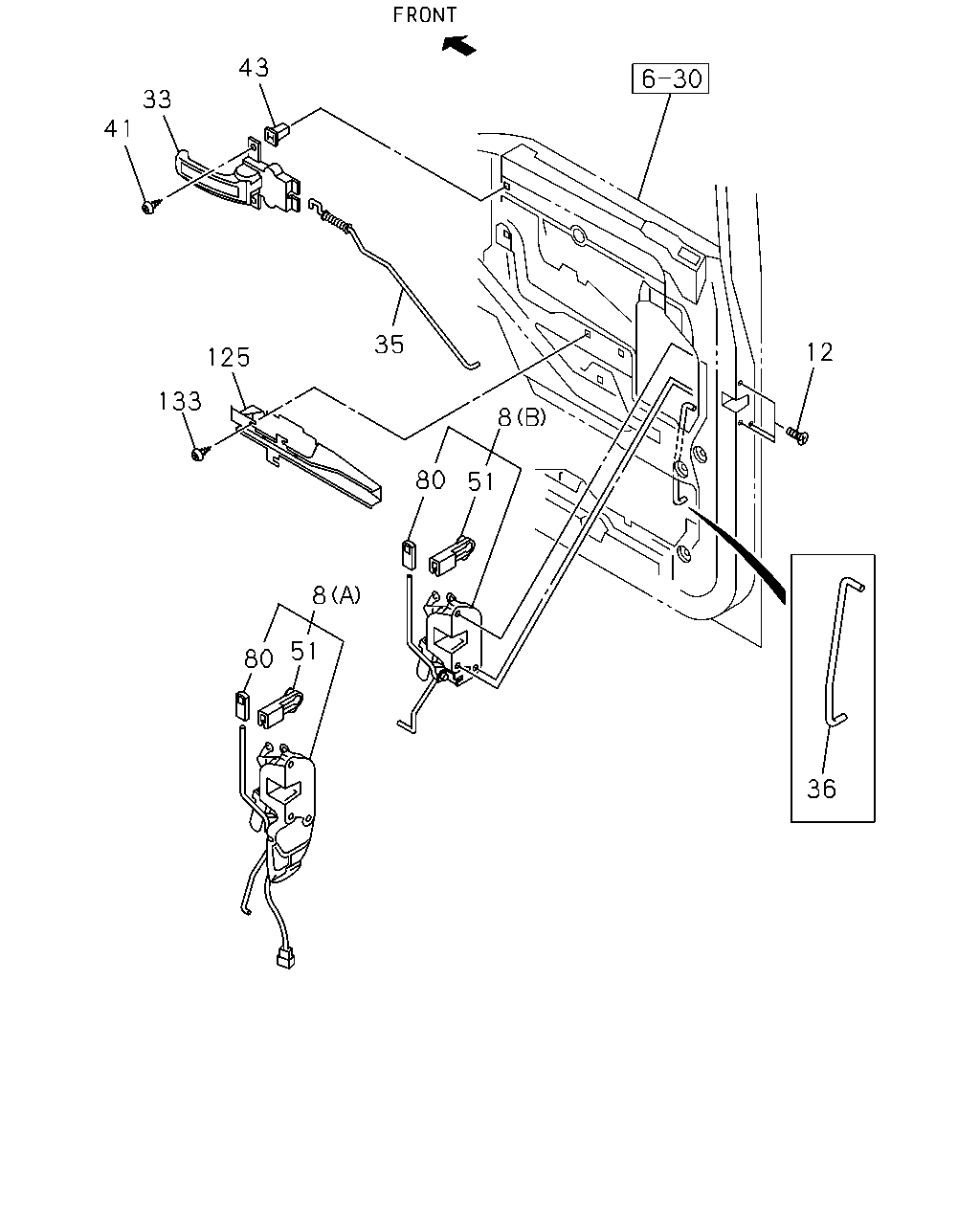

çizim 45444
43 33 41 35 12 125 133 8 80 51 8 51 80 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97892-681-1 01 1 9812-9903 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-681-1 01 1 9812-9903 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97892-681-1 01 1 9904-0105 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-681-1 01 1 9904-0105 ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97892-681-1 01 1 0106- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-681-1 01 1 0106- ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97892-680-1 01 1 9812-0105 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> (A) DARK GRAY 		8-97892-680-1 01 1 0106- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-679-1 01 1 9812-9903 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-679-1 01 1 9904-0105 ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-679-1 01 1 0106- ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-198-1 01 1 9812-9903 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-198-1 01 1 9904-0105 ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-198-1 01 1 0106- ● ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-098-1 01 1 9812-9903 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-098-1 01 1 9904-0105 ● ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-098-1 01 1 0106- ● ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9812- ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-602-1 01 1 9812- ● ● ● ● ● ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-601-1 01 1 9812- ● ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-2 01 1 9812- ● ● ● ● ● ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-2 01 1 9812- ● ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 9812-9903 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 9904- ● ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 9812-9903 ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 9904- ● ● ● ● ● ● ●
41 16.345 SCREW; INSIDE HANDLE
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9812- ● ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9812- ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 9812- ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 9812- ● ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 9812- ● ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 01 1 9812- ● ● ● ● ● ● ●
80 16.157 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> DARK GRAY 		8-97098-574-0 02 1 9812- ● ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-0 01 1 9812- ● ● ● ● ● ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-0 01 1 9812- ● ● ● ● ● ● ●
133 16.345 SCREW; DOOR PULL STAY
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9812- ● ● ● ● ● ● ●

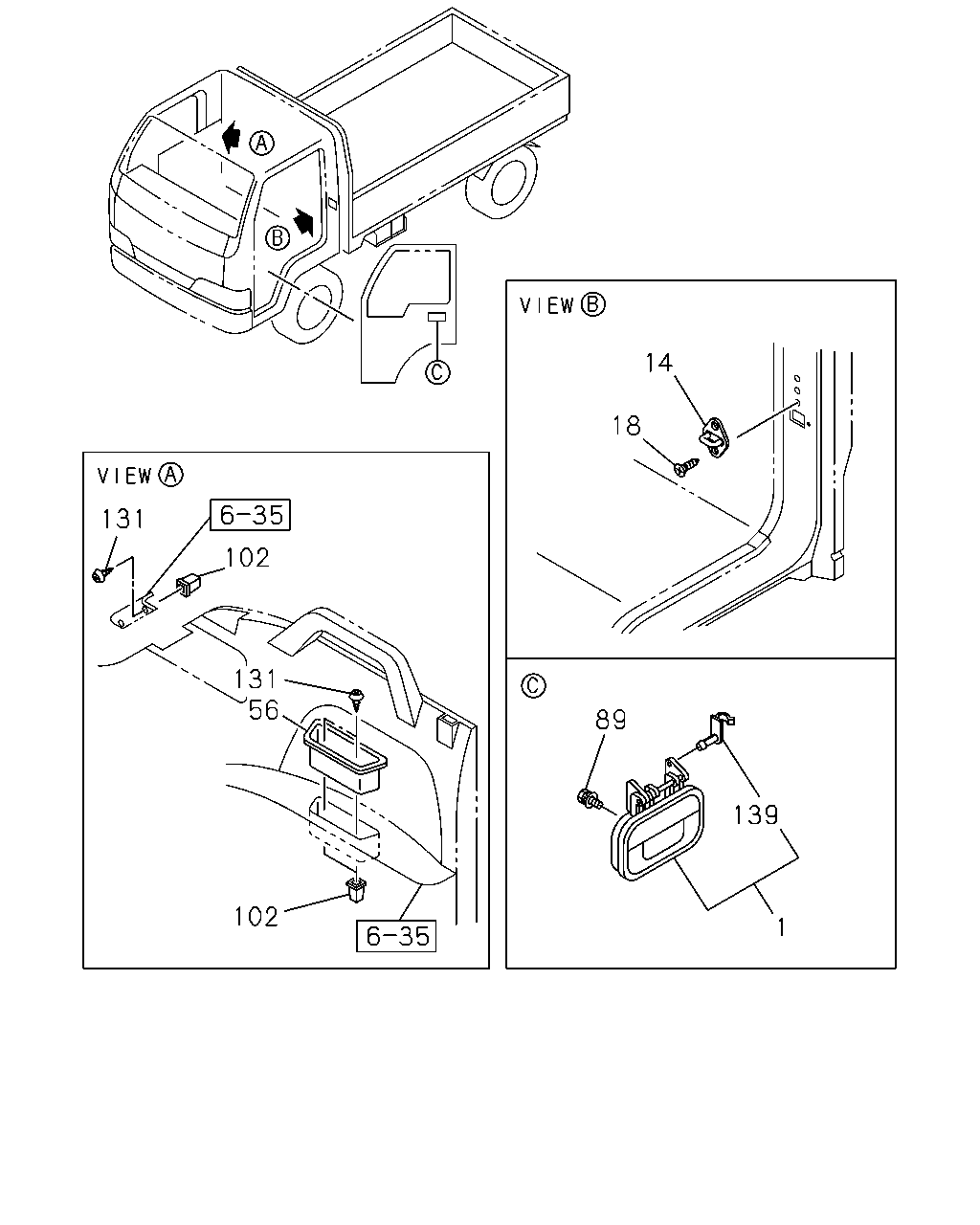

çizim 46166
14 18 131 102 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 9812- ● ● ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 9812- ● ● ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97852-106-1 02 1 9812-9903 ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-0 02 1 9904- ● ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9812-9903 ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 9904- ● ● ● ● ● ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
DARK GRAY 		8-97852-669-3 02 1 9812- ● ● ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9812- ● ● ● ● ● ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9812- ● ● ● ● ● ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
09.663 M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 9812- ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 9812- ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 9812- ● ● ● ● ● ● ●
