6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#41499) — 11 parça

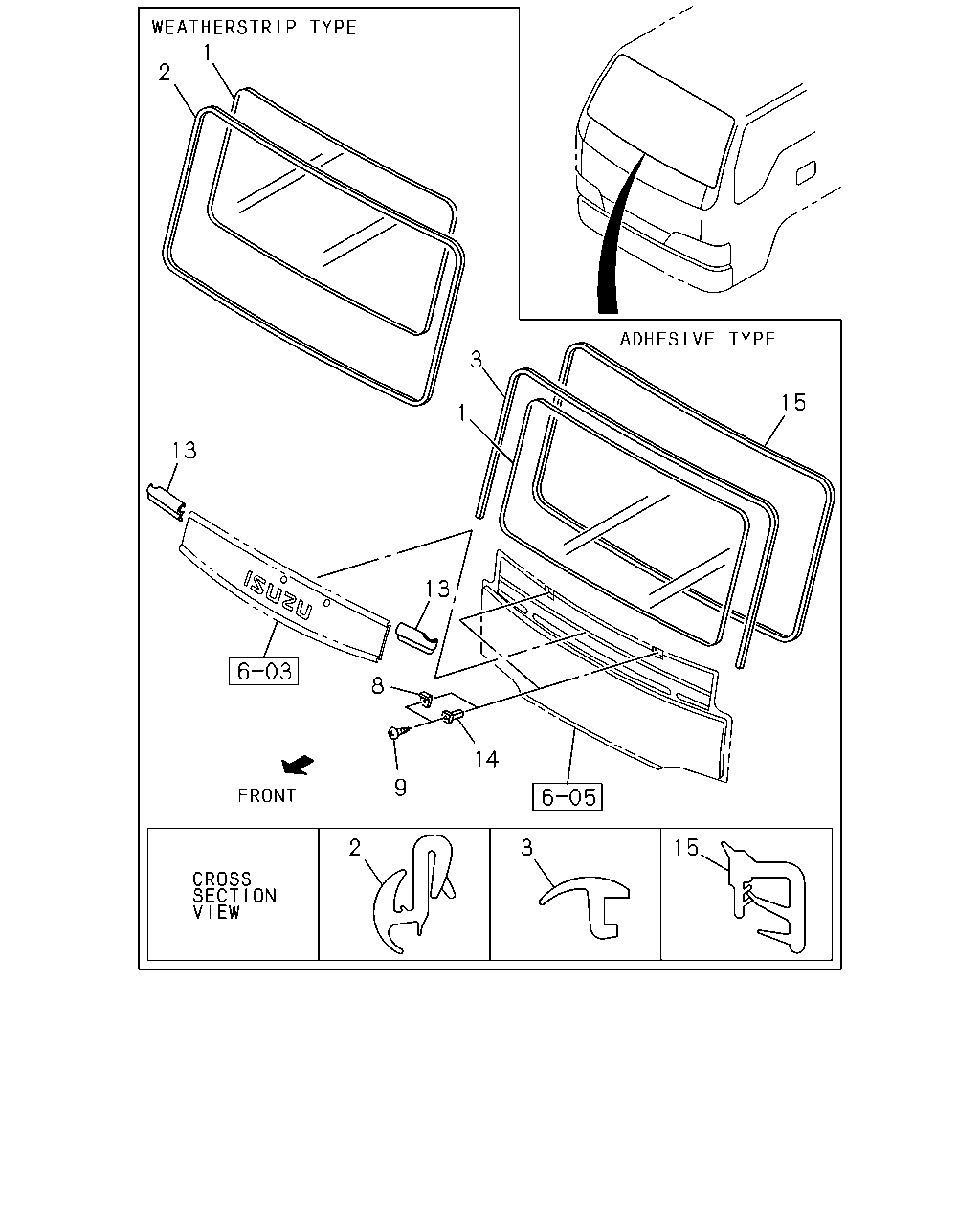

çizim 8219
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.005 GLASS; WINDSHIELD
T=6.3 		8-97869-127-0 01 1 9812- ● ● ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-350-3 01 1 9812- ● ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-215-1 01 1 9812- ● ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9812- ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9904- ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9812- ● ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9812- ● ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9812- ● ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9812- ● ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9904- ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97857-048-4 01 1 9812- ● ● ● ● ● ● ●
