◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#41496) — 78 parça

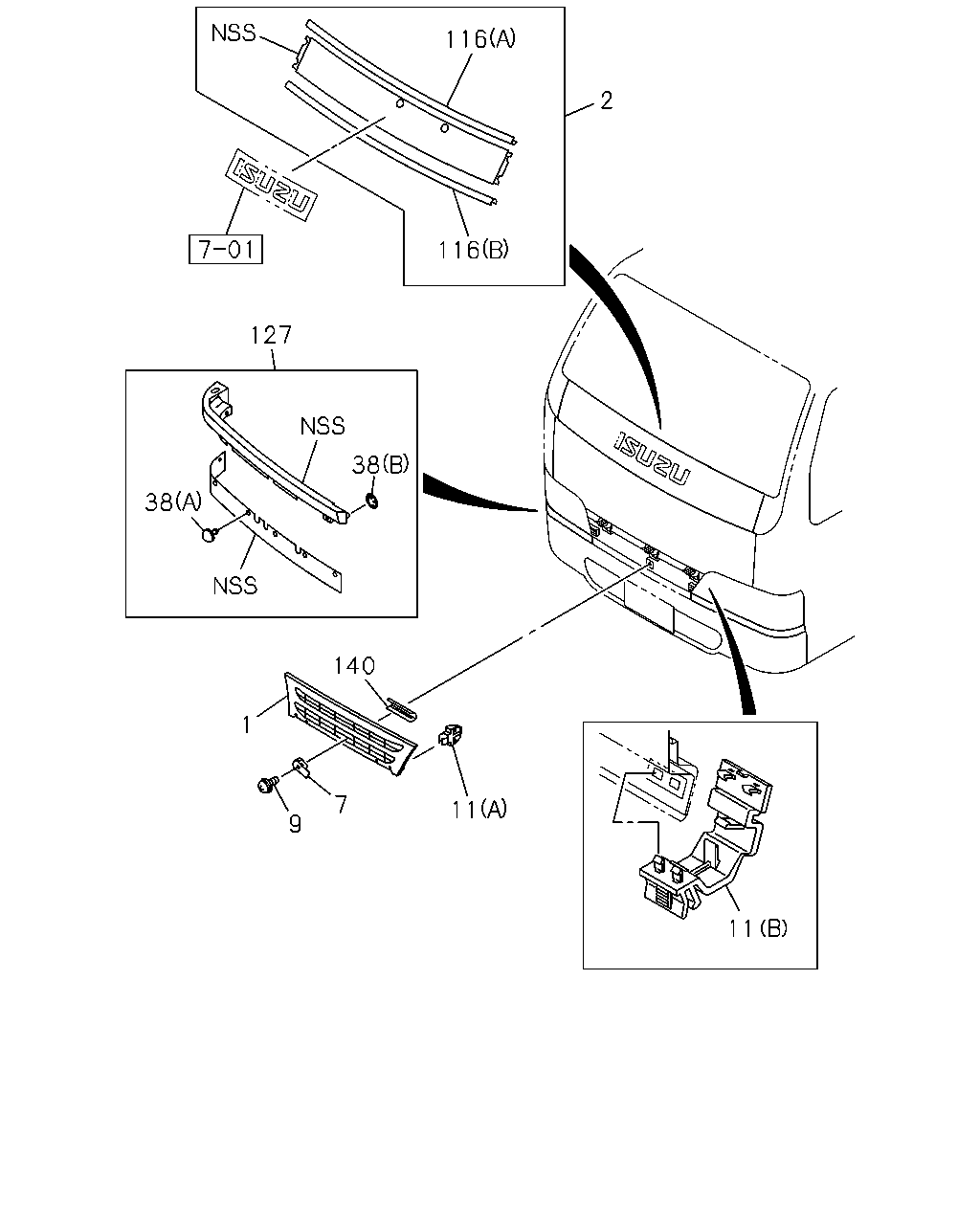

çizim 49256
116 2 116 127 38 38 140 1 7 11 9 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-550-0 01 1 9812- ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/ISUZU DECAL 		8-97868-326-3 01 1 9812- ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/ISUZU DECAL 		8-97857-017-6 01 1 9812- ● ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 9812- ● ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9812- ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 9812- ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-729-0 02 1 9812- ● ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 09 1 9812-0209 ● ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0210- ● ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
(B) 		1-09987-180-0 01 1 9812-0209 ● ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0210- ● ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 9812- ● ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 9812- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-5 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-5 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-200-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-377-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-377-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-377-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97867-325-3 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97867-325-3 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-179-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-356-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-356-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-356-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-960-5 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-960-5 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-210-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-387-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-387-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97867-331-3 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97867-331-3 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-189-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-366-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-366-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-959-5 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-959-5 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-207-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-384-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-384-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97898-384-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97867-383-3 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97867-383-3 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-186-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-363-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-363-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97898-363-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-5 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-5 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-214-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-391-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-391-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97867-332-3 01 1 9812-9903 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97867-332-3 01 1 9904-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-193-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-370-0 01 1 0002-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-370-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MIDDLE BRONZE GREEN(909) GREEN 		8-97899-150-0 01 1 0008-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MIDDLE BRONZE GREEN(909) GREEN 		8-97899-150-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MIDDLE BRONZE GREEN(909) EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97899-150-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MIDDLE BRONZE GREEN(909) GREEN 		8-97899-149-0 01 1 0008-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MIDDLE BRONZE GREEN(909) GREEN 		8-97899-149-1 01 1 0106-0209 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MIDDLE BRONZE GREEN(909) EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97899-149-1 01 1 0210- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-383-0 01 1 0009-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-383-1 01 1 0106-0112 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-383-1 01 1 0201-0209 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0210- ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-362-0 01 1 0009-0105 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-362-1 01 1 0106-0112 ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-362-1 01 1 0201-0209 ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0210- ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE 8-97088-561-3 01 1 9812- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
