◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#41494) — 67 parça

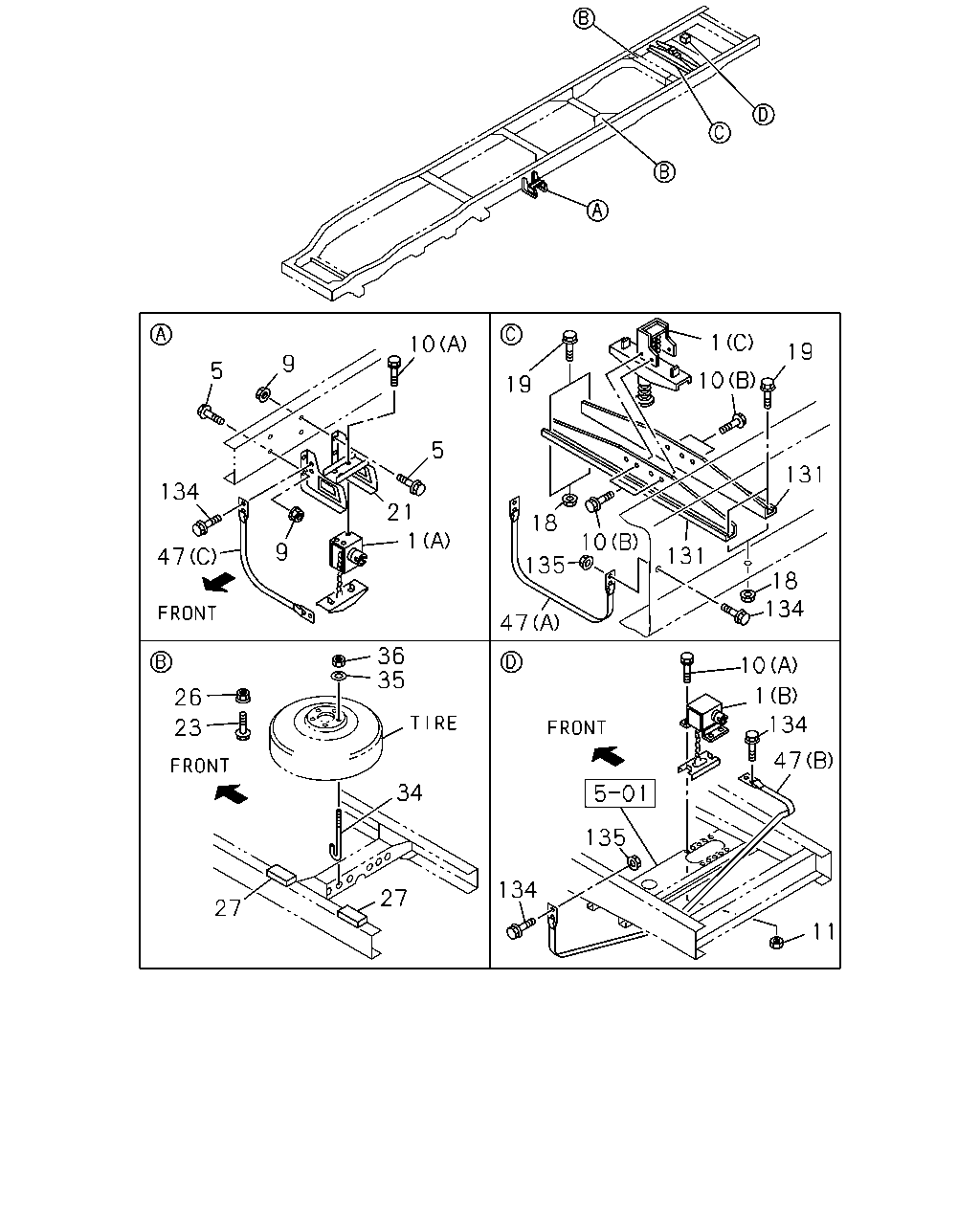

çizim 8218
1 10 19 9 5 10 19 5 131 134 21 18 1 10 9 131 47 18 134 135 47 36 35 10 1 134 26 23 47 34 135 134 27 27 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-94382-875-0 01 1 9812-0105 ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94382-875-0 01 1 0106- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-97010-955-0 01 1 9812-0105 ●
1 07.629 HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97010-955-0 01 1 9812-0105 ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97010-955-0 01 1 0106- ●
1 07.629 HANGER ASM; TIRE FT
(A) 		8-97010-955-0 01 1 0106- ● ● ●
1 07.629 HANGER ASM; TIRE FT
(ARN),(BQU),(BQV),(9HY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-769-0 01 1 9812-0105 ● ●
1 07.629 HANGER ASM; TIRE FT
(ARN),(BQU),(BQV),(9HY) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97174-769-0 01 1 0106-0206 ● ● ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (00C),(01C),(02C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 9812-9903 ● ● ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 9904-0105 ● ● ● ●
1 07.629 HANGER ASM; TIRE FT
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(03C), (04C),(05C),(06C),(07C),(08C),(09C), (10C),(11C),(53C),(54C),(55C),(83V), (9BP),(9ZM),(9ZP),(9ZQ),(95V),(97V) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 0106-0206 ● ● ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C) 		1-53630-188-3 01 1 0207- ● ● ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-113-0 01 1 9812-0105 ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-113-0 01 1 0106- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-113-0 01 1 0106- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97182-115-0 01 1 9812- ●
5 07.632 BOLT; BRKT TO FRAME
EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 9812-0105 ●
5 07.632 BOLT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0106- ●
5 07.632 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812-0105 ● ●
5 07.632 BOLT; BRKT TO FRAME
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0106- ● ● ●
9 07.633 NUT; BRKT TO FRAME
EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> 09.011 M10 		9-09110-410-0 04 1 9812-0105 ●
9 07.633 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 09.011 M10 		9-09110-410-0 04 1 0106- ●
9 07.633 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9812-0105 ● ●
9 07.633 NUT; BRKT TO FRAME
04.785 M10 FLANGE 		0-91150-110-0 04 1 0106- ● ● ●
10 07.632 BOLT; TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 9812-0105 ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 9812-0105 ● ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 0106- ●
10 07.632 BOLT; TIRE HANGER
02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 0106- ● ● ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812- ● ● ●
10 07.632 BOLT; TIRE HANGER
03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 9812- ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 04 1 9812- ● ●
11 07.629 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9812- ● ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9812- ● ● ●
18 07.633 NUT; MEMBER
04.785 M10 FLANGE 		0-91150-110-0 04 1 9812- ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812- ● ● ●
19 07.632 BOLT; C/MBR
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 9812- ●
21 07.629 BRACKET; SPARE TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> 		8-97172-733-0 01 1 9812-9907 ●
21 07.629 BRACKET; SPARE TIRE HANGER
EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15>,FRAME STRAIGHT TYPE<7KJ> 		8-97232-235-0 01 1 9908-0105 ●
21 07.629 BRACKET; SPARE TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97232-235-0 01 1 0106- ●
21 07.629 BRACKET; SPARE TIRE HANGER 8-97188-263-1 01 1 9812- ● ● ●
23 07.632 BOLT; BRKT,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9812- ●
26 07.629 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9812- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 125X50X10 		8-94341-284-0 01 1 9812- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> 125X50X10 		8-94341-284-0 04 1 9812-0105 ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 9812-0105 ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 9812- ● ● ●
34 07.629 BOLT; SPARE TIRE
M12X305 		8-94441-189-0 02 1 9812- ● ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 9812-0105 ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9812- ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 9812- ● ● ● ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.816 M12 		9-99110-412-0 01 1 9812-0105 ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12 		9-99110-412-0 02 1 9812- ● ● ●
36 07.629 NUT; SPARE TIRE
05.816 M12 		9-99110-412-0 02 1 9812- ● ● ● ●
47 07.629 BELT; SPARE TIRE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97189-553-0 01 1 9812-0011 ●
47 07.629 BELT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97189-553-0 01 1 9812-0011 ● ●
47 07.629 BELT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-741-0 01 1 9812-0011 ● ● ● ●
47 07.629 BELT; SPARE TIRE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97167-881-0 01 1 9812-0011 ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 9812- ● ● ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-97167-802-0 02 1 9812- ●
134 07.632 BOLT; BELT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0011 ●
134 07.632 BOLT; BELT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9812-0011 ● ● ●
134 07.632 BOLT; BELT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9812-0011 ●
134 07.632 BOLT; BELT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9812-0011 ● ● ●
134 07.632 BOLT; BELT
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9812-0011 ●
134 07.632 BOLT; BELT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9812-0011 ● ●
135 07.629 NUT; BELT
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9812-0011 ● ● ● ●
135 07.629 NUT; BELT
EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9812-0011 ●
