5-20 — BATTERY CARRIER (#41493) — 83 parça

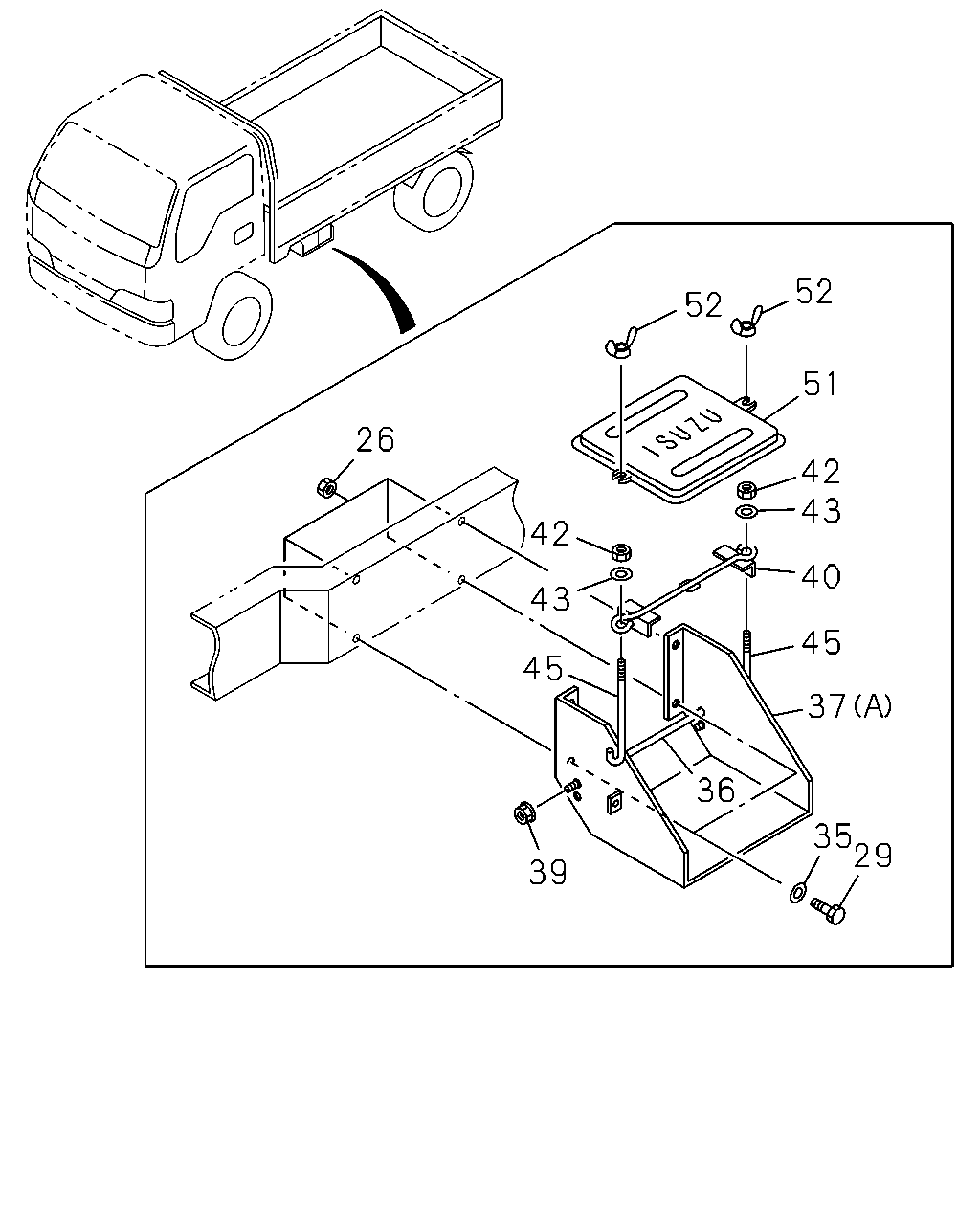

52 52 51 26 42 43 42 40 43 45 45 37 36 35 29 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105			●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-			●	●
26	02.334 NUT; BRKT 4JG2 ENG(RJC) 08.917 M10 FLANGE	0-91150-210-0	03	1	9812-9905	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	9812-9905	●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	03	1	9906-0105	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	9906-0105	●
26	02.334 NUT; BRKT 4JH1 ENG(RJX) 08.917 M10 FLANGE	0-91150-210-0	03	1	0106-	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0106-	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9812-9903	●	●			●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9904-0105	●	●			●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	9904-0105						●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-					●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-						●	●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9812-	●	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	9812-		●	●	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	9812-	●	●	●	●	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>	8-94145-894-0	01	1	9812-	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97124-156-0	01	1	9812-0002	●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0003-	●	●				●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	5-53613-009-5	01	1	9812-0203	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97327-537-0	01	1	0204-0207	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0208-	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	9812-		●	●	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	9812-	●	●	●	●	●	●	●
42	02.334 NUT; CLAMP EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	9812-	●	●	●	●	●	●	●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9812-	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD>	9-53616-615-0	02	1	9812-	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	9812-		●	●	●	●	●	●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	9812-	●	●				●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	9812-		●	●	●	●	●	●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC) EXC. VOLTAGE 24V<7AE>	8-97122-813-0	01	1	9812-9905	●	●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. VOLTAGE 24V<7AE>	8-97122-813-0	01	1	9906-0105	●	●
51	02.335 COVER; BATTERY 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE>	8-97218-309-0	01	1	0106-	●	●				●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	9812-	●	●	●	●	●	●	●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	9812-	●	●	●	●	●	●	●

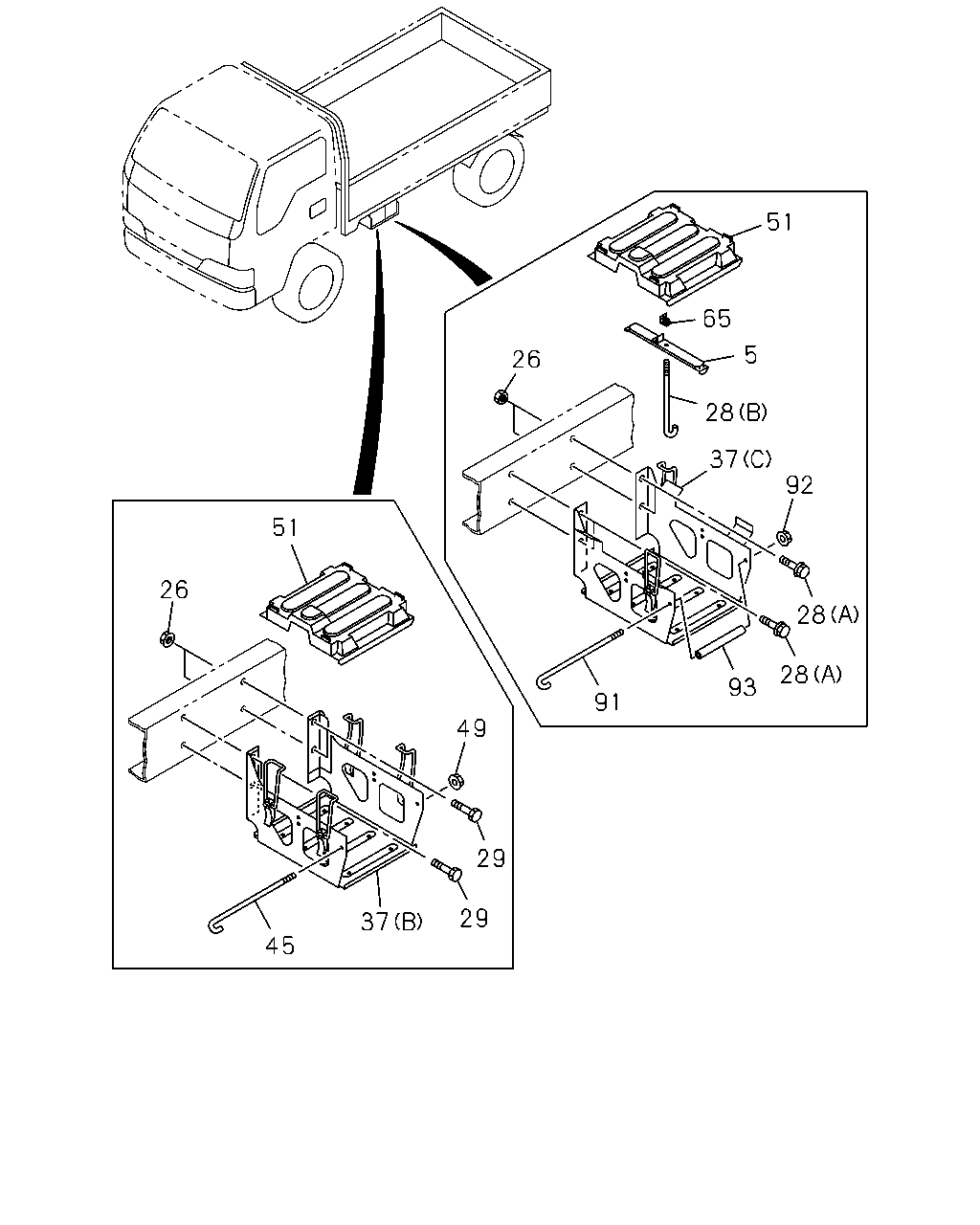

51 65 5 26 28 37 92 51 26 28 28 93 91 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	02.333 BRACKET; BATTERY RELAY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	9812-	●	●				●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	9812-0105			●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	04	1	0106-			●	●
26	02.334 NUT; BRKT 4JG2 ENG(RJC) 08.917 M10 FLANGE	0-91150-210-0	03	1	9812-9905	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	9812-9905	●
26	02.334 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.917 M10 FLANGE	0-91150-210-0	03	1	9906-0105	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	9906-0105	●
26	02.334 NUT; BRKT 4JH1 ENG(RJX) 08.917 M10 FLANGE	0-91150-210-0	03	1	0106-	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0106-	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9812-9903	●	●			●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	9904-0105	●	●			●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	9904-0105						●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
26	02.334 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-					●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0106-						●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 03.162 (A) M10X35 FLANGE	0-28681-035-0	04	1	9812-	●	●				●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	9812-	●	●				●
29	02.334 BOLT; BRKT TO FRAME EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9812-	●	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	9812-		●	●	●	●	●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97124-156-0	01	1	9812-0002	●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0003-	●	●				●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	5-53613-009-5	01	1	9812-0203	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97327-537-0	01	1	0204-0207	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0208-	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	9812-		●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY EXC. BATTERY 115E41R<6XD>	9-53616-615-0	02	1	9812-	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	9812-		●	●	●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	9812-		●	●	●	●	●	●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	9812-	●	●				●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	9812-		●	●	●	●	●	●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC) EXC. VOLTAGE 24V<7AE>	8-97122-813-0	01	1	9812-9905	●	●
51	02.335 COVER; BATTERY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. VOLTAGE 24V<7AE>	8-97122-813-0	01	1	9906-0105	●	●
51	02.335 COVER; BATTERY 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE>	8-97218-309-0	01	1	0106-	●	●				●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	9812-	●	●	●	●	●	●	●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	9812-	●	●				●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-97122-608-0	01	1	9812-	●	●				●
92	02.334 NUT; BRKT,BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-	●	●				●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	9812-	●	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
