◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#41492) — 139 parça
çizim 9325
145 14 14 308 14 144 14 308
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
14 09.009 COVER; MTG,CAB
(A) BLACK L=125 		8-94273-738-3 02 1 9904- ● ●
14 09.009 COVER; MTG,CAB
(B) BLACK L=124 		8-94273-857-3 02 1 9904- ● ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 0106- ● ● ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG 8-97853-060-4 02 1 9904- ● ●
145 09.008 BOLT; CAB RR MTG BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9904-0105 ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0106- ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0106- ● ●
308 09.003 RIVET; COVER
03.602 D6X12.5 		8-94146-425-0 06 1 9904- ● ●
çizim 9884
17 275 16 17 275 275 18 275 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC) 		8-97031-817-2 01 1 9812-9905 ● ●
16 09.007 DAMPER; DYNAMIC
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97031-817-2 01 1 9812-9905 ● ●
16 09.007 DAMPER; DYNAMIC
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97031-817-2 01 1 9906-0105 ● ●
16 09.007 DAMPER; DYNAMIC
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97031-817-2 01 1 9906-0105 ● ●
16 09.007 DAMPER; DYNAMIC
4JH1 ENG(RJX) 		8-97031-817-2 01 1 0106- ● ● ●
16 09.007 DAMPER; DYNAMIC
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97031-817-2 01 1 0106- ● ● ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9812-9905 ● ●
17 09.007 BOLT; DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9812-9905 ● ●
17 09.007 BOLT; DAMPER
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9906-0105 ● ●
17 09.007 BOLT; DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 9906-0105 ● ●
17 09.007 BOLT; DAMPER
4JH1 ENG(RJX) 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0106- ● ● ●
17 09.007 BOLT; DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0106- ● ● ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC) 02.559 M8 		9-09110-408-0 02 1 9812-9905 ● ●
18 09.007 NUT; DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8 		9-09110-408-0 02 1 9812-9905 ● ●
18 09.007 NUT; DAMPER
4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8 		9-09110-408-0 02 1 9906-0105 ● ●
18 09.007 NUT; DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8 		9-09110-408-0 02 1 9906-0105 ● ●
18 09.007 NUT; DAMPER
4JH1 ENG(RJX) 02.559 M8 		9-09110-408-0 02 1 0106- ● ● ●
18 09.007 NUT; DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8 		9-09110-408-0 02 1 0106- ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC) (A) 		8-97031-818-0 02 1 9812-9905 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97031-818-0 02 1 9812-9905 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97031-818-0 02 1 9906-0105 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97031-818-0 02 1 9906-0105 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JH1 ENG(RJX) (A) 		8-97031-818-0 02 1 0106- ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97031-818-0 02 1 0106- ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC) (B) 		8-97032-026-0 02 1 9812-9905 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97032-026-0 02 1 9812-9905 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97032-026-0 02 1 9906-0105 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97032-026-0 02 1 9906-0105 ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4JH1 ENG(RJX) (B) 		8-97032-026-0 02 1 0106- ● ● ●
275 09.007 BRACKET; DYNAMIC DAMPER
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97032-026-0 02 1 0106- ● ● ●
çizim 10254
15 12 1 15 3 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97174-833-2 01 1 9812-0111 ● ● ● ● ●
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97328-486-0 01 1 0112- ● ● ● ● ●
1 09.003 LEVER; TORSION BAR
HYDRO BRAKE BOOSTER<7QQ> EXC. MANUAL TILT CAB<RWZ> 		8-97305-593-1 01 1 0106-0111 ● ● ● ●
1 09.003 LEVER; TORSION BAR 8-97305-593-1 01 1 0106-0111 ●
1 09.003 LEVER; TORSION BAR
HYDRO BRAKE BOOSTER<7QQ> EXC. MANUAL TILT CAB<RWZ> 		8-97328-490-0 01 1 0112- ● ● ● ●
1 09.003 LEVER; TORSION BAR 8-97328-490-0 01 1 0112- ●
1 09.003 LEVER; TORSION BAR 8-97189-616-0 01 1 9904-0105 ●
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97189-616-1 01 1 0106-0111 ● ● ●
1 09.003 LEVER; TORSION BAR 8-97189-616-1 01 1 0106-0111 ●
1 09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ>,HYDRO BRAKE BOOSTER<7QQ> 		8-97328-489-0 01 1 0112- ● ● ●
1 09.003 LEVER; TORSION BAR 8-97328-489-0 01 1 0112- ●
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 9812-0111 ● ● ● ● ●
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0112- ● ● ● ● ●
3 09.003 BOLT; LEVER
M12X50 		8-94401-729-1 04 1 9904-0105 ●
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 04 1 0106-0111 ● ● ● ● ●
3 09.003 BOLT; LEVER
M12X50 		8-94401-729-1 04 1 0106-0111 ● ●
3 09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 04 1 0112- ● ● ● ● ●
3 09.003 BOLT; LEVER
M12X37 W/LK&PL WASHER 		8-97326-378-0 04 1 0112- ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97180-748-0 01 1 9812-0008 ● ● ● ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97261-872-0 01 1 0009- ● ● ● ● ●
15 09.003 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 9812- ● ● ● ● ●

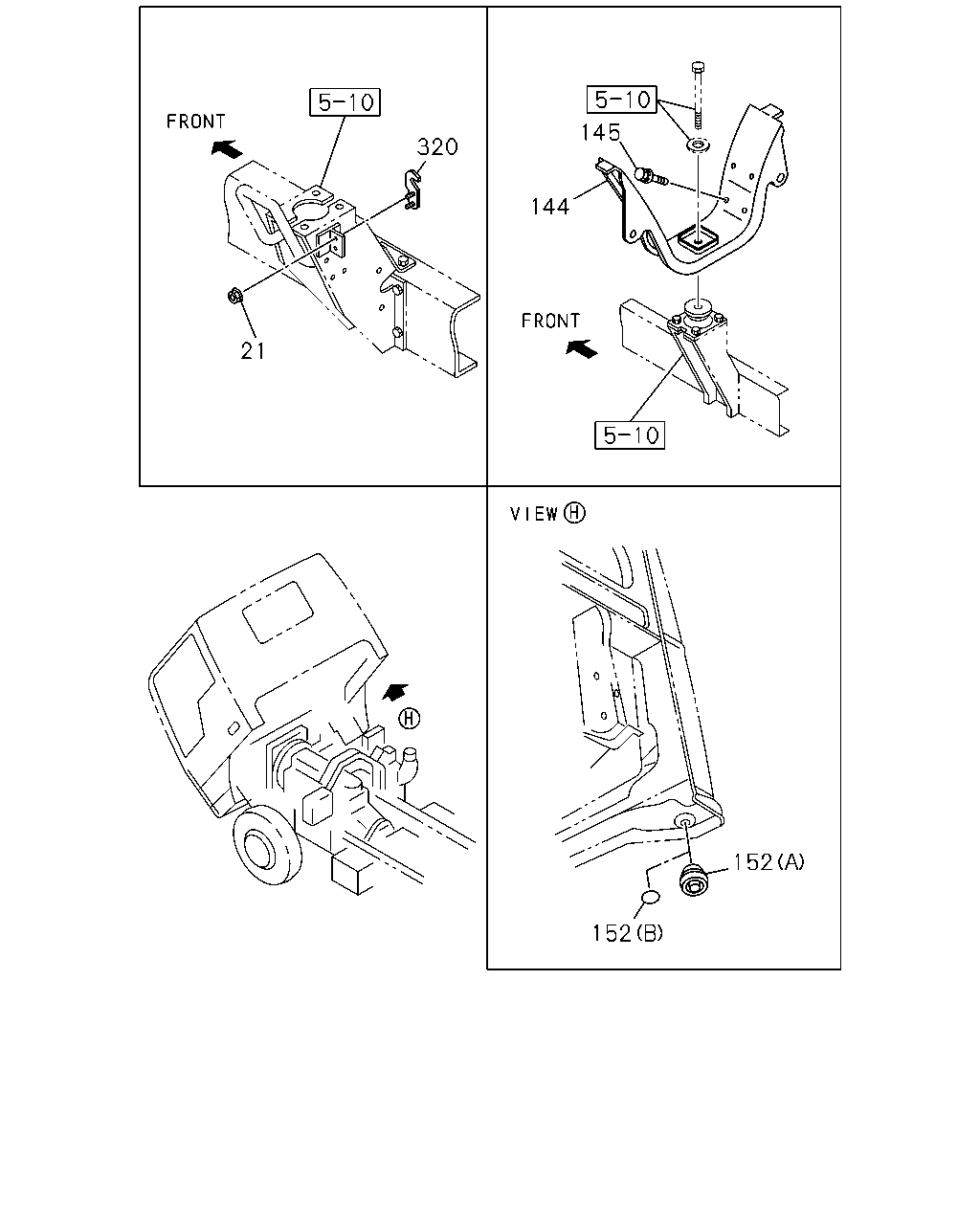

çizim 47837
145 320 144 21 152 152
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
21 09.005 NUT
07.243 M12 FLANGE 		0-91150-212-0 04 1 9812- ● ● ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> 		8-97853-066-4 02 1 0106- ● ● ● ● ●
144 09.009 BRACKET ASM; CAB RR MTG 8-97853-060-4 02 1 9904- ● ●
145 09.008 BOLT; CAB RR MTG BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9904-0105 ●
145 09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0106- ● ● ● ● ●
145 09.008 BOLT; CAB RR MTG BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0106- ● ●
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
(A) OD=19 		8-94279-055-0 02 1 9812-0210 ● ● ● ● ●
152 09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0211- ● ● ● ● ●
320 09.001 ANCHOR; CAB RR 8-97181-722-0 01 1 9812- ● ● ● ● ●
320 09.001 ANCHOR; CAB RR 8-97184-188-0 01 1 9812- ● ● ● ● ●

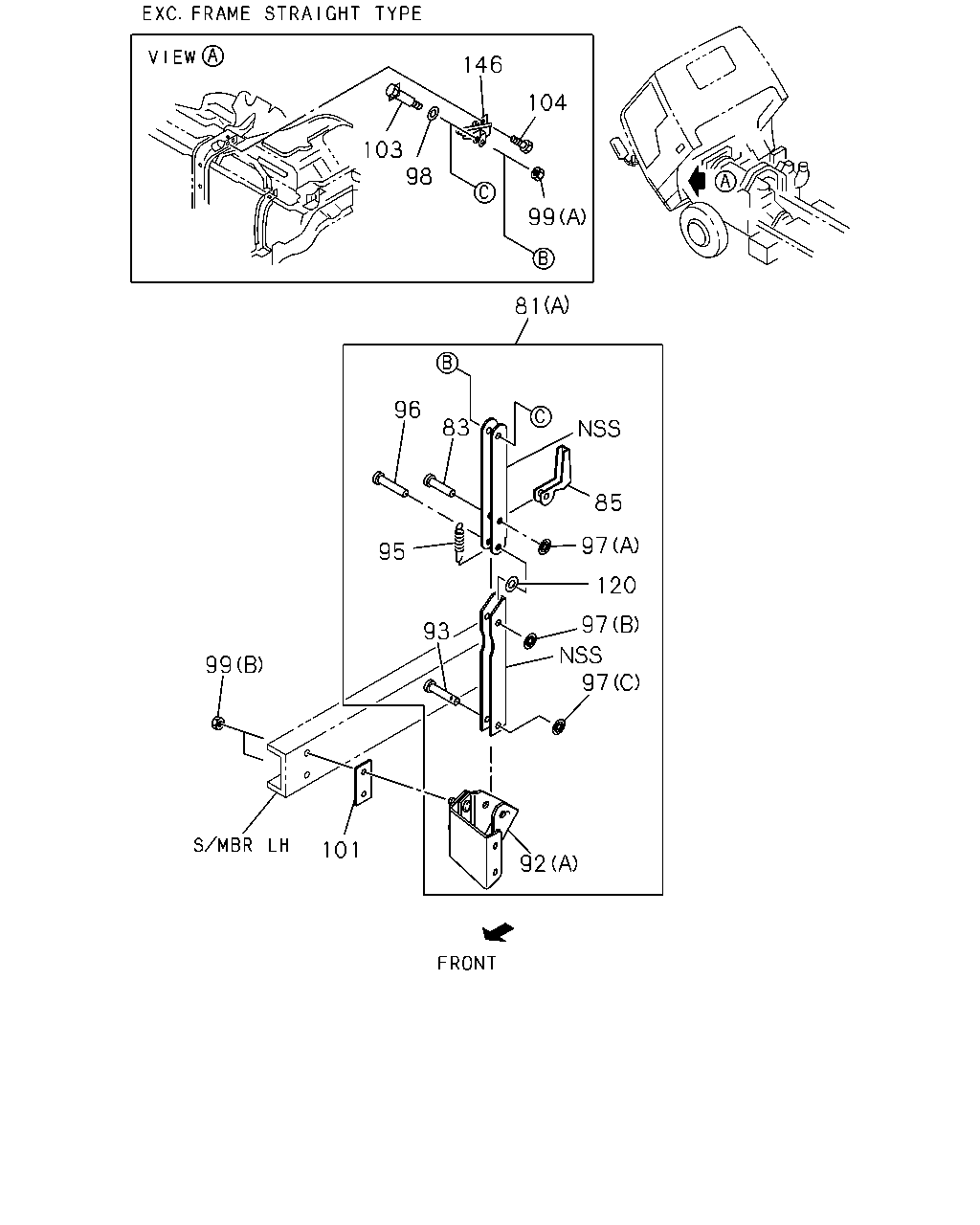

çizim 49113
146 104 103 98 99 81 96 83 85 97 95 120 97 93 97 99 101 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97201-793-0 01 1 9812-9901 ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9902- ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-880-1 01 1 9812-9908 ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-880-1 01 1 9909- ● ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 9812- ● ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 9812- ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97106-717-0 01 1 9812-9901 ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9902- ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97108-760-1 01 1 9812-9908 ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97108-760-1 01 1 9909- ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-97039-549-0 01 1 9812-9812 ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9901-9901 ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> OD=12 L=53 		8-97218-926-0 01 1 9901-9901 ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 9902- ● ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 9812- ● ● ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 9812- ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9812- ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9812- ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9812- ● ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9812- ● ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9812- ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9812- ● ● ● ● ●
101 09.003 SPACER
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94121-864-1 01 1 9812- ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9812- ● ● ● ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9812- ● ● ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 9812- ● ● ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9812- ● ● ● ● ●

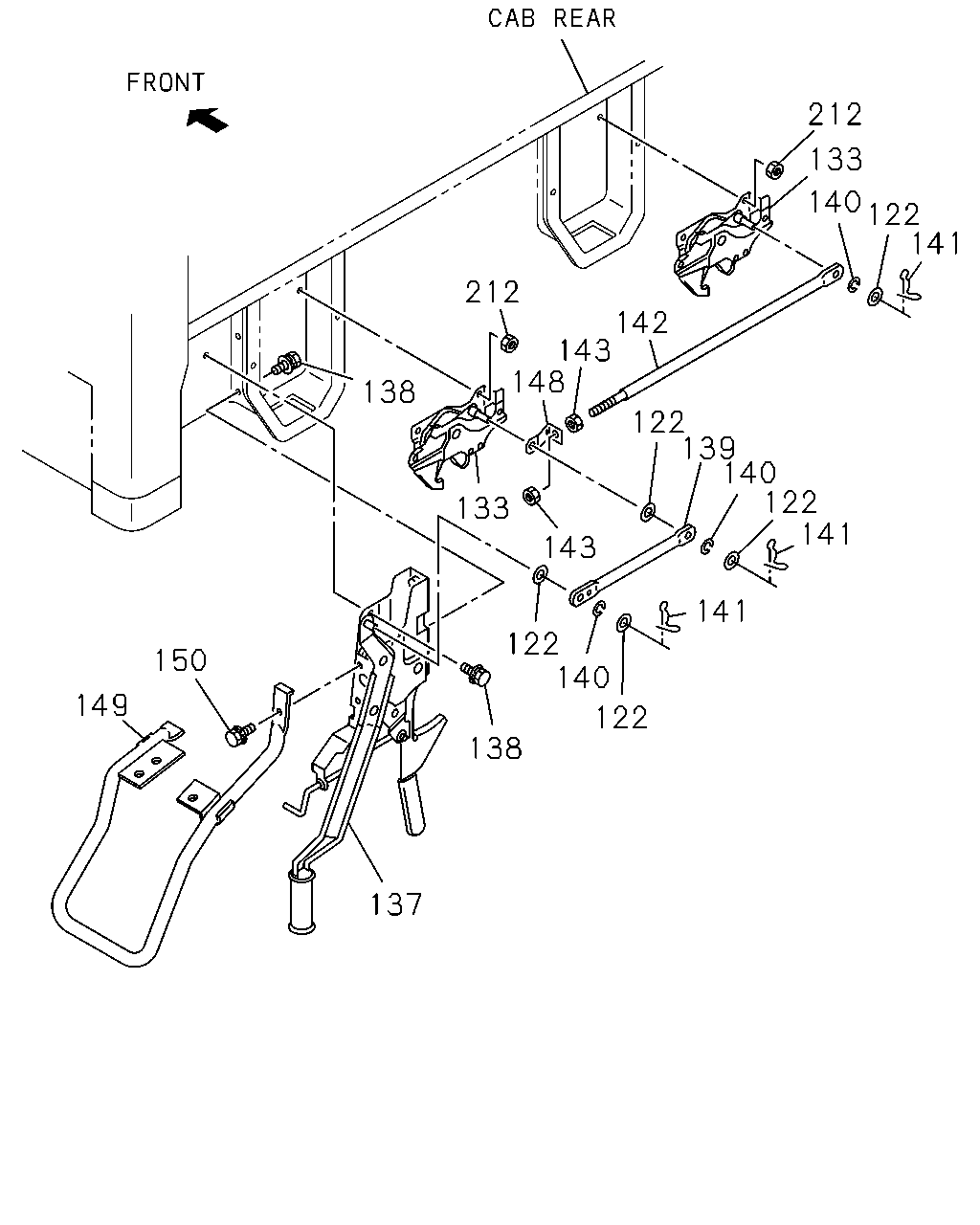

çizim 49216
212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
122 09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22 		8-94279-627-0 05 1 9812- ● ● ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-6 01 1 9812- ● ● ● ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-7 01 1 9812- ● ● ● ● ●
137 09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-8 01 1 9812- ● ● ● ● ●
138 09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9812- ● ● ● ● ●
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-1 01 1 9812- ● ● ● ● ●
140 09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 9812- ● ● ● ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 		1-09987-158-1 03 1 9812- ● ● ● ● ●
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		1-79718-581-0 01 1 9812- ● ● ● ● ●
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 09.008 M10 		1-09984-142-0 02 1 9812- ● ● ● ● ●
148 09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 9812- ● ● ● ● ●
149 16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-97853-054-4 01 1 9812- ● ● ● ● ●
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 9812- ● ● ● ● ●
212 09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 9812- ● ● ● ● ●

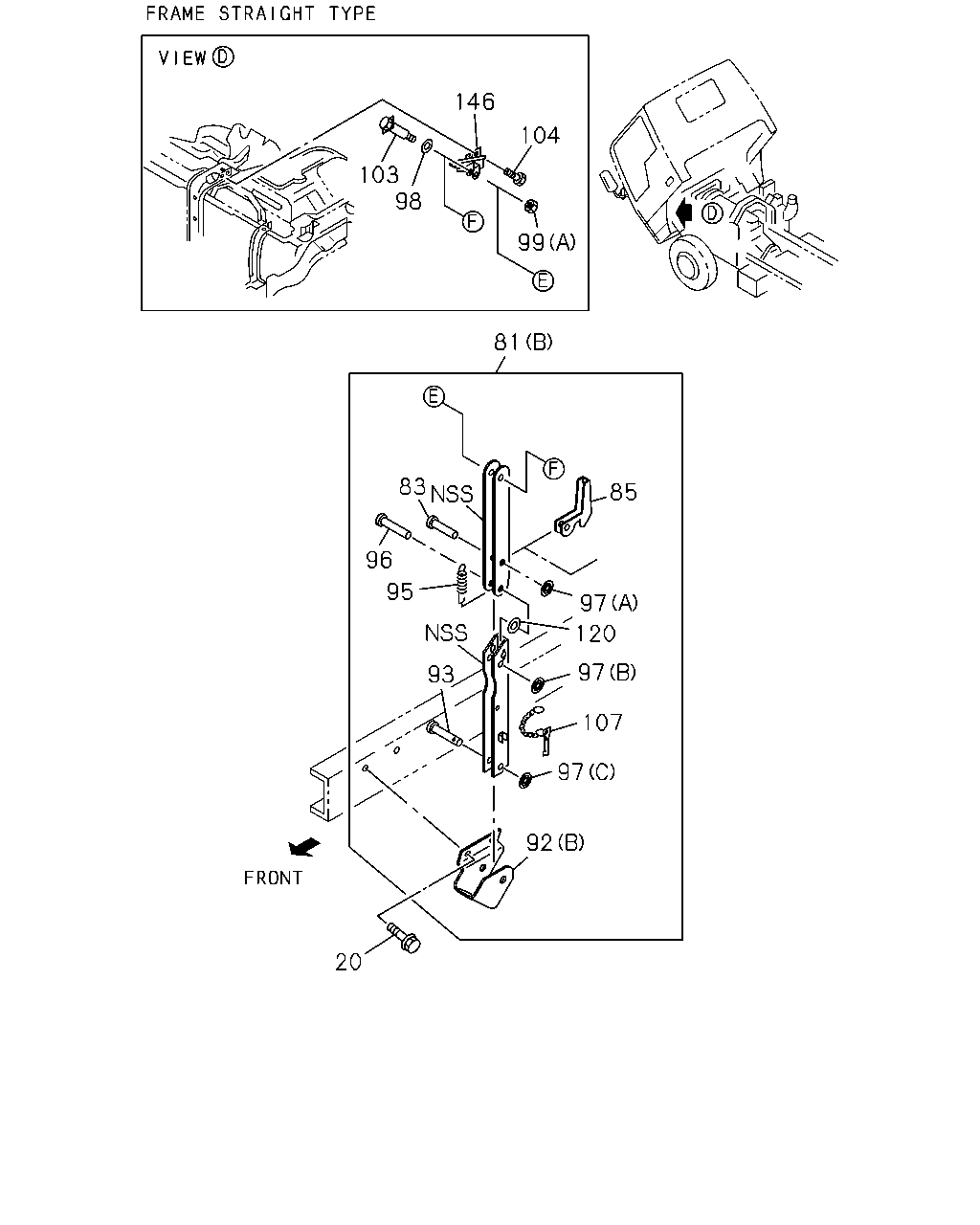

çizim 51654
146 104 103 98 99 81 83 85 96 95 97 120 97 93 107 97 92 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
20 09.003 BOLT
MANUAL TILT CAB<RWZ> M10X40 W/WASHER 		8-94411-010-0 02 1 9812-9901 ● ● ● ● ●
20 09.003 BOLT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> M10X40 W/WASHER 		8-94411-010-0 02 1 9902- ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97201-793-0 01 1 9812-9901 ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 9902- ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-880-1 01 1 9812-9908 ● ● ● ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-880-1 01 1 9909- ● ● ● ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 9812- ● ● ● ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 9812- ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97106-717-0 01 1 9812-9901 ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 9902- ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97108-760-1 01 1 9812-9908 ● ● ● ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97108-760-1 01 1 9909- ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-97039-549-0 01 1 9812-9812 ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97039-549-0 01 1 9901-9901 ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> OD=12 L=53 		8-97218-926-0 01 1 9901-9901 ● ● ● ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 9902- ● ● ● ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 9812- ● ● ● ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 9812- ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9812- ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9812- ● ● ● ● ●
97 09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 9812- ● ● ● ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 9812- ● ● ● ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 9812- ● ●
99 09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 9812- ● ● ● ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 9812- ● ● ● ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 9812- ● ● ● ● ●
107 09.005 PIN; LK LEVER
MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 9812- ● ● ● ● ●
120 09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 9812- ● ● ● ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-97076-588-2 01 1 9812- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
