◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#41489) — 166 parça

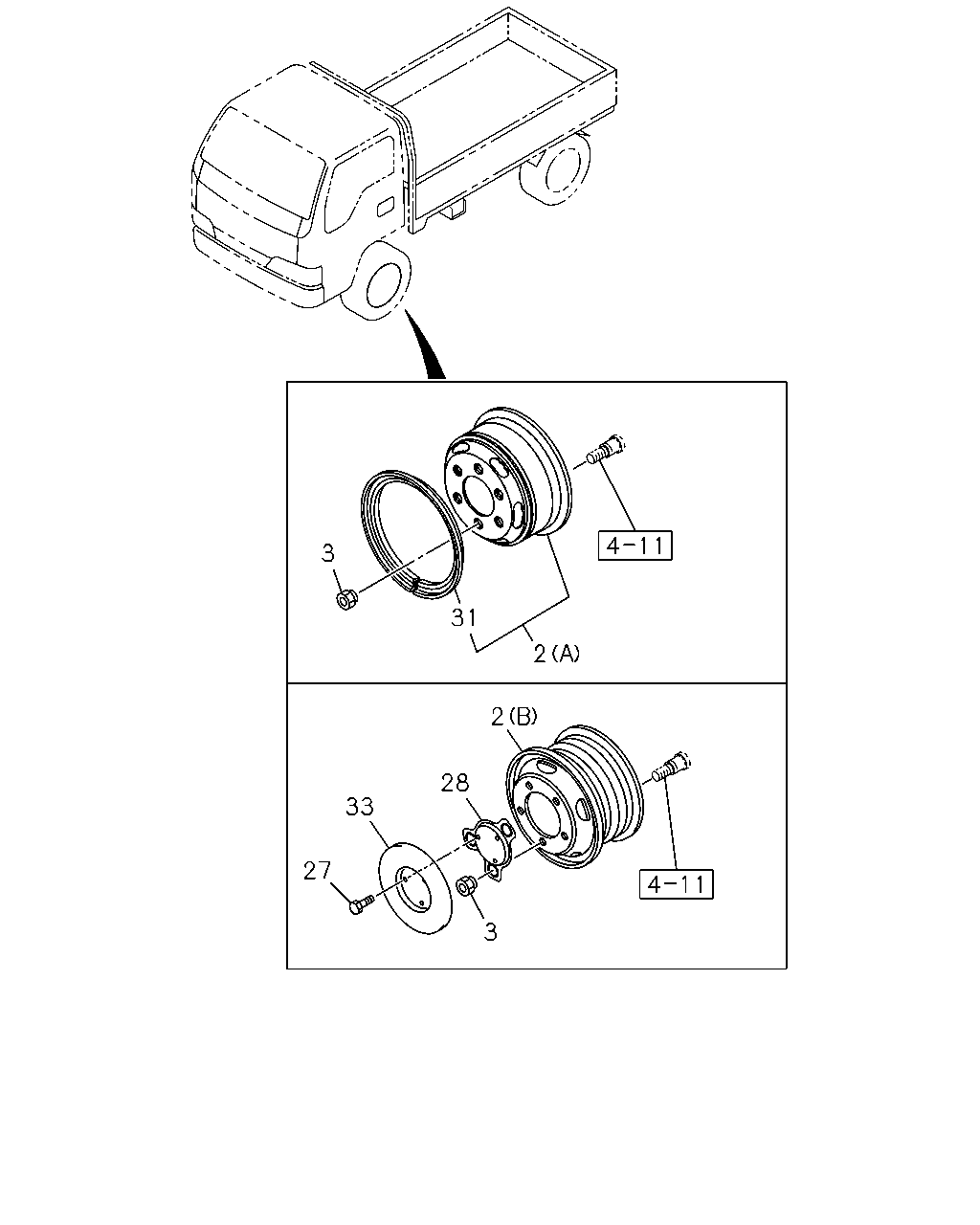

çizim 9180
3 31 2 2 28 33 27 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(ARN),(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(ARN),(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(55C),(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9812-0105 ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0106- ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(55C),(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9812-0105 ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0106- ● ●
2 05.803 WHEEL; DISC
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) (A) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 01 1 9812- ● ●
2 05.803 WHEEL; DISC
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) (A) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 06 1 9812- ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) SPARE 16X5.5J OFFSET=127 WHITE 6-HOLE 		8-97322-420-0 01 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) FRONT,REAR 16X5.5J OFFSET=127 WHITE 6-HOLE 		8-97322-420-0 06 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(9ZM),(9ZP),(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(9ZM),(9ZP),(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0106- ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 9812- ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18 LH THREAD 		8-94365-148-0 05 1 9812- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18 RH THREAD 		8-94365-147-0 05 1 9812- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20 LH THREAD 		8-94427-549-1 06 1 9812-9903 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20 LH THREAD 		8-94427-549-1 06 1 9904-0105 ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) M20 LH THREAD 		8-94427-549-1 06 1 0106- ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20 RH THREAD 		8-94427-548-1 06 1 9812-9903 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M20 RH THREAD 		8-94427-548-1 06 1 9904-0105 ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) M20 RH THREAD 		8-94427-548-1 06 1 0106- ● ● ● ● ● ● ●
27 05.871 BOLT; COVER
03.611 M10X20 FLANGE 		0-28681-020-0 06 1 9812- ● ● ● ● ● ● ●
28 05.864 BRACKET; COVER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97169-249-0 02 1 9812- ● ● ●
28 05.864 BRACKET; COVER
EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97169-250-0 02 1 9812- ● ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9812-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 0106-0203 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9812-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 0106-0203 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(9ZM),(9ZP),(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(9ZM),(9ZP),(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0106- ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 9812- ● ● ● ● ● ● ●
çizim 11025
31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(ARN),(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(ARN),(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(55C),(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9812-0105 ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0106- ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(55C),(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9812-0105 ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0106- ● ●
2 05.803 WHEEL; DISC
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) (A) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 01 1 9812- ● ●
2 05.803 WHEEL; DISC
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) (A) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 06 1 9812- ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) SPARE 16X5.5J OFFSET=127 WHITE 6-HOLE 		8-97322-420-0 01 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) FRONT,REAR 16X5.5J OFFSET=127 WHITE 6-HOLE 		8-97322-420-0 06 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(9ZM),(9ZP),(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(9ZM),(9ZP),(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0106- ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 9812- ● ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9812-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 0106-0203 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9812-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 0106-0203 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(9ZM),(9ZP),(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(9ZM),(9ZP),(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0106- ●

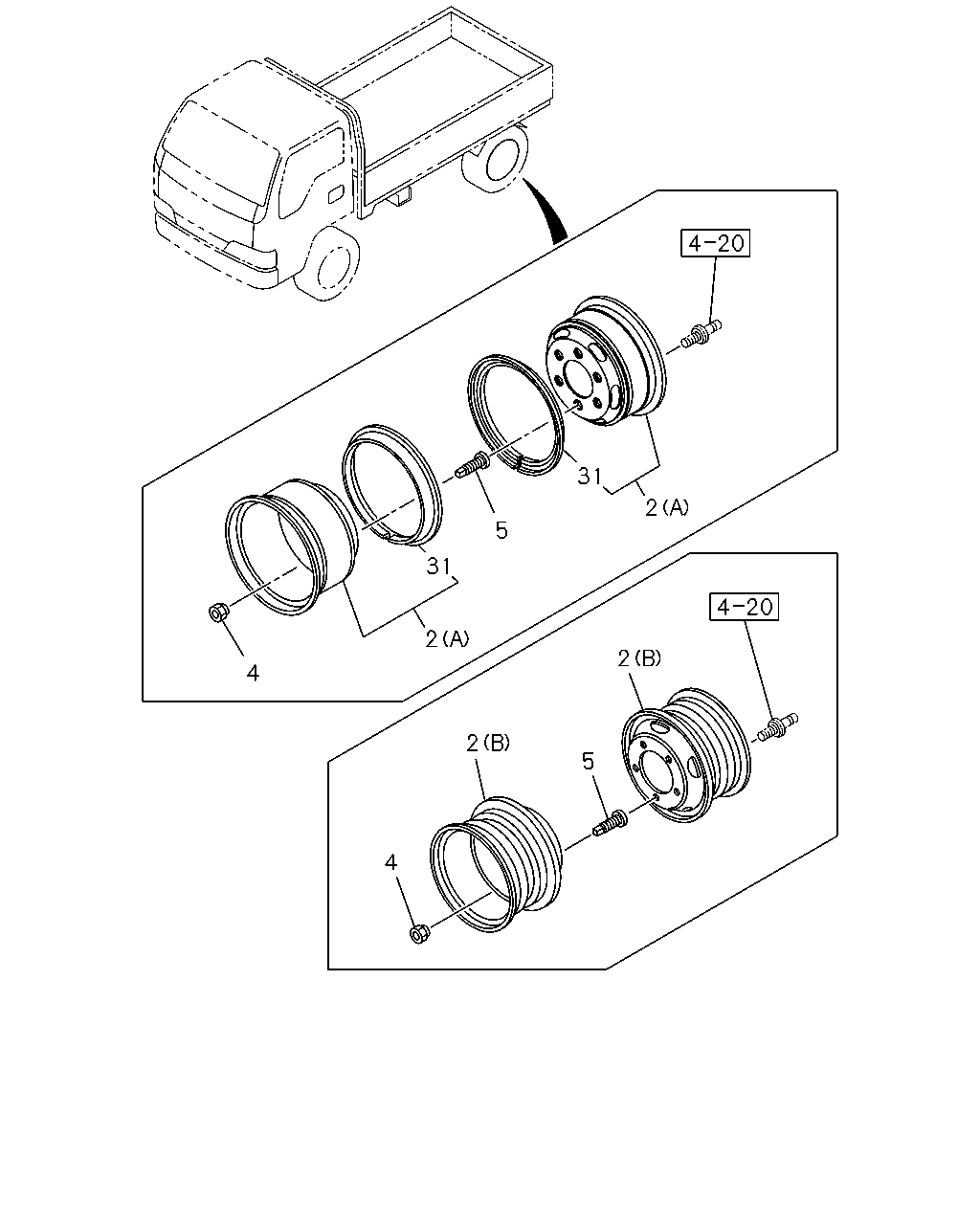

çizim 45814
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(ARN),(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(ARN),(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(55C),(83V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 01 1 9812-0105 ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 01 1 0106- ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(55C),(83V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-3 06 1 9812-0105 ● ●
2 05.803 WHEEL; DISC
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE 		8-94438-670-4 06 1 0106- ● ●
2 05.803 WHEEL; DISC
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) (A) SPARE 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 01 1 9812- ● ●
2 05.803 WHEEL; DISC
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) (A) FRONT,REAR 5.5FX16 OFFSET=127 BLACK 6-HOLE 		8-94455-967-0 06 1 9812- ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 9812- ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) SPARE 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 01 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYS) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) FRONT,REAR 5.5JX16 OFFSET=127 BLACK 6-HOLE 		8-97073-222-1 06 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) (B) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) SPARE 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 01 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) SPARE 16X5.5J OFFSET=127 WHITE 6-HOLE 		8-97322-420-0 01 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9812-9903 ● ● ●
2 05.803 WHEEL; DISC
(AYT) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9904-9904 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) FRONT,REAR 5.5JX16 OFFSET=127 WHITE 		8-97139-158-0 06 1 9904-0201 ● ● ● ●
2 05.803 WHEEL; DISC
(AYT),(BRU) (B) FRONT,REAR 16X5.5J OFFSET=127 WHITE 6-HOLE 		8-97322-420-0 06 1 0202- ● ● ● ●
2 05.803 WHEEL; DISC
(9ZM),(9ZP),(9ZQ) (A) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0106- ●
2 05.803 WHEEL; DISC
(9ZM),(9ZP),(9ZQ) (A) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0106- ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) FRONT 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 02 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUH),(AUS) (B) REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 04 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 9812- ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) (B) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 9812- ● ● ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 LH THREAD 		8-94365-146-0 05 1 9812- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 RH THREAD 		8-94365-145-0 05 1 9812- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		1-42334-023-0 06 1 9812-9903 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		1-42334-023-0 06 1 9904-0105 ● ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) M30 LH THREAD 		1-42334-023-0 06 1 0106- ● ● ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M30 		1-42333-023-0 06 1 9812-9903 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) M30 		1-42333-023-0 06 1 9904-0105 ● ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) M30 		1-42333-023-0 06 1 0106- ● ● ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9812- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9812- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9812-9903 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9904-0105 ● ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0106- ● ● ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9812-9903 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9904-0105 ● ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0106- ● ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 9812-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 9905-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) SPARE 16X6.00GS STAMP, BLACK 		8-97227-057-0 01 1 0106-0203 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) SPARE 16X6.00GS STAMP, BLACK 		8-94412-585-0 01 1 0204- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 9812-9904 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(55C),(83V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 9905-0105 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-97227-057-0 06 1 0106-0203 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(00C),(01C),(02C),(03C),(04C),(05C), (55C),(83V),(9BP),(95V),(97V) FRONT,REAR 16X6.00GS STAMP, BLACK 		8-94412-585-0 06 1 0204- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9812- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(9ZM),(9ZP),(9ZQ) SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0106- ●
31 05.839 RING; SIDE,DISC WHEEL
(9ZM),(9ZP),(9ZQ) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
