4-65D — REAR LEAF SPRING (#41486) — 33 parça

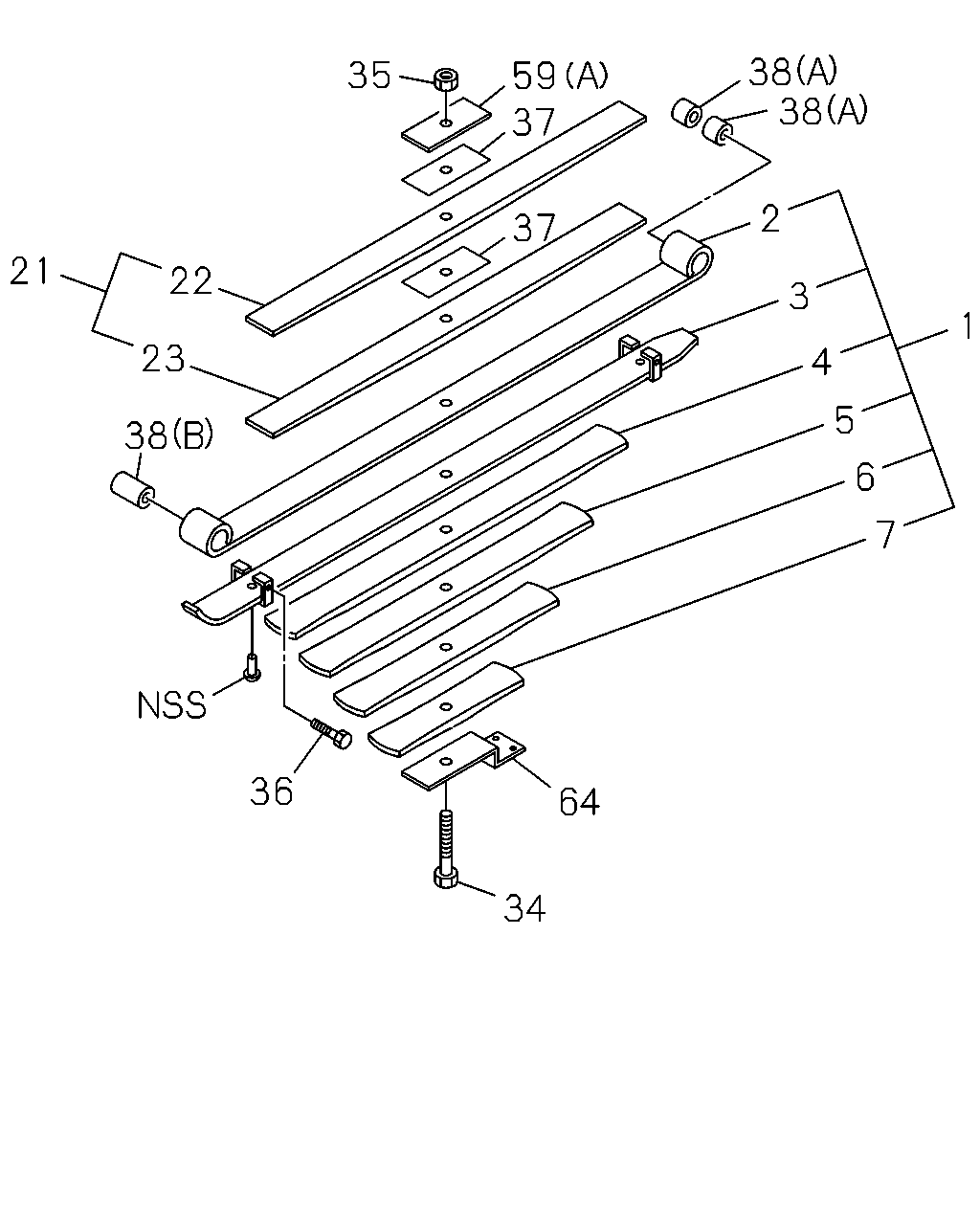

çizim 47713
38 38 35 59 37 2 37 21 22 3 1 23 4 5 38 6 7 36 64 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97221-062-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-317-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-847-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-318-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-848-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-319-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-849-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-320-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-851-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-321-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-852-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-322-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-853-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-323-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97214-124-1, 97214124 		8-97221-063-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-324-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-854-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-325-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97214-124-1, 97214124 		8-97216-855-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97225-580-0, 97225580 		8-97238-326-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=115 ASM PART: A = 8-97214-124-1, 97214124 		8-94165-309-0 01 1 0203-
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=125 ASM PART: A = 8-97214-124-1, 97214124 		8-94165-311-0 01 1 -0202
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=130 ASM PART: B = 8-97225-580-0, 97225580 		8-94165-312-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97214-124-1, 97214124, B = 8-97225-580-0, 97225580 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97214-124-1, 97214124, B = 8-97225-580-0, 97225580 		8-94407-133-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: B = 8-97225-580-0, 97225580 		8-97084-102-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97214-124-1, 97214124 		8-97084-102-0 01 1 0203-
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97214-124-1, 97214124 		8-97084-102-0 02 1 -0202
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97214-124-1, 97214124, B = 8-97225-580-0, 97225580 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97214-124-1, 97214124, B = 8-97225-580-0, 97225580 		8-97074-826-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, (A) ASM PART: B = 8-97225-580-0, 97225580 		8-97084-668-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
07.518, (A) ASM PART: A = 8-97214-124-1, 97214124 		8-97084-668-0 01 1 -0202
64 07.513 SUPPORT; RR SPR
ASM PART: B = 8-97225-580-0, 97225580 		8-97225-579-0 01 1 -
