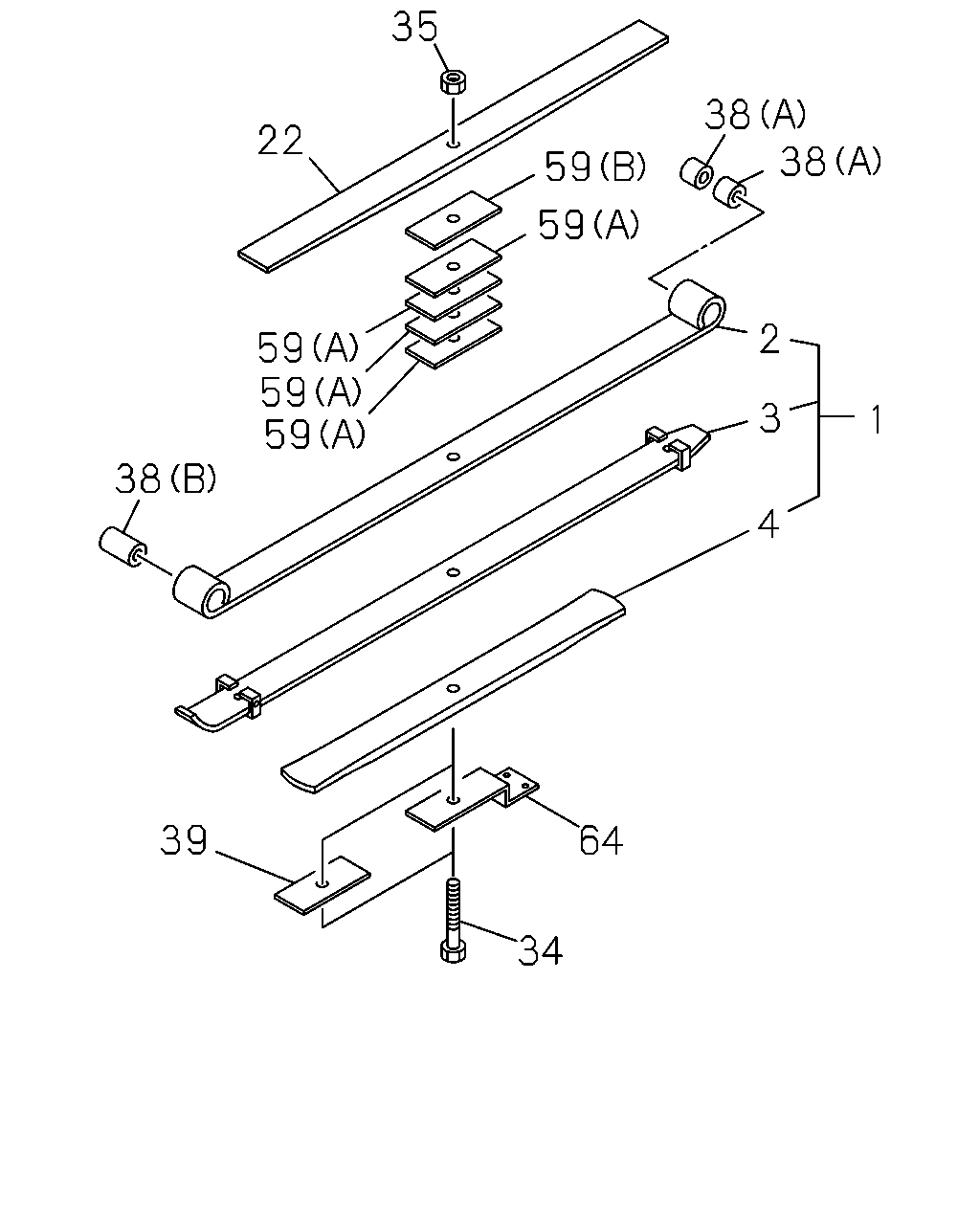

4-65B — REAR LEAF SPRING (#41484) — 13 parça

35 38 38 22 59 59 2 59 59 59 3 1 38 4 39 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-97220-417-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-97220-420-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-97220-421-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-97220-422-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-97222-258-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=115 ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-94165-309-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	9-99110-512-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=8 ASM PART: A = 8-97220-051-0, 97220051	8-94407-139-1	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, (B) ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-94367-965-1	01	1	-
59	07.513 SEAT; RR SPRING,SUB (A), 70X165 T=9 ASM PART: A = 8-97220-051-0, 97220051, B = 8-97220-052-0, 97220052	8-94407-141-1	04	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-97220-052-0, 97220052	8-94342-863-0	01	1	-
