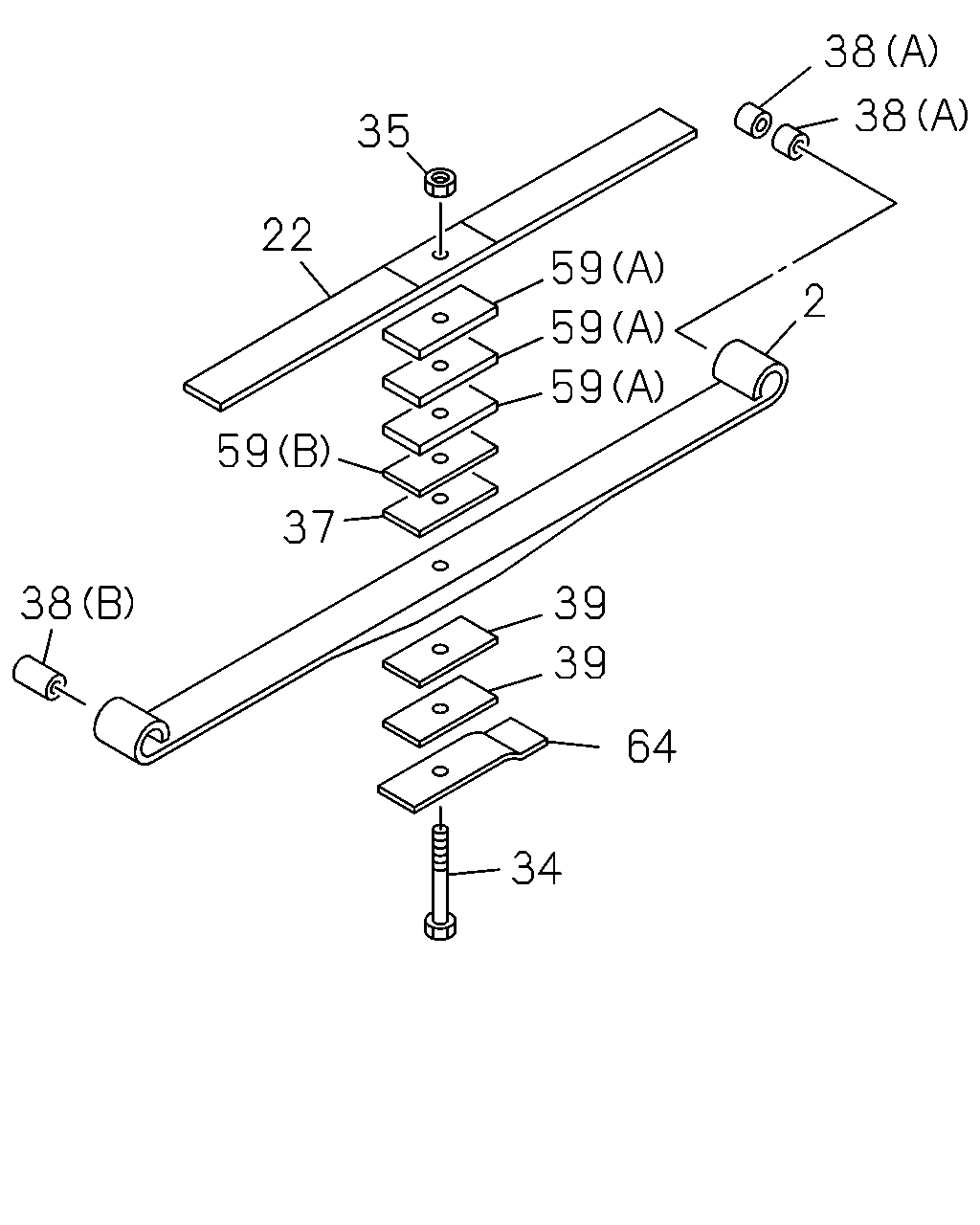

4-65A — REAR LEAF SPRING (#41483) — 13 parça

38 38 35 22 59 2 59 59 59 37 38 39 39 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-97233-103-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-97233-104-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=110 ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-94165-308-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=8 ASM PART: A = 8-97227-449-1, 97227449	8-97084-668-0	02	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=8 ASM PART: B = 8-97227-458-1, 97227458	8-97084-668-0	02	1	-9910
39	07.518 SEAT; LEAF SPR,RR MAIN T=8 ASM PART: B = 8-97227-458-1, 97227458	8-97084-668-0	01	1	9911-
59	07.513 SEAT; RR SPRING,SUB (A), T=12 ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-97233-108-0	03	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=7 ASM PART: A = 8-97227-449-1, 97227449, B = 8-97227-458-1, 97227458	8-97233-109-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: B = 8-97227-458-1, 97227458	8-94342-863-0	01	1	-
