4-61 — SHOCK ABSORBER; REAR SUSPENSION (#41482) — 42 parça

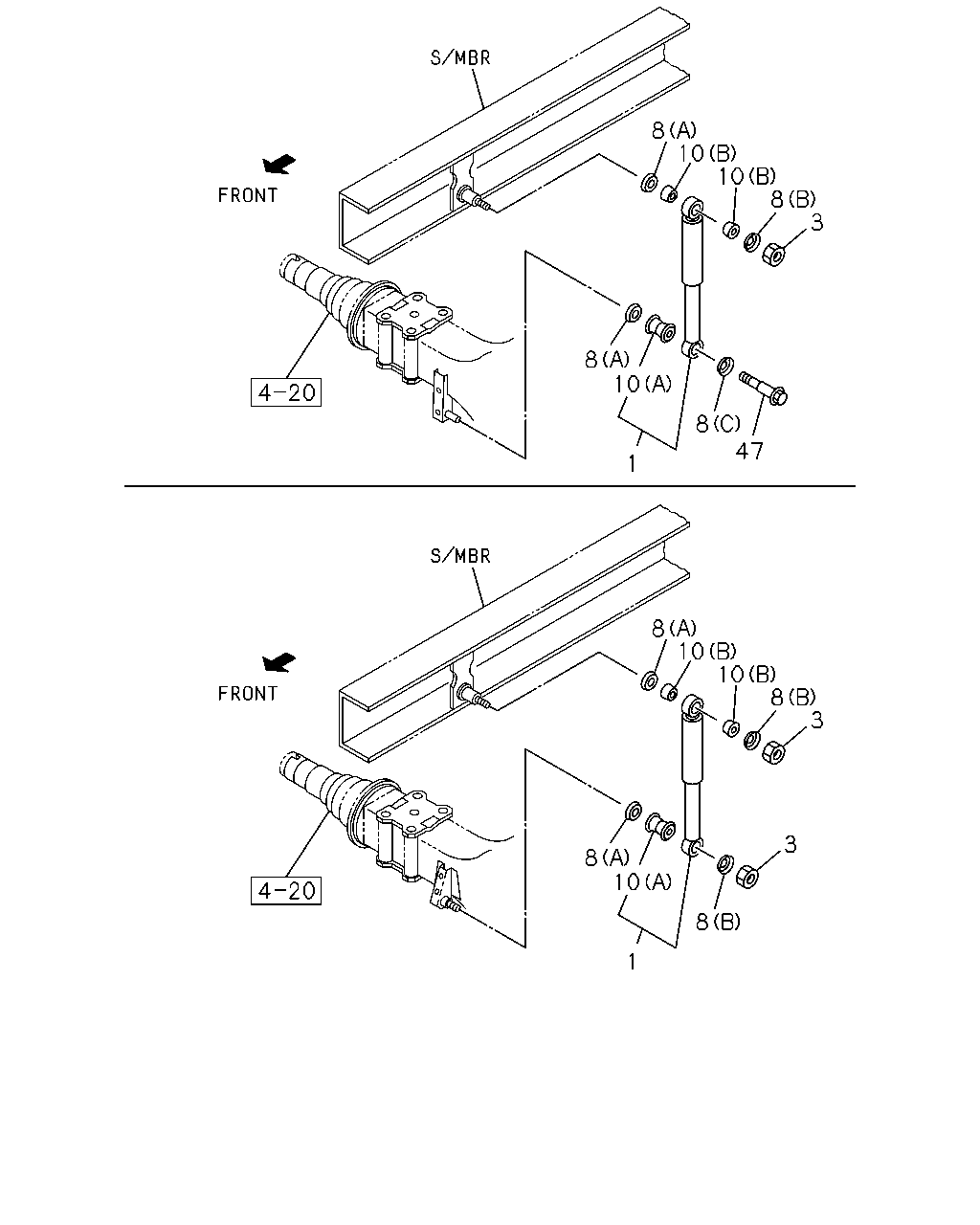

çizim 49339
8 10 10 8 3 8 10 8 47 1 8 10 10 8 3 3 8 10 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.395 ABSORBER ASM; SHOCK,RR 8-97160-094-0 02 1 9812-9912 ● ● ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97160-094-0 02 1 0001-0003 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97160-094-0 02 1 0001-0003 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-0 02 1 0004-0105 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-0 02 1 0004-0105 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-0 02 1 0106- ● ● ● ● ● ● ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 9812-9908 ● ● ● ● ●
3 07.347 NUT; S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 9812-9908 ● ● ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 9909-0105 ● ● ● ● ● ●
3 07.347 NUT; S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 9909-0105 ● ● ● ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 0106-0208 ● ● ● ● ● ● ●
3 07.347 NUT; S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0106-0208 ● ● ● ●
3 07.347 NUT; S/ABS
06.172 M14 		9-99111-414-0 02 1 0209- ● ● ● ● ● ● ●
3 07.347 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 06.172 M14 		9-99111-414-0 02 1 0209- ● ● ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 9812-0105 ● ●
8 07.347 WASHER; S/ABS
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 9812-0105 ● ● ● ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0106-0208 ● ● ●
8 07.347 WASHER; S/ABS
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0106-0208 ● ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0209- ● ● ●
8 07.347 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		9-51679-603-0 02 1 0209- ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		9-51679-603-0 02 1 0209- ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 9812-9908 ● ● ● ● ●
8 07.347 WASHER; S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 9812-9908 ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 9909-0105 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 9909-0105 ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0106-0208 ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0106-0208 ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0209- ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15.0 		9-51679-012-0 02 1 0209- ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		9-51679-013-0 04 1 9812- ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		8-94382-149-0 02 1 9812-9912 ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		8-94382-149-0 02 1 0001-0105 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
FRAME STRAIGHT TYPE<7KJ> (A) TOKICO 		8-94382-149-0 02 1 0001-0105 ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		8-94382-149-0 02 1 0106- ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		9-51631-014-0 04 1 9812- ● ● ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9812-0105 ● ●
47 07.347 PIN; S/ABS SETTING
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 9812-0105 ● ● ● ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0106-0208 ● ● ●
47 07.347 PIN; S/ABS SETTING
G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0106-0208 ● ● ● ● ●
47 07.347 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0209- ● ● ●
47 07.347 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0209- ● ● ●
47 07.347 PIN; S/ABS SETTING
02.559 M10X16 FLANGE 		0-28081-016-0 02 1 0209- ● ● ● ●
