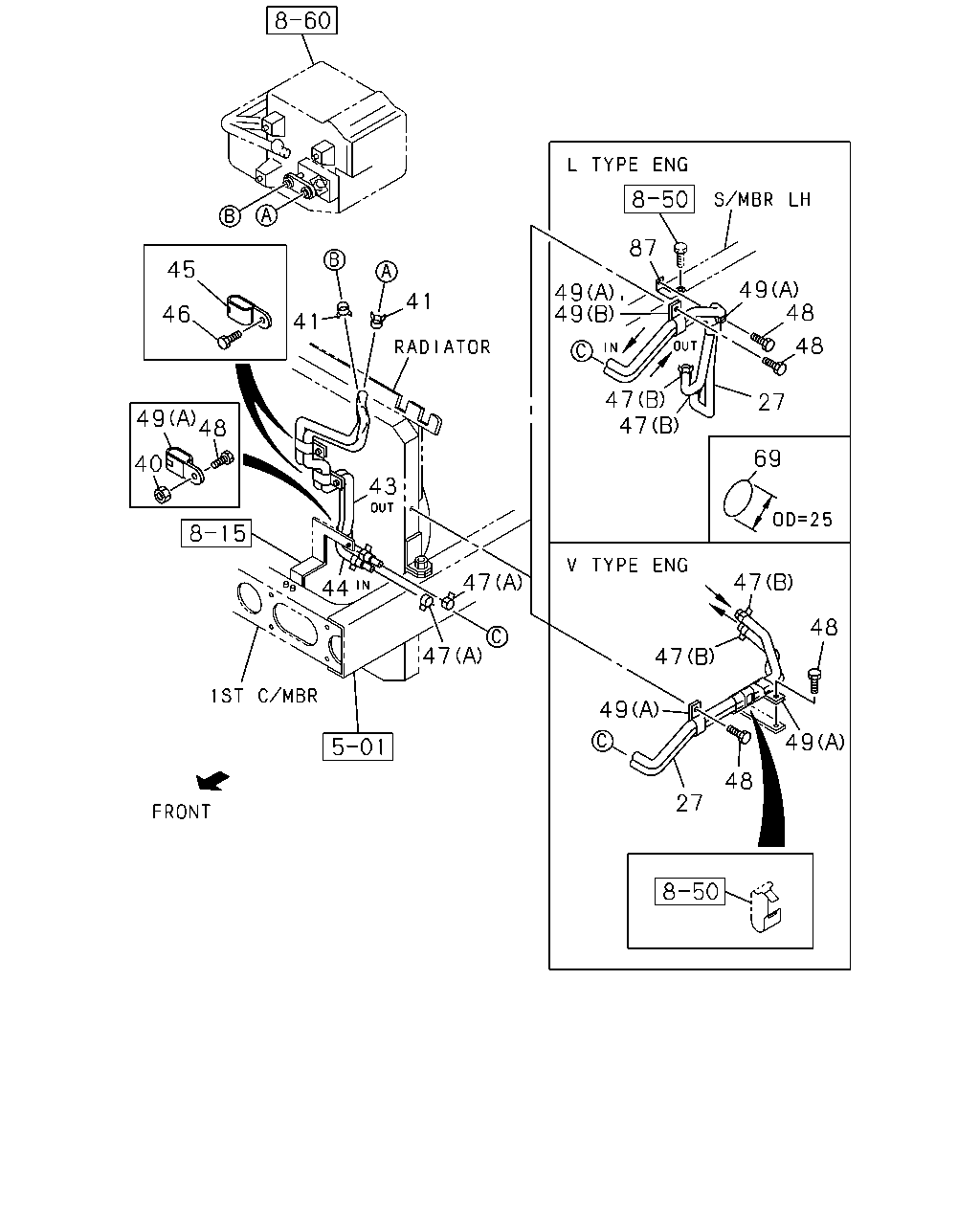

8-45 — HEATER PIPING (#4148) — 33 parça

87 45 49 49 49 48 41 46 41 48 47 47 27 49 48 69 40 43 47 47 44 48 47 47 49 49 48 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE 10PE1S(60L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-598-1	01	1	9603-9904	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-598-1	01	1	9905-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-614-0	01	1	9603-9904	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83565-614-0	01	1	9905-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG>	1-83565-614-0	01	1	9905-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 8PE1S(59L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-593-1	01	1	9603-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-673-0	01	1	9707-9904		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CAB UP +110MM<TGG>	1-83565-618-1	01	1	9905-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	9603-	●	●
43	HOSE; WATER,OUTLET,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-570-3	01	1	9603-	●	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-569-4	01	1	9603-	●	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-09701-238-0	02	1	9603-	●	●
46	SCREW; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9901	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	9603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	9603-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9607-9710	●	●
48	BOLT; CLIP FIX 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9711-9904	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-	●	●
48	BOLT; CLIP FIX 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	01	1	9707-9904		●
48	BOLT; CLIP FIX 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	9603-9710	●	●
49	CLIP; WATER HOSE,HTR 6WA1 TC-S(56L),8PE1S(59L),10PE1S(60L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	9711-9904	●	●
49	CLIP; WATER HOSE,HTR 8PE1S(59L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	01	1	9909-	●	●
49	CLIP; WATER HOSE,HTR 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	9707-9904		●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	9905-	●	●
49	CLIP; WATER HOSE,HTR 6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=24 & 24 L=49	1-09701-018-0	01	1	9707-9904		●
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	01	1	9603-	●	●
87	BRACKET; HTR HOSE CLIP 6WA1 TC-S(56L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9603-9706	●	●
87	BRACKET; HTR HOSE CLIP 6WA1 TC-S(56L),6WG1 TC-N(71L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9707-9904	●	●
87	BRACKET; HTR HOSE CLIP L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-857-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
