8-40 — HEATER SYSTEM (#4147) — 100 parça

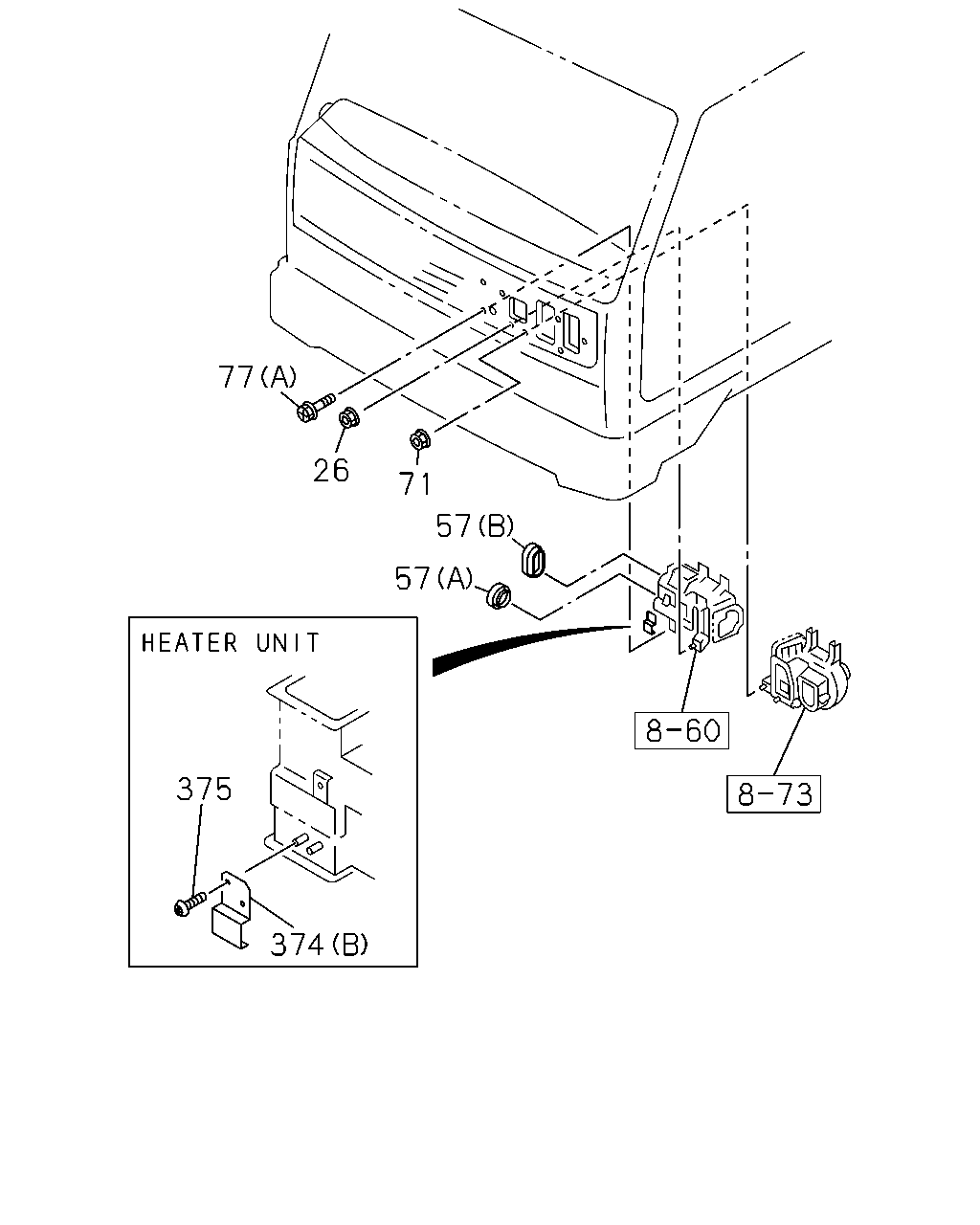

77 26 71 57 57 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; HTR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	02	1	9603-9609	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83579-617-0	02	1	9610-9904	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. CENTER SEAT DELETE(SP9) (A)	1-83579-617-0	02	1	9905-	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-618-0	01	1	9603-9609	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83579-618-0	01	1	9610-9904	●	●
57	COVER; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. CENTER SEAT DELETE(SP9) (B)	1-83579-618-0	01	1	9905-	●	●
71	NUT; BLOWER UNIT TO DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9603-	●	●
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	9603-	●	●
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●	●
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-189-3	01	1	9905-	●	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	9603-	●	●
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9603-	●	●

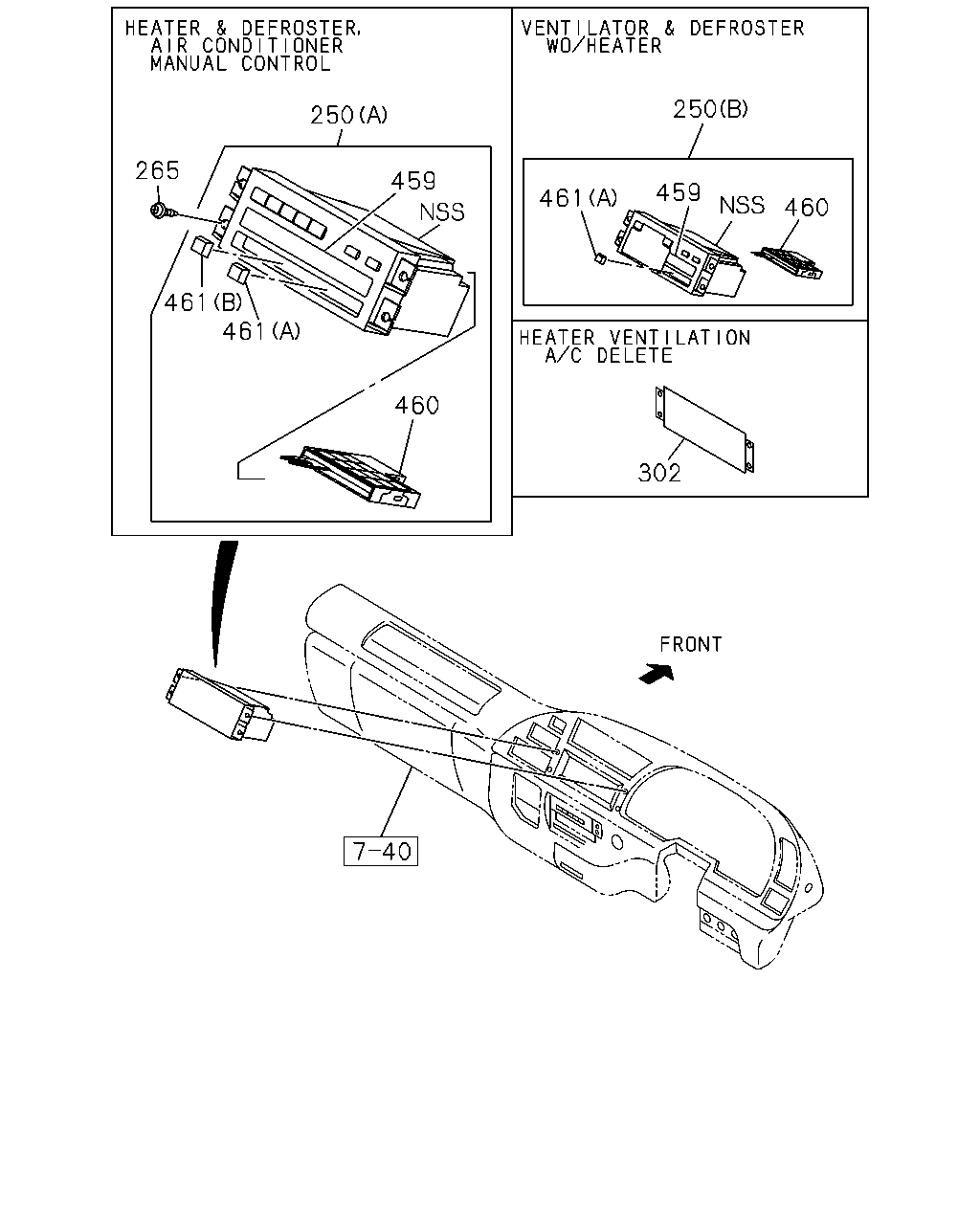

250 250 265 459 459 461 460 461 461 460 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-033-2	01	1	9603-9909	●	●
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	9910-	●	●
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	9603-	●	●
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9603-	●	●
302	COVER; AIR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-72438-140-1	01	1	9603-	●	●
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83549-013-0	01	1	9905-	●	●
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83549-017-0	01	1	9905-	●	●
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9905-	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	9905-	●	●
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	9905-	●	●

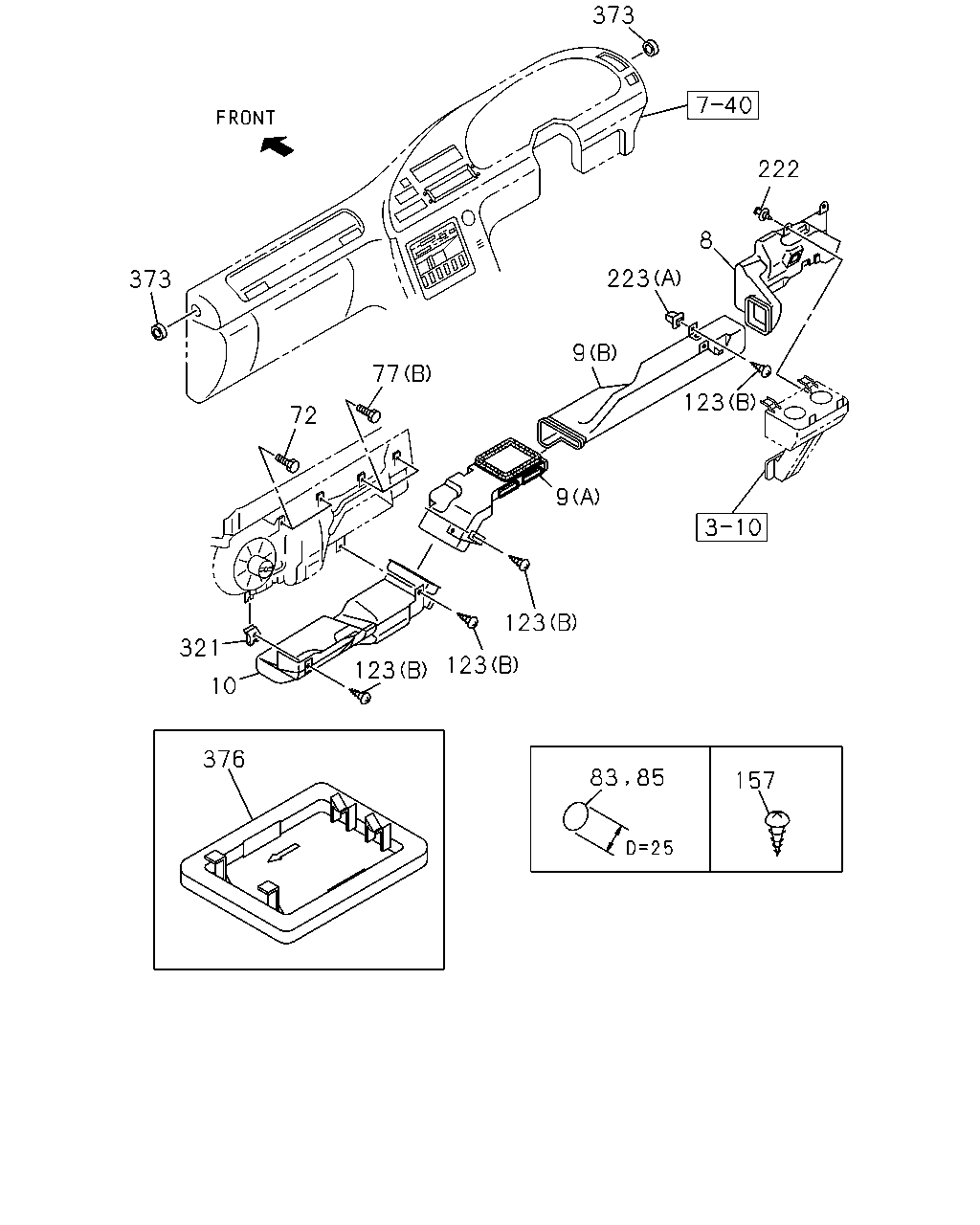

373 222 8 223 373 9 77 123 72 9 123 321 123 123 10 376 157 83 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-156-5	01	1	9603-9811	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	9812-	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-157-9	01	1	9905-9906	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-221-0	01	1	9907-0006	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-227-2	01	1	0007-	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-183-6	01	1	9603-9811	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-210-1	01	1	9812-	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-194-2	01	1	9603-9904	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A)	1-76377-194-2	01	1	9905-9906	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DELUXE CAB(W14) EXC. CENTER SEAT DELETE(SP9) (A)	1-76377-194-2	01	1	9905-9906	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A)	1-76377-194-3	01	1	9907-0006	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A)	1-76377-194-3	01	1	9907-0006	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CENTER SEAT DELETE(SP9) (A)	1-76377-226-2	01	1	0007-	●	●
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) EXC. DELUXE CAB(W14) (A)	1-76377-226-2	01	1	0007-	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-158-3	01	1	9603-9609	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-204-2	01	1	9610-	●	●
72	BOLT; BLOWER UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●	●
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	9603-	●	●
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-	●	●
83	SEAL; COVER,HTR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	9603-	●	●
85	SEAL; HTR UNIT HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	9603-	●	●
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	9905-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	9603-	●	●
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	9603-	●	●
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	01	1	9603-	●	●
222	FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) D6X12.5	8-94146-425-0	02	1	9603-	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9603-9904	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9905-	●	●
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9603-	●	●
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-150-0	01	1	9603-	●	●
373	RUBBER; JOINT	1-76378-291-0	02	1	9603-	●	●
376	COVER; BED HEATER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-599-2	01	1	9603-9609	●	●
376	COVER; BED HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-599-2	01	1	9610-9702	●	●

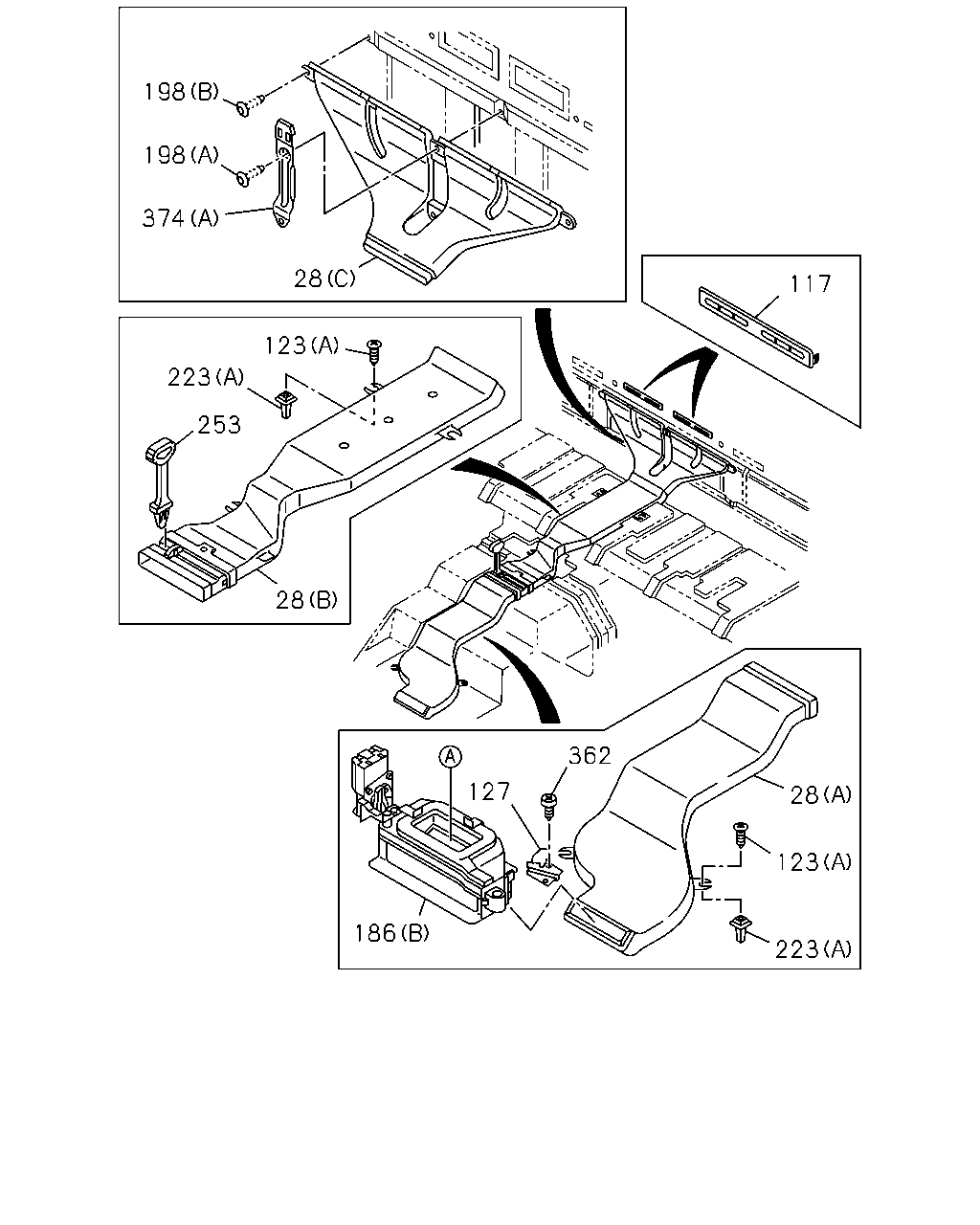

198 198 374 8 117 123 223 253 28 362 127 28 123 186 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-156-5	01	1	9603-9811	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-208-0	01	1	9812-	●	●
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-76377-180-2	01	1	9905-	●	●
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (C)	1-76377-186-1	01	1	9905-	●	●
28	DUCT; AIR,VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-203-0	01	1	9905-	●	●
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-188-5	01	1	9905-	●	●
117	GRILLE; VENTILATOR CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-187-5	01	1	9905-	●	●
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	9905-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	9603-	●	●
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	9603-	●	●
127	BRACKET; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76397-019-0	01	1	9905-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-83542-107-3	01	1	9905-	●	●
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-155-9	01	1	9603-	●	●
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-173-6	01	1	9603-	●	●
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) D6X23 DARK GRAY	1-09987-238-0	02	1	9905-	●	●
198	CLIP; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9905-	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9603-9904	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9905-	●	●
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9603-	●	●
253	KNOB; CONT LEVER CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-76377-185-1	01	1	9905-	●	●
362	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) M5X14	8-94279-325-0	02	1	9905-	●	●
374	HOLDER; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A)	1-76377-189-3	01	1	9905-	●	●
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76398-012-1	01	1	9603-	●	●

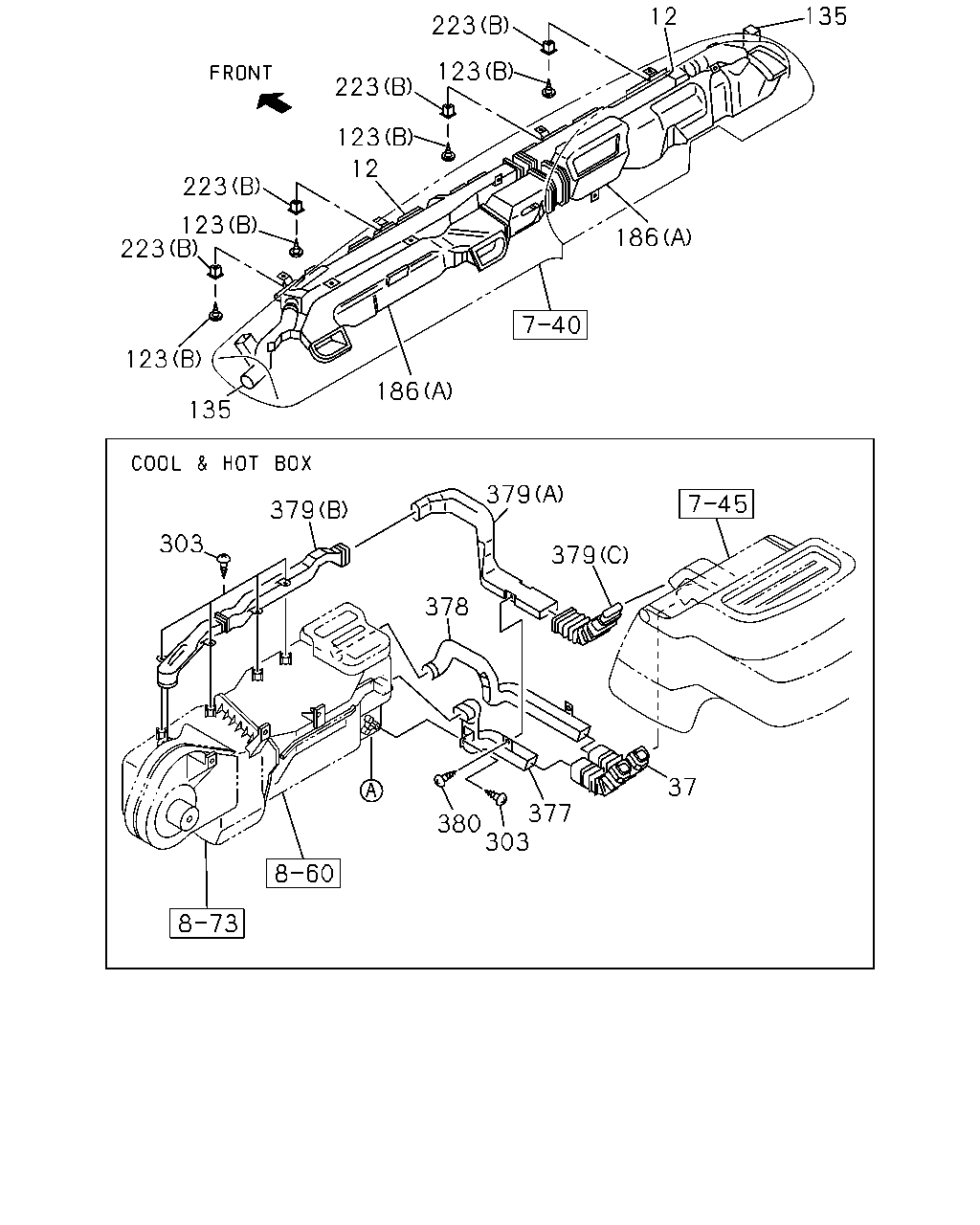

135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 377 380 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-153-5	01	1	9603-	●	●
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-172-6	01	1	9603-	●	●
37	HOSE; AIR,HTR COOL & HOT BOX<TMU>	1-76377-193-3	01	1	9905-	●	●
123	SCREW; DUCT CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (A) M5X16 W/PL WASHER TAPPING	8-94279-123-0	05	1	9905-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X14	8-94279-325-0	04	1	9603-	●	●
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M5X14	8-94279-325-0	08	1	9603-	●	●
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-253-4	01	1	9603-	●	●
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-252-7	01	1	9603-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CENTER SEAT DELETE(SP9) DELUXE CAB(W14) (B)	1-83542-107-3	01	1	9905-	●	●
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-155-9	01	1	9603-	●	●
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A)	1-76377-173-6	01	1	9603-	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9603-9904	●	●
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	05	1	9905-	●	●
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9603-	●	●
303	SCREW; HOSE COOL & HOT BOX<TMU> M5X14	8-94279-325-0	05	1	9905-	●	●
377	HOSE; BOX,INLET,COOL COOL & HOT BOX<TMU>	1-76377-159-5	01	1	9905-	●	●
378	HOSE; BOX,INLET,HOT COOL & HOT BOX<TMU>	1-76377-161-6	01	1	9905-	●	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (A)	1-76377-163-5	01	1	9905-	●	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (B)	1-76377-164-3	01	1	9905-	●	●
379	HOSE; BOX,OUTLET COOL & HOT BOX<TMU> (C)	1-76377-192-4	01	1	9905-	●	●
380	FASTENER; HOSE COOL & HOT BOX<TMU> D4.6X14.7 BLACK	1-09983-104-0	03	1	9905-	●	●
