4-11 — FRONT HUB AND DRUM OR ROTOR (#41466) — 59 parça

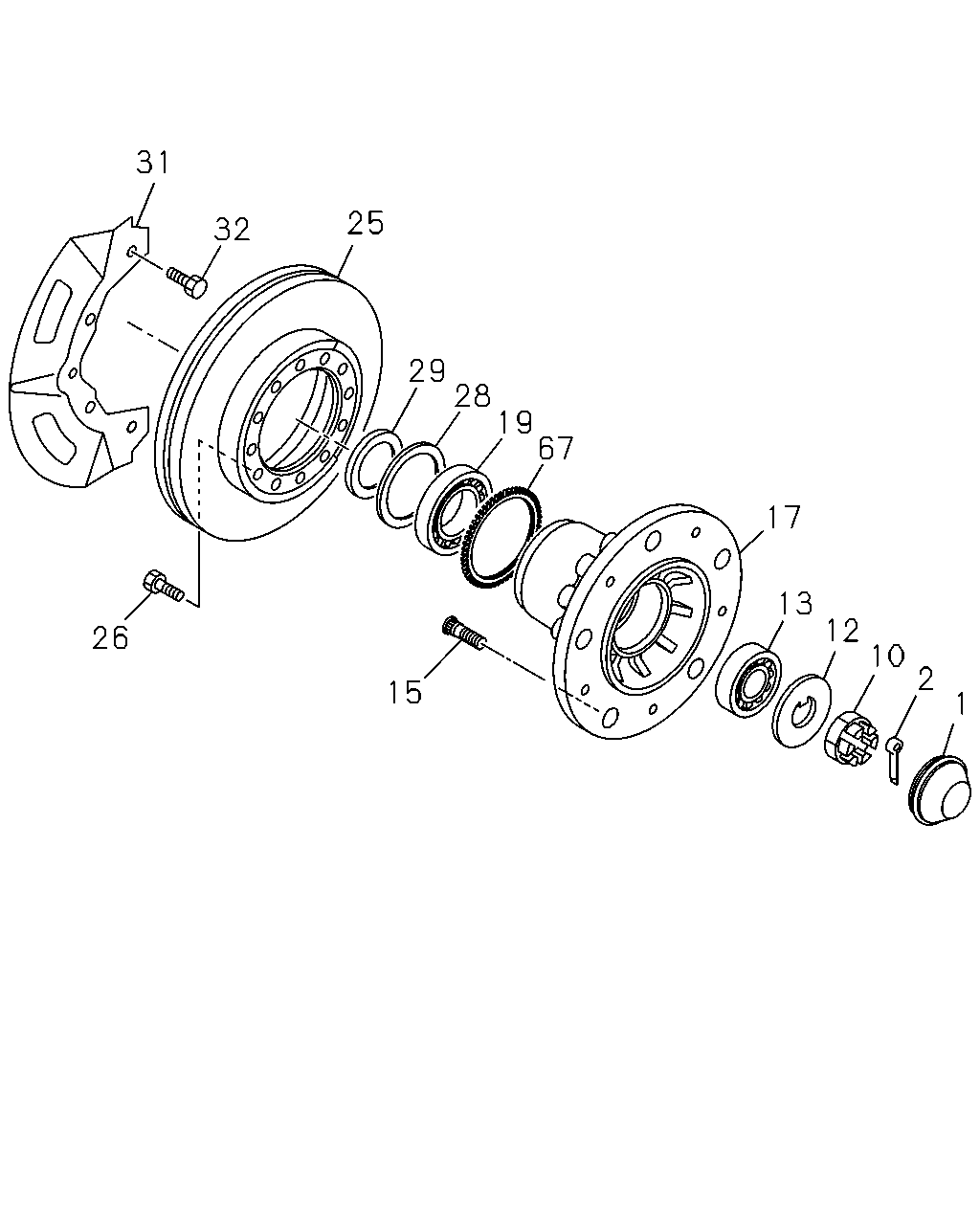

çizim 49140
31 25 32 29 28 19 67 17 13 12 10 2 26 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9812- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9812- ● ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9812- ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 9812- ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9812- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 9812-0105 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 9812-0105 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 0106- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9HY) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9812-9903 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (00C),(01C),(02C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9904-9904 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 9904-0105 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 0106- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9HY) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9812-9903 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (00C),(01C),(02C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9904-9904 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 9904-0105 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 0106- ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 9812-0101 ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 0102-0105 ● ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 0106- ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97017-193-0 02 1 0102-0105 ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97017-193-0 02 1 0106- ● ● ●
17 06.307 HUB; FRT AXLE
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9HY) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 9812-9903 ● ● ● ● ●
17 06.307 HUB; FRT AXLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 9904-0101 ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-460-0 02 1 0102-0105 ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 0106- ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0102-0105 ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0106- ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 9812- ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0209- ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(AYS),(AYT),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 9812-9903 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 9812-9903 ● ●
25 05.809 ROTOR; DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 9904-0012 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 9904-0012 ● ●
25 05.809 ROTOR; DISC BRK,FRT
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) AXLE ISUZU PRODUCTION<8BF> FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 0101-0105 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(ARN),(BQU),(BQV),(9HY) AXLE ISUZU PRODUCTION<8BF> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 0101-0105 ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 0106- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-631-1 02 1 0106- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
(AUH),(AUJ),(AUS),(AVK) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 9812-0105 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 0106- ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 9812- ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 9812- ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
JBK 		8-94246-302-0 02 1 9812-9903 ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
JBK 		8-94246-302-0 02 1 9904-0105 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
AXLE ISUZU PRODUCTION<8BF> NTN 		8-97234-513-0 02 1 9909-9909 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 9910-0105 ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0106- ● ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97168-648-0 02 1 9812-0203 ● ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0204- ● ● ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97025-916-0 08 1 9812-9910 ● ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 9911- ● ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR
(ARN),(BQU),(BQV),(9HY) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97033-681-1 02 1 0001-0012 ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97033-681-1 02 1 0101-0105 ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97033-681-1 02 1 0106-0108 ● ● ●
67 05.811 ROTOR; SENSOR
(AYS),(AYT),(BRT),(BRU),(00C),(01C), (02C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-773-0 02 1 0001-0012 ● ● ● ●
67 05.811 ROTOR; SENSOR
(AUH),(AUJ),(AUS),(AVK) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97206-773-0 02 1 0001-0012 ● ● ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0101-0105 ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97206-773-0 02 1 0106-0108 ● ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0109- ● ● ● ● ● ● ●
