◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#41465) — 102 parça

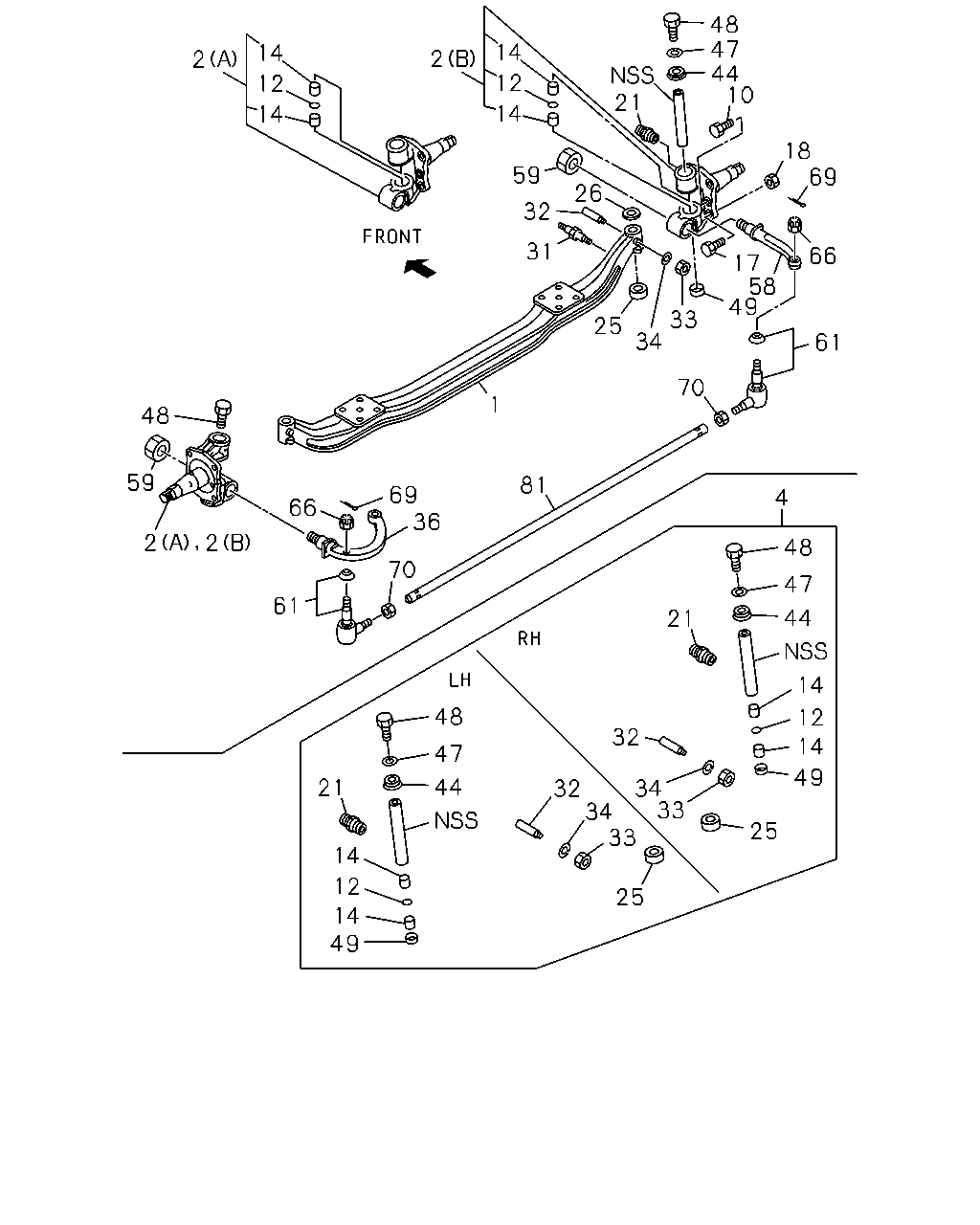

çizim 9661
48 47 44 10 14 14 2 2 21 12 12 14 14 18 69 59 26 32 31 66 17 58 49 33 34 25 61 70 1 48 59 81 69 36 4 66 2 2 48 70 47 61 44 21 14 48 12 32 14 47 49 44 21 32 34 33 34 33 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.008 AXLE; FRT 8-97137-588-2 01 1 9812- ● ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(B) 		8-97141-785-0 01 1 9812-9903 ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(B) 		8-97141-785-0 01 1 9904-9905 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. AXLE ISUZU PRODUCTION<8BF> (B) 		8-97141-785-0 01 1 9906-9909 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(B) 		8-97141-784-0 01 1 9812-9903 ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(B) 		8-97141-784-0 01 1 9904-9905 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. AXLE ISUZU PRODUCTION<8BF> (B) 		8-97141-784-0 01 1 9906-9909 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
AXLE ISUZU PRODUCTION<8BF> (A) 		8-97230-684-0 01 1 9906-9909 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(A) 		8-97230-684-0 01 1 9910-0008 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(A) 		8-97261-550-0 01 1 0009-0105 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(A) 		8-97261-550-1 01 1 0106- ● ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
AXLE ISUZU PRODUCTION<8BF> (A) 		8-97230-683-0 01 1 9906-9909 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(A) 		8-97230-683-0 01 1 9910-0008 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(A) 		8-97261-549-0 01 1 0009-0105 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
(A) 		8-97261-549-1 01 1 0106- ● ● ● ● ● ● ●
4 06.203 KING PIN KIT 5-87831-608-1 01 1 9812- ● ● ● ● ● ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 9812- ● ● ● ● ● ● ●
12 06.021 GASKET; KNUCKLE
06.225 		9-09561-230-0 02 1 9812- ● ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-2 04 1 9812- ● ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 9812- ● ● ● ● ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 9812- ● ● ● ● ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
07.347 M12 		9-99111-512-0 03 1 9812- ● ● ● ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
08.984 M6 STRAIGHT 		9-09031-006-0 04 1 9812- ● ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-2 01 1 9812- ● ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN 8-97141-943-0 01 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.50 		8-94162-574-0 AR 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.55 		8-94162-575-0 AR 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.60 		8-94162-576-0 AR 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.65 		8-94162-577-0 AR 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 T=1.95 		8-94168-490-0 01 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.70 		8-94174-352-0 AR 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.80 		8-94174-354-0 AR 1 9812- ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
T=0.90 		8-94174-356-0 AR 1 9812- ● ● ● ● ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 9812- ● ● ● ● ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-1 02 1 9812- ● ● ● ● ● ● ●
33 06.216 NUT; KEY BOLT
09.011 M10 		9-09110-410-0 02 1 9812- ● ● ● ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
00.002 ID=10.2 		9-09150-510-0 02 1 9812- ● ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-290-0 01 1 9812-9911 ● ●
36 06.103 ARM; KNUCKLE
(ARN),(BQU),(BQV),(9HY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97210-770-0 01 1 9912-0105 ● ●
36 06.103 ARM; KNUCKLE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97210-770-0 01 1 0106- ● ● ●
36 06.103 ARM; KNUCKLE
(ARN),(AUH),(AUJ),(AUS),(AVK),(AYS), (AYT),(00C),(01C),(02C),(06C),(07C), (08C),(09C),(10C),(11C),(53C),(54C), (55C),(83V),(9HY) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97147-635-0 01 1 9812-9903 ● ● ● ● ●
36 06.103 ARM; KNUCKLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (00C),(01C),(02C),(06C),(07C),(08C), (09C),(10C),(11C),(53C),(54C),(55C), (83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97147-635-0 01 1 9904-9904 ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97147-635-0 01 1 9904-9911 ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE
(AUH),(AUJ),(AUS),(AVK),(AYS),(AYT), (BRT),(BRU),(00C),(01C),(02C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V) G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97210-771-0 01 1 9912-0105 ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97210-771-0 01 1 0106- ● ● ● ● ● ● ●
44 06.225 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 9812- ● ● ● ● ● ● ●
47 06.225 WASHER; PL,COVER,KING PIN
06.896 ID=10.5 		9-09164-510-0 02 1 9812- ● ● ● ● ● ● ●
48 06.225 BOLT; COVER
04.642 M10X16 		0-20801-016-0 02 1 9812- ● ● ● ● ● ● ●
49 06.225 CAP; KNUCKLE 8-94248-566-0 02 1 9812-0008 ● ● ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97261-587-0 02 1 0009- ● ● ● ● ● ● ●
58 06.103 ARM; TIE ROD 8-97147-636-0 01 1 9812- ● ● ● ● ● ● ●
59 06.104 NUT; TIE ROD ARM 8-94247-724-0 02 1 9812- ● ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 9812-9903 ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97222-510-0 01 1 9904-0204 ● ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0205- ● ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 9812-9903 ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97222-509-0 01 1 9904-0204 ● ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 0205- ● ● ● ● ● ● ●
66 06.234 NUT; TIE ROD END
08.917 M16 SLOTTED 		9-99116-516-0 02 1 9812- ● ● ● ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
01.271 OD=3.7 L=20 		9-08114-020-0 02 1 9812- ● ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 9812- ● ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 		9-99111-420-0 01 1 9812- ● ● ● ● ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 9812- ● ● ● ● ● ● ●
çizim 50649
241 82 239 101 126 232 238 85 126 85 318 233 91 242 104 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94342-205-0 01 1 9812-0105 ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94342-205-0 01 1 0106- ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-97138-348-0 01 1 9812-9903 ● ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-97138-348-0 01 1 9904-0105 ● ● ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-97138-348-0 01 1 0106- ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-97138-348-0 01 1 0106- ● ● ● ●
85 07.242 WASHER; STAB TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-94342-084-0 04 1 9812- ● ● ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 9812-9903 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-94342-187-0 02 1 9812-9903 ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 9904-0105 ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-94342-187-0 02 1 9904-0105 ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0106- ● ● ● ● ● ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 9812- ● ● ● ● ● ● ●
104 07.242 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2 		9-09150-514-0 02 1 9812- ● ● ● ● ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9812- ● ● ● ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=18 		8-97089-556-0 02 1 9812-0105 ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=18 		8-97089-556-0 02 1 0106- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=29 		8-97089-557-0 02 1 9812-0105 ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=29 		8-97089-557-0 02 1 0106- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (A),(B) 		8-94342-083-0 04 1 9812-9903 ● ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (A),(B) 		8-94342-083-0 04 1 9904-0105 ● ● ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (A),(B) 		8-94342-083-0 04 1 0106- ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (A),(B) 		8-94342-083-0 04 1 0106- ● ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94331-581-0 02 1 9812-9903 ● ● ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94331-581-0 02 1 9904-9910 ● ● ● ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 9911-0105 ● ● ● ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0106- ● ● ● ● ● ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 04.686 		8-94342-082-0 02 1 9812- ● ● ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-94441-472-3 02 1 9812-9903 ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-94441-472-3 02 1 9904-9910 ● ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 9911-0105 ● ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0106- ● ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28881-470-0 02 1 9812-9903 ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28881-470-0 02 1 9904-0010 ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 		0-10806-470-0 02 1 0011-0105 ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 		0-10806-470-0 02 1 0106- ● ● ● ● ● ● ●
241 07.242 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE 		0-91150-114-0 02 1 9812- ● ● ● ● ● ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 9812- ● ● ● ● ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE 		0-91150-210-0 04 1 9812- ● ● ● ● ● ● ●
