Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#41461) — 225 parça

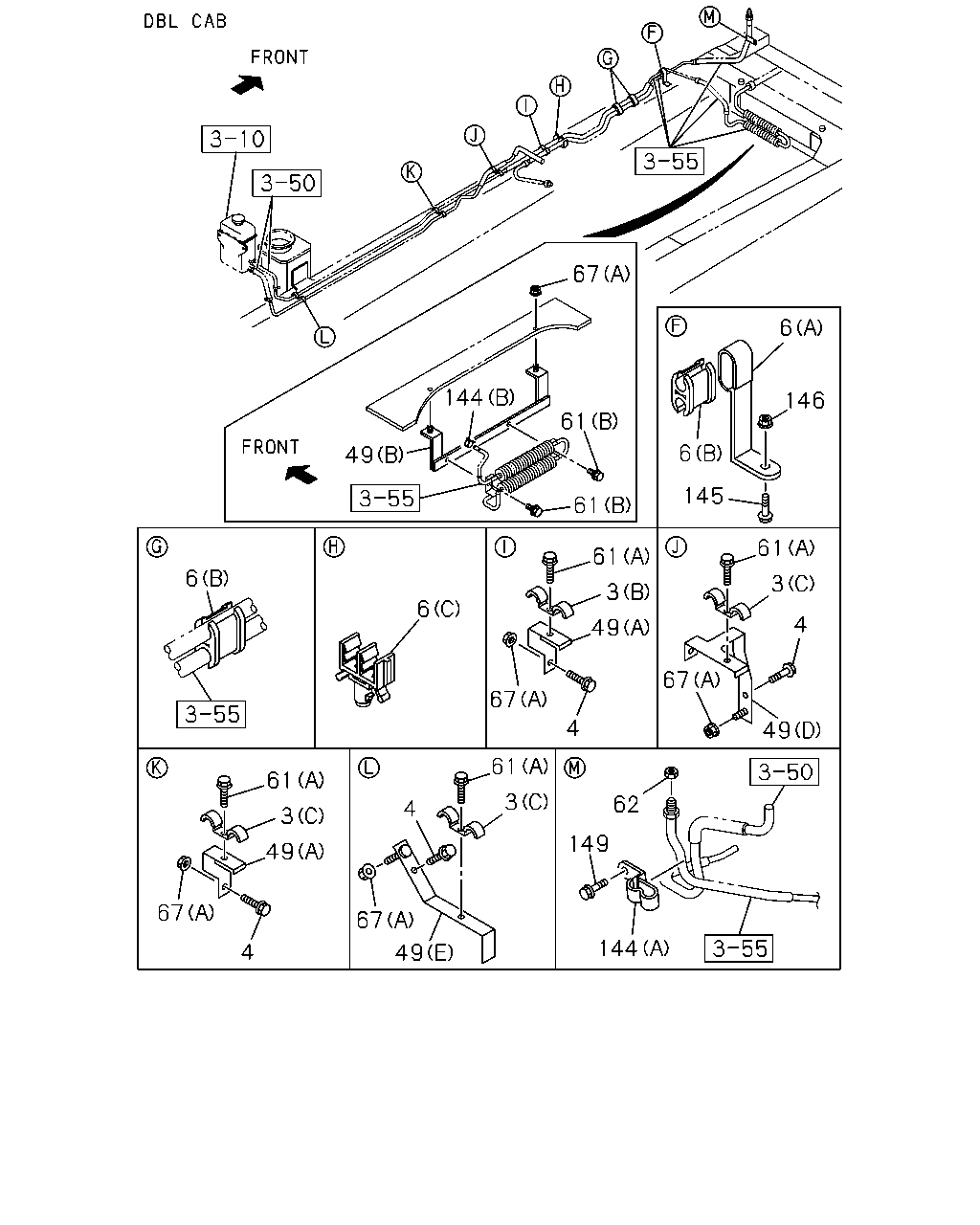

67 6 144 146 61 6 49 145 61 61 61 6 3 3 6 4 49 67 67 4 49 61 61 3 62 4 3 149 49 67 67 144 4 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9812-0105		●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0106-		●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905		●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105		●
3	04.685 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-		●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9812-0105		●		●	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-		●		●
3	04.685 CLIP; BRK PIPE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-					●	●	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) 04.686 (C) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0106-							●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-		●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9812-0105		●		●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-		●		●	●	●	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-							●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0106-							●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9812-0105		●		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0106-		●		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0106-					●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	9812-0105		●		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0106-		●		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0106-					●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	9812-0105		●		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0106-		●		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0106-					●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9812-		●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-0	01	1	9812-0105		●		●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0106-		●		●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0106-					●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9812-0105		●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-		●		●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-							●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (D)	8-97251-896-1	01	1	0106-							●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (E)	8-97255-806-1	01	1	0106-							●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9812-0105		●		●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-		●		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-					●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9812-0105		●		●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-		●		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-					●	●	●
61	04.686 BOLT; BRK PIPE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0106-							●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	9812-0105		●		●	●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0106-		●		●
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0106-					●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9812-		●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9812-0105		●		●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-		●		●
67	04.686 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-					●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-0105		●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●		●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-							●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9812-0105		●		●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-		●		●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-					●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	9812-0105		●		●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0106-		●		●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	03	1	0106-					●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105		●		●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105		●		●	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●		●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-					●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-0105		●		●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●		●
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-					●	●	●

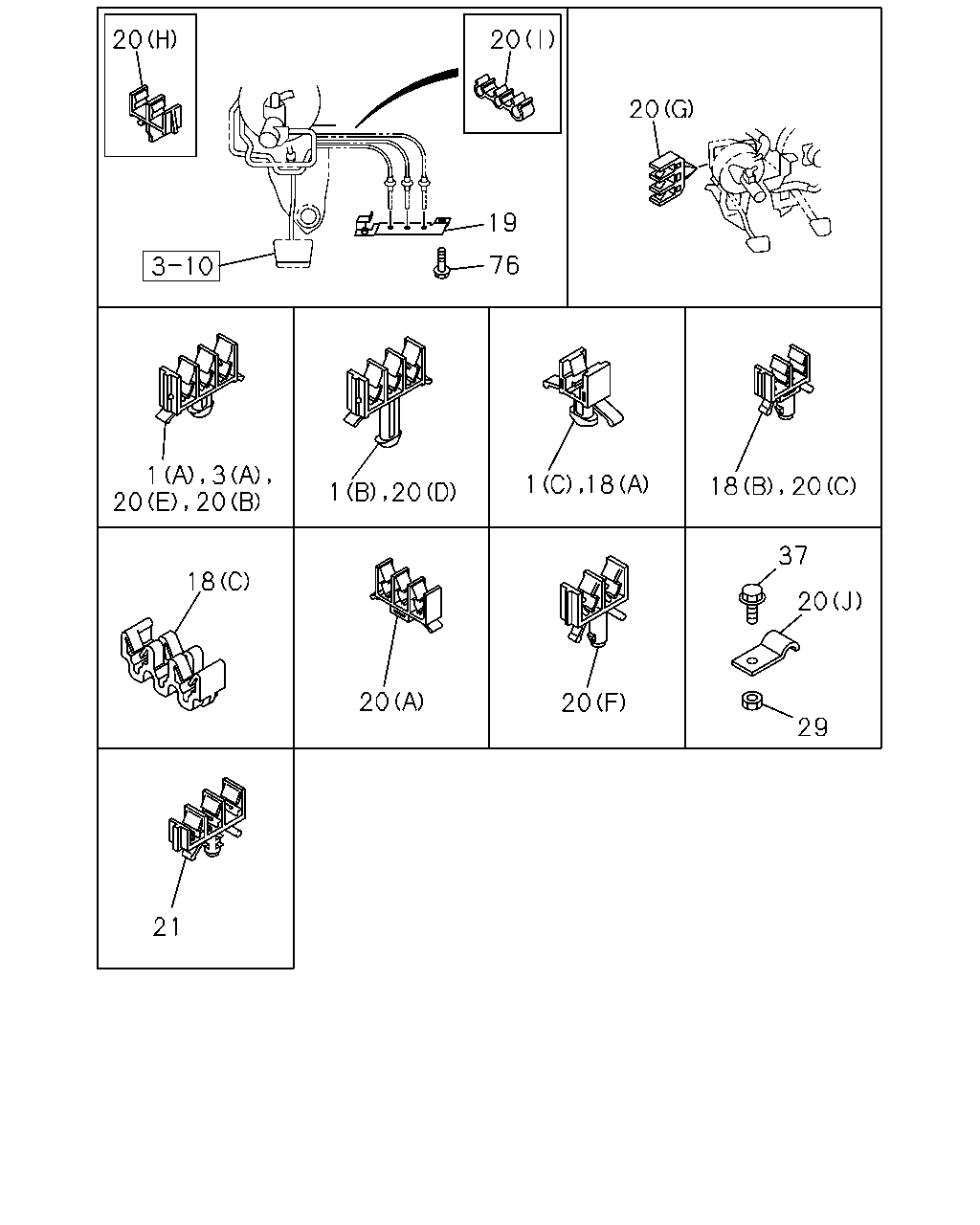

20 20 20 19 76 1 18 37 18 20 20 20 29 21 1 3 20 20 1 20 18 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.686 CLIP; OIL PIPE TO BODY 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=32.5	8-94405-141-0	01	1	9812-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26	8-94249-685-0	01	1	9812-9905	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26	8-94249-685-0	01	1	9906-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8 H=26	8-94249-685-0	01	1	0106-	●	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9812-0105		●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0106-		●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905		●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105		●
3	04.685 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-		●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9812-0105		●		●	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-		●		●
3	04.685 CLIP; BRK PIPE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-					●	●	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) 04.686 (C) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0106-							●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2	8-94316-410-0	01	1	9812-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2	8-94316-410-0	04	1	0001-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X3	8-94487-369-0	01	1	0001-	●	●	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9812-9905	●	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	9906-9912	●	●
18	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0001-0105	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0001-0105	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26	8-94249-685-0	01	1	0106-	●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11>	8-97178-320-1	01	1	9812-9903	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	9812-9903		●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11>	8-97178-320-1	01	1	9904-0105	●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	9904-0105		●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	0106-0207	●	●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11>	8-97178-320-1	01	1	0208-	●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	0208-		●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97171-018-3	01	1	9812-0105		●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11>	8-97171-018-3	01	1	9812-0105					●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97171-018-3	01	1	0106-0207		●		●	●	●	●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ>	8-97171-018-3	01	1	0208-		●		●
19	04.686 BRACKET; OIL PIPE FLOOR REMOTE SHIFT<M11>	8-97171-018-3	01	1	0208-					●	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (I) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=6.5 & 4.8X2	8-94424-234-0	02	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2	8-94455-816-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9906-9912	●	●
20	04.686 CLIP; BRK PIPE 4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0001-0105	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0001-0105	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0106	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0106	●	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-0106	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-	●	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9812-9905	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	9906-0105	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-0106	●	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-0112	●	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-0112	●	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0201-	●	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●	●	●
20	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9812-9905	●	●
20	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	9906-0105	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●	●	●
20	04.686 CLIP; BRK PIPE (I) ID=6.4 & 4.8X2	8-94146-043-0	03	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (H) ID=4.6X2	8-94241-454-0	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE (G) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9812-	●	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) B=18 L=20	1-09700-372-0	02	1	0001-0105	●	●	●	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (J) B=18 L=20	1-09700-372-0	02	1	0106-	●	●	●
20	04.686 CLIP; BRK PIPE (J) B=18 L=20	1-09700-372-0	02	1	0106-				●	●	●	●
20	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2	8-94131-710-2	03	1	0201-	●	●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9904	●	●
21	04.686 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9905-0105	●	●
21	04.686 CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	04	1	0106-	●	●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-9912	●	●
21	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105	●	●
21	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0001-0105	●	●
21	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0106-	●	●	●
29	04.686 NUT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0001-0105	●	●	●	●	●	●
29	04.686 NUT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●
29	04.686 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-				●	●	●	●
37	04.686 BOLT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0001-0105	●	●	●	●	●	●
37	04.686 BOLT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●	●
37	04.686 BOLT; CLIP FIX 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-				●	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9812-	●	●	●	●	●	●	●

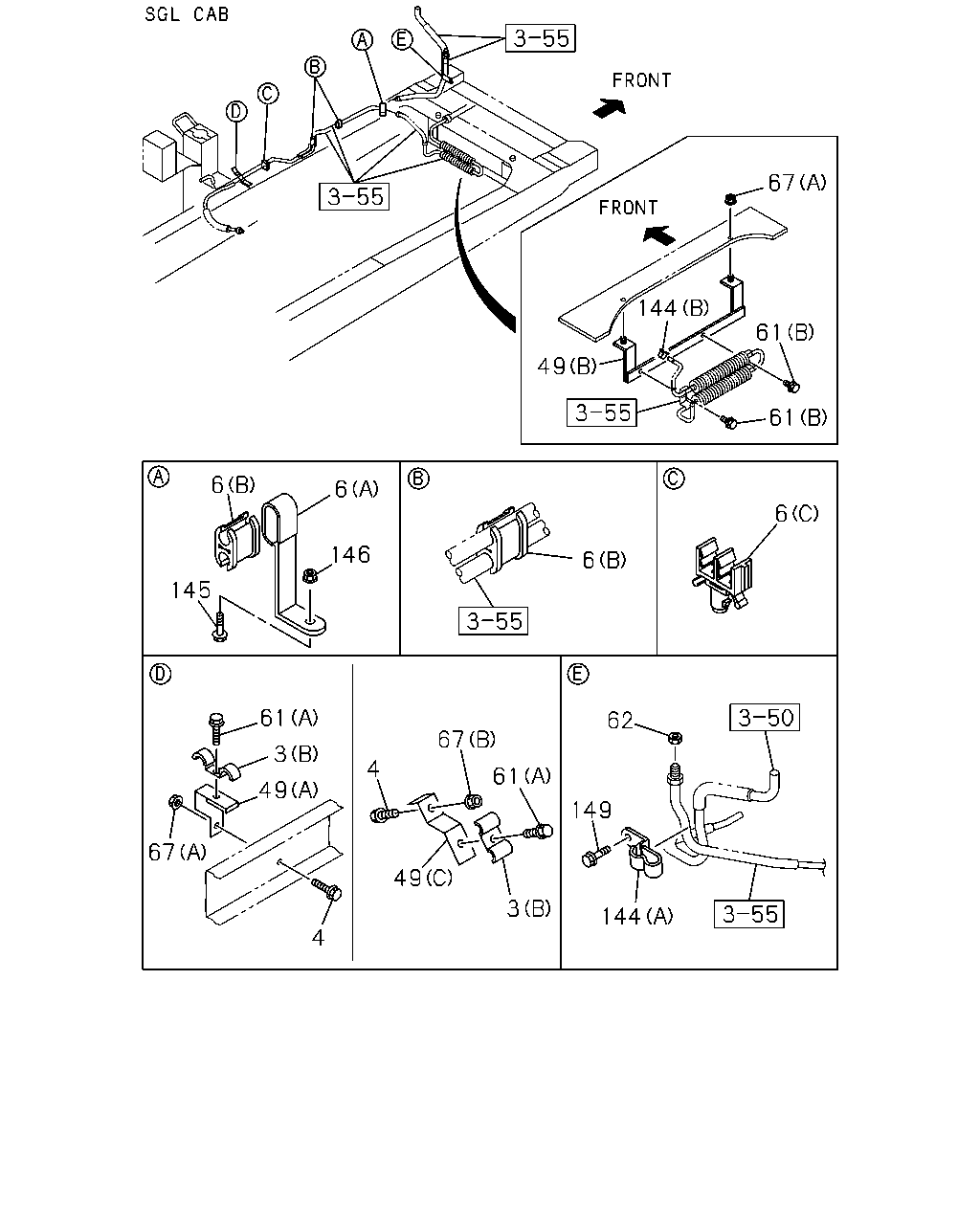

67 144 61 49 61 6 6 6 146 6 145 61 62 67 3 4 61 49 149 67 49 3 144 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-0105	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●	●	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-	●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	9812-0105		●
3	04.685 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	03	1	0106-		●	●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-9905		●
3	04.685 CLIP; BRK PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9906-0105		●
3	04.685 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> 04.686 (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-		●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	9812-0105		●		●	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-		●		●
3	04.685 CLIP; BRK PIPE 04.047 (B) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0106-					●	●	●
3	04.685 CLIP; BRK PIPE 4HE1 ENG(RLY) 04.686 (C) ID=16 & 11 L=18 & 17	1-09700-657-0	03	1	0106-							●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-		●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9812-0105		●		●	●	●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-		●		●	●	●	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-							●
4	04.686 BOLT; BRKT 4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0106-							●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9812-0105		●		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0106-		●		●
6	04.686 CLIP; PIPE 04.047 (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0106-					●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	9812-0105		●		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0106-		●		●
6	04.686 CLIP; PIPE 06.672 (B) ID=10X2 H=22	8-94252-455-2	03	1	0106-					●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	9812-0105		●		●	●	●
6	04.686 CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0106-		●		●
6	04.686 CLIP; PIPE 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0106-					●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (C)	8-97177-074-0	01	1	9812-		●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-0	01	1	9812-0105		●		●	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97180-993-1	01	1	0106-		●		●
49	04.686 BRACKET; BRK PIPE (B)	8-97180-993-1	01	1	0106-					●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	9812-0105		●		●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-		●		●	●	●	●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0106-							●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (D)	8-97251-896-1	01	1	0106-							●
49	04.686 BRACKET; BRK PIPE 4HE1 ENG(RLY) (E)	8-97255-806-1	01	1	0106-							●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9812-0105		●		●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-		●		●
61	04.686 BOLT; BRK PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0106-					●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	9812-0105		●		●	●	●
61	04.686 BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-		●		●
61	04.686 BOLT; BRK PIPE 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0106-					●	●	●
61	04.686 BOLT; BRK PIPE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	03	1	0106-							●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	9812-0105		●		●	●	●
62	04.686 NUT HYDRO BRAKE BOOSTER<7QQ> 06.172 M14	9-99111-414-0	01	1	0106-		●		●
62	04.686 NUT 06.172 M14	9-99111-414-0	01	1	0106-					●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	9812-		●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9812-0105		●		●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-		●		●
67	04.686 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0106-					●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9812-0105		●		●	●	●
67	04.686 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-		●		●	●	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0106-							●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	9812-0105		●		●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-		●		●
144	04.686 CLIP; HOSE (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0106-					●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	9812-0105		●		●	●	●
144	04.686 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0106-		●		●
144	04.686 CLIP; HOSE (B) ID=11-19.5	8-94426-597-0	03	1	0106-					●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105		●		●	●	●
145	04.686 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-		●		●
145	04.686 BOLT; PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-					●	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105		●		●	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●		●
146	04.686 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-					●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9812-0105		●		●	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●		●
149	04.686 BOLT; HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-					●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
