◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50816 - NPR/NQR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#41460) — 366 parça

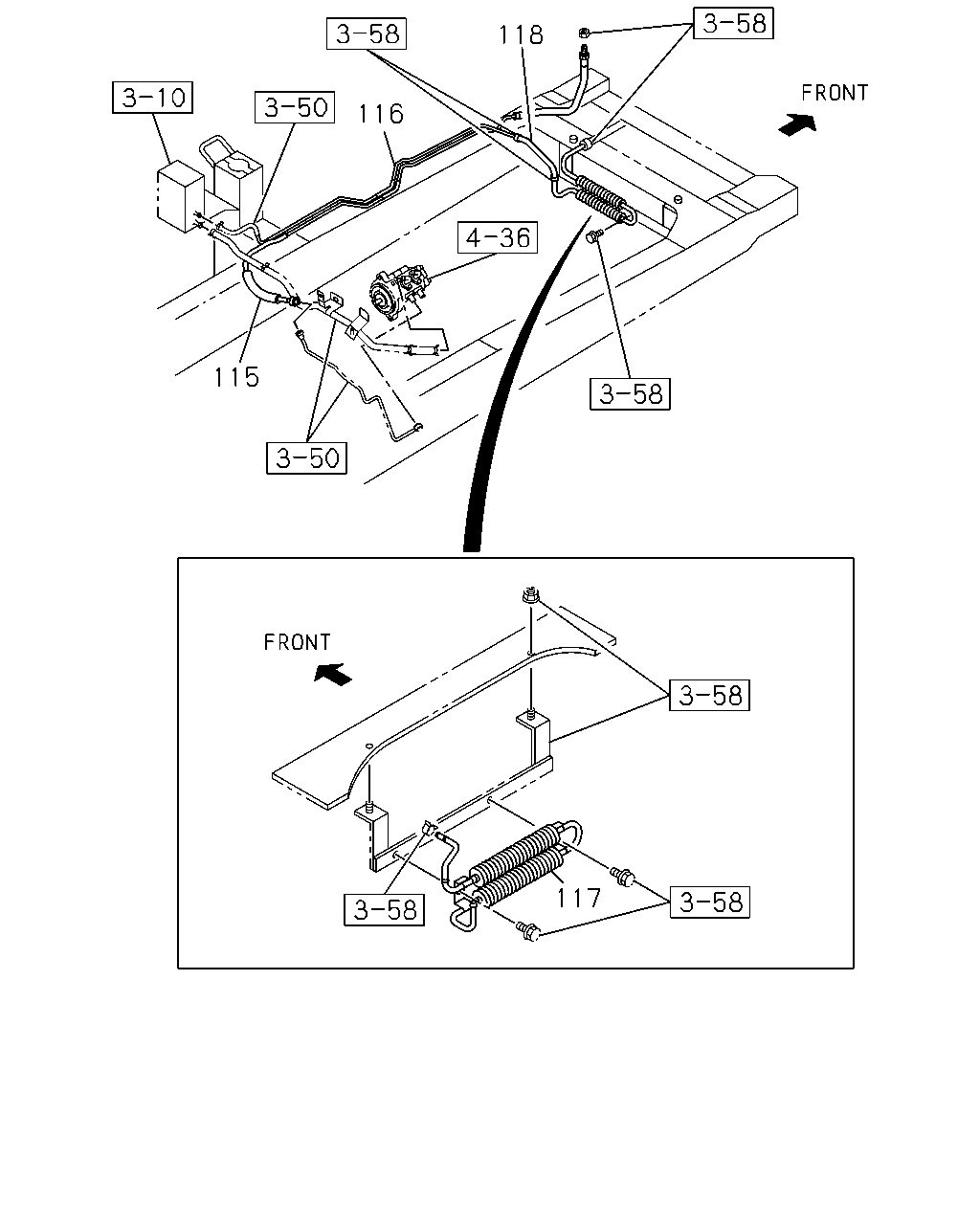

çizim 9455
118 116 115 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97177-070-3 01 1 9812- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-0 01 1 9812-0005 ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-0 01 1 0006-0105 ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-1 01 1 0106- ● ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 9812- ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 9812- ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) 		8-97255-808-0 01 1 0106- ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 9812-0105 ● ● ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0106- ● ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0106- ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 9812-0105 ● ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0106- ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0106- ● ● ●

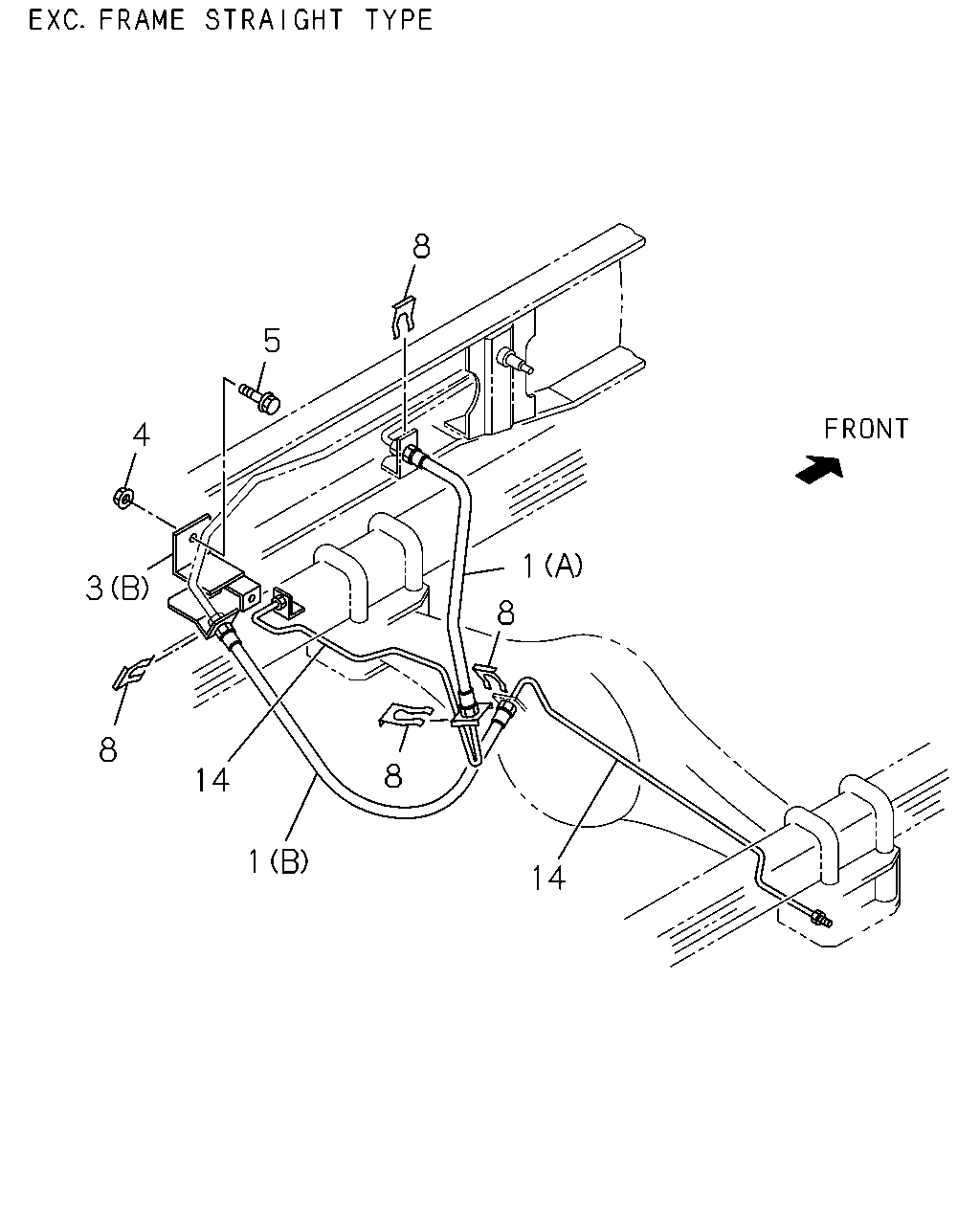

çizim 44661
8 5 4 1 3 8 8 8 14 1 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0001-0105 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 9812-9905 ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 9906-0105 ● ●
1 04.680 HOSE; FLEX,RR BRK
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=405 		8-97089-061-0 01 1 9812-9903 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=405 		8-97089-061-0 01 1 9904-9912 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0001-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0002-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0106- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0002-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0106- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 9812-9912 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0001-0105 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0001-0105 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0106- ● ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0106- ● ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0001-0105 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0106- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0109 ● ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0109 ● ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0001-0105 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0109 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0109 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0110- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0110- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0001-0105 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9912 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0001-0105 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0001-0105 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0001-0105 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9812-9912 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0001-0105 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0106- ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0106- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0001-0105 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9812-9903 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9812-9903 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9812-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97088-703-0 01 1 9812-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9812-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC) 		8-97064-729-0 01 1 9812-9905 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9812-9905 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97064-729-0 01 1 9906-9912 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9906-9912 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97082-925-1 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97042-078-2 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-531-1 01 1 0001- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9812-9903 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 9812- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-796-2 01 1 0001- ● ● ● ● ●

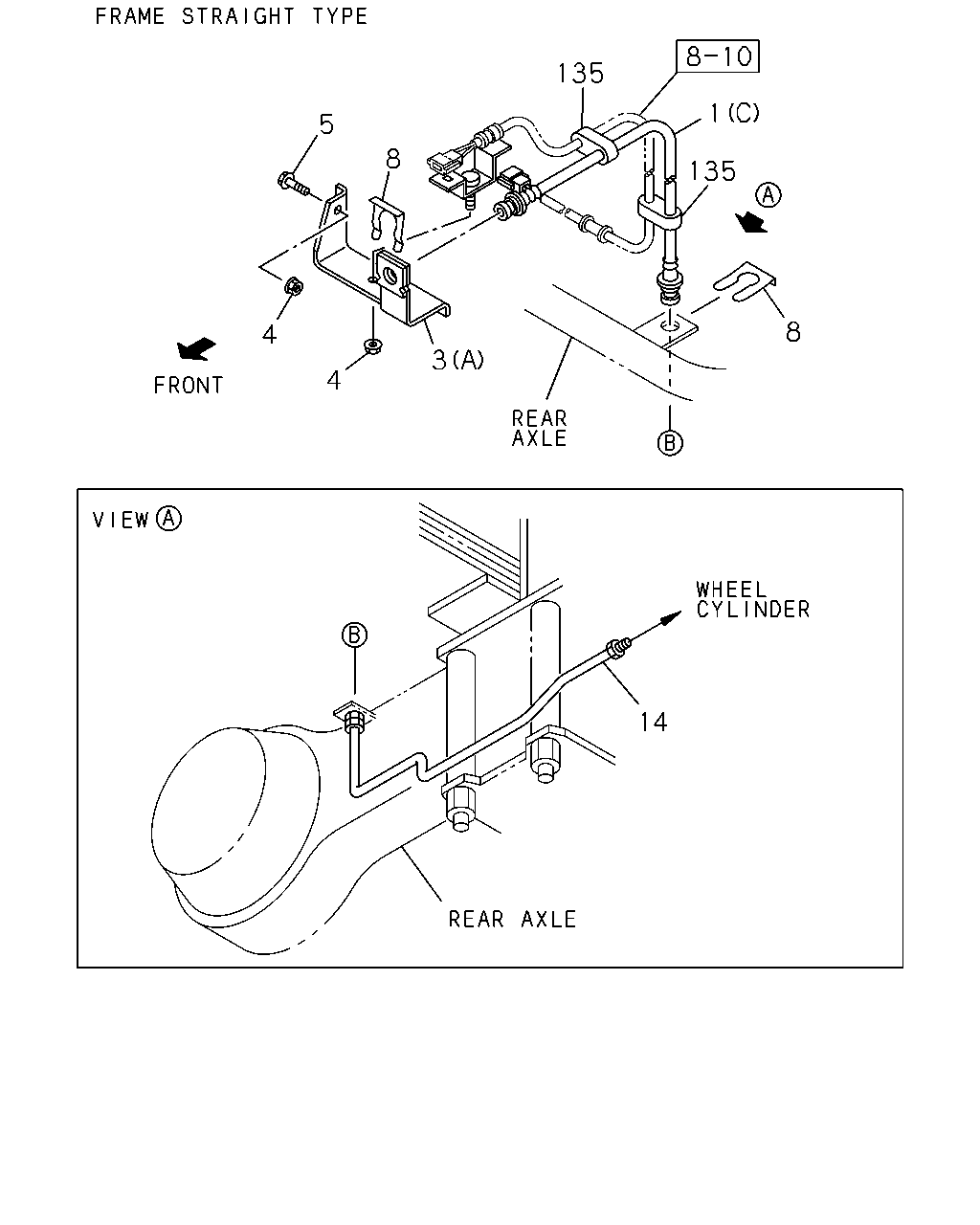

çizim 45284
135 1 5 8 135 8 4 3 4 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0001-0105 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 9812-9905 ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 9906-0105 ● ●
1 04.680 HOSE; FLEX,RR BRK
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=405 		8-97089-061-0 01 1 9812-9903 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=405 		8-97089-061-0 01 1 9904-9912 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0001-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0002-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0106- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0002-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0106- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 9812-9912 ● ● ● ● ● ●

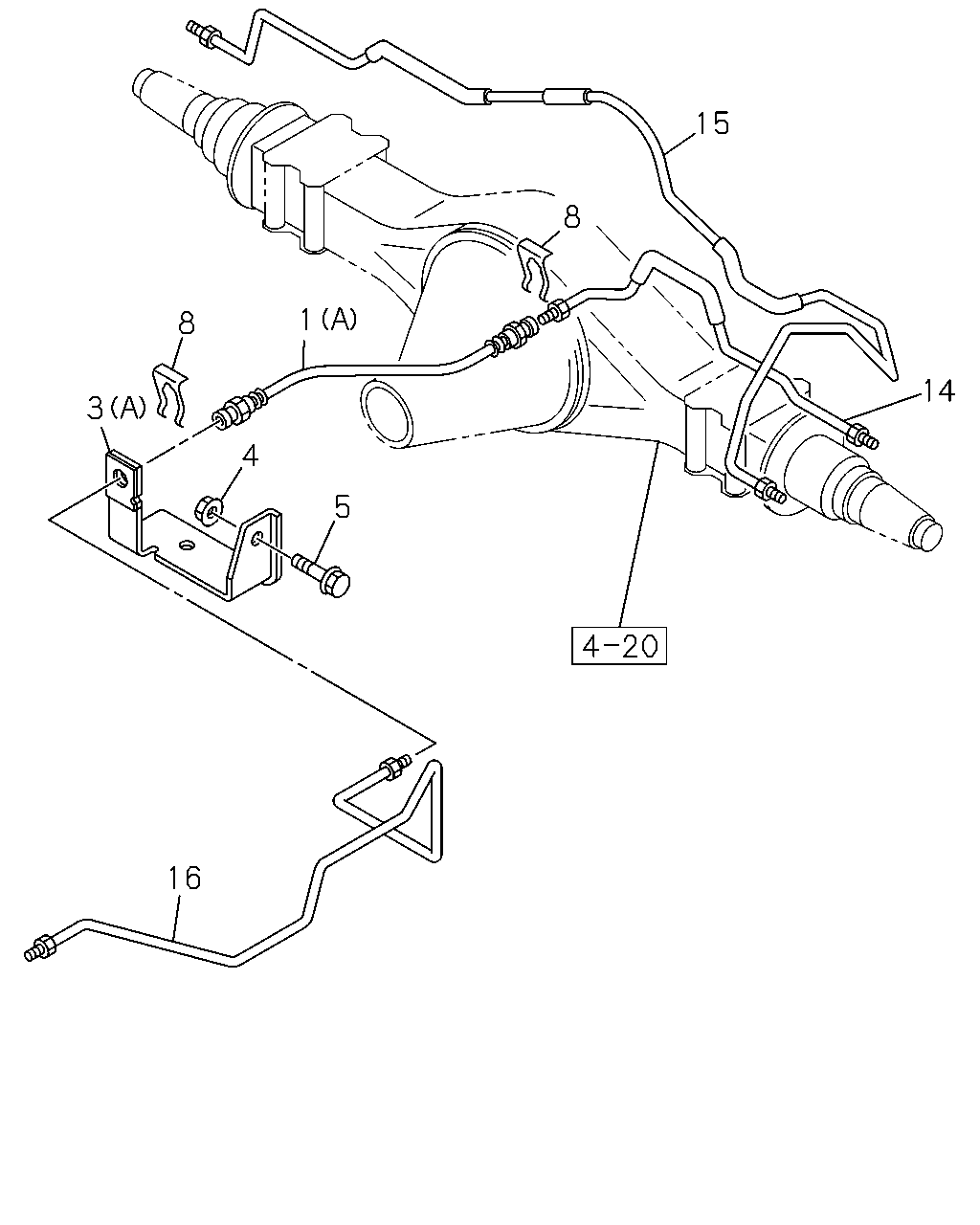

3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0001-0105 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0001-0105 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0106- ● ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0106- ● ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0001-0105 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0106- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0109 ● ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0109 ● ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0001-0105 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0109 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0109 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0110- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0110- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0001-0105 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9912 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0001-0105 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0001-0105 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0001-0105 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9812-9912 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0001-0105 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0106- ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0106- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0001-0105 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9812-9903 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9812-9903 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9812-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97088-703-0 01 1 9812-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9812-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC) 		8-97064-729-0 01 1 9812-9905 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9812-9905 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97064-729-0 01 1 9906-9912 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9906-9912 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97082-925-1 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97042-078-2 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-531-1 01 1 0001- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9812-9903 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 9812- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-796-2 01 1 0001- ● ● ● ● ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0002-0105 ● ● ● ● ● ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0106- ● ● ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0106- ● ● ● ●
çizim 49100
103 103 103 103 103 103 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 04 1 9812-9912 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 03 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 03 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 03 1 0106- ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 03 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X2 		8-97183-217-0 02 1 0001-0007 ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X2 		8-97183-217-0 03 1 0008-0105 ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X2 		8-97183-217-0 03 1 0106- ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 9812-9912 ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 05 1 0001-0003 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 03 1 0004- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9812-9912 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0001-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0001-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0106- ● ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 9812-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 0106- ● ● ●
103 04.686 CLIP; PIPE,BRK
(A) ID=4.8X2 		8-94389-060-0 01 1 0106- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 9812-0005 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 0006-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 0006-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 0106- ● ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2 		8-94455-816-0 01 1 0106- ● ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9812-9912 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 9812-9912 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0001-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0106- ● ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 08 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2 		8-94131-710-2 02 1 9812- ● ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94316-410-0 03 1 0001-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (F) ID=4.8X2 		8-94316-410-0 03 1 0106- ● ● ●
103 04.686 CLIP; PIPE,BRK
(F) ID=4.8X2 		8-94316-410-0 03 1 0106- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 04 1 0001-0105 ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 04 1 0106- ● ● ●
103 04.686 CLIP; PIPE,BRK
(A) ID=4.8X2 		8-94389-060-0 04 1 0106- ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0001- ● ● ● ● ● ● ●
103 04.686 CLIP; PIPE,BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 01 1 0001- ● ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9812-9903 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 9904-9912 ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 04 1 0001- ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 07 1 0001-0003 ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 05 1 0004- ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 9812-9912 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 05 1 0001- ● ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 07 1 0106- ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 08 1 0001-0003 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 06 1 0004-0105 ●
103 04.686 CLIP; PIPE,BRK
04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 06 1 0106- ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 09 1 0001-0003 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 07 1 0004-0105 ●
103 04.686 CLIP; PIPE,BRK
04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 07 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 09 1 9812-9912 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 0001-0105 ● ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 0106- ● ●
103 04.686 CLIP; PIPE,BRK
04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 06 1 0106- ●
103 04.686 CLIP; PIPE,BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.930 (B) ID=10 & 4.8X3 		8-97103-600-0 09 1 0001-0105 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 10 1 0001-0003 ●
103 04.686 CLIP; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 08 1 0004-0105 ●
103 04.686 CLIP; PIPE,BRK
04.930 (E) ID=10 & 6.4 & 4.8 		8-97074-831-0 08 1 0106- ● ●
çizim 49102
15 8 1 8 14 3 4 5 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0001-0105 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 9812-9905 ● ●
1 04.680 HOSE; FLEX,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 9906-0105 ● ●
1 04.680 HOSE; FLEX,RR BRK
4JH1 ENG(RJX),4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=405 		8-97089-061-0 01 1 9812-9903 ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) L=405 		8-97089-061-0 01 1 9904-9912 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0001-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0002-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0106- ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0002-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0106- ● ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0106- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 9812-9912 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0001-0105 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0001-0105 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0106- ● ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0106- ● ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0001-0105 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0106- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9812-0105 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0109 ● ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106-0109 ● ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0001-0105 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0109 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0109 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0110- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0110- ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0001-0105 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9812-9912 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0001-0105 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0001-0105 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION<7AF> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0001-0105 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0106- ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 02 1 9812-9912 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0001-0105 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0106- ● ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0106- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0001-0105 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9812-9903 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9812-9903 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9812-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97088-703-0 01 1 9812-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 9812-0105 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HE1 ENG(RLY) G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0106- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC) 		8-97064-729-0 01 1 9812-9905 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9812-9905 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97064-729-0 01 1 9906-9912 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 9906-9912 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97064-729-0 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97082-925-1 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97042-078-2 01 1 0001-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0106- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-531-1 01 1 0001- ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9812-9903 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-733-0 01 1 9904-0105 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 9812- ● ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-796-2 01 1 0001- ● ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9812-9903 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9812-9903 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9812-9903 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9904-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 9904-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0001-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0001-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0106- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0106- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>, ENGINEPOWER N-SPEC(7QV) 		8-97079-904-0 01 1 9812-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97079-904-0 01 1 0001-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-904-0 01 1 0106- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC) 		8-97064-735-1 01 1 9812-9905 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-735-1 01 1 9812-9905 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97064-735-1 01 1 9906-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-735-1 01 1 9906-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-735-1 01 1 0001-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97064-735-1 01 1 0001-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-735-1 01 1 0106- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 9812-9903 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97129-745-1 01 1 9904-9912 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97129-745-1 01 1 0001-0105 ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V .W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97129-745-1 01 1 0106- ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9812-9903 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 9904-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97064-738-0 01 1 0001-0105 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 9812-9903 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 9812-9903 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 9904-9912 ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97122-715-1 01 1 9904-9912 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97122-715-1 01 1 0001-0105 ● ● ● ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97122-715-1 01 1 0106- ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-3 01 1 9812-9912 ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 0001-0105 ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 0106- ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97183-535-0 01 1 9812-9912 ● ● ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97183-535-0 01 1 0001-0105 ● ● ● ● ● ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97183-535-1 01 1 0106- ● ● ●

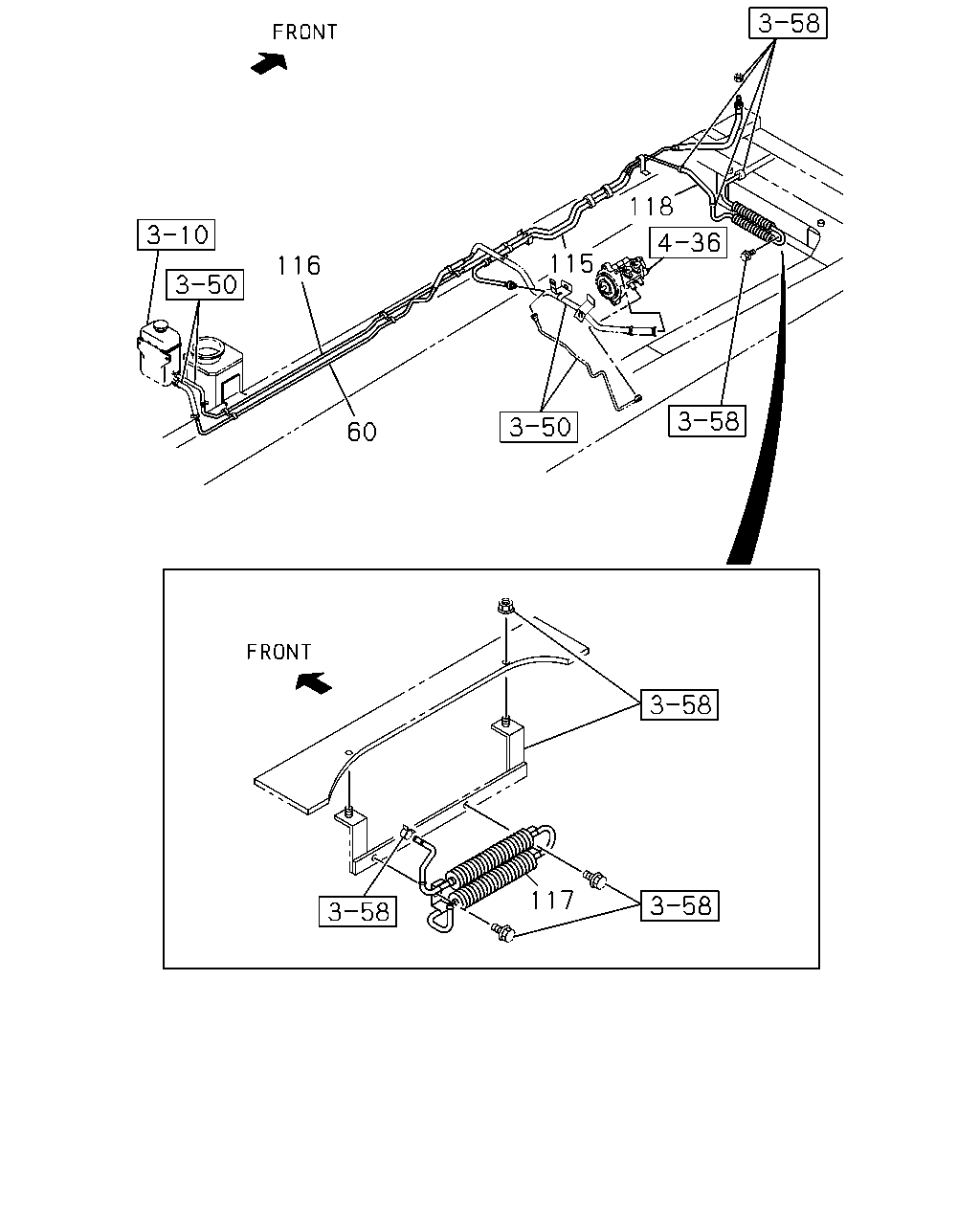

çizim 50118
118 115 116 60 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 04.685 PIPE ASM; BRK
4HE1 ENG(RLY) 		8-97255-809-0 01 1 0106- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97177-070-3 01 1 9812- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-0 01 1 9812-0005 ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-0 01 1 0006-0105 ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-969-1 01 1 0106- ● ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97180-987-0 01 1 9812- ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 9812- ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) 		8-97255-808-0 01 1 0106- ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 9812-0105 ● ● ● ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0106- ● ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0106- ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 9812-0105 ● ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0106- ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
