Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#4146) — 717 parça

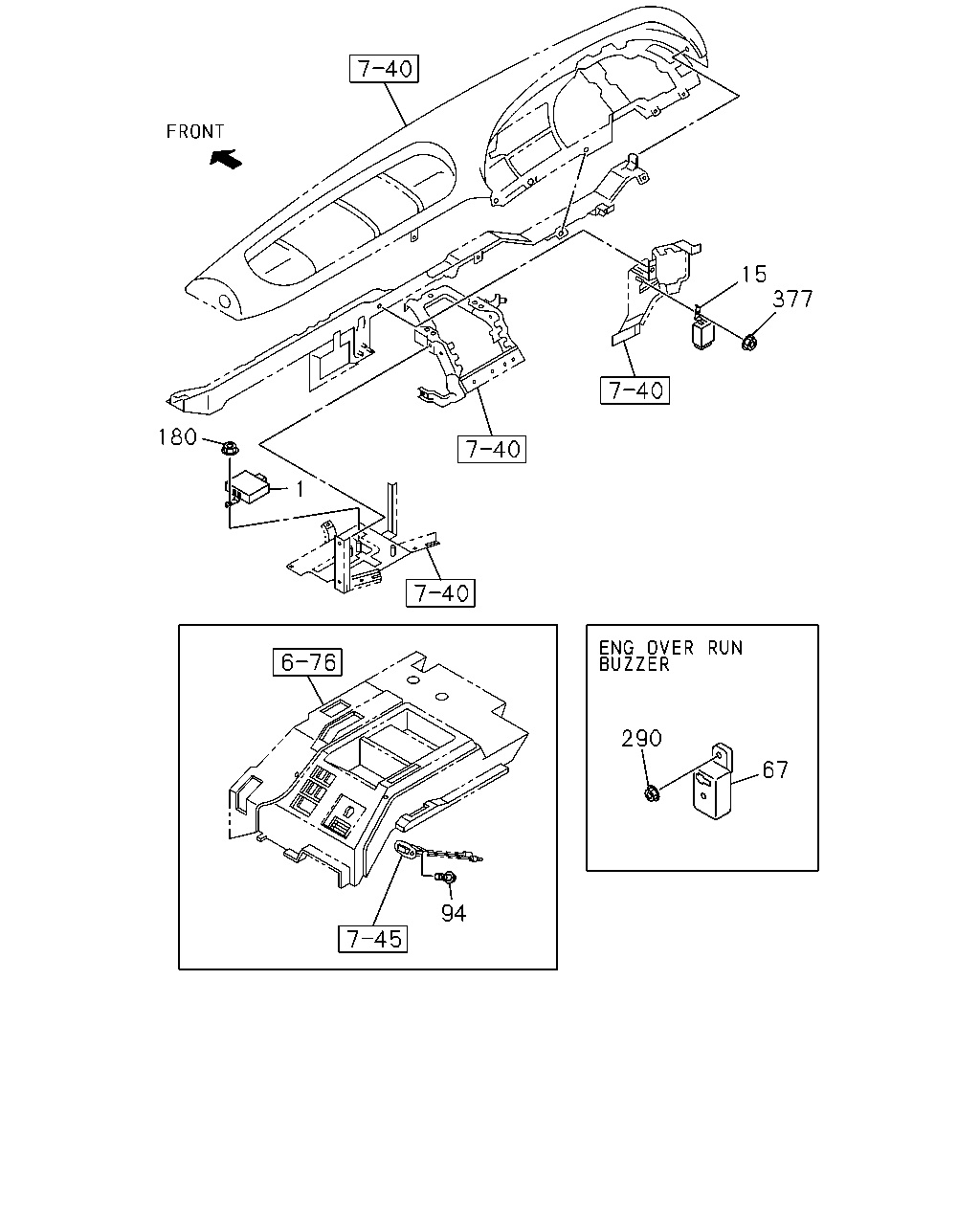

15 377 180 1 290 67 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-060-0	01	1	9603-	●	●
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-0	01	1	9603-		●
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9603-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9603-0101	●	●
67	BUZZER; ENG OVERRUN L TYPE ENG<90L>	1-83460-051-1	01	1	0102-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L>	1-83460-051-1	01	1	0102-	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9801-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9603-	●	●
290	NUT ENGINE OVERRUN BUZZER<SK4> M6 FLANGE	0-91150-106-0	01	1	9603-9808	●	●
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9603-	●	●

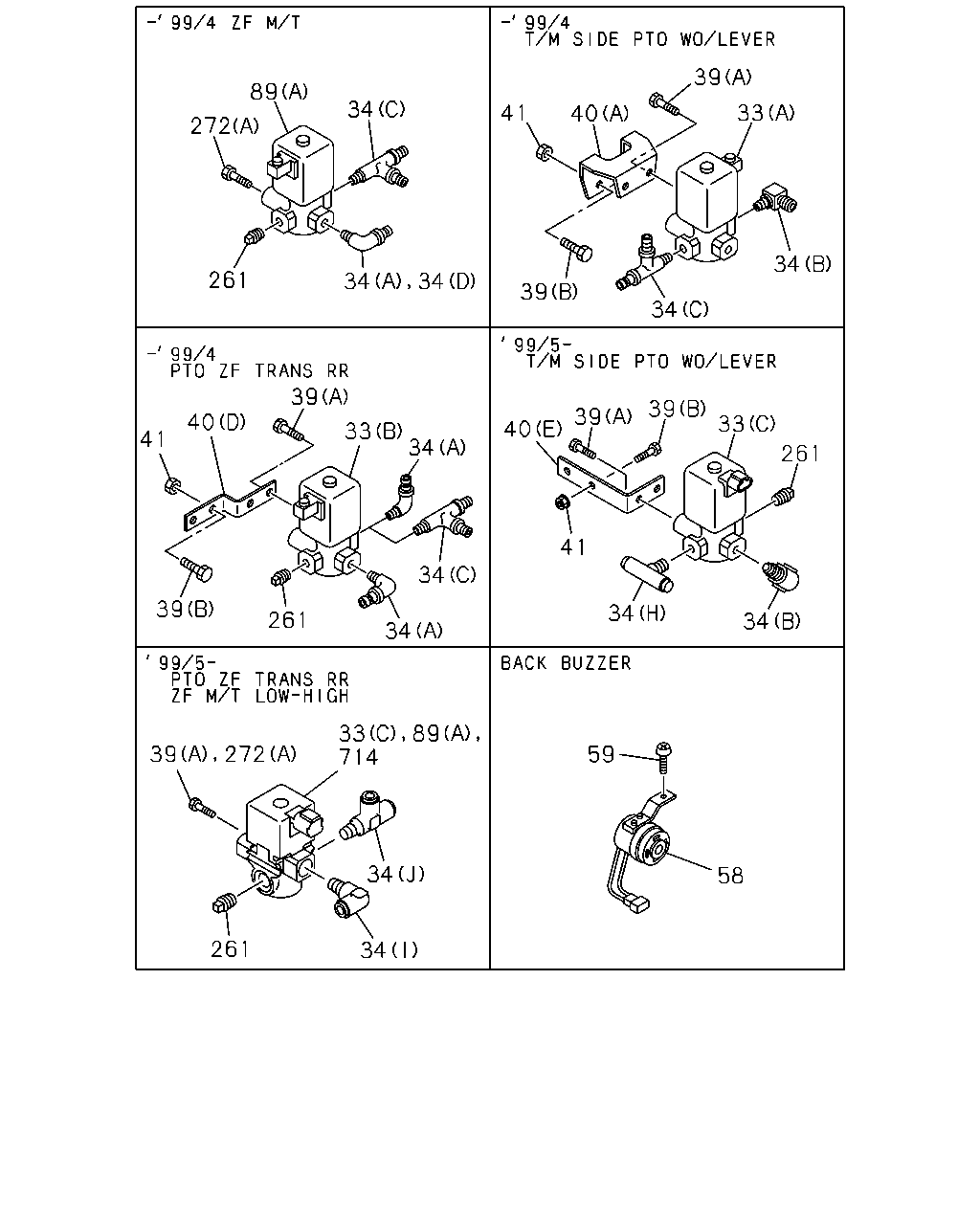

39 89 34 33 41 40 34 261 34 34 39 34 39 39 39 40 33 40 33 34 41 261 41 34 39 34 261 34 34 714 39 272 59 34 58 261 34 33 89 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) (B)	1-82563-600-3	01	1	9603-9904	●	●
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82563-871-1	01	1	9905-9909	●	●
33	VALVE; MAG,PTO CONT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (C)	1-82563-871-2	01	1	9910-	●	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82563-871-2	01	1	9910-	●	●
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9603-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-9910		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-		●
34	CONNECTOR; MAG VLV,INL PORT (L) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9603-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9907-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9804-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9907-		●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9608	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-9904	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (D)	1-82569-175-1	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (E)	1-82569-279-0	01	1	9905-	●	●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9603-9606	●	●
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9603-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-	●	●
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	9603-	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9905-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9603-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9905-9906	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9907-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9905-9909		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9910-		●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	9603-9606	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9608	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	9609-9904	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904		●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	9905-	●	●

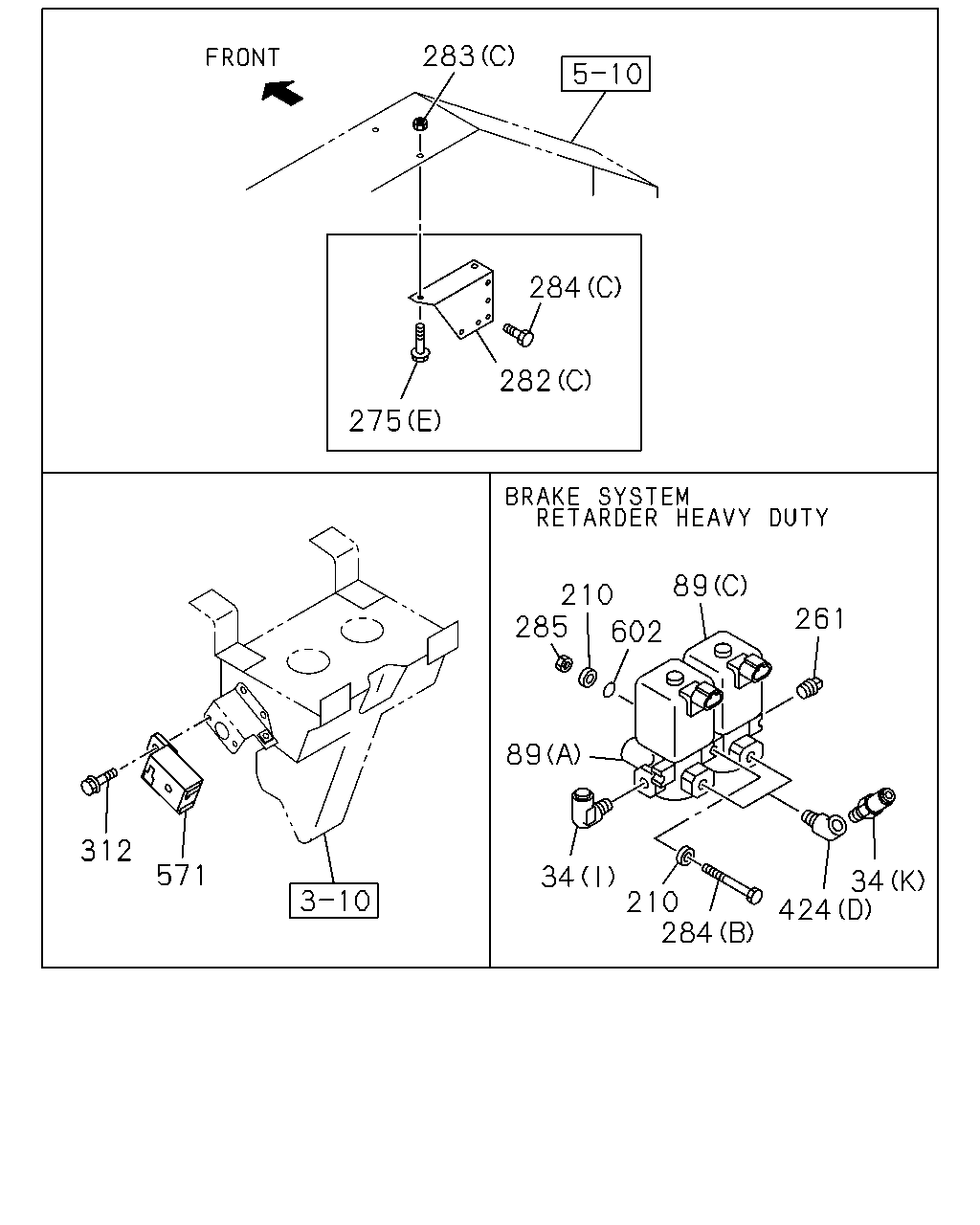

275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-		●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-	●	●
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706	●	●
282	BRACKET; MAG VLV ELECTRONIC GOV RED3(KG5) (B)	1-82569-174-2	01	1	9707-9904	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9905-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9603-	●	●
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
283	NUT; BRKT ELECTRONIC GOV RED3(KG5) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10	9-09110-510-0	01	1	9603-9606	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-		●
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9706	●	●
284	BOLT; MAG VLV ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	9905-		●

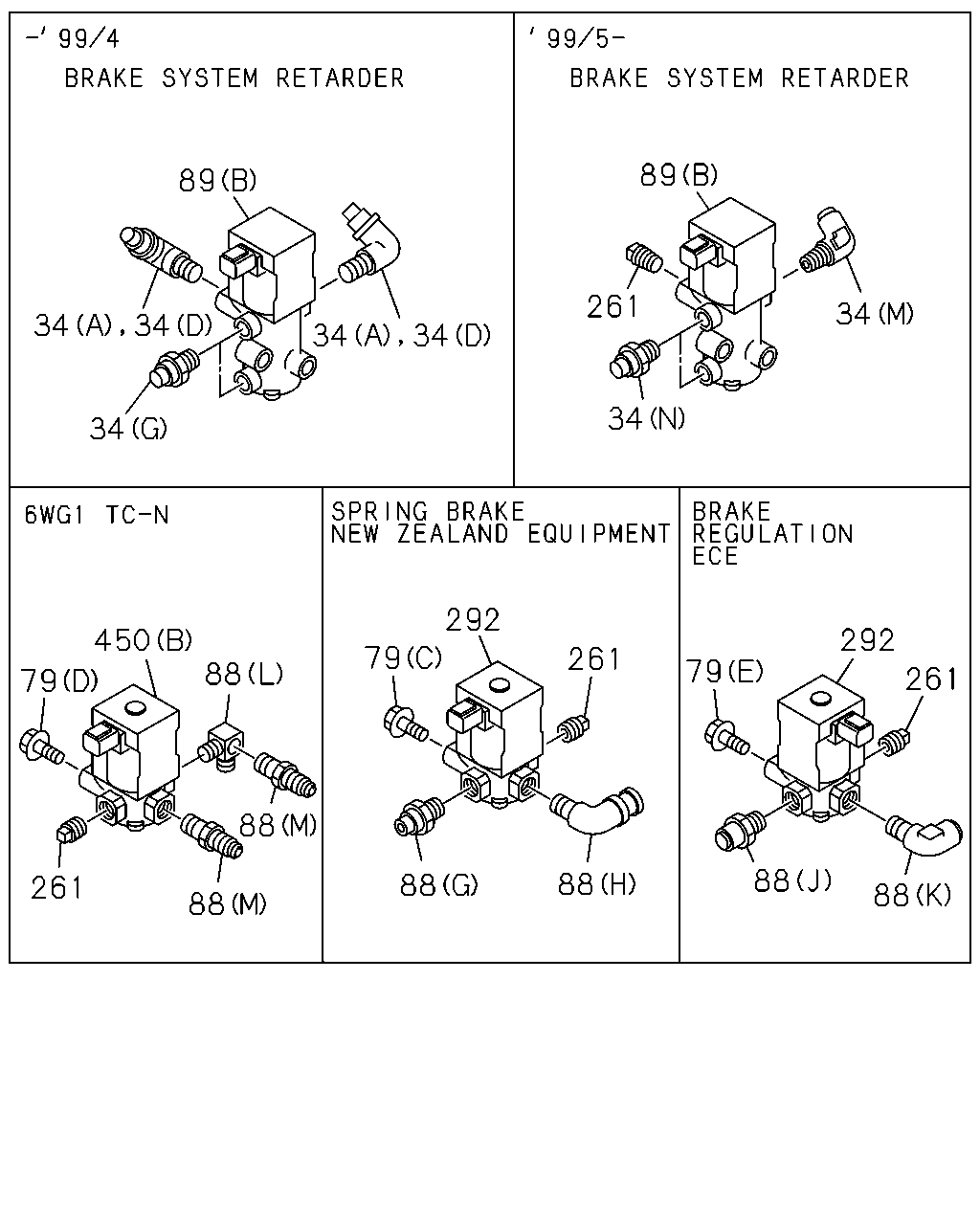

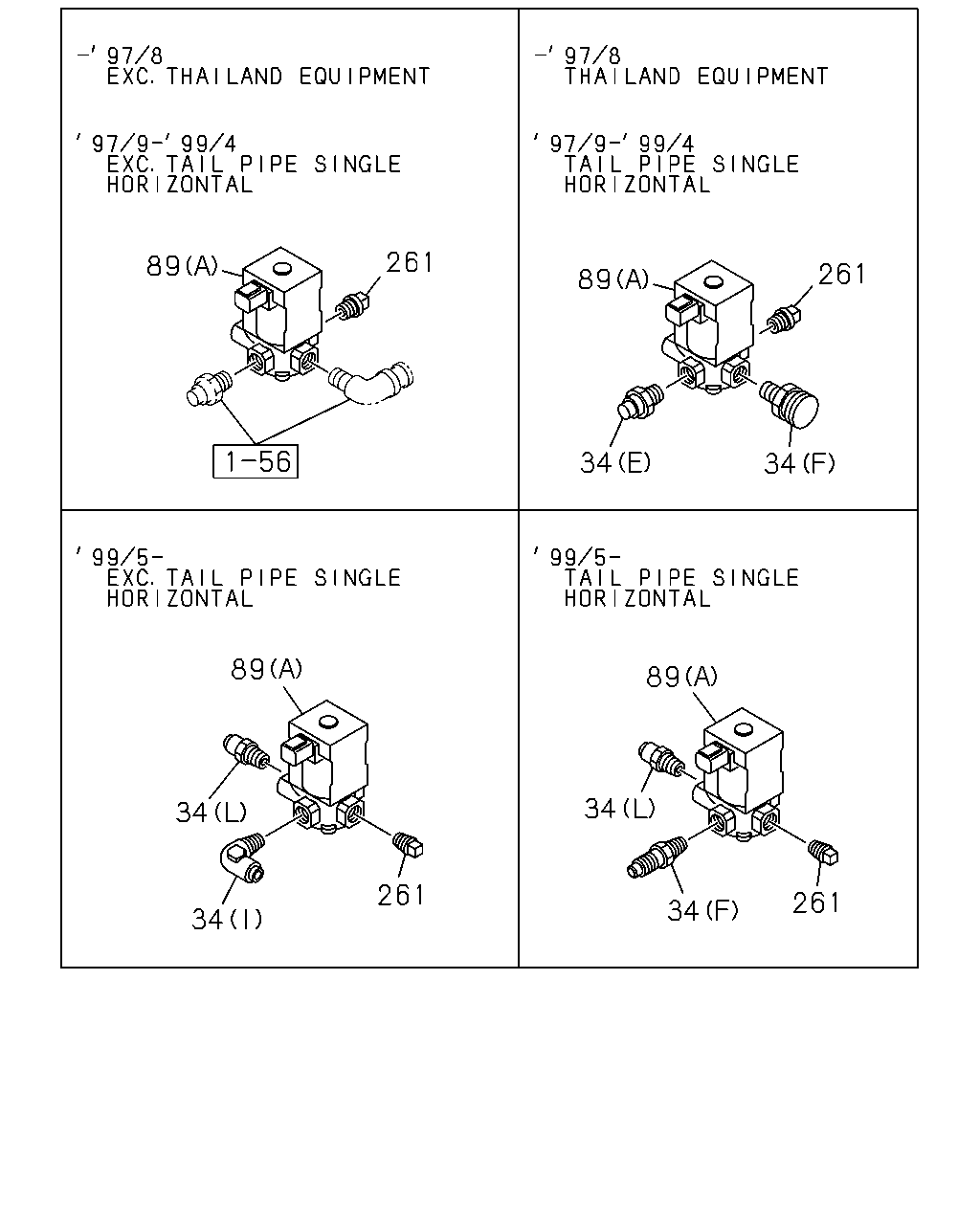

261 89 261 89 34 34 89 89 34 34 261 261 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-9910		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-		●
34	CONNECTOR; MAG VLV,INL PORT (L) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9603-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9907-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9804-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9907-		●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9905-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9603-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9905-9906	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9907-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9905-9909		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9910-		●

275 507 386 275 174 283 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9603-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9904-9907	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> METRO DENSO	1-83460-088-1	01	1	9908-	●	●
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	9603-9706	●	●
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60> L=800	1-83129-031-1	01	1	9707-9904	●	●
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800	1-83129-031-1	01	1	9905-	●	●
174	COVER CAB UP +50MM<W60> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9707-9904		●
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-	●	●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-		●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-	●	●
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
283	NUT; BRKT ELECTRONIC GOV RED3(KG5) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10	9-09110-510-0	01	1	9603-9606	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-		●
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	9603-	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=2000 OD=6	1-09368-930-0	01	1	9603-9706	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60> L=800 SERVICED BY L=2000 OD=6	1-09368-930-0	01	1	9707-9904	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-0103	●	●
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-	●	●
507	TUBE; NYLON CAB UP +50MM<W60> L=800 SERVICED BY L=2000 OD=6	1-09368-930-0	01	1	9707-9904		●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-0103	●	●
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-	●	●

89 89 261 34 34 34 34 34 34 34 292 292 450 88 79 261 79 261 79 88 88 88 88 261 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-9910		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-		●
34	CONNECTOR; MAG VLV,INL PORT (L) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9603-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9907-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9804-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9907-		●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-0103	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606		●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608		●
79	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> NEW ZEALAND EQUIPMENT(PK5) (C) M8X35 FLANGE	0-28680-835-0	02	1	9609-9904		●
79	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> BRAKE REGULATION ECE<TDV> (E) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904		●
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (E) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
79	BOLT; MAG VLV 6WG1 TC-N(71L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904	●	●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-		●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-		●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (F) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (M) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9905-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9603-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9905-9906	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9907-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9905-9909		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9910-		●
292	VALVE; MAG SPR BRK NEW ZEALAND EQUIPMENT(PK5)	1-82563-600-3	01	1	9603-9904		●
292	VALVE; MAG SPR BRK BRAKE REGULATION ECE<TDV>	1-82563-871-2	01	1	9905-	●	●
450	VALVE; MAG FULL FLOATING CAB(W16) (A)	1-53458-378-2	01	1	9603-	●	●
450	VALVE; MAG 6WG1 TC-N(71L) (B)	1-82563-600-3	01	1	9707-9904		●

188 88 88 81 88 77 505 88 79 424 88 282 51 78 88 79 387 188 77 381 505 456 40 1 51 78 46 44 50 424 45 424 49

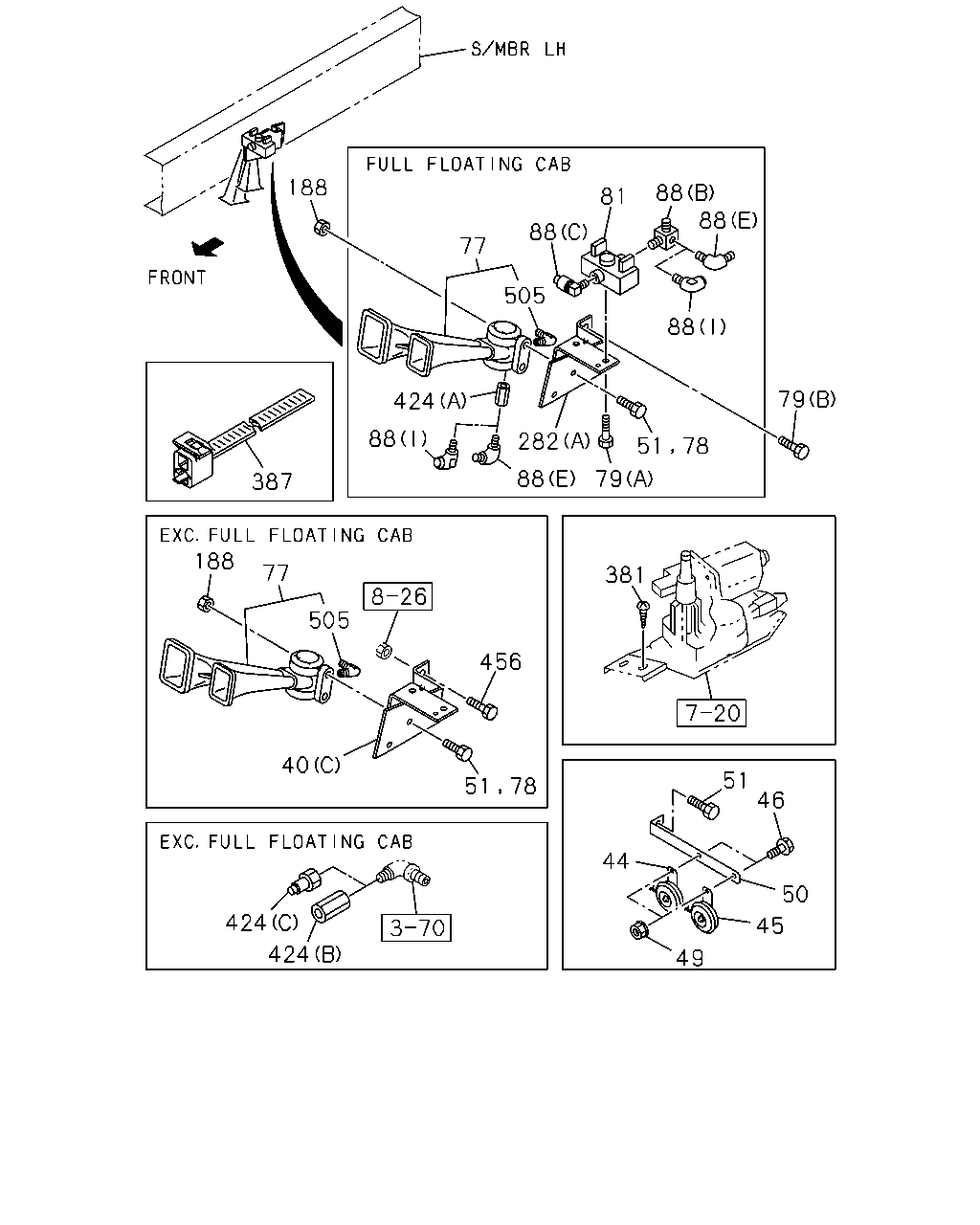

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-060-0	01	1	9603-	●	●
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-0	01	1	9603-		●
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (D)	1-82569-175-1	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (E)	1-82569-279-0	01	1	9905-	●	●
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	9905-		●
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	9905-		●
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	9905-		●
50	BRACKET; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-53458-901-0	01	1	0103-		●
51	BOLT; HORN TO BRKT ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X30 FLANGE	0-28680-830-0	01	1	0103-		●
51	BOLT; HORN TO BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9604	●	●
77	HORN ASM	1-83430-038-1	01	1	9603-9904	●	●
77	HORN ASM	1-83430-041-1	01	1	9905-	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-0103	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X35 FLANGE	0-28080-835-0	02	1	9603-9606		●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (C) M8X30 FLANGE	0-28080-830-0	02	1	9607-9608		●
79	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> NEW ZEALAND EQUIPMENT(PK5) (C) M8X35 FLANGE	0-28680-835-0	02	1	9609-9904		●
79	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> BRAKE REGULATION ECE<TDV> (E) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
79	BOLT; MAG VLV NEW ZEALAND EQUIPMENT(PK5) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904		●
79	BOLT; MAG VLV BRAKE REGULATION ECE<TDV> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (E) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
79	BOLT; MAG VLV 6WG1 TC-N(71L) (D) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904		●
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904	●	●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-		●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-		●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (F) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (M) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
188	NUT; AIR HORN M8	9-09110-408-0	02	1	9603-9605	●	●
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706	●	●
282	BRACKET; MAG VLV ELECTRONIC GOV RED3(KG5) (B)	1-82569-174-2	01	1	9707-9904	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9905-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9603-	●	●
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	9603-	●	●
387	CLIP; BAND FULL FLOATING CAB(W16) CAB UP +50MM<W60> L=250	1-09707-126-0	01	1	9806-9904		●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9603-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9904	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●	●
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4	1-09664-211-0	02	1	9905-		●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M8X35 FLANGE	0-28680-835-0	02	1	9607-9709	●	●
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9710-	●	●
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9904	●	●
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-	●	●

88 46 44 45 87 49 88 90 97 96 64 66 65 95

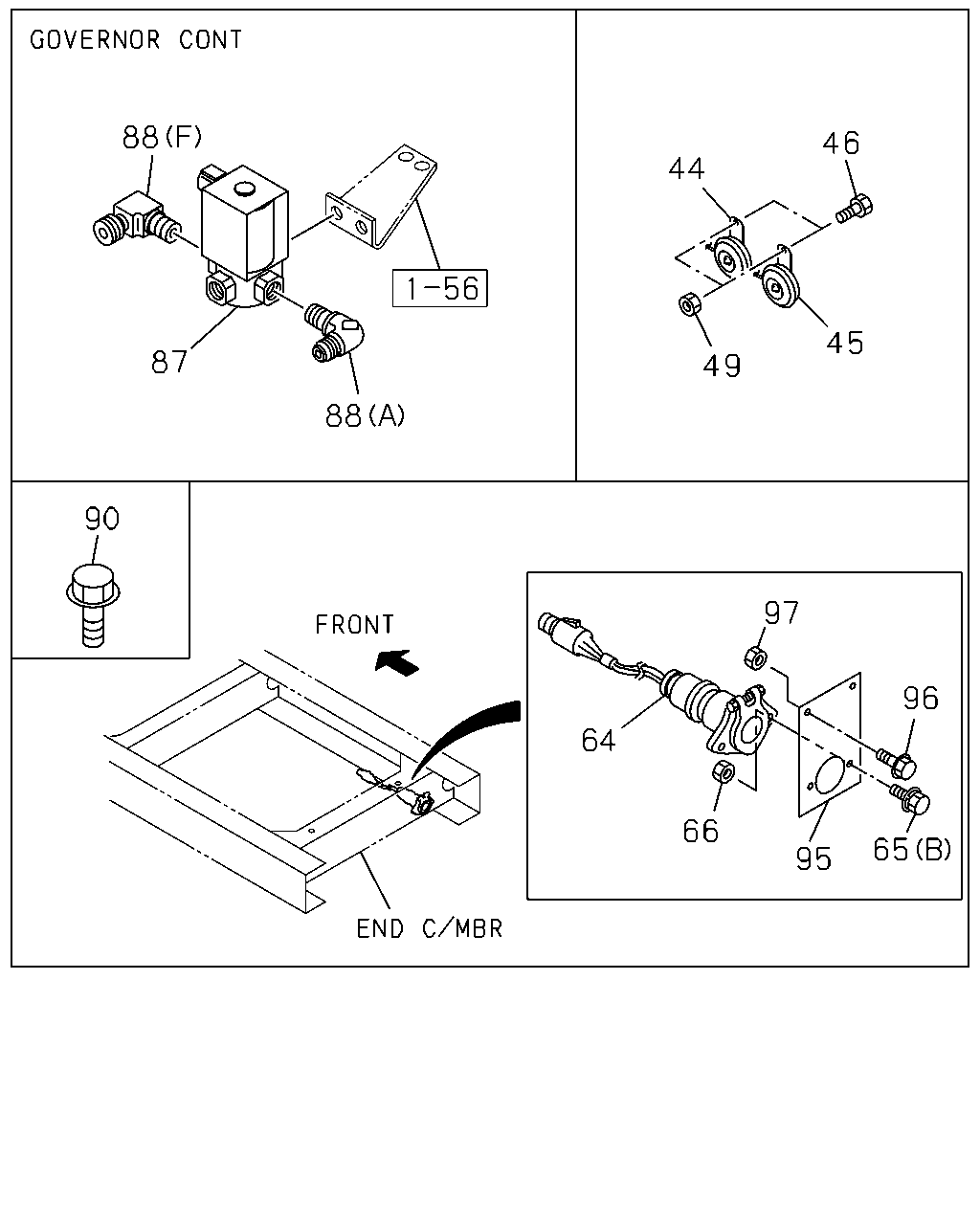

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	9905-		●
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	9905-		●
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	9905-		●
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	9905-		●
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> 7P	1-82523-014-0	01	1	9603-		●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	9603-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606		●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-		●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8	9-09110-408-0	02	1	9603-9606		●
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9607-		●
87	VALVE; MAG,GOV CONT V TYPE ENG<91L> GOVERNOR CONTROL<W69>	1-82563-599-3	01	1	9603-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904	●	●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-		●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-		●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (F) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (M) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
90	BOLT; MAG VLV M8X40 FLANGE	0-28080-840-0	02	1	9603-9606	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X40 FLANGE	0-28080-840-0	02	1	9603-9606		●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28080-835-0	02	1	9603-9606		●
90	BOLT; MAG VLV M8X30 FLANGE	0-28080-830-0	02	1	9607-9608	●	●
90	BOLT; MAG VLV M8X35 FLANGE	0-28680-835-0	02	1	9609-9904	●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9609-9904		●
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	02	1	9609-9904		●
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6>	1-82699-387-0	01	1	9603-		●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X30 FLANGE	0-28080-830-0	02	1	9603-9606		●
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8X25 FLANGE	0-28680-825-0	02	1	9607-		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8	9-09110-408-0	02	1	9603-9606		●
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	9607-		●

283 284 282 275 89 210 285 261 602 89 312 571 34 210 284 34 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9803		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (J) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (E) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M20 & PT1/4	9-09902-386-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT THAILAND EQUIPMENT(PM9) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9703-9708	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9709-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-9910		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2> (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9911-		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-09660-718-1	01	1	9804-9904	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9909		●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-		●
34	CONNECTOR; MAG VLV,INL PORT (L) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9905-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9603-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (N) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9907-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9804-9904		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9906	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (M) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9907-		●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-2	01	1	9603-9706	●	●
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-600-3	01	1	9707-9904	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-600-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	9905-	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-601-3	01	1	9707-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82563-872-1	01	1	9905-		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-4	01	1	9603-9904		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9905-9906	●	●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-597-5	01	1	9907-		●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	9905-		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9603-9706	●	●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9603-9706		●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9707-9904	●	●
261	PLUG; MAG VLV 6WG1 TC-N(71L) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV NEW ZEALAND EQUIPMENT(PK5) PT1/4	9-99204-513-0	01	1	9707-9904		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9909	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9905-9909		●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9910-	●	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	9910-		●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-		●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-	●	●
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9706	●	●
282	BRACKET; MAG VLV ELECTRONIC GOV RED3(KG5) (B)	1-82569-174-2	01	1	9707-9904	●	●
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-82569-277-2	01	1	9905-	●	●
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	9603-	●	●
283	NUT; BRKT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	02	1	9610-9706	●	●
283	NUT; BRKT ELECTRONIC GOV RED3(KG5) (B) M8 FLANGE	0-91150-108-0	02	1	9707-9904	●	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10	9-09110-510-0	01	1	9603-9606	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-0103	●	●
283	NUT; BRKT V TYPE ENG<91L> (A) M10 FLANGE	0-91150-210-0	01	1	0104-	●	●
283	NUT; BRKT 6WA1 TC-C(55L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-	●
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M10 FLANGE	0-91150-210-0	01	1	0104-		●
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9706	●	●
284	BOLT; MAG VLV ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9707-9904	●	●
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (C) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	9905-		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	9905-		●
312	BOLT; BUZZER NEW ZEALAND EQUIPMENT(PK5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9706-		●
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9603-	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9904	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005	●	●
424	ADAPTER EXC. FULL FLOATING CAB(W16) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●	●
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) R1/4 & RC1/4	1-09664-211-0	02	1	9905-		●
571	ALARM; EMERGENCY NEW ZEALAND EQUIPMENT(PK5)	1-83460-040-0	01	1	9706-		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	01	1	9905-9910		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	9911-		●

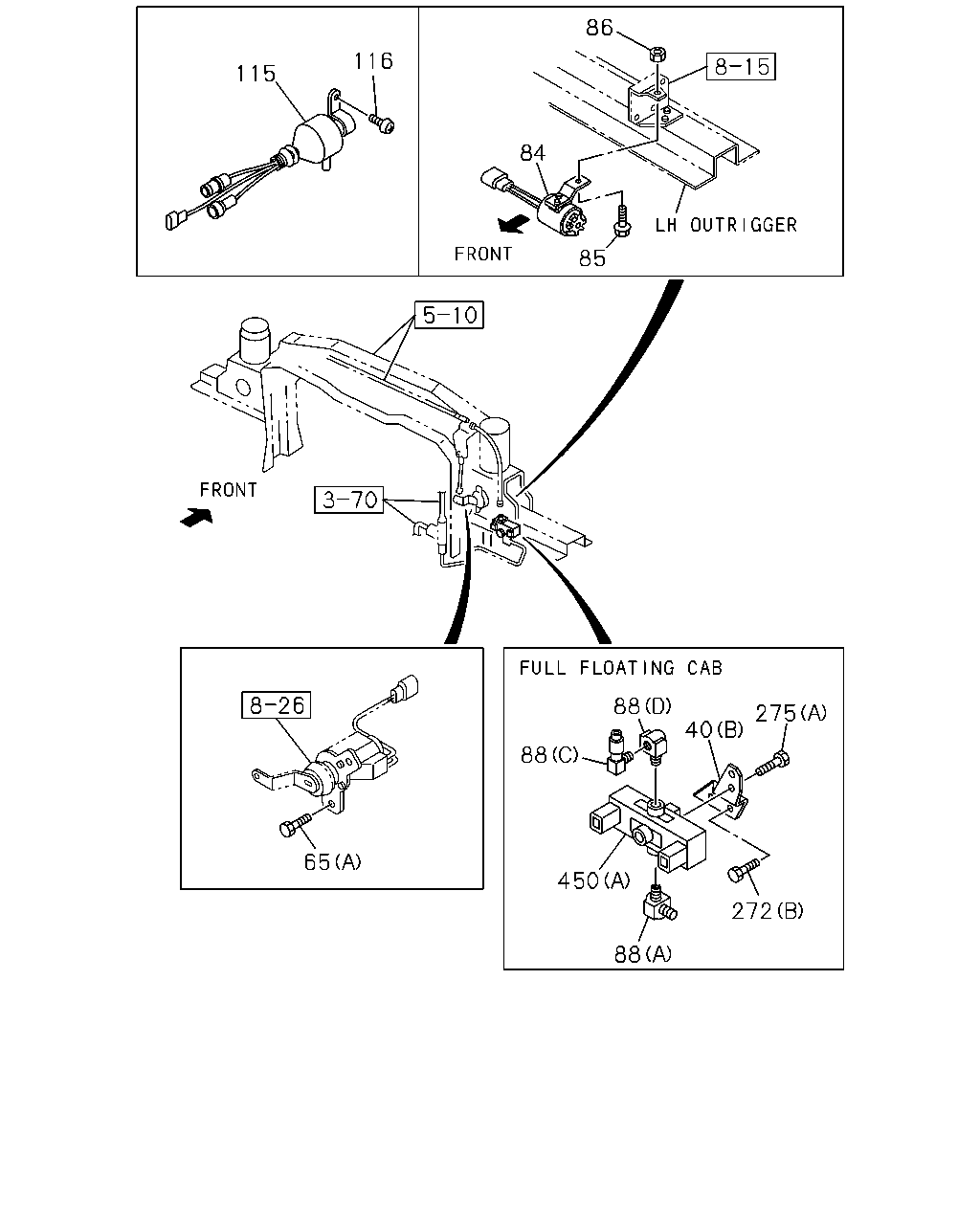

86 116 115 84 85 88 275 40 88 65 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9603-	●	●
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-2	01	1	9603-	●	●
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (D)	1-82569-175-1	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9904	●	●
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (E)	1-82569-279-0	01	1	9905-	●	●
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	9603-	●	●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606		●
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-		●
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9603-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907	●	●
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9607-	●	●
86	NUT; BUZZER M8	9-09110-408-0	01	1	9603-9609	●	●
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9610-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904	●	●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9603-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (I) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-0	01	1	9603-0103	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-	●	●
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-	●	●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (K) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-		●
88	CONNECTOR; MAG VLV EXC. THAILAND EQUIPMENT(PM9) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9708		●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904	●	●
88	CONNECTOR; MAG VLV NEW ZEALAND EQUIPMENT(PK5) (H) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9709-9904		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●	●
88	CONNECTOR; MAG VLV (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910	●
88	CONNECTOR; MAG VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9910		●
88	CONNECTOR; MAG VLV BRAKE REGULATION ECE<TDV> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-	●
88	CONNECTOR; MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (J) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-		●
88	CONNECTOR; MAG VLV V TYPE ENG<91L> GOVERNOR CONTROL<W69> (F) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (M) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9707-9904		●
88	CONNECTOR; MAG VLV 6WG1 TC-N(71L) (L) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9707-9904		●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-071-0	01	1	9603-9606	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9607-	●	●
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907	●	●
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-	●	●
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9603-	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	9603-9606	●	●
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9607-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X25 FLANGE	0-28080-825-0	02	1	9603-9608	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	9609-9904	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	9905-	●	●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	9609-9904		●
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (C) M8X25 FLANGE	0-28680-825-0	02	1	9610-9706	●	●
275	BOLT; BRKT ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	02	1	9707-9904	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103	●	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (E) M8X20 FLANGE	0-28680-820-0	01	1	0104-	●	●
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103	●	●
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●	●
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-	●
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-		●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X20	0-28090-820-0	01	1	9603-9606	●	●
275	BOLT; BRKT V TYPE ENG<91L> (D) M8X25 FLANGE	0-28690-825-0	01	1	9607-	●	●
450	VALVE; MAG FULL FLOATING CAB(W16) (A)	1-53458-378-2	01	1	9603-	●	●
450	VALVE; MAG 6WG1 TC-N(71L) (B)	1-82563-600-3	01	1	9707-9904		●

367 341 429 24 24 29 25 429 331 26 331 22 427 498 121 498 427 498 226 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-		●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-9910	●	●
121	RELAY; PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 24V 12.5A MITUBA	8-97062-815-1	01	1	9911-	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9610-9710		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9711-	●	●
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-	●	●
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA	8-97062-815-0	02	1	9603-9706		●
427	RELAY; RETARDER ELECTRONIC GOV RED3(KG5) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	01	1	9707-9904		●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-9906	●	●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A MITUBA	8-97062-815-1	02	1	9907-		●
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	02	1	9707-9904		●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9610-9904	●	●
429	RELAY; POWER CUT 6WA1 TC-C(55L) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-	●	●
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-	●	●
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
