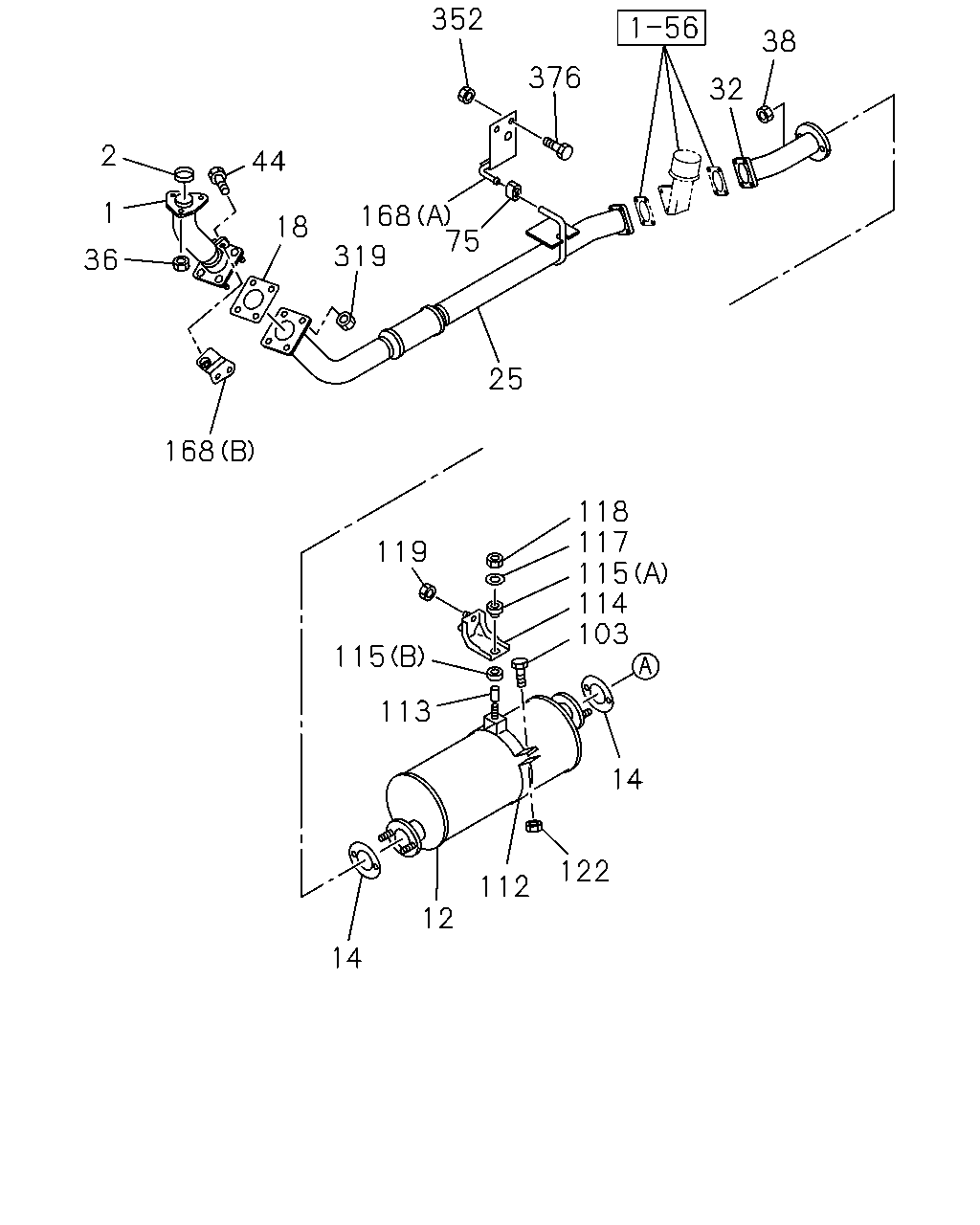

1-50 — EXHAUST PIPE AND SILENCER (#41456) — 81 parça

352 38 376 32 2 44 1 168 75 18 319 36 25 168 118 117 115 114 103 119 115 113 14 122 112 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-97226-272-0	01	1	0505-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0505-
12	03.701 SILENCER ASM; EXH	8-97206-525-3	01	1	0505-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0505-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0505-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	0505-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97201-746-1	01	1	0505-0805
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98125-494-0	01	1	0806-0806
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97201-746-1	01	1	0807-
32	03.609 PIPE; EXH,FRT	8-97254-685-0	01	1	0505-0805
32	03.609 PIPE; EXH,FRT	8-98125-495-0	01	1	0806-
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0505-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0505-0602
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
44	03.613 BOLT; BRKT 00.683 M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0505-0512
44	03.613 BOLT; BRKT	0-50641-050-0	01	1	0601-
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-0	01	1	0505-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0505-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0505-0805
112	03.706 BRACKET; HANGER	8-98125-504-0	01	1	0806-0806
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	0807-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0505-
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	0505-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0505-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0505-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0505-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0505-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0505-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	5-22151-044-0	01	1	0505-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0505-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97226-274-0	01	1	0505-
319	03.602 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	04	1	0505-0602
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-

165 162 164 95 166 104 124 137 105 357 88 94 126 81 88 105 70 88 144 143 168 357 94 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0505-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0505-
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0505-
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	0505-
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0505-0512
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
105	03.704 NUT; CLAMP 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0505-0602
105	03.704 NUT; CLAMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0505-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0505-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0505-0602
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
126	03.705 PIPE; EXH,RR	8-97043-236-0	01	1	0505-
137	03.706 BRACKET; TAIL PIPE	8-94114-022-1	01	1	0505-
143	03.704 RUBBER; SUPPORT	8-97371-655-1	01	1	0505-
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0505-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0505-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0505-0512
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0505-0605
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	5-22151-044-0	01	1	0505-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0505-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97226-274-0	01	1	0505-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0505-0605
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0505-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-
