Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#41453) — 31 parça
◀

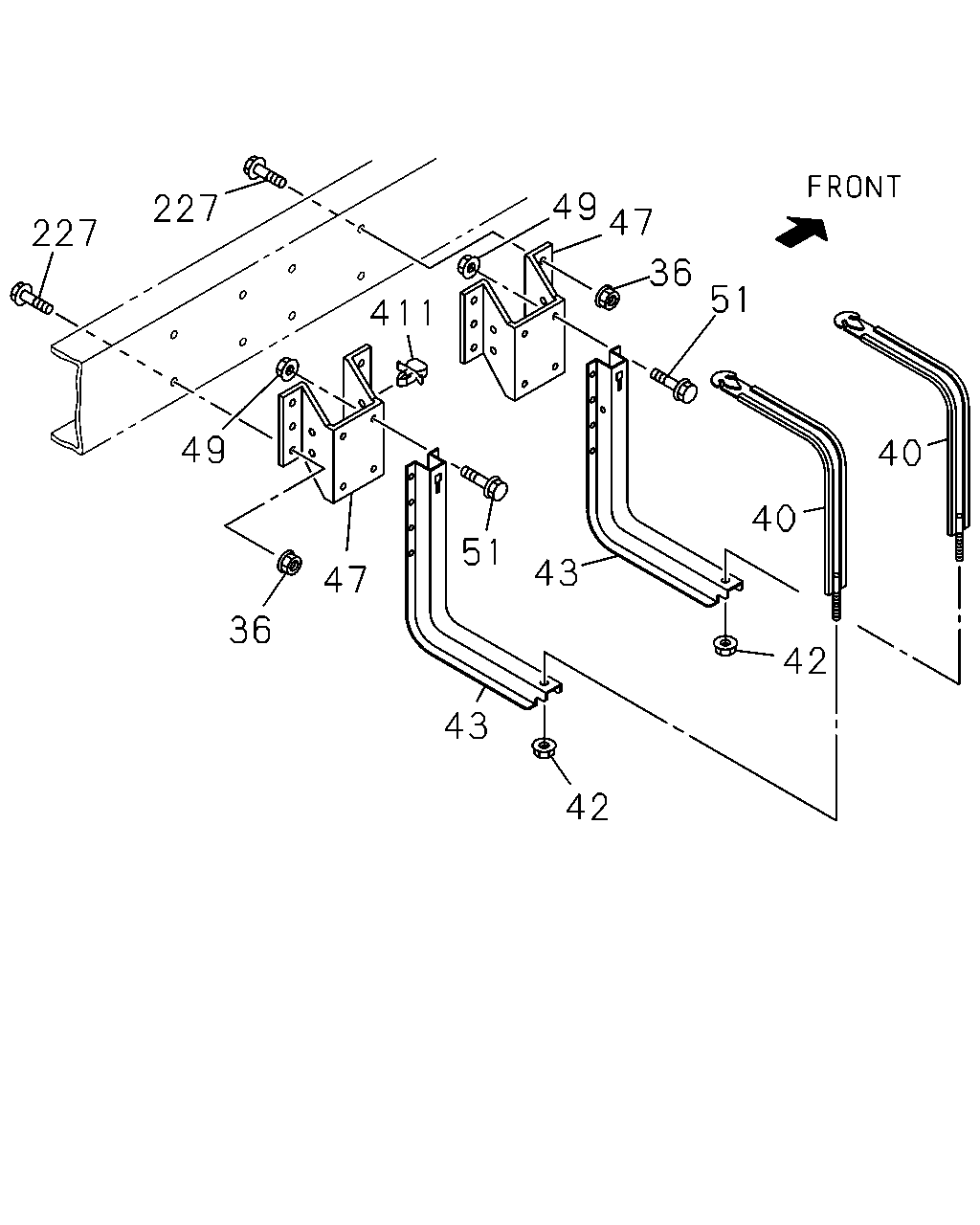

[140A] NO.2 (14 parça)
[140A] NO.1 (17 parça)
▶
49
47
227
227
36
51
411
49
40
40
51
43
47
36
42
43
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
03.015 NUT; SPACER,FUEL TANK
04.785 M10 FLANGE
0-91150-110-0
08
1
0505-0602
36
03.015 NUT; SPACER,FUEL TANK
03.162 M10 FLANGE
0-91180-110-0
08
1
0603-
40
03.022 BELT; SUPPORT,FUEL TANK
8-97169-231-1
02
1
0505-
42
03.023 NUT; SUPPORT BELT
M8 FLANGE
9-09130-408-0
02
1
0505-
43
03.015 BRACKET; FUEL TANK
FRONT
8-97035-517-0
01
1
0505-
43
03.015 BRACKET; FUEL TANK
REAR
8-97181-220-0
01
1
0505-
47
03.023 SPACER; FUEL TANK
8-97063-749-1
02
1
0505-
49
03.023 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
08
1
0505-0602
49
03.023 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
08
1
0603-
51
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28691-030-0
08
1
0505-0512
51
03.023 BOLT; BRKT TO FRAME
07.068 M10X30 FLANGE
0-28661-030-0
08
1
0601-
227
03.015 BOLT; SPACER,FUEL TANK
03.162 M10X35 FLANGE
0-28681-035-0
08
1
0505-0512
227
03.015 BOLT; SPACER,FUEL TANK
02.277 M10X35 FLANGE
0-28651-035-0
08
1
0601-
411
02.559 CLIP; FUEL TANK UNIT HARNESS
ID=6.5
8-94257-639-0
01
1
0505-
6
614
1
19
3
158
159
452
25
8
11
10
10
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
979X380X375 100L
8-97375-634-3
01
1
0505-
3
03.107 UNIT; FUEL TANK,SUB
8-97363-006-0
01
1
0505-
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER
9-03910-510-0
05
1
0505-0603
6
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
02.361 M5X10 W/LK WASHER
0-36220-510-0
05
1
0604-
8
03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17
9-09572-008-0
01
1
0505-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.483 (A) T=10.5
5-09709-014-0
AR
1
0505-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (B) T=6.0
5-09709-024-0
AR
1
0505-
10
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
(B) T=9 & 10.5
8-97041-091-0
AR
1
0505-
11
03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE
0-28080-812-0
01
1
0505-0512
11
03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE
0-28050-812-0
01
1
0601-
19
03.112 GASKET; FUEL TANK UNIT
8-97363-616-0
01
1
0505-
25
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
8-94258-609-1
01
1
0505-
158
03.164 VALVE; ROLL OVER & FLOAT
8-97179-645-0
01
1
0505-
159
03.015 SEAL; ROLL OVER & FLOAT VALVE
8-97326-488-0
01
1
0505-
452
03.028 BREATHER; FUEL TANK
8-97357-261-0
01
1
0505-
492
03.028 CLIP; HARNESS TO VAC HOSE
02.559 L=250
5-09707-030-1
01
1
0505-
614
03.028 HARNESS; FUEL
8-97363-614-0
01
1
0505-
