Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

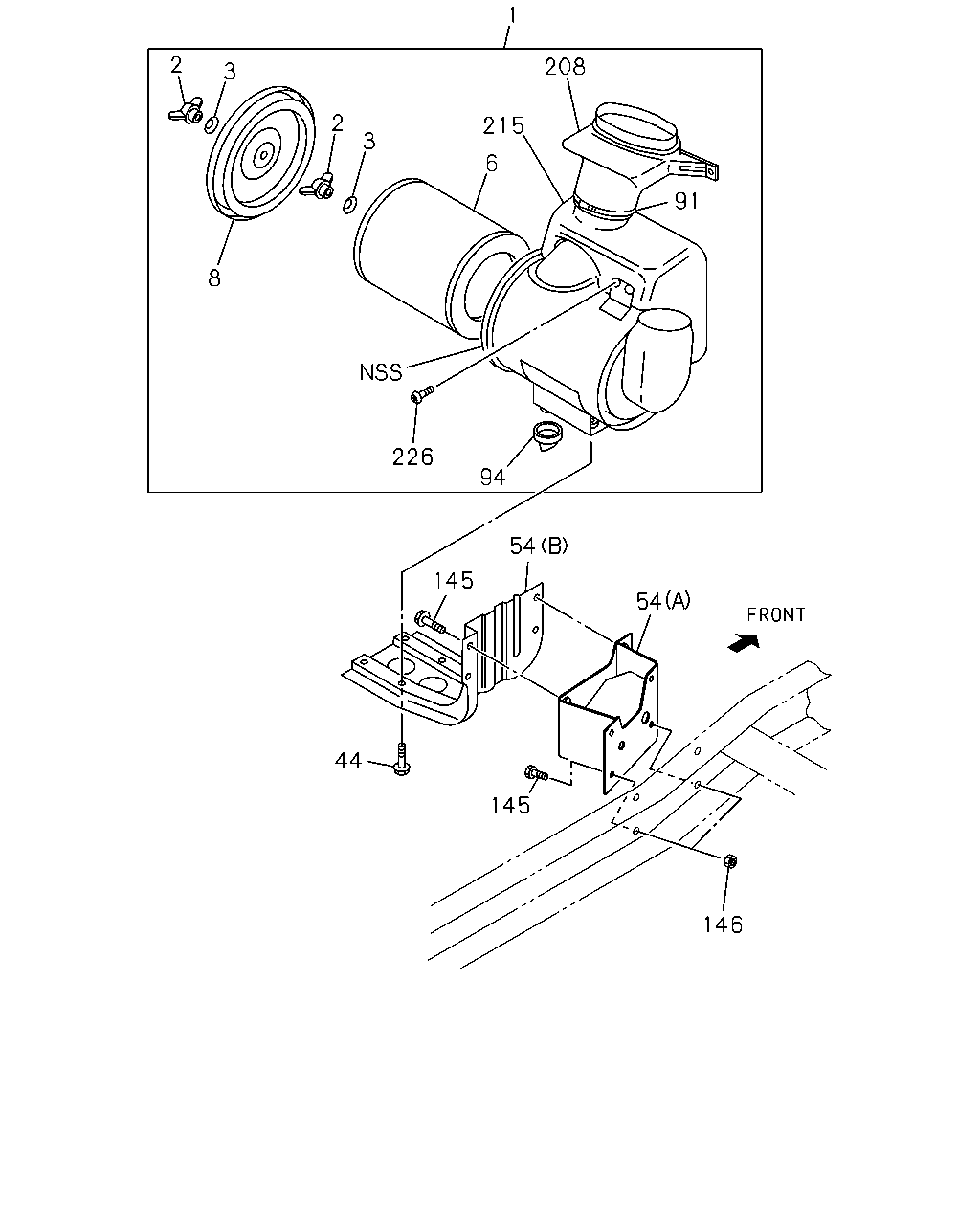

1-30 — AIR CLEANER
(#41451) — 20 parça
1
2
208
3
2
215
3
6
91
8
226
94
54
145
54
44
145
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.402 CLEANER ASM; AIR
8-97331-412-1
01
1
0505-
2
03.403 NUT; WING,ELEMENT
1-14217-068-0
02
1
0505-
3
03.403 WASHER; SEAL,WING NUT
1-14219-225-0
02
1
0505-
6
03.410 FILTER; ACL
8-94156-052-0
01
1
0505-
8
03.410 COVER ASM; ACL
8-97093-023-0
01
1
0505-
44
03.403 BOLT; ACL
02.510 M8X25 W/LK&PL WASHER
0-50140-825-0
04
1
0505-0512
44
03.403 BOLT; ACL
M8X25 W/LK&PL WASHER
0-50640-825-0
04
1
0601-
54
03.405 BRACKET; ACL
(A)
8-97043-084-2
01
1
0505-
54
03.405 BRACKET; ACL
(B)
8-97170-449-1
01
1
0505-
91
03.403 CLAMP
8-97093-696-2
01
1
0505-
94
03.415 VALVE; VACUATOR
8-94447-157-0
01
1
0505-
145
03.405 BOLT; BRKT TO FRAME
M10X25 FLANGE
0-28681-025-0
04
1
0505-0512
145
03.405 BOLT; BRKT TO FRAME
00.029 M10X25 FLANGE
0-28651-025-0
04
1
0601-
145
03.405 BOLT; BRKT TO FRAME
03.162 M10X35 FLANGE
0-28681-035-0
04
1
0505-0512
145
03.405 BOLT; BRKT TO FRAME
02.277 M10X35 FLANGE
0-28651-035-0
04
1
0601-
146
03.405 NUT; BRKT TO FRAME
04.785 M10 FLANGE
0-91150-110-0
04
1
0505-0602
146
03.405 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
04
1
0603-
208
03.407 DUCT; ACL
8-97074-907-1
01
1
0505-
215
03.402 SILENCER ASM; INT,ACL
8-97074-906-1
01
1
0505-
226
03.405 SCREW; SILENCER
8-94158-135-0
04
1
0505-
