8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#4145) — 103 parça
çizim 6495
244 603
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9610- ● ●
603 COVER; CONT UNIT,SEAT STAND
(A) 		1-75558-523-4 01 1 9610- ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> (B) 		1-72538-160-2 01 1 9905-0011 ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> (B) 		1-72538-160-2 01 1 0012- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-72538-160-2 01 1 0012- ●

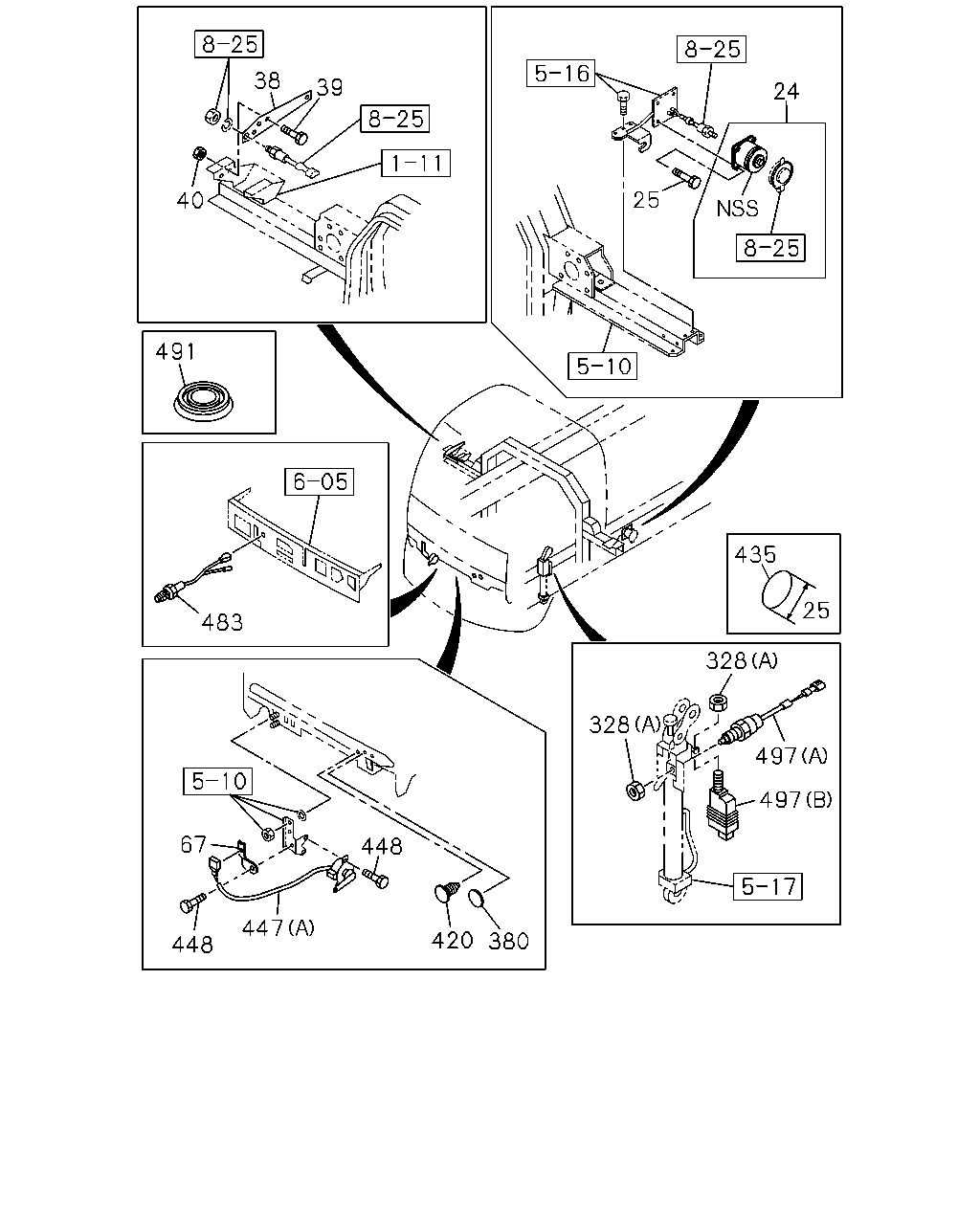

çizim 39031
38 39 24 25 40 491 435 25 483 328 328 497 497 67 448 447 420 380 448
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9603- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 04 1 9603-9606 ● ●
25 BOLT; SW BOX
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9607-9609 ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9610- ● ●
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9603- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 		9-09110-408-0 02 1 9603-9606 ● ●
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
67 BRACKET; CONT UNIT
FULL FLOATING CAB(W16) 		1-82699-355-1 01 1 9603- ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603- ● ●
328 NUT
ELEC OUTLET 12V<TAW> (B) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9603-9611 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9603-9611 ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9612-9612 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9612-9612 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 05 1 9701-9802 ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9803-9804 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9803-9804 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 9805-9904 ● ●
380 SEAL
EXC. DELUXE CAB(W14) OD=25 BLACK 		1-76798-019-0 01 1 9905- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9701-9802 ● ●
380 SEAL
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 04 1 9803- ● ●
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 9805- ● ●
420 PLUG; SWITCH
OD=15 BLACK 		8-94279-804-0 01 1 9603-9611 ● ●
420 PLUG; SWITCH
EXC. ELECTRONIC GOV RED3(KG5) OD=15 BLACK 		8-94279-804-0 01 1 9612-9803 ● ●
420 PLUG; SWITCH
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804 ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 9603-9610 ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 04 1 9611-0103 ● ●
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0104- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9603- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9603- ● ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
483 SWITCH
DELUXE CAB(W14) 		1-82440-092-0 01 1 9905-0003 ● ●
483 SWITCH
DELUXE CAB(W14) 		1-82440-118-0 01 1 0004- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9603- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9603- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9603- ● ●

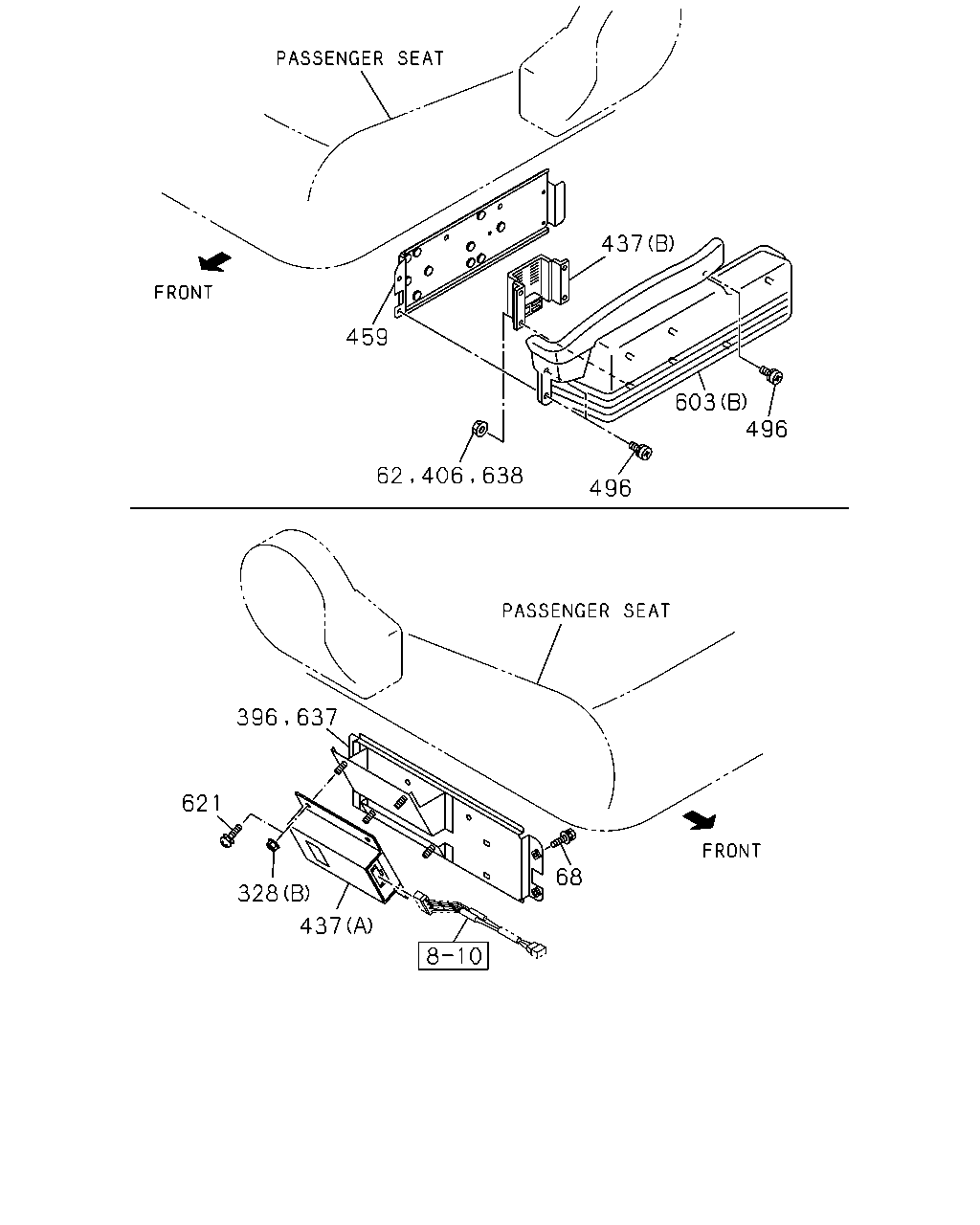

çizim 39543
437 459 603 496 496 621 68 328 437 62 406 638 396 637
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 9905-0011 ● ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 0012- ●
62 NUT; BRKT
ELEC OUTLET 12V<TAW> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M6 FLANGE 		0-91150-106-0 02 1 0012- ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907 ● ●
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908- ● ●
328 NUT
(A) M16 		9-99111-416-0 02 1 9603- ● ●
328 NUT
ELEC OUTLET 12V<TAW> (B) M6 FLANGE 		0-91150-106-0 04 1 9905-9907 ● ●
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) M6 FLANGE 		0-91150-106-0 04 1 9908-9911 ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907 ● ●
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908- ● ●
406 NUT; COVER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-9910 ● ●
406 NUT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9911- ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-005-0 01 1 9905- ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-037-0 01 1 9905-9907 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) 		1-84122-037-1 01 1 9908-0008 ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) MITSUBISHI 		1-84122-034-1 01 1 0009- ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 9905-0011 ● ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 0012- ●
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75558-488-5 01 1 0012- ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9905-0011 ● ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0012- ●
496 SCREW; COVER
ELEC OUTLET 12V<TAW> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0012- ●
603 COVER; CONT UNIT,SEAT STAND
(A) 		1-75558-523-4 01 1 9610- ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> (B) 		1-72538-160-2 01 1 9905-0011 ● ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> (B) 		1-72538-160-2 01 1 0012- ●
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-72538-160-2 01 1 0012- ●
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912- ● ●
637 BRACKET; DC-DC CONVERTER
DRIVER ISRINGHAUSEN SEAT(SJA) ELEC OUTLET 12V<TAW> 		1-75557-474-1 01 1 0012- ●
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905- ● ●

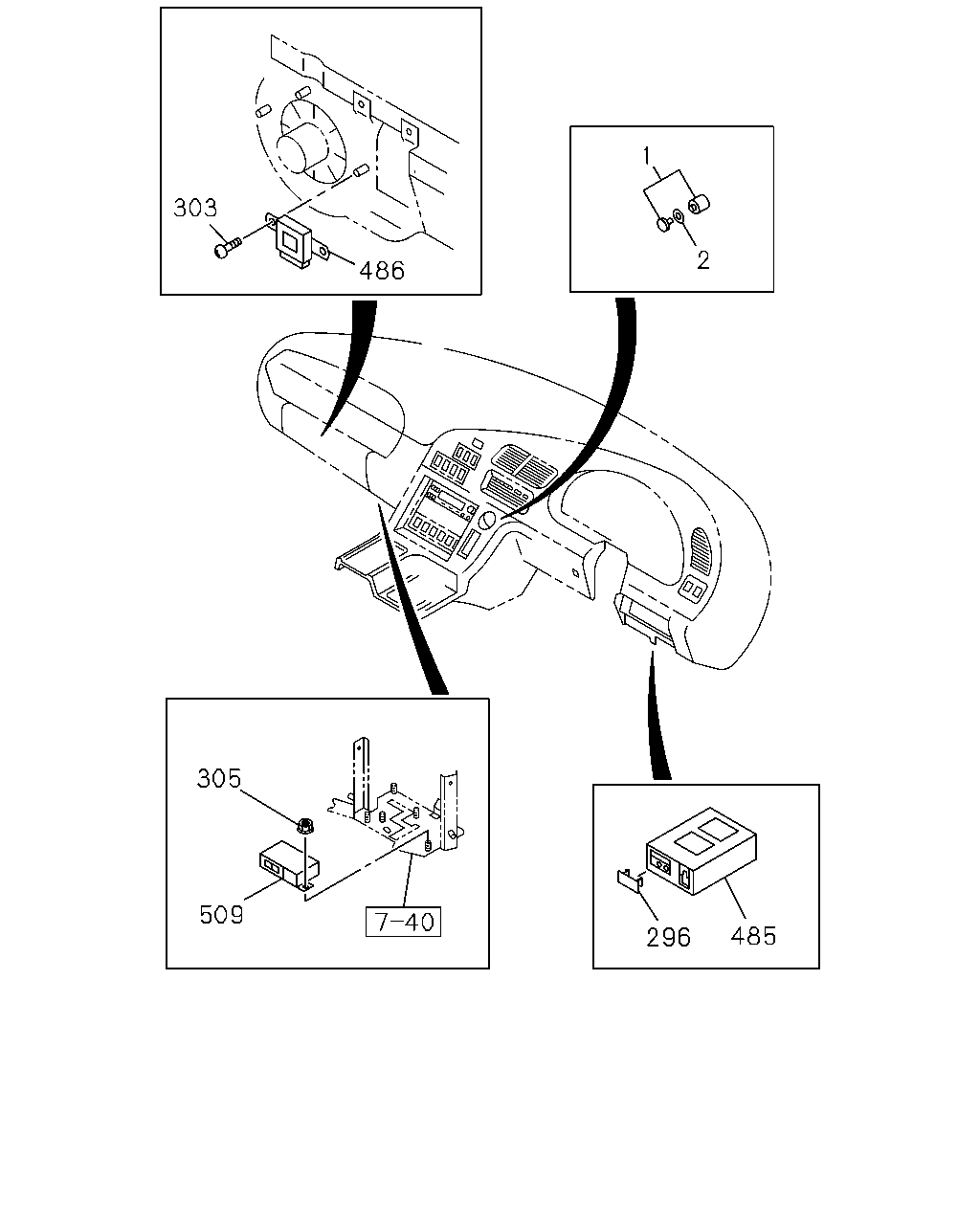

çizim 40444
1 303 2 486 305 509 485 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9603- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9603- ● ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9603-9904 ● ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9603- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9603- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9603-9904 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9905- ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9603- ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-82505-179-1 01 1 9603-9603 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) '960318- 		1-82505-228-0 01 1 9603-9701 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-030-0 01 1 9702-9904 ● ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-032-0 01 1 9905- ● ●

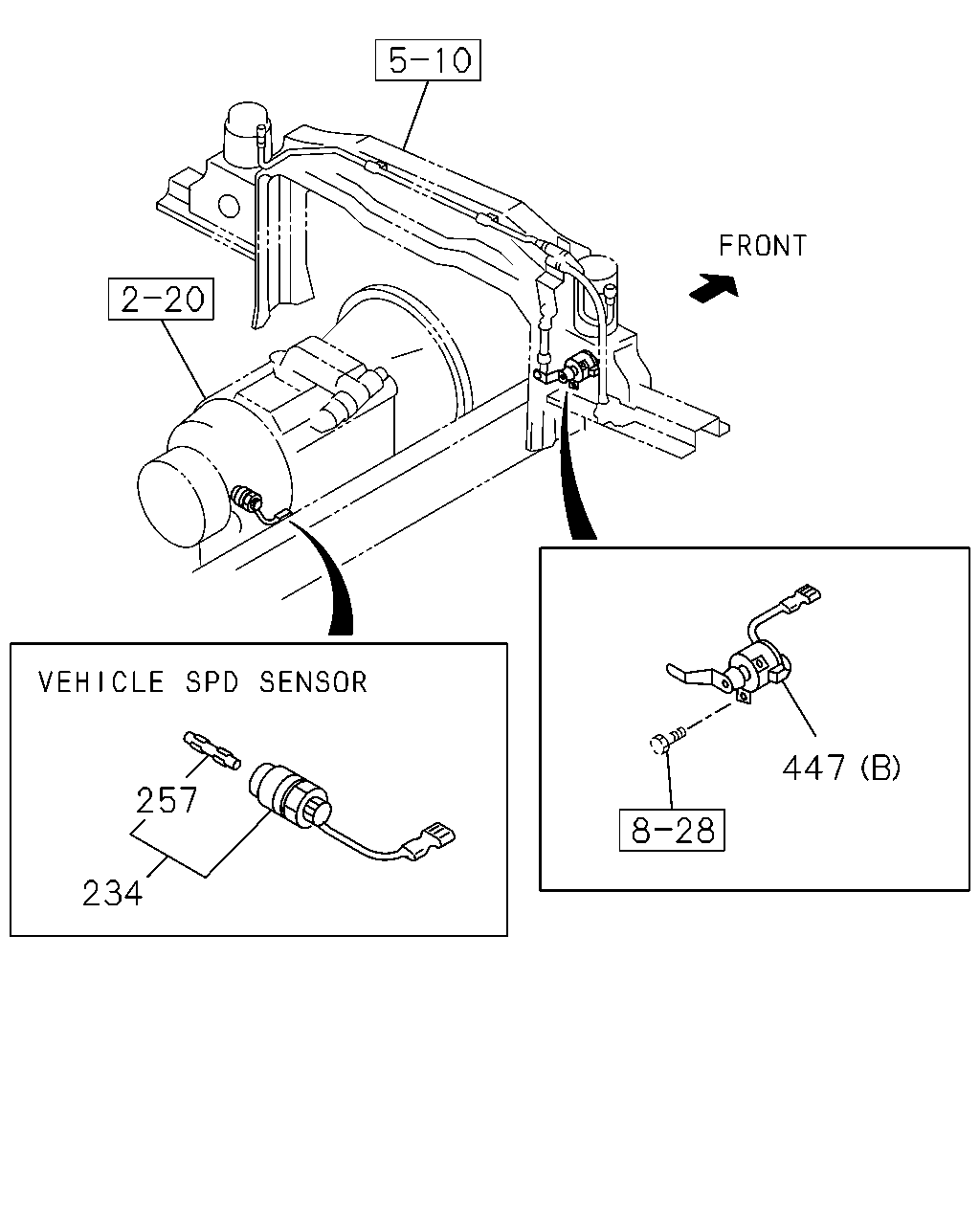

çizim 42247
257 234 447
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD 1-83127-254-2 01 1 9603-9803 ● ●
234 SENSOR; VEHICLE SPD
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MAL6Q M/T(Y1M),TRANSMISSION-ZF 16S151 OD (Y2N) 		1-83127-254-3 01 1 9804-9904 ● ●
234 SENSOR; VEHICLE SPD
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MAL6Q M/T(Y1M),TRANSMISSION-ZF 16S151 OD (Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80240-001-0 01 1 9905-9910 ● ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-80240-001-1 01 1 9911- ● ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO167 18 OD(Y3M) 25 PULSE 		1-83127-414-0 01 1 9804-9804 ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) 25 PULSE 		1-83127-414-0 01 1 9805-9904 ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) 25 PULSE 		1-83127-414-0 01 1 9905-9905 ● ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) 25 PULSE 		1-83127-414-0 01 1 9906-9910 ● ●
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 9911- ● ●
257 KEY; SPEED SENSOR 1-83129-125-0 01 1 9603-9803 ● ●
257 KEY; SPEED SENSOR
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MAL6Q M/T(Y1M),TRANSMISSION-ZF 16S151 OD (Y2N) 		1-83129-125-0 01 1 9804-9904 ● ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO167 18 OD(Y3M) 		1-83129-073-0 01 1 9804-9804 ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO147 13 OD(Y2P), TRANSMISSION-FULLER RTLO167 18 OD(Y3M) 		1-83129-073-0 01 1 9805-9904 ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-83129-073-0 01 1 9905-9905 ● ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-83129-073-0 01 1 9906-9910 ● ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 9911- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9603- ● ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9603- ● ●
