1 |

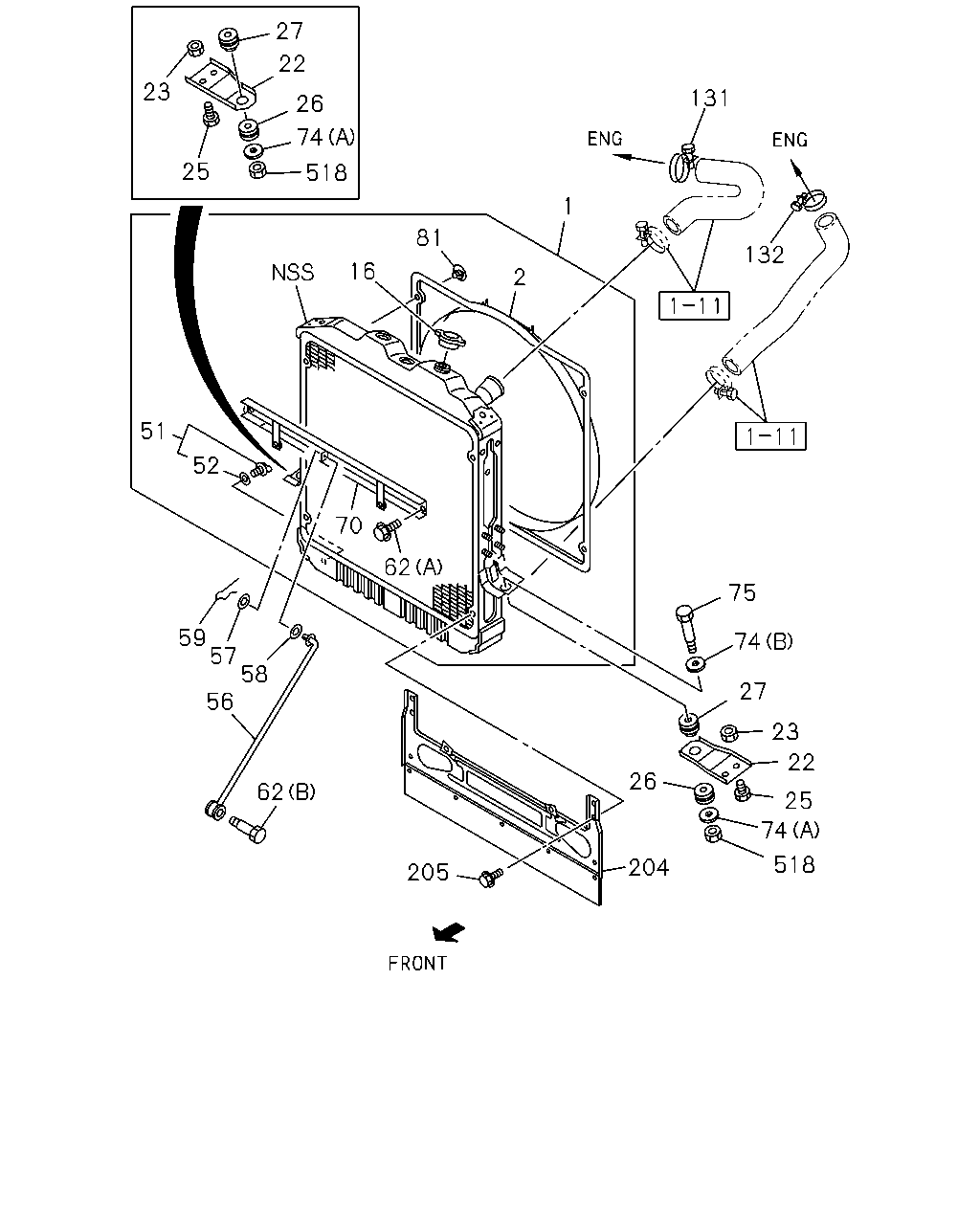

01.219 RADIATOR ASM
|
8-97376-730-0 |
01 |
1 |
0505- |
| |
2 |
01.277 GUIDE; FAN
|
8-97066-017-0 |
01 |
1 |
0505- |
| |
16 |
01.203 CAP; RAD
|
8-97177-872-0 |
01 |
1 |
0505- |
| |
22 |
01.270 BRACKET; RAD MTG
|
8-94101-621-1 |
02 |
1 |
0505- |
| |
23 |
01.271 NUT; RAD MTG
07.874
M10 FLANGE
|
5-09440-006-0 |
04 |
1 |
0505- |
| |
25 |
01.271 BOLT; BRKT
03.405
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
0505-0512 |
| |
25 |
01.271 BOLT; BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0601- |
| |
26 |
01.270 BUFFER; RAD,LWR
|
8-94249-347-0 |
02 |
1 |
0505- |
| |
27 |
01.270 BUFFER; RAD,UPR
|
8-94249-346-0 |
02 |
1 |
0505- |
| |
51 |
08.951 PLUG; DRAIN
08.915
W/GASKET
|
8-94321-236-0 |
01 |
1 |
0505- |
| |
52 |
08.951 GASKET; DRAIN PLUG
01.203
ID=10
|
9-09720-557-0 |
01 |
1 |
0505- |
| |
56 |
01.270 STAY; RAD
|
8-97032-801-2 |
01 |
1 |
0505- |
| |
57 |
01.271 WASHER; PL,STAY
07.874
ID=10.5 OD=18
|
9-09160-510-0 |
01 |
1 |
0505-0605 |
| |
57 |
01.271 WASHER; PL,STAY
17.198
ID=10.5
|
0-91610-510-0 |
01 |
1 |
0606- |
| |
58 |
01.271 WASHER; CURVED,STAY
ID=12
|
8-97011-676-0 |
01 |
1 |
0505- |
| |
59 |
01.271 PIN; SNAP,STAY
03.452
L=32.6
|
8-94202-777-0 |
01 |
1 |
0505-0610 |
| |
59 |
01.271 PIN; SNAP,STAY
L=32.6
|
8-97359-052-0 |
01 |
1 |
0611- |
| |
62 |
01.271 BOLT; STAY
08.900
(A)
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
0505- |
| |
62 |
01.271 BOLT; STAY
(B)
M8X45
|
8-94401-350-0 |
01 |
1 |
0505- |
| |
70 |
01.271 STAY; RAD
|
8-97047-899-0 |
01 |
1 |
0505- |
| |
74 |
01.270 WASHER; PL,CUSHION RUBBER
03.405
(A)
ID=8.5 OD=36
|
8-94221-082-0 |
02 |
1 |
0505-0610 |
| |
74 |
01.270 WASHER; PL,CUSHION RUBBER
(A)
ID=8.5 OD=36
|
8-97359-049-1 |
02 |
1 |
0611- |
| |
74 |
01.270 WASHER; PL,CUSHION RUBBER
04.792
(B)
ID=10.5 OD=26
|
9-09160-710-0 |
01 |
1 |
0505- |
| |
75 |
01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274
M8X63
|
8-94249-446-0 |
01 |
1 |
0505- |
| |
81 |
01.277 SCREW; FAN GUIDE,RAD
|
8-97088-810-0 |
04 |
1 |
0505- |
| |
131 |
01.166 CLIP; ENG SIDE TOP
ID=40
|
8-97245-216-0 |
01 |
1 |
0505- |
| |
132 |
01.166 CLIP; HOSE,ENG SIDE BOTTOM
ID=50
|
8-97245-217-0 |
01 |
1 |
0505- |
| |
204 |
01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60)
|
8-97376-880-0 |
01 |
1 |
0505- |
| |
205 |
01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60)
01.428
M6X12 FLANGE
|
0-28080-612-0 |
04 |
1 |
0505-0512 |
| |
205 |
01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
04 |
1 |
0601- |
| |
518 |
01.270 NUT
00.854
M8 FLANGE
|
5-09440-005-0 |
02 |
1 |
0505-0610 |
| |
518 |
01.270 NUT
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0611- |
