8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#4144) — 91 parça
çizim 7349
258 131 356
BalonParca AdiParca NoAdetTipApplied Date A B
131 CLIP; BAND
FULL TRACTOR TRUCK<RD6> L=180 		1-09707-162-1 01 1 9603- ●
258 SWITCH; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> 		1-82410-137-0 01 1 9603- ●
356 SWITCH; TRAILER,LOW PRESS
FULL TRACTOR TRUCK<RD6> 		1-48340-057-1 01 1 9603- ●

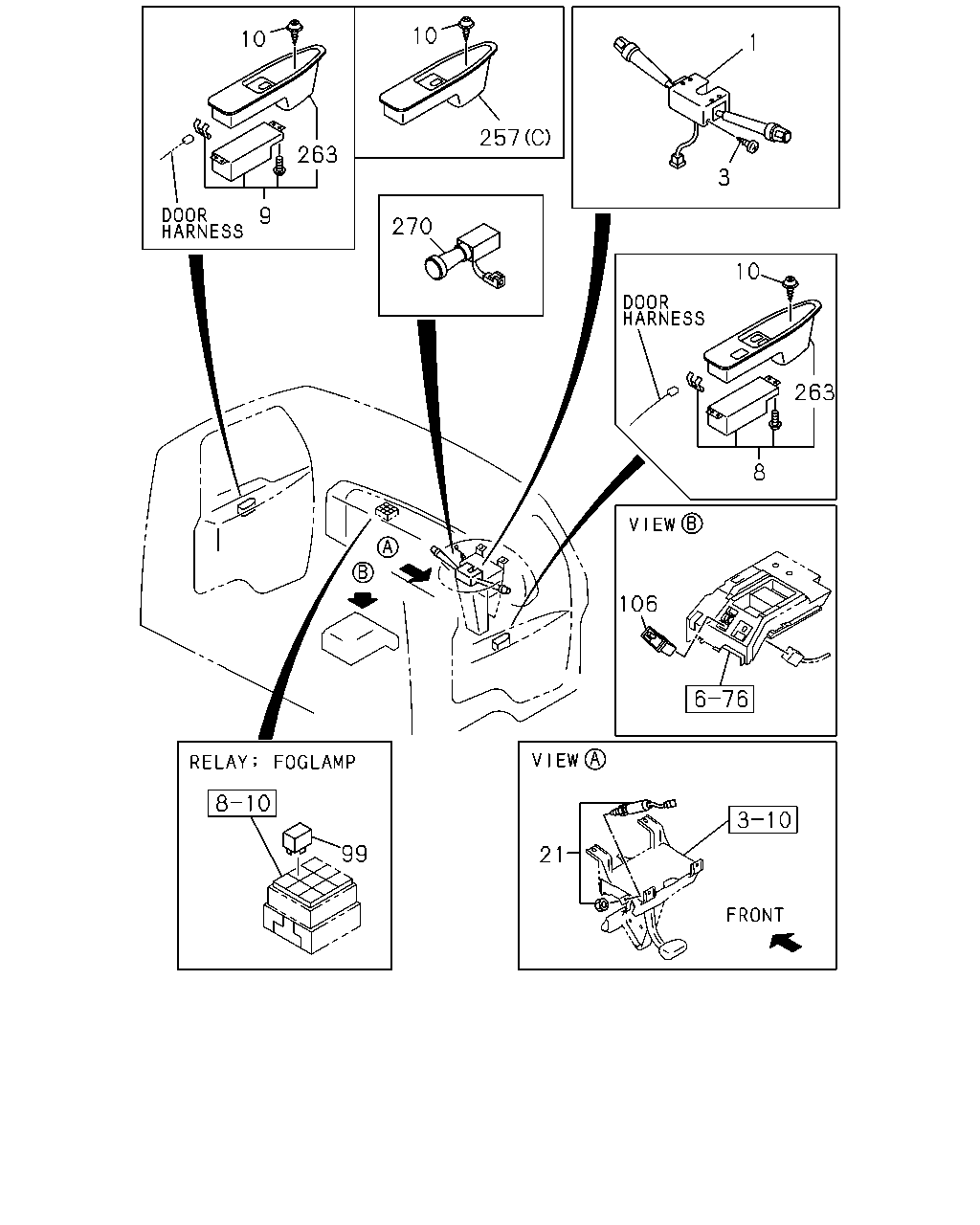

çizim 39579
10 10 1 257 263 3 9 270 10 263 8 106 99 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2> 		1-82360-412-2 01 1 9603-9706 ● ●
1 SWITCH; COMB 1-82360-412-3 01 1 9707-9904 ●
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-412-3 01 1 9707-9904 ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-412-3 01 1 9905-9906 ●
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-412-3 01 1 9905-9906 ●
1 SWITCH; COMB 1-82360-412-3 01 1 9907-0103 ●
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-412-3 01 1 9907-0103 ●
1 SWITCH; COMB 1-82360-619-0 01 1 0104- ●
1 SWITCH; COMB
EXC. NEW ZEALAND EQUIPMENT(PK5),BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-619-0 01 1 0104- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-360-6 01 1 9905-0103 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-610-0 01 1 0104- ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-428-1 01 1 9603-9706 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-428-2 01 1 9707-9904 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		1-82360-428-2 01 1 9905-9906 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-428-2 01 1 9905-9906 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-428-2 01 1 9907-0103 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-82360-621-0 01 1 0104- ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) 		1-82360-410-3 01 1 9603-9706 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-410-4 01 1 9707-0103 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-658-0 01 1 0104- ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-421-1 01 1 9707-9904 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-421-1 01 1 9905-0103 ●
1 SWITCH; COMB
NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-668-0 01 1 0104- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9705- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-148-0 01 1 9603-9709 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-155-3 01 1 9710- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-138-0 01 1 9603-9709 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-154-3 01 1 9710- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9708- ● ●
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 9603- ● ●
21 SWITCH; CLU 1-82380-114-2 01 1 9603- ● ●
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9603-9904 ● ●
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9905- ● ●
106 SWITCH; REMOTE CONT MIRROR
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82350-223-0 01 1 9905- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-9909 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9910- ●
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 9910- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603- ● ●
263 COVER; SW
POWER WINDOW<A30> DRIVER SIDE 		1-82385-005-2 01 1 9603- ● ●
263 COVER; SW
POWER WINDOW<A30> ASSIST SIDE 		1-82385-006-3 01 1 9603- ● ●
270 SWITCH; PRESS,WHEEL PARKING
NEW ZEALAND EQUIPMENT(PK5) 		1-82340-523-0 01 1 9603- ●

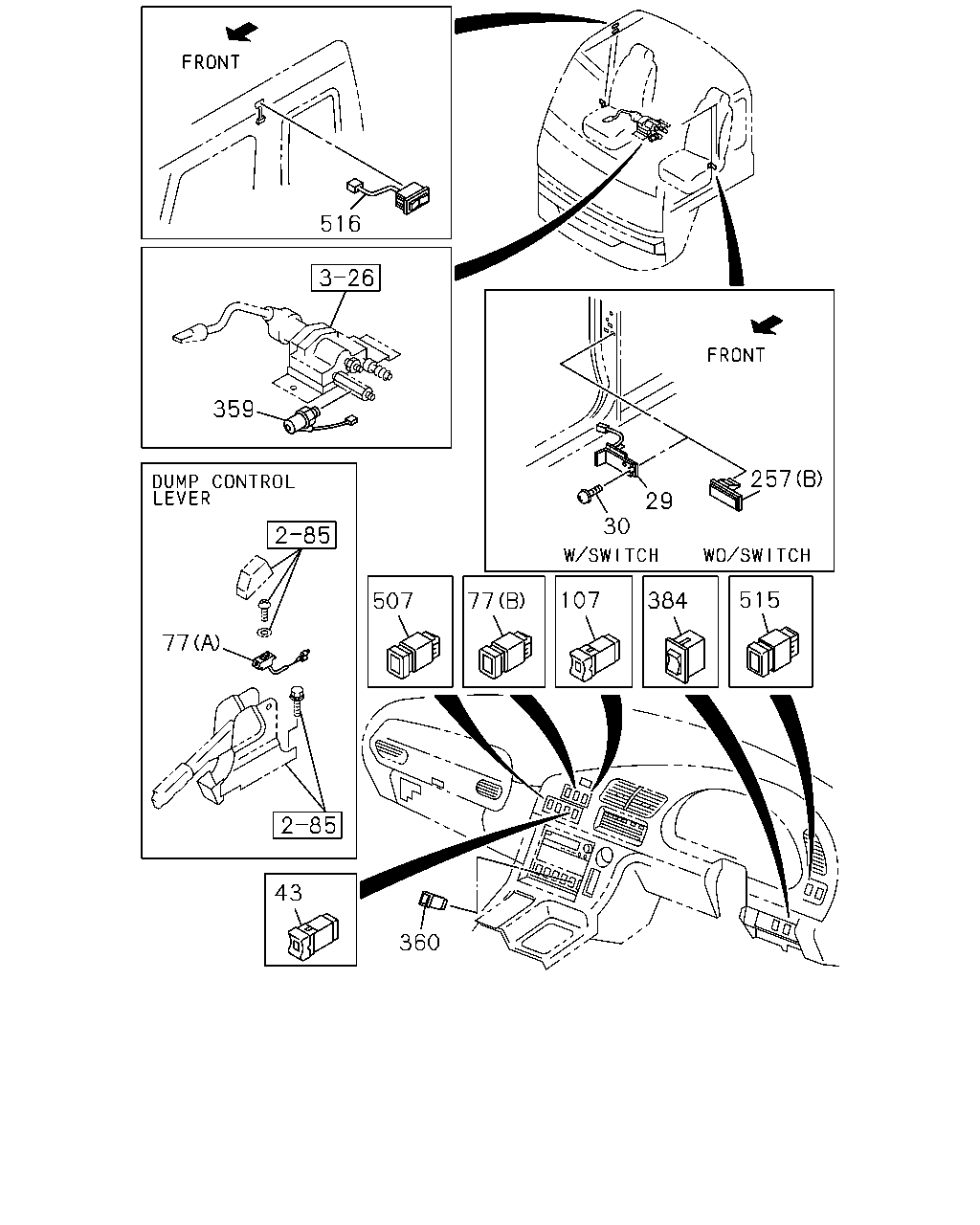

çizim 39613
516 359 257 29 30 515 107 384 507 77 77 43 360
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-2 01 1 9603-9909 ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 9910- ●
29 SWITCH; DOOR
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97855-032-3 01 1 9910- ●
29 SWITCH; DOOR
LAMP-ROOM OPERATION W/CONSOLE<C93> 		8-97855-032-3 02 1 9910- ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9603-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-9909 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9910- ●
30 SCREW; DOOR SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11 		1-09981-536-1 01 1 9910- ●
30 SCREW; DOOR SW
LAMP-ROOM OPERATION W/CONSOLE<C93> M5X11 		1-09981-536-1 02 1 9910- ●
43 SWITCH; HORN
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-82350-332-0 01 1 9905- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 9603- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9603-9705 ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9706-9706 ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 9706-9706 ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 9707-0004 ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 9707-0004 ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (B) 		1-82340-413-0 01 1 0005- ● ●
77 SWITCH; PTO
ELECTRONIC GOV RED3(KG5) MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-82340-413-0 01 1 0005- ● ●
107 SWITCH; REMOTE CONT,MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82350-233-0 01 1 9603- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-9909 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9910- ●
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 9910- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603- ● ●
359 SWITCH; TRAILER BRAKE
FULL TRACTOR TRUCK<RD6> GREEN 		1-82410-176-0 01 1 9603- ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 9603-9904 ● ●
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 9905- ● ●
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 9610- ● ●
507 SWITCH; MIRROR HEATER
MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> 		1-82340-423-0 01 1 9905- ● ●
515 SWITCH; FLUORESCENT LAMP
LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-82350-230-0 01 1 9910- ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> 		1-82350-240-2 01 1 9603- ● ●
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> 		1-82350-239-2 01 1 9603- ● ●

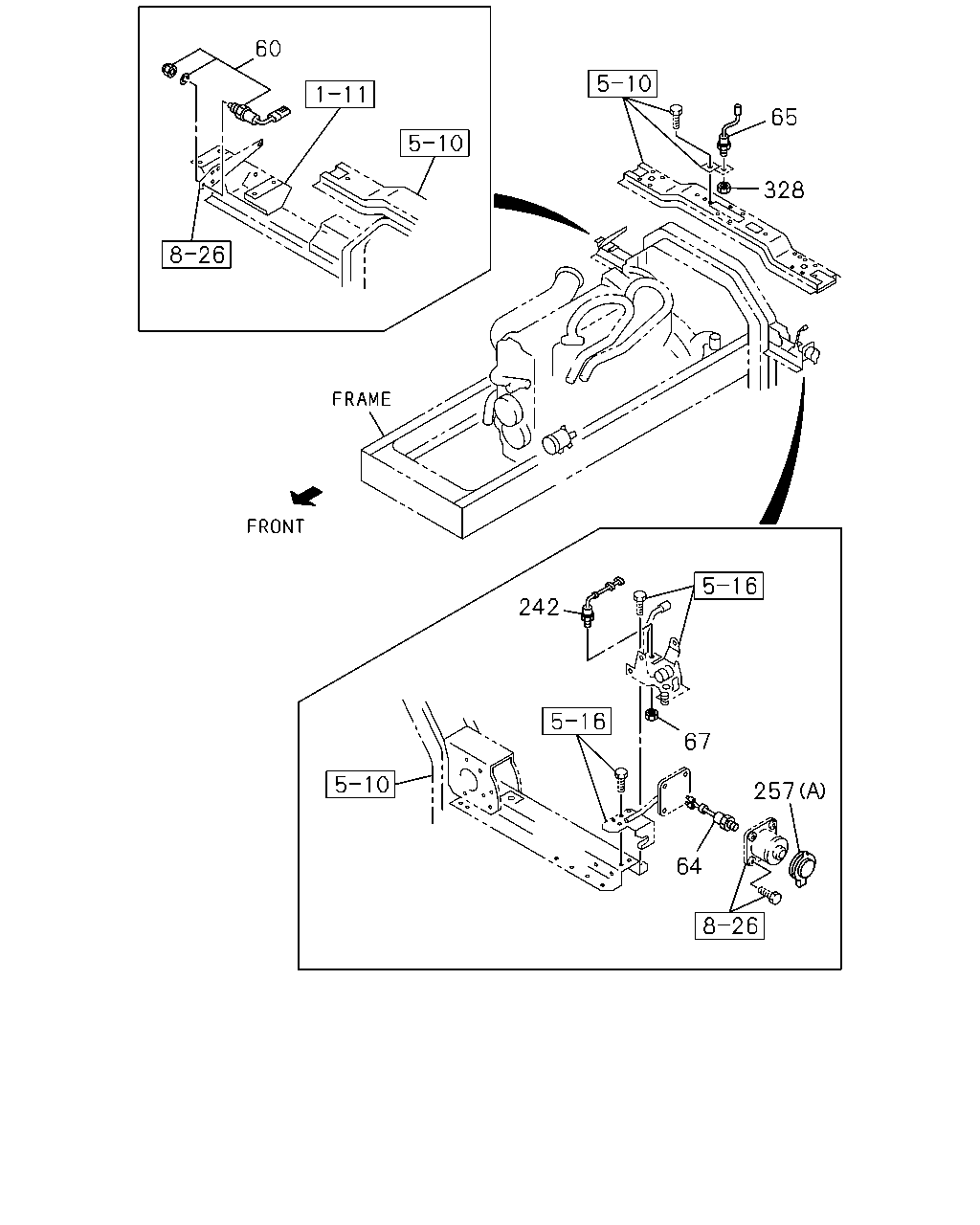

çizim 43609
60 65 328 242 67 257 64
BalonParca AdiParca NoAdetTipApplied Date A B
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9603- ● ●
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9603- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9603- ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9603- ● ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9603- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-9909 ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9910- ●
257 COVER; HOLE,SW
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) 		8-94229-914-1 01 1 9910- ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603- ● ●
328 NUT; SW
M16 		9-99110-416-0 01 1 9603- ● ●
