Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

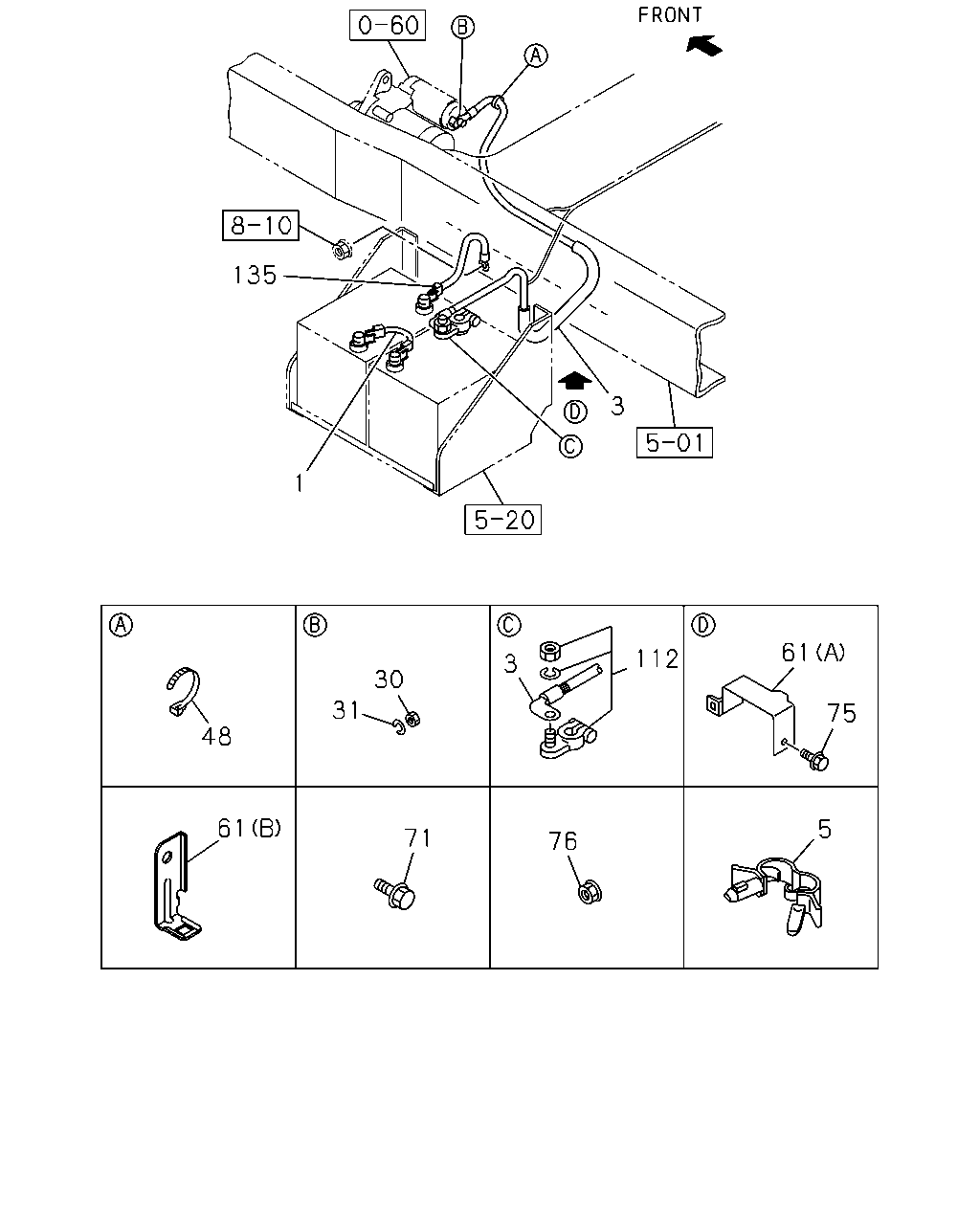

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#41439) — 18 parça
135
3
1
61
112
3
30
31
75
48
61
5
71
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
L=280
8-97230-719-2
01
1
0505-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
8-97377-776-0
01
1
0505-
5
02.559 CLIP; BATTERY CABLE TO BODY
03.162 ID=13-18 L=14.5
1-09709-290-0
01
1
0505-
30
02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8
9-09110-408-0
01
1
0505-0512
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
0601-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2
9-09150-508-0
01
1
0505-0603
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2
0-91510-508-0
01
1
0604-
48
02.343 CLIP; CABLE
03.162 L=140
5-09707-031-1
01
1
0505-
61
02.333 BRACKET; BATTERY CABLE
02.559 (B)
8-97046-762-0
01
1
0505-
61
02.333 BRACKET; BATTERY CABLE
(A)
8-97369-198-1
01
1
0505-
71
02.343 BOLT; BATTERY CABLE
04.930 M6X20 FLANGE
0-28680-620-0
01
1
0505-0512
71
02.343 BOLT; BATTERY CABLE
03.162 M6X20 FLANGE
0-28650-620-0
01
1
0601-
75
02.333 BOLT; BRKT
02.334 M6X25 FLANGE
0-28680-625-0
01
1
0505-0512
75
02.333 BOLT; BRKT
00.685 M6X25 FLANGE
0-28650-625-0
01
1
0601-
76
02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE
0-91150-106-0
01
1
0505-0602
76
02.343 NUT; BATTERY CABLE
01.062 M6 FLANGE
0-91180-106-0
01
1
0603-
112
02.343 TERMINAL; BATTERY
<+>
8-97356-925-1
01
1
0505-
135
02.343 CABLE; ENG TO BATTERY
8-98000-043-2
01
1
0505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
