Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶

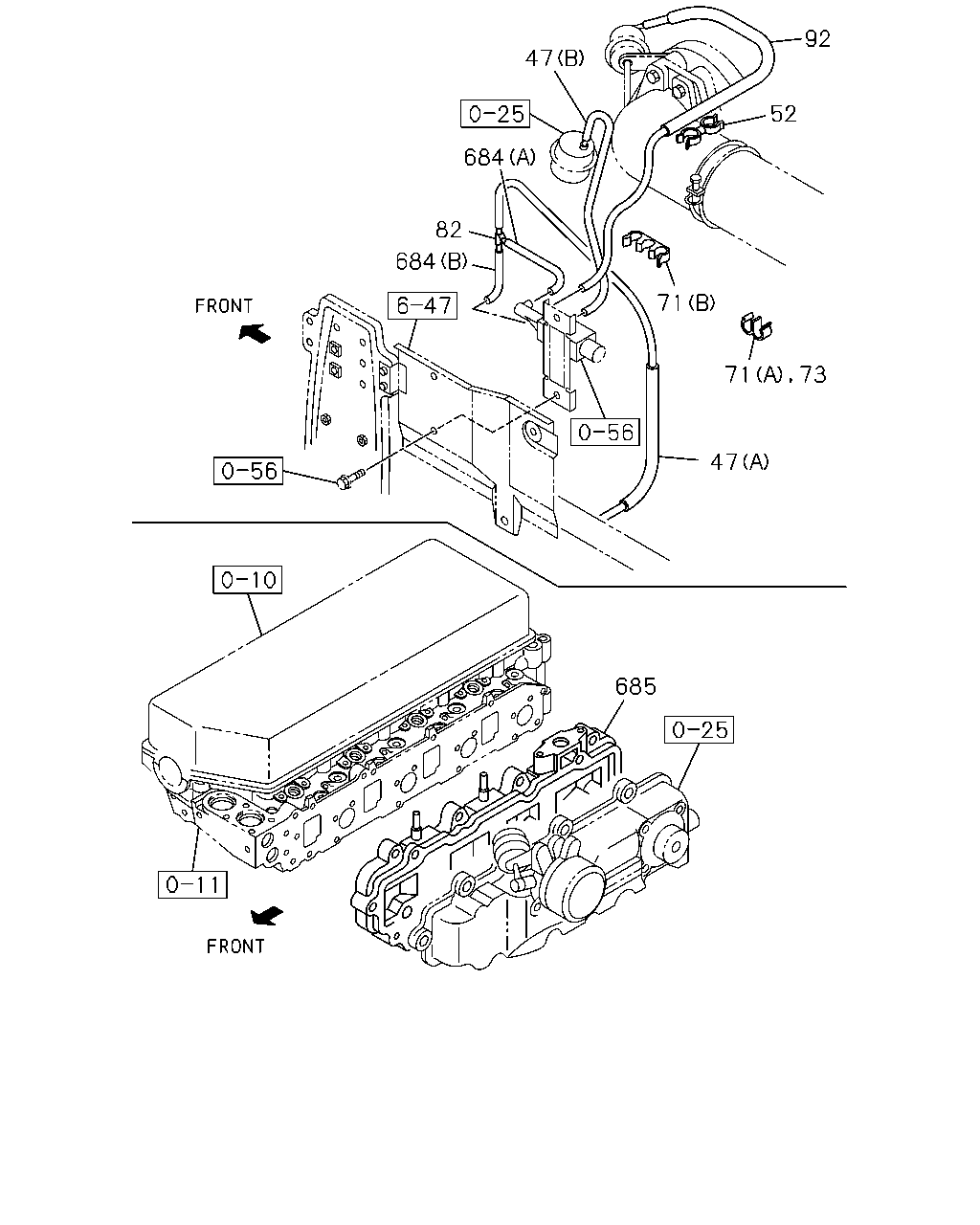

0-57 — EMISSION PIPING
(#41437) — 11 parça
92
47
52
684
82
684
71
71
73
47
685
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
03.675 HOSE; VAC,VSV
(A) L=310
8-97037-962-2
01
1
0505-
47
03.675 HOSE; VAC,VSV
AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=200 SERVICED BY L=3000
0-04730-300-0
01
1
0505-
52
03.680 CLIP; VSV HOSE
ID=7.5 & 7.5
8-97019-084-0
01
1
0505-
71
03.680 CLIP; RUBBER HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) ID=6.8X2
8-94126-636-0
01
1
0505-
71
03.680 CLIP; RUBBER HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.8 & 6.8 & 6.8
8-94208-734-0
01
1
0505-
73
03.680 CLIP; VAC HOSE
03.162 ID=6.8X2
8-94126-636-0
01
1
0505-
82
03.680 JOINT; 3 WAY
AIR CONDITIONER MANUAL CONT(C60) 3WAY
8-94208-695-0
01
1
0505-
92
03.675 HOSE; VAC,THROTTLE BODY
8-97106-645-3
01
1
0505-
684
03.675 HOSE; VAC,JOINT TO VSV
AIR CONDITIONER MANUAL CONT(C60) 08.962 (A) L=30 SERVICED BY L=3000
0-04730-300-0
01
1
0505-
684
03.675 HOSE; VAC,JOINT TO VSV
AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=50 SERVICED BY L=3000
0-04730-300-0
01
1
0505-
685
03.680 CASE; INLET,EGR
8-97146-873-1
01
1
0505-
